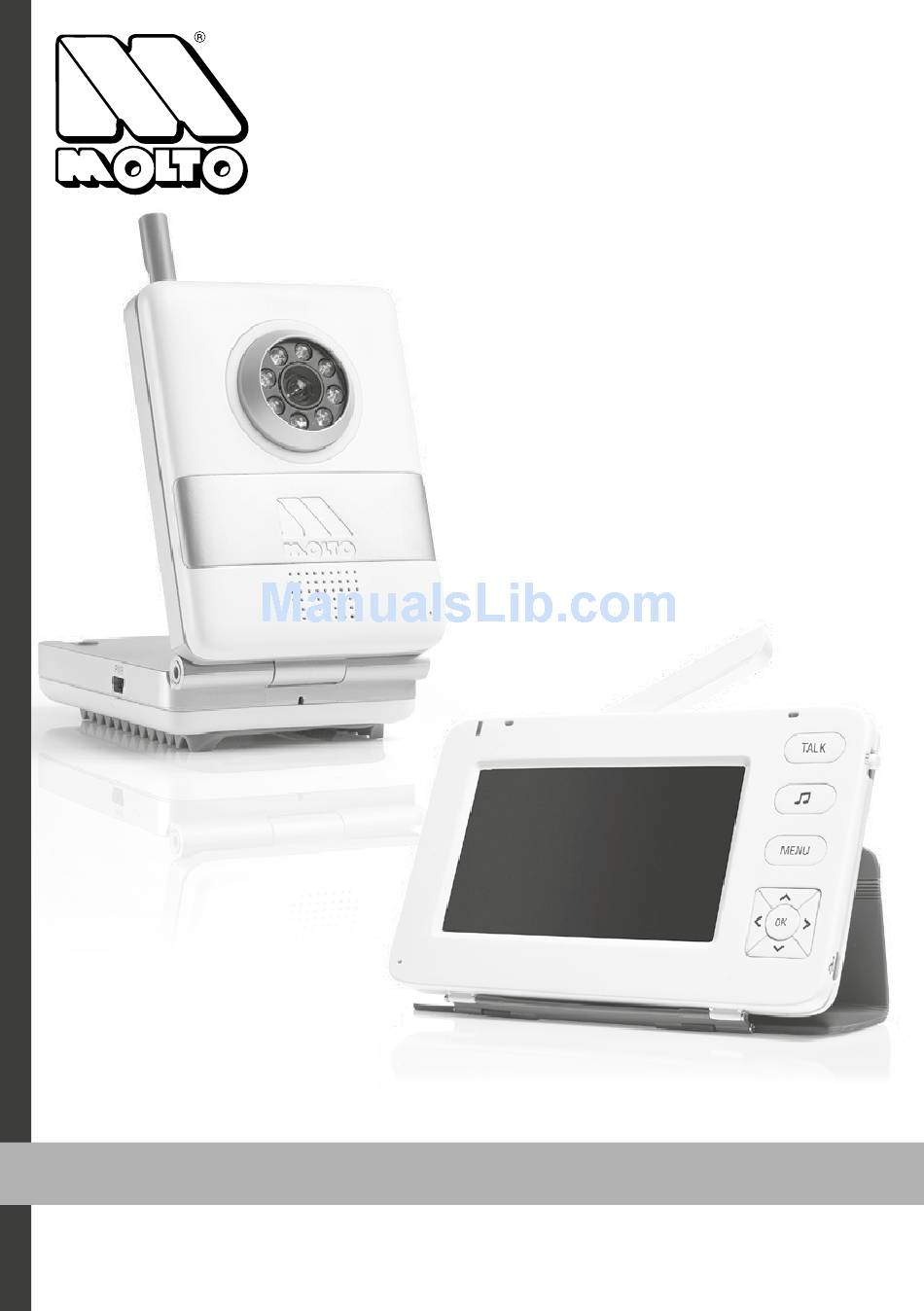

Complete Operating
Instructions
Baby Monitor 4,3"
14754
READ THIS MANUAL COMPLETELY AND CAREFULLY BEFORE USING THIS PRODUCT AND KEEP IT
FOR FUTURE REFERENCE.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 14754 and is the answer not in the manual?

Questions and answers

Related Manuals for Molto 14754

Summary of Contents for Molto 14754

  • Page 1 Complete Operating Instructions Baby Monitor 4,3” 14754 READ THIS MANUAL COMPLETELY AND CAREFULLY BEFORE USING THIS PRODUCT AND KEEP IT FOR FUTURE REFERENCE.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Package Contents Introduction Features Safety Instruction Know Your Monitor Know Your Camera Powering Up Monitor/Camera Operation 8-12 Pairing Placement Night Vision Main Menu Monitor Volume Two way TALK function Lullaby VOX Mode Camera View Camera Volume Brightness Night Light Temperature Alarm Troubleshooting...

  • Page 3: Introduction

    INTRODUCTION About 2.4 Ghz Digital Wireless Signals MOLTO Baby Monitor is an innovative, digital wireless solution integrating advan- ced Frequency Hopping Spread Spectrum (FHSS). This technology greatly reduces in- terference coming from other devices using the same radio frequency (2.4 Ghz), such as WIFI, Bluetooth, cordless phones, etc..

  • Page 4: Features

    FEATURES • 4.3” LCD Color High Resolution TFT LCD Display • Two way talk function • Transmission Range up to 250 mts • Up to 3 mts. Night Vision Range • 2.4 GHz Private Digital Transmission • No installation needed—ready to use •...

  • Page 5: Safety Instruction

    SAFETY INSTRUCTION Note: Please keep this manual for future reference. • This product is not intended to be used as a medical monitor and its use should not replace adult supervision. CAUTION This product cannot replace responsible adult supervision • Periodically examine this product for damage to the cord, housing or other parts that may result in the risk of fire, electric shock or injury.

  • Page 6: Know Your Monitor

    KNOW YOUR MONITOR Fig. 4 Fig. 5 KNOW YOUR CAMERA Fig. 7 Fig. 6 11. Power ON Button (OFF / ON) Lock Button 12. Antenna Setting Button / ºC - ºF 13. Light Sensor Power ON and battery charge Indicator 14.

  • Page 7: Powering Up

    Note: Camera only functions while its AC/DC Adapter is connected. Camera battery not included, sold separately. Warnings: 1. Replace rechargeable batteries with provided by Molto ONLY. 2. Remove the battery during long periods of non-use. 3. Use only the AC/DC Adapters supplied with the system.

  • Page 8: Monitor/Camera Operation

    MONITOR / CAMERA OPERATION Pairing the Camera(s) and Monitor The monitor and camera are paired (wirelessly linked) by the manufacturer at the factory. If you ever need to re-link the camera, you need to pair each following this sequence: Note: Before you begin pairing, be sure to have the monitor and the camera(s) side by side.

  • Page 9: Pairing

    MONITOR / CAMERA OPERATION Night Vision The camera is equipped with Invisible IR (infrared) LEDs which keep the nursery dark. The LEDs are located on the front of the camera and allow you to see up to 3,5m in complete darkness so you can check on your baby at any time of night. The night vision LEDs will activate automatically when the Light Sensor on the top of the camera detects that the light levels are too low.
  • Page 10 MONITOR / CAMERA OPERATION Setting the Monitor Volume Use the navigational arrows to increase/decrease/mute the volume. (Fig. 4; no. 4) • Press the button to INCREASE the volume in LIVE VIEW; the VOLUME icon will display the volume level in the top left corner of the screen. •...
  • Page 11 MONITOR / CAMERA OPERATION Changing the Camera View 1. To change the camera view, press the MENU button. Using the navigational arrows on the front of the monitor, highlight the CAMERA icon. 2. Use to toggle to select the CAMERA icon of your choice and press the SELECT button once to select.
  • Page 12 Setting the Night Light Choose from two different NIGHT LIGHT modes: ON: Night Light is permanently ON. AUTO: The Night Light will activate automatically when a sound is detected. (ONLY WHEN THE VOX MODE IS ON) 1. To set the Night Light, press the MENU button. Using the navigational arrows on the front of the monitor, highlight the NIGHT LIGHT icon 2.

  • Page 13: Troubleshooting

    N.R.I. 03-10142 www.molto.com Hereby, Moltó y Cía, S. A. declares that the radio equipment type «Ref. 14754 Baby Monitor 4.3’’ screen» is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.molto.es/info/monitor14754...
