Blaze BLZ-GRIDDLE-LP/NG Use & Care Manual

Blaze BLZ-GRIDDLE-LP/NG Use & Care Manual

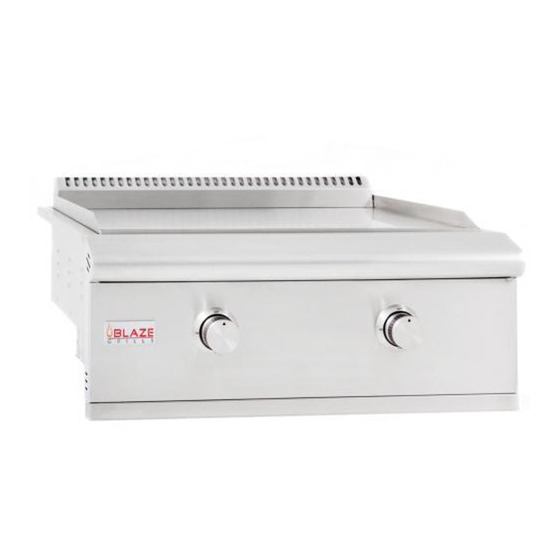

Gas griddle

Advertisement

DANGER
- IF YOU SMELL GAS:
I) Shut off the gas supply to the appliance at its source.
2) Extinguish any open flames.
3) If a gas odor persists, Keep away from your
appliance and contact your gas supplier or fire
department immediately.
ATTENTION:
INSTALLER: PLEASE LEAVE THESE INSTRUCTIONS WITH THE CONSUMER.
CONSUMER: PLEASE READ & RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE AND BEFORE
INSTALLING OR OPERATING.
Blaze Outdoor Products: 6620 Greenwell Springs Rd, Baton Rouge, LA
Version 1.0
USE & CARE GUIDE
GAS GRIDDLE BLZ-GRIDDLE-LP/NG
- CONTACT INFORMATION -
70805 USA Phone: 866-976-9510 email:
CustomerService@BlazeGrills.com BLAZEGRILLS.COM
Blaze Outdoor Products Instructional Book
WARNING
I) Do not store or use gasoline or other flammable
liquids or vapor in the vicinity of this or any other
appliance
2) A LP cylinder not connected for use shall not be
stored in the vicinity of this or any other appliances.
Page | 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BLZ-GRIDDLE-LP/NG and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Blaze BLZ-GRIDDLE-LP/NG

  • Page 1 CONSUMER: PLEASE READ & RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE AND BEFORE INSTALLING OR OPERATING. - CONTACT INFORMATION - Blaze Outdoor Products: 6620 Greenwell Springs Rd, Baton Rouge, LA 70805 USA Phone: 866-976-9510 email: CustomerService@BlazeGrills.com BLAZEGRILLS.COM Blaze Outdoor Products Instructional Book Page | 1 Version 1.0...
  • Page 2: Table Of Contents

    Outdoor Kitchen Ventilation (20-21) ii. Building Specifications + Instruction iii. Installation Diagrams VII. First Time Operation i. Lighting the Appliance ii. Manually Lighting the Appliance 26-27 iii. Flame Adjustment Blaze Outdoor Products Instructional Book Page | 2 Version 1.0...
  • Page 3 VIII. Cleaning your Appliance 28-29 IX. Warranty Registration Parts 31-32 XI. Product Serial Number XII. Blaze Product Registration Blaze Outdoor Products Instructional Book Page | 3 Version 1.0...
  • Page 4: Safety And Installation Warnings

    IMPORTANT SAFETY INFORMATION – Blaze Griddle Please read this manual carefully and before using your BLAZE GRIDDLE to ensure proper operation, installation, servicing and to reduce the risk of fire, burn hazard and or other injury. This manual should be retained for your information NOTE: Improper installation and service or maintenance may cause property damage, injury or death.
  • Page 5 When using your Blaze appliance, please read and follow these basic precautions: To reduce the risk of fire, electric shock, or injury, read and follow these basic precautions before installing/operating your appliance. APPLIANCE INSTALLATION This gas appliance must be installed in accordance with all local codes.
  • Page 6 Although an obstructed burner tube not the only cause “FLASH-BACK” it is the most common cause, and frequent inspection and cleaning of the burner tubes is necessary. Blaze Outdoor Products Instructional Book Page | 6...
  • Page 7: Location Of Appliance

    This outdoor cooking gas appliance is not approved to be installed in or on any recreational vehicles and /or boats. Blaze Griddles are for single family/residential use only. When determining a suitable location take into account concerns such as exposure to wind, proximity to traffic paths and keeping any gas supply lines as short as possible.
  • Page 8 Please note since hot air rises above the BLAZE GRIDDLE while in operation, covered locations should be avoided. Do not locate the BLAZE GRIDDLE where an overhang or awning may cover it.
  • Page 9 Never place your fingers inside the observation openings in the griddle at any time as injury could occur. Blaze Outdoor Products Instructional Book Page | 9 Version 1.0...
  • Page 10: Electrical Safety And Installation Warnings

    This appliance conforms to all uniform electrical safety codes and electrical grounding regulations. Install unit according to I.A.W. local codes or with National Electrical Code ANSI/NFPA 70 or CSA C22.1 in their absence. Blaze Outdoor Products Instructional Book Page | 10 Version 1.0...
  • Page 11: Gas Safety And Installation Warnings

    CHECK TO ENSURE THAT THE GAS SUPPLY HOSE DOES NOT COME IN CONTACT WITH ANY HOT SURFACE, SHARP OR ROUGH EDGES OF THE GRIDDLE OR OUTDOOR KITCHEN CONSTRUCTION. DO NOT KINK THE GAS LINE WHEN INSTALLING. Blaze Outdoor Products Instructional Book Page | 11 Version 1.0...
  • Page 12: Gas Leaks

    Check to ensure that flexible hoses do not have any cuts and wear that may affect the safety before each use. Only the factory supplied hose and regulator must be used. Use only replacement regulator and hose assemblies specified by BLAZE OUTDOOR PRODUCTS. Blaze Outdoor Products Instructional Book Page | 12 Version 1.0...
  • Page 13: Checking For Gas Leaks

    The below diagram is intended to show what a leaking connection would look like. These two locations are not the only points to check nor the only potential areas for a gas leak to be present. Blaze Outdoor Products Instructional Book Page | 13...
  • Page 14: Leak Testing

    Ensure the leak test includes all valves, pipe connections, joints, lines and every point from the gas source to the burners. NEVER USE AN OPEN FLAME TO CHECK FOR LEAKS. Blaze Outdoor Products Instructional Book Page | 14 Version 1.0...
  • Page 15: Unpacking Unit

    Your Blaze Series Appliance comes pre-assembled and requires very little setup. We do however; recommend the use of professional help during the installation of your unit as improper installation may affect your warranty.
  • Page 16: Gas Connections

    An installer supplied gas shutoff valve must be installed in an accessible place. Liquid Propane (LP) Gas and Tank Requirements  If your BLAZE GRIDDLE is for Liquid Propane application, a L.P regulator set for 11” WC must be used and is for use with L.P. gas only. ...
  • Page 17: Transporting And Storing Lp Gas

    Procedure for LP Gas Cylinder Connection (20 lbs) 1. Turn the “Hand Wheel” on cylinder clockwise until it stops to ensure the Cylinder Valve is fully closed. 2. Turn all of the burner knobs to the OFF Blaze Outdoor Products Instructional Book Page | 17 Version 1.0...
  • Page 18 6. To disconnect after you have used the appliance, turn the burner knobs to the OFF position. 7. Close the Cylinder Valve by turning the Hand Wheel counter-clockwise until it stops. 8. Disconnect the regulator from the LP cylinder after use. Blaze Outdoor Products Instructional Book Page | 18 Version 1.0...
  • Page 19: Installing The Appliance In A Island

    This can back up the heat behind the control panel potentially creating a gas leak, damage to the product, and injury. A wind block behind the griddle may be necessary. Blaze Outdoor Products Instructional Book Page | 19 Version 1.0...
  • Page 20: Outdoor Kitchen Ventilation

    (picture shown in owner’s manual), and both the cabinets containing the gas appliances and the gas tank should be ventilated appropriately. If a plenum wall is undesirable, Blaze offers a Propane tank drawer as an alternative.
  • Page 21 The appliance should rest on the lip of the frame. Pay careful attention to the location of the gas line. It should be routed away from sources of heat, aggressive Blaze Outdoor Products Instructional Book Page | 21...
  • Page 22 Check to make sure the appliance is level and is supported around the entire outside edge. If the appliance is not level or is unstable, use non-combustible shims under the outside lip to stabilize it. Perform the leak test procedure as described earlier in this manual. Blaze Outdoor Products Instructional Book Page | 22 Version 1.0...
  • Page 23: Building Specifications + Instruction

    *If your outdoor kitchen is constructed of combustible materials, an insulated jacket is REQUIRED CUT OUT DIMENSIONS FOR BUILT-IN APPLICATIONS – BLAZE GRIDDLE ALL ISLANDS MUST BE MANUFACTURED FROM “NON-COMBUSTIBLE” MATERIAL. Minimum clearance to adjacent combustible surface at 14” from sides & 16” from back.
  • Page 24: Installation Diagrams

    Installation Diagram Installation Method for Low Pressure Gas (5 Gallon LP tank shown) Source- (Natural Gas Regulator Shown) FIRST TIME OPERATION Blaze Outdoor Products Instructional Book Page | 24 Version 1.0...
  • Page 25: Lighting The Appliance

    If the burner does not light in 5 seconds, turn the burners off and wait five minutes until the gas clears before attempting to light it again. Repeat the procedure or try the manual lighting procedure Blaze Outdoor Products Instructional Book Page | 25...
  • Page 26: Manually Lighting The Appliance

    Wait five minutes until the gas clears before attempting to light it again. If the burner does not light after several attempts, immediately close all gas valves and consult an authorized service technician. Blaze Outdoor Products Instructional Book Page | 26 Version 1.0...
  • Page 27: Flame Adjustment

    ½” on LOW. (To adjust the LOW flame setting simply light the appliance on the LOW setting and adjust the screw located under the knob on the front of the valve using a flat head screwdriver as seen in the diagram below.) Low flame setting screw Blaze Outdoor Products Instructional Book Page | 27 Version 1.0...
  • Page 28: Cleaning Your Appliance

    If using an oven cleaning agent, be sure to carefully follow the manufacturer’s instructions to avoid damage to the stainless steel. Make sure the drip tray is fully inserted back into the BLAZE GRIDDLE Blaze Outdoor Products Instructional Book Page | 28 Version 1.0...
  • Page 29 BLAZE GRIDDLE and making it unsafe to operate. Inspect the burners and orifices once a year, or if the BLAZE GRIDDLE has not been used for more than a month or if any of the following conditions occur: The smell of gas and with the burner flames appearing yellow.
  • Page 30: Warranty Registration

    Warranty Registration If you have purchased a Blaze Series Griddle you must register your product within 30 days of purchase to validate the warranty and maintain your original receipt to get parts for the appliance. You may register your appliance at blazegrills.com by selecting Support, and then selecting Register your Product.
  • Page 31: Parts

    11. Drip Pan HD-30-14 3. Control Panel HD-30-3 12. Lid Handle HD-30-13 4. Valve BLZ-3PRO-059 5. Flue Cover HD-30-5 6. Griddle Plate HD-30-6 Lid Cover HD-30-7 Firebox HD-30-8 Stainless Steel Burner HD-30-9 Blaze Outdoor Products Instructional Book Page | Version 1.0...
  • Page 32 EXPLODED VIEW –BLAZE GRIDDLE Blaze Outdoor Products Instructional Book Page | 32 Version 1.0...
  • Page 33: Product Serial Number

    Locating the Product Serial Number: The serial number for your BLAZE appliance is located on the left hand outs ide of the Firebox (see picture on page 11.) You will need this number to properly register your appliance and activate coverage. Write this...
  • Page 34: Blaze Product Registration

    Please take a minute to let us know what you bought. This makes sure we keep you up to date and have your info ready if you ever need warranty help! You may register your product electronically on the blaze website vs mailing in the below paperwork, blazegrills.com.
