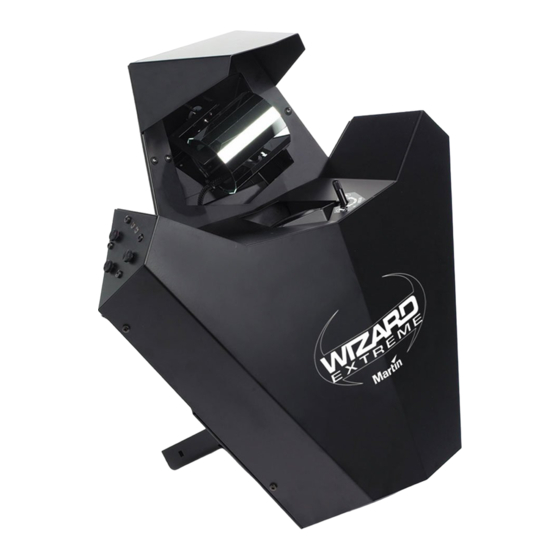

Martin Professional Wizard Extreme User Manual

250 w discharge light
Hide thumbs
Table of Contents

Advertisement

Quick Links

Wizard Extreme
user manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Wizard Extreme and is the answer not in the manual?

Questions and answers

Related Manuals for Martin Professional Wizard Extreme

Summary of Contents for Martin Professional Wizard Extreme

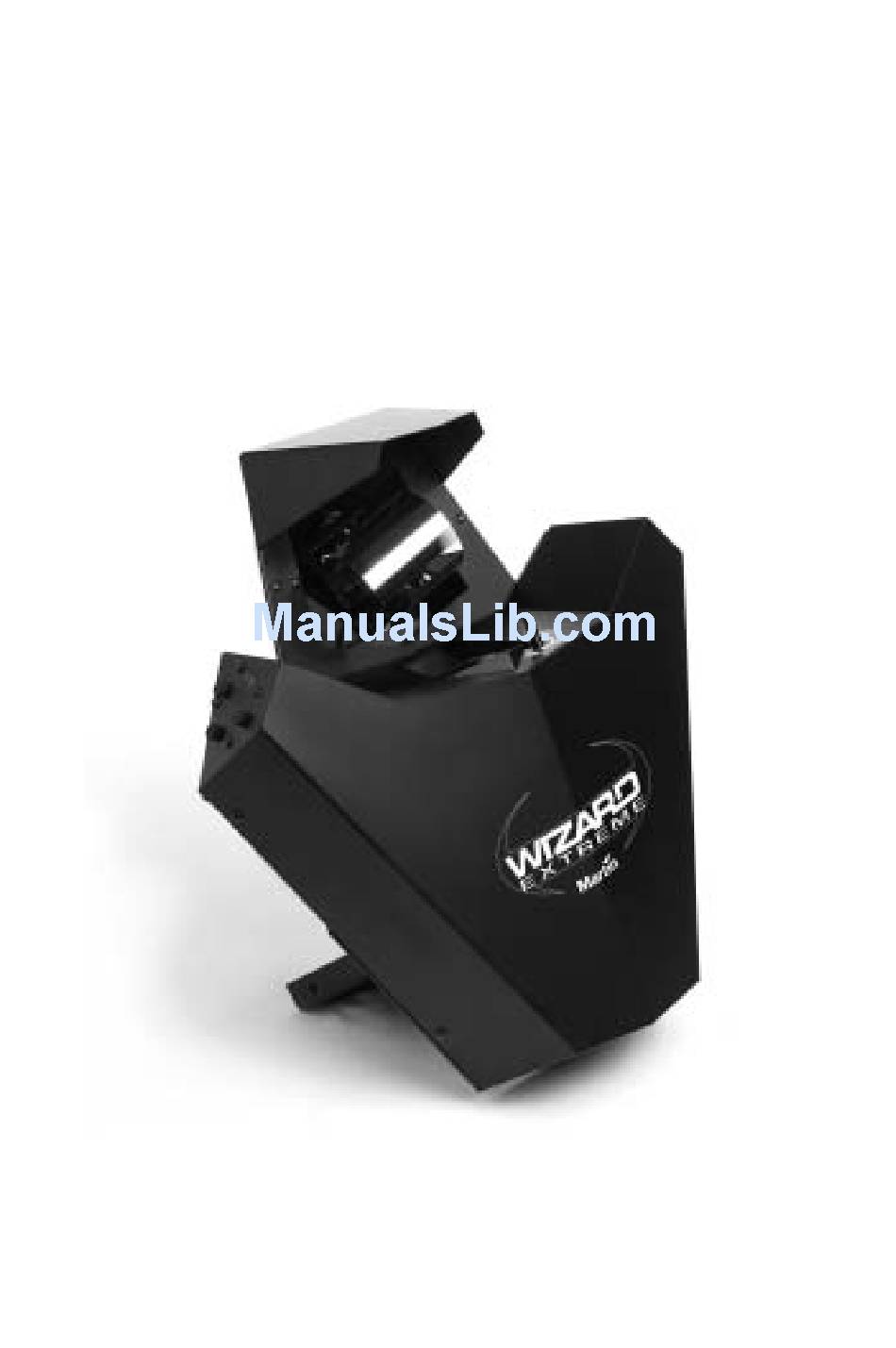

  • Page 1 Wizard Extreme user manual...
  • Page 2 © 2004 Martin Professional A/S, Denmark. All rights reserved. No part of this manual may be reproduced, in any form or by any means, without permission in writing from Martin Professional A/S, Denmark. Printed in Denmark. P/N 35000155, Rev. B...

  • Page 3: Table Of Contents

    ......40 Wizard Extreme specifications ......41...

  • Page 5: Introduction

    NTRODUCTION Thank you for selecting the Martin Wizard Extreme. The Wizard Extreme is an automated lighting fixture that features: • 12 factory-designed macros that allow light shows to be created quickly with minimal programming • Strobe effects • Two independent color/gobo wheels •...
  • Page 6 • The lamp must be changed if it has become damaged or thermally deformed. Preventing injuri es due to fall s • When suspending the fixture above ground level, verify that the structure can hold at least 10 times the weight of all installed devices. Wizard Extreme user manual...

  • Page 7: Unpacking

    The packing material is carefully designed to protect the fixture during shipment – always use it to transport the fixture. The Wizard Extreme is supplied with the following: • 3-wire power cable. • This user manual. The latest version of this manual is also available in the support area of the Martin website at http://www.martin.com...

  • Page 8: Ac Power

    POWER The Wizard Extreme’s operating voltage is printed on the serial number label that can be found on the back of the Wizard Extreme. Verify that the operating voltage closely matches the AC supply voltage before applying power. Contact your Martin dealer if the operating voltage differs from your supply voltage by more than five percent.
  • Page 9 230 V 240 V 250 V Ballast Transformer 240 V 225 V Local AC Supply Transformer Ballast Freq. Voltage Setting Terminal Setting / Terminal 50 Hz 220 - 235 V 225 V 230 V 50 Hz 235 - 245 V 240 V 240 V 50 Hz...
  • Page 10 5. On the transformer, move the BROWN wire to the setting as listed in the previous table for the local AC voltage. The terminals are indicated on a label on the top of the transformer. 6. Replace the cover. Wizard Extreme user manual...

  • Page 11: Installation

    NSTALLATION The Wizard Extreme can be hung overhead with a clamp (not included), mounted vertically on a wall, or placed on the floor (using the optional floor stand). Warning! Block access below the work area before proceeding. Always use a secure means of secondary attachment.

  • Page 12: Overhead Mounting

    0.1 meters (4 in.). O P E R A T I O N F R O M T H E F L O O R To operate the Wizard Extreme from the floor, you need the optional floor stand (P/N: 91606008).
  • Page 13 This will depend on the angle that the Wizard Extreme is set at. 2. Place the fixture on the floor. Adjust the mounting bracket and tighten both swivel locks. 3. Verify that the fixture is stable, that it is at least 0.1 meters (4 in.) from the surface to be illuminated and at least 0.3 meters (12 in.) from any...

  • Page 14: Multi-Coupler Bracket

    (P/N: 91606008). Example multi-coupler bracket installations Instructions for installing Wizard Extreme fixtures on the multi-coupler bracket are supplied with the bracket. They are also available in the W i z a r d s e c t i o n o f t h e S u p p o r t a r e a o n t h e M a r t i n w e b s i t e a t http://www.martin.com...

  • Page 15: Data Connection

    C O N N E C T I O N S The Wizard Extreme’s XLR data sockets are wired with pin 1 to ground, pin 2 to signal - (cold), and pin 3 to signal + (hot). This is compatible with the standard for DMX devices.
  • Page 16 A termination plug is simply an XLR connector with a 120 ohm, 0.25 W resistor soldered across pins 2 and 3. Male Female Termination Plug Termination Plug Male XLR Female XLR 120 Ohm 120 Ohm P/N 91613017 P/N 91613018 Wizard Extreme user manual...

  • Page 17: Stand-Alone Operation

    • If you have a Wizard Extreme set as master and you want to use a different fixture on the data link as master, set the existing master to slave before you set the new master.
  • Page 18 Connecting units for master / slave operation 1. Connect the output of one Wizard Extreme to the input of the next. 2. Connect additional Wizard Extremes output to input. Up to 32 may be connected.

  • Page 19: Stand-Alone Settings

    When pin 10 is off, the DIP-switch selects a DMX address. Pin 11 must be OFF for stand-alone operation. After setting DIP-switch 10, the Wizard Extreme must be powered off and then on again to activate or deactivate stand-alone operation.

  • Page 20: Operation

    MC-1 OPERATION The Wizard Extreme is fully compatible with the Martin MC-1 controller. This chapter describes information about how to configure the Wizard Extreme for operation with an MC-1. For further information, refer to the MC-1 user manual. M C - 1 S E T T I N G S DIP-switch pin 10 must be set to OFF to enable MC-1 mode operation.

  • Page 21: Dmx Operation

    OPERATION The Wizard Extreme can be connected to and operated from a DMX controller. To do this you need to: 1. Choose and set one of the three DMX modes. These three modes are described in the following sections, “DMX modes” and “Setting the DMX mode”...
  • Page 22 In Wizard emulation 8-channel mode, the Wizard Extreme emulates the original Wizard fixture, using the original Wizard’s 8-channel extended DMX mode. If Wizard emulation mode is set, the Wizard Extreme can be added to an existing installation of Wizards and will behave exactly as if it was a Wizard in 8-channel mode.
  • Page 23 DMX controller is limited, but you still want some level of control over your fixtures. If you set the Wizard Extreme to 1-channel DMX mode and select a stand-alone function, the fixture operates in music trig mode, but you can control of the following functions on the DMX channel.

  • Page 24: Setting The Dmx Mode

    If the Wizard Extreme is set to Wizard emulation 8-channel mode, it reads the DMX data on the start channel and the next seven channels. If the Wizard Extreme is set to 1-channel mode, it reads the DMX data on the start channel only.
  • Page 25 2. Look up the DIP-switch setting using the Martin DIP Switch Calculator at http://www.martin.dk/service/dipswitchpopup.htm or look for the address in the DIP-switch settings table below. 3. Disconnect the fixture from power. 4. Set pins 1 through 9 to the ON (1) or OFF (0) position as listed in the table.

  • Page 26: Basic Service

    Cleaning the fan and air vents To maintain adequate cooling, dust must be cleaned from the fan and air vents. The Wizard Extreme fan can be removed from the fixture to give access for cleaning. To clean the fan: 1.
  • Page 27 2. Pull the two locking pins on the fan up to release it, and lift up the outer edge of the fan (illustration A). 3. Slide the fan out of the fixture housing (illustration B). 4. When the fan is clear of the housing, lift it up for access to the fan blades.
  • Page 28 5. Remove smoke and other residues with cotton swabs or unscented tissues moistened with isopropyl alcohol. A commercial glass cleaner may be used, but residues must be removed with distilled water. Clean Wizard Extreme user manual...

  • Page 29: Lamp Maintenance

    L A M P M A I N T E N A N C E The Wizard Extreme is supplied installed with a Philips MSD 250/2 long- life discharge lamp (average life 3000 hours). Lamp envelopes weaken with age, so to reduce the risk of lamp explosion we recommend replacement of this lamp after maximum 3300 hours of use, as specified by the manufacturer.
  • Page 30 7. Replace the lamp-access cover and screws. Adjusting the lamp The Wizard Extreme lamp assembly is adjusted at the factory. Due to differences between lamps, however, fine adjustment may improve performance. 1. Disconnect the fixture from AC power.

  • Page 31: Fuses

    F U S E S The Wizard Extreme uses a time-delay fuse for protection against current overload. If the power LED does not light when power is applied, the fuse may be spent. If the fuse blows repeatedly, there is a fault with the unit that requires service by a Martin technician.

  • Page 32: Updating Firmware

    8-channel or 1- channel DMX operation. 5. Replace the cover before applying power. To return the Wizard Extreme to 11-channel DMX mode, follow the above procedure, but place the jumper cap on only one of the pins or remove it completely.
  • Page 33 • The Wizard Extreme update file, available for download from the User Support Area of the Martin web site (http://www.martin.com). • The Martin Software Uploader program, version 4.0 or later, available for download from the User Support Area of the Martin web site.

  • Page 34: Troubleshooting

    ROUBLESHOOTING Problem Probable cause(s) Remedy Check that power is switched No power to fixture. on and cables are plugged in. Fixture is completely dead. Primary fuse blown. Replace fuse. Contact Martin technician for Secondary fuse blown. service. Connect controller. Inspect connections and cables.

  • Page 35: Dmx Protocol: 11-Channel Mode

    : 11- PROTOCOL CHANNEL MODE Channel Value Percent Function Light, Strobe, Music trig, Reset Shutter on (light off) 2-129 1-50 Dimmer (100-0%) & Lamp on 130-189 51-74 Strobe (fast to slow) 190-199 75-78 Shutter on (light off) 200-209 79-82 Random strobe 210-219 83-86 Stand-alone musictrig...
  • Page 36 Mirror drum rotation (tilt) No rotation 2-63 1-24 Clockwise rotation (slow to fast) 64-65 No rotation 66-127 26-49 Counterclockwise rotn. (fast to slow) 128-129 No rotation 130-191 51-74 Narrow shake (slow-fast) 192--255 75-100 Wide shake (slow-fast) Wizard Extreme user manual...
  • Page 37 Channel Value Percent Function Macros 0-15 Macro 1 16-31 6-11 Macro 2 32-47 12-18 Macro 3 48-63 19-24 Macro 4 64-79 25-30 Macro 5 80-95 31-37 Macro 6 96-111 38-43 Macro 7 112-127 44-49 Macro 8 128-143 50-55 Macro 9 144-159 56-62 Macro 10...

  • Page 38: Dmx Protocol: Wizard Emulation 8-Channel Mode

    15 Magenta / Open 96-101 38-39 16 Open 102-169 40-66 Color rotation (slow to fast) 170-175 67-68 No rotation Twinkle rotation (slow to fast) 176-243 69-95 244-249 96-97 No rotation 250-255 98-100 Remote stand-alone music trig and auto trig Wizard Extreme user manual...
  • Page 39 Channel Value Percent Function Gobo 0-10 0 Open 11-22 1 Starz 23-34 9-13 2 Zapp 35-46 14-17 3 Pipes 47-58 18-22 4 Triple dot 5 Crazy circles 59-70 23-26 71-82 27-31 6 Cone 83-94 32-36 7 Sun 95-106 37-41 8 Spokes 107-118 42-46 9 Bars...

  • Page 40: Dmx Protocol: 1-Channel Mode

    Slow music trig (every 2 seconds) 116-140 45-54 Medium music trig (every second) 141-175 55-68 Fast music trig (every 0.2 seconds) 176-210 69-82 Random music trig (between 0.2-2.0 seconds) 211-255 83-100 Trigger whenever DMX value 240 is crossed Wizard Extreme user manual...

  • Page 41: Wizard Extreme Specifications

    E L E C T R I C A L , E U M O D E L • Input ..............3-prong IEC male socket • AC Power .............230 / 240 / 250 V, 50 Hz • Main fuse .........3.15 A T (time delay), P/N 05020013 Wizard Extreme specifications...
  • Page 42 • Power ..................250 watts • Rated life ................. 2000 hours • Color temperature ................6000K Philips MSD 200 • Type ....................discharge • Power ..................200 watts • Rated life ................. 2000 hours • Color temperature ................6000K Wizard Extreme user manual...
  • Page 43 • Wizard multi-coupler (for rigging multiple fixtures) ....P/N 91606010 • Wizard floor stand ...............P/N 91606008 O R D E R I N G I N F O R M A T I O N • Wizard Extreme, EU model..........P/N 90426200 • Wizard Extreme, US model..........P/N 90426300...
