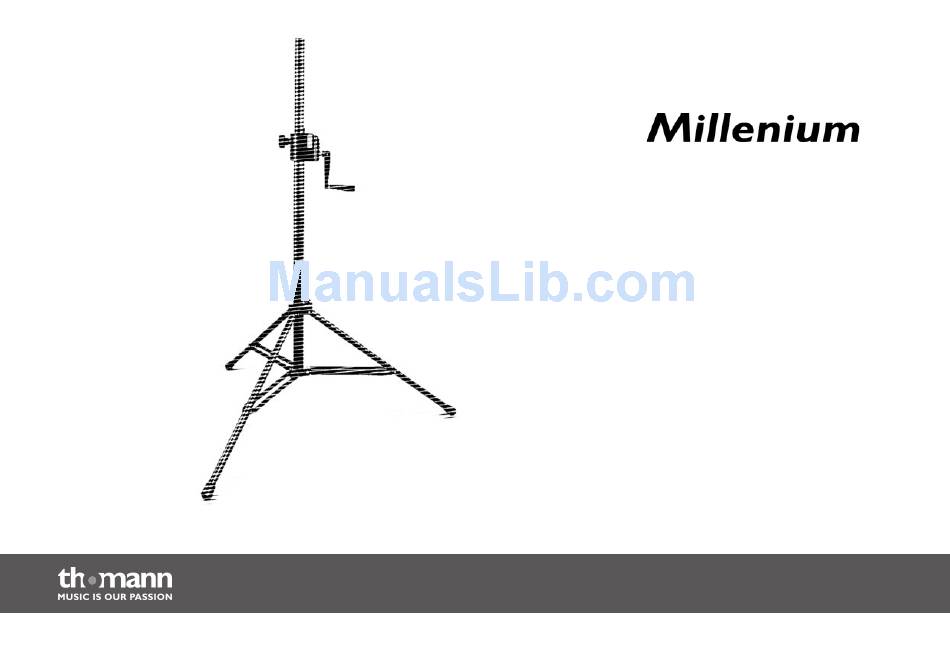

- Page 1 BS-2400 speaker stand user manual...
- Page 2 Musikhaus Thomann e.K. Treppendorf 30 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 27.05.2014, ID: 168996...
-
Page 3: Table Of Contents
Table of contents Table of contents General notes............................... 4 Safety notes..............................6 Features................................9 Instructions for use..........................10 Technical data............................15 Protecting the environment......................16 BS-2400... -
Page 4: General Notes
General notes General notes This user manual contains important information on the safe operation of the product. Read and follow all safety notes and all instructions. Save this manual for future reference. Make sure that it is available to all persons using this product. If you sell the product to another user, be sure that they also receive this manual. - Page 5 NOTICE! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in material and environmental damage if it is not avoided. Warning signs Type of danger Warning – danger zone. BS-2400...
-
Page 6: Safety Notes
Safety notes Safety notes Intended use This speaker stand is used for stable fixing and height-adjustable installation of loudspeaker cabinets. Use the product only as described in this user manual. Any other use or use under other operating conditions is considered to be improper and may result in personal injury or property damage. - Page 7 Never let children play unattended with the product. CAUTION! Danger of tipping when transported under load If the stand is moved without having removed the installed device, the stand may tip over and cause injuries and property damage. Remove the installed device before transporting the stand. BS-2400...
- Page 8 Safety notes CAUTION! Danger of tipping on unsuitable surfaces When the speaker stand is installed on soft or uneven ground, the stand may tip over and cause injuries and property damage. Install the stand only on even and solid surfaces. CAUTION! Danger of tipping due to overload In case of overload, the stand may tip over and cause injuries and property...
-
Page 9: Features
Centric load up to 50 kg (110 lbs) Extension tube made of hardened steel Legs and cross braces made of aluminium M10 female thread at the top end TÜV/GS approved Transport length in folded condition: 1.20 m (47.2 in.) BS-2400... -
Page 10: Instructions For Use
Instructions for use Instructions for use Unpack and check carefully there is no transportation damage before using the product. Keep the equipment packaging. To fully protect the product against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively. - Page 11 Install the stand only on even and solid surfaces. CAUTION! Danger of tipping due to overload In case of overload, the stand may tip over and cause injuries and property damage. Never exceed the maximum load capacity specified for the stand. BS-2400...
- Page 12 Instructions for use NOTICE! Possible staining The plasticiser contained in the rubber feet of this product may possibly react with the coating of your parquet, linoleum, laminate or PVC floor and after some time cause permanent dark stains. In case of doubt, do not put the rubber feet directly on the floor, but use felt-pad floor protectors or a carpet.
- Page 13 Press and hold the yellow security button at the crank case while adjusting the desired height with the hand crank. Release the yellow security button at the crank case, fix the position of the extension tube with the locking screw at the crank case and fold the hand crank back in. BS-2400...
- Page 14 Instructions for use Removal Fold out the hand crank. Untighten the locking screw at the crank case. Press and hold the yellow security button at the crank case while fully lowering the extension tube. Release the yellow security button at the crank case, fix the position of the extension tube with the locking screw at the crank case and fold the hand crank back in.
-
Page 15: Technical Data
Insert pipe 36 mm (1.4 in.) in diameter Stand pipe 42 mm (1.7 in.) in diameter Stand legs 25 mm (1 in.) in diameter Weight 8.2 kg (18.1 lbs) Transport length in folded condition 120 cm (47.2 in.) Colour Black BS-2400... -
Page 16: Protecting The Environment
Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling. - Page 17 Notes BS-2400...
- Page 18 Notes speaker stand...
- Page 20 Musikhaus Thomann e.K. · Treppendorf 30 · 96138 Burgebrach · Germany · www.thomann.de...
