Summary of Contents for Millenium BS-2222

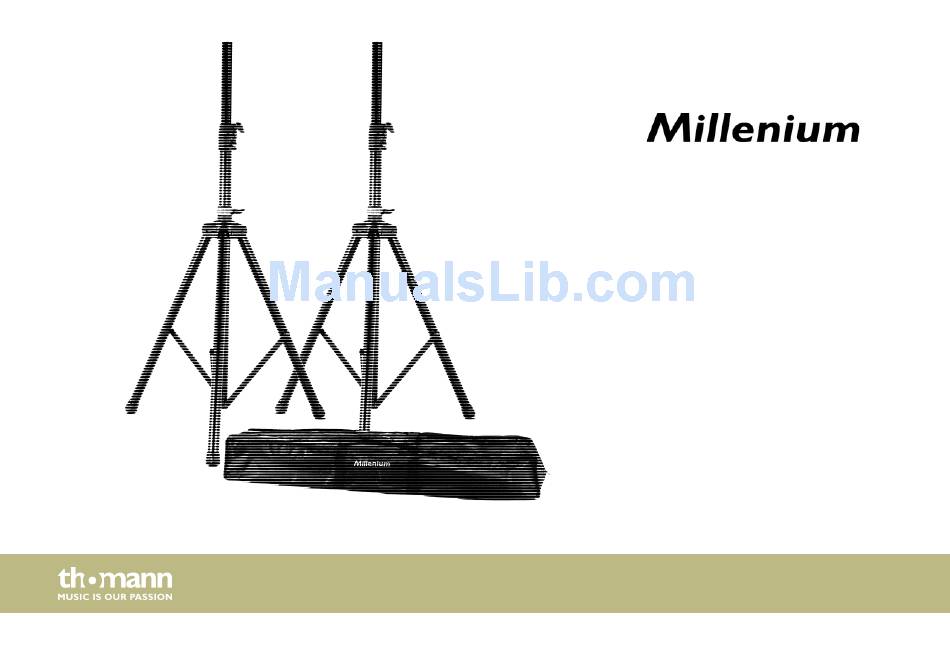

- Page 1 BS-2222 Pro Set speaker stand user manual...
- Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 27.07.2015, ID: 267641...
-
Page 3: Table Of Contents
Table of contents Table of contents General information..........................4 1.1 Further information........................... 5 1.2 Notational conventions........................6 1.3 Symbols and signal words....................... 6 Safety notes..............................8 Features............................... 11 Operating..............................12 Technical specifications........................17 Protecting the environment......................18 BS-2222 Pro Set... -
Page 4: General Information
General information General information This manual contains important instructions for the safe operation of the product. Read and follow the safety instructions and all other instructions. Keep the manual for future reference. Make sure that it is available to all those using the product. If you sell the unit, please make sure that the buyer also receives this manual. -
Page 5: Further Information
Our online guides provide detailed information on technical basics Online guides and terms. Personal consultation For personal consultation please contact our technical hotline. If you have any problems with the device the Service customer service will gladly assist you. BS-2222 Pro Set... -
Page 6: Notational Conventions
General information 1.2 Notational conventions This manual uses the following notational conventions: Instructions The individual steps of an instruction are numbered consecutively. The result of a step is indented and highlighted by an arrow. Example: Switch on the device. Press [Auto]. ð... - Page 7 NOTICE! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in material and environmental damage if it is not avoided. Warning signs Type of danger Warning – danger zone. BS-2222 Pro Set...
-
Page 8: Safety Notes
Safety notes Safety notes Intended use This speaker stand is used for stable fixing and height-adjustable installation of loudspeaker cabinets. Use the product only as described in this user manual. Any other use or use under other operating conditions is considered to be improper and may result in personal injury or property damage. - Page 9 Danger of tipping when transported under load If the stand is moved without having removed the installed device, the stand may tip over and cause injuries and property damage. Remove the installed device before transporting the stand. BS-2222 Pro Set...
- Page 10 Safety notes CAUTION! Danger of tipping on unsuitable surfaces When the speaker stand is installed on soft or uneven ground, the stand may tip over and cause injuries and property damage. Install the stand only on even and solid surfaces. CAUTION! Danger of tipping due to overload In case of overload, the stand may tip over and cause injuries and property...
-
Page 11: Features
Professional steel speaker stand 2-pcs. set including carrying bag Extendible up to a height of about 2 m Centric load capacity up to 40 kg 35 mm pipe diameter at the pole mount Transport length when folded: 1.30 m BS-2222 Pro Set... -
Page 12: Operating
Operating Operating Unpack and check carefully there is no transportation damage before using the product. Keep the equipment packaging. To fully protect the product against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively. - Page 13 Danger of tipping when transported under load If the stand is moved without having removed the installed device, the stand may tip over and cause injuries and property damage. Remove the installed device before transporting the stand. BS-2222 Pro Set...
- Page 14 Operating NOTICE! Possible staining The plasticiser contained in the rubber feet of this product may possibly react with the coating of your parquet, linoleum, laminate or PVC floor and after some time cause permanent dark stains. In case of doubt, do not put the rubber feet directly on the floor, but use felt-pad floor protectors or a carpet.
- Page 15 Fix the position of the extension tube with the safety bolt on the extension tube. Flange the speaker box on top of the extension tube. The weight of the speaker box to be set up must not exceed the maximum centric load of 40 kg. BS-2222 Pro Set...
- Page 16 Operating Dismounting Remove the speaker box. Press the locking lever while loosening the locking screw on the extension tube. Slide the extension tube all the way down and let the locking lever snap into the corre‐ sponding grid hole. Fix the position of the extension tube with the safety bolt on the extension tube. Loosen the safety screw on the slider to which the three feet are attached.
-
Page 17: Technical Specifications
Technical specifications Permitted centric loadability 40 kg per tripod Minimum support height 130 cm Maximum support height 200 cm Tripod flange 35 mm diameter Weight 3.6 kg per tripod Transport length when folded 130 cm Colour Black BS-2222 Pro Set... -
Page 18: Protecting The Environment
Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling. - Page 20 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
