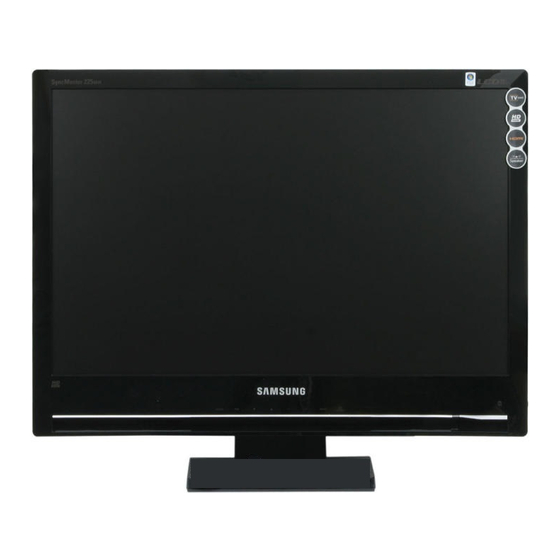

Samsung 225MW Quick Start Manual
Hide thumbs Also See for 225MW:

Advertisement

Quick Links

LCD MONITOR
quick start guide
225MW


Advertisement

loading
Need help?

Need help?

Do you have a question about the 225MW and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Samsung 225MW

  • Page 1 LCD MONITOR quick start guide 225MW...
  • Page 2 Model SyncMaster 225MW Please make sure the following items are included with your monitor. If any items are missing, contact your dealer. Contact a local dealer to buy optional items. Unpacking Without Stand With Stand Manual Warranty Card User's Guide, Monitor Driver,...
  • Page 3 D-Sub Cable Audio Cable Power Cord Other Remote Control Batteries (AAA X 2) Cleaning Cloth Sold separately TV Antenna Cable RCA Cable (Video-Yellow, Component(P , Y) Cable (Coaxial Cable) Audio-Red and White) S-VIDEO Cable Earphones/Headphones SCART Cable DVI Cable DVI to HDMI cable HDMI Cable RCA to stereo (for PC) cable...
  • Page 4 Front 1. AUTO 2. PIP 4. - + 5. MENU 7. Remote Control Sensor 8. [ ] Power button 9. Power indicator 10. Speaker 1. AUTO (Available in PC mode only) When the 'AUTO' button is pressed, the Auto Adjustment screen appears as shown in the animated screen on the center.
  • Page 5 Rear (The configuration at the back of the monitor may vary from product to product.) POWER Power terminal Connect the power cord for your monitor to the POWER on the back of the monitor. This product may be used with 100 ~ 240VAC(+/- 10%).
  • Page 6 ANT IN Connect the CATV cable or TV antenna cable to the "ANT IN" port on the rear side of the monitor. Make sure to use a TV antenna cable (sold separately) as the antenna cable. HDMI IN Connect the HDMI IN terminal at the back of your monitor to the HDMI terminal of your digital output device using a HDMI cable.
  • Page 7 The Kensington lock is a device used to physically fix the system when using it in a public place. (The locking device has to be purchased separately.) For using a locking device, contact where you purchase it. S-VIDEO / VIDEO / R - AUDIO - L 1.
  • Page 8 Remote Control The performance of the remote control may be affected by a TV or other electronic device operated near the monitor, causing malfunction due to interference with frequency. POWER Number button -/-- MENU MUTE Up-Down Left-Right buttons ENTER INFO SOURCE PRE-CH EXIT...
  • Page 9 MUTE Press to mute the sound temporarily. Displayed on the bottom left of the screen. Press the MUTE button again to cancel the Mute function. Alternatively press the buttons to cancel the Mute function. Up-Down Left-Right buttons Moves from one menu item to another horizontally, vertically or adjusts selected menu values.
  • Page 10 21. SLEEP Turns the monitor off after a pre-determined period of time. PIP - Available in PC/DVI Mode Push the PIP button to turn PIP screen On/Off. 23. AUTO - Available In PC mode Only Adjusts the screen display automatically.
  • Page 11 Model SyncMaster 225MW Connecting the monitor 1.Connecting to a Computer Connect the power cord for your monitor to the POWER on the back of the monitor. Plug the power cord for the monitor into a nearby outlet. Use appropriate connection for your computer.
  • Page 12 1. Using the D-sub (Analog) connector on the video card. Connect the signal cable to the D-SUB port on the Macintosh computer. [D-SUB] 2. Turn on the monitor and Macintosh. Connecting to Other devices This monitor allows the user to connect it to such input devices as a DVD player, a VCR or camcorder, or a DTV or TV without disconnecting the PC.
  • Page 13 1-2. Connecting EXT.(RGB) - It only applies to AV DEVICE that supports SCART. Connect to the DVD Devices input if the device has a EXT (RGB) jack. You can watch DVD simply by hooking up the DVD player with the monitor as long as the power is on. 1.
  • Page 14 3. Connecting DVD/DTV Set Top Box Connect to the DVD/DTVSet Top Box input if the device has a DVD/DTV connector. You can watch Component simply by hooking up the Component with the monitor as long as the power is 1. Connect the port of the DVD, VCR (DVD / DTV Set-Top Box) to the R-AUDIO-L port of the monitor. 2.
  • Page 15 1. Connect the DVI output terminal of a digital output device to the HDMI IN terminal of the monitor using a DVI to HDMI cable. 2. Connect the red and white jacks of an RCA to stereo (for PC) cable to the same colored audio output terminals of the digital output device, and connect the opposite jack to the HDMI / PC / DVI- D AUDIO IN terminal of the monitor.
  • Page 16 Samsung is not liable for these kinds of accidents. Samsung is not liable for product damage or personal injury when a non-VESA or non-specified wall mount is used or the consumer fails to follow the product installation instructions.
  • Page 17 Model SyncMaster 225MW Self-Test Feature Check Check the following items yourself before calling for service. Contact the service center problems that you cannot solve by yourself. Self-Test Feature Check Not Optimum Mode Display Adapter Driver Maintenance and Cleaning Symptoms & Recommended Actions 1.
  • Page 18 Clean with a soft cloth after disconnecting the power cord. Do not use benzene, thinner or other flammable substances, or a wet cloth. We recommend a Samsung cleansing agent is used to prevent damage to the screen. 2. Maintaining the Flat Panel Display Screen.
  • Page 19 Installation Screen Audio Remote Control 1. Problems related to Installation Problems related to the monitor installation and their solutions are listed. Problems Solutions Check if the Display Adapter Driver (VGA Driver) is It appears the PC does not Mode function normally. properly installed.
  • Page 20 Power Indicator blinks green. The monitor is currently saving the changes made in settings to the OSD memory. The monitor is using its power management system. Screen is blank and power indicator light is steady green or press a key on the keyboard blinks every 0.5 or 1 seconds If you see the "TEST GOOD"...
  • Page 21 function? Set the resolution in the Control Panel→Appearance and Themes→Display→Screen Saver . Set the function in the BIOS-SETUP of the computer. (Refer to Windows/Computer Manual). Windows ME/2000 : Set the resolution in the Control Panel→Display→Screen Saver. Set the function in the BIOS-SETUP of the computer. (Refer to Windows/Computer Manual).
