Zoom F unction

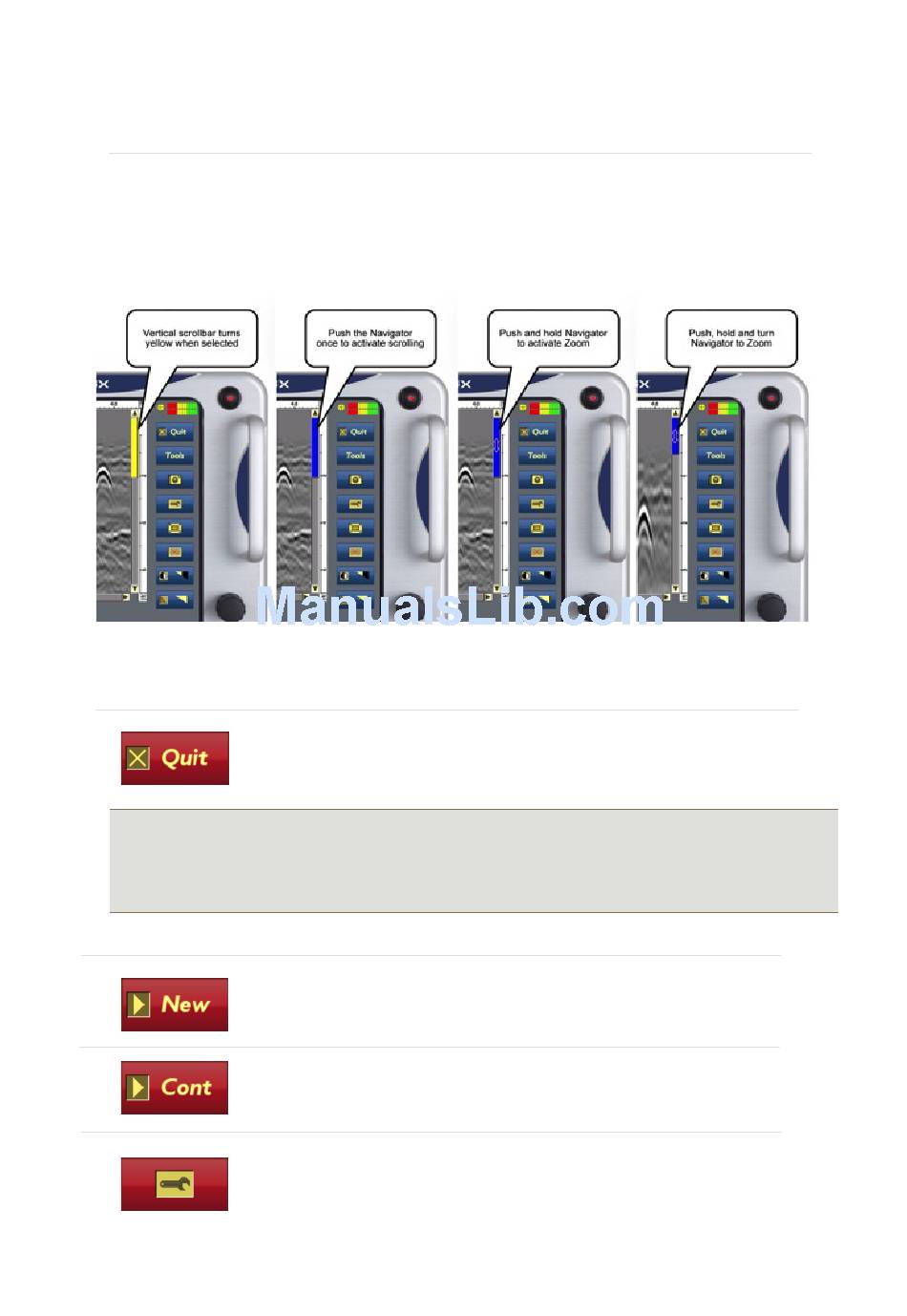

Use the Navigator t o select the Vertical s crollbar. The vertical scrollbar turns yellow when
selected. Push the Navigator o nce to activate scrolling. The Vertical s crollbar w ill turn blue
indicating that it has been activated. Push, hold and turn the Navigator t o zoom in and out,
the vertical scroll bar will be blue with arrows.
Main M enu I cons
Note: If the QUIT option is executed but the Controller is not turned off immediately, the unit has to be
put through a power cycling sequence before it can be restarted. This is achieved by pressing the
power switch on the Controller and then waiting for 5-10 seconds before pressing the power switch
again. If this procedure is not followed, the unit will fail to turn on.
Quit and shutdown the system after completing the radar
measurements
Select the New button to start scanning. The GPR data will begin to
appear on the black screen as the unit is moved forward.
Select the Continue button to resume the last stopped
measurement.
Press the Measurement Parameters button to access the
measurement parameters menu. See the Measurement
Parameters section for more information on the use of this
option.
