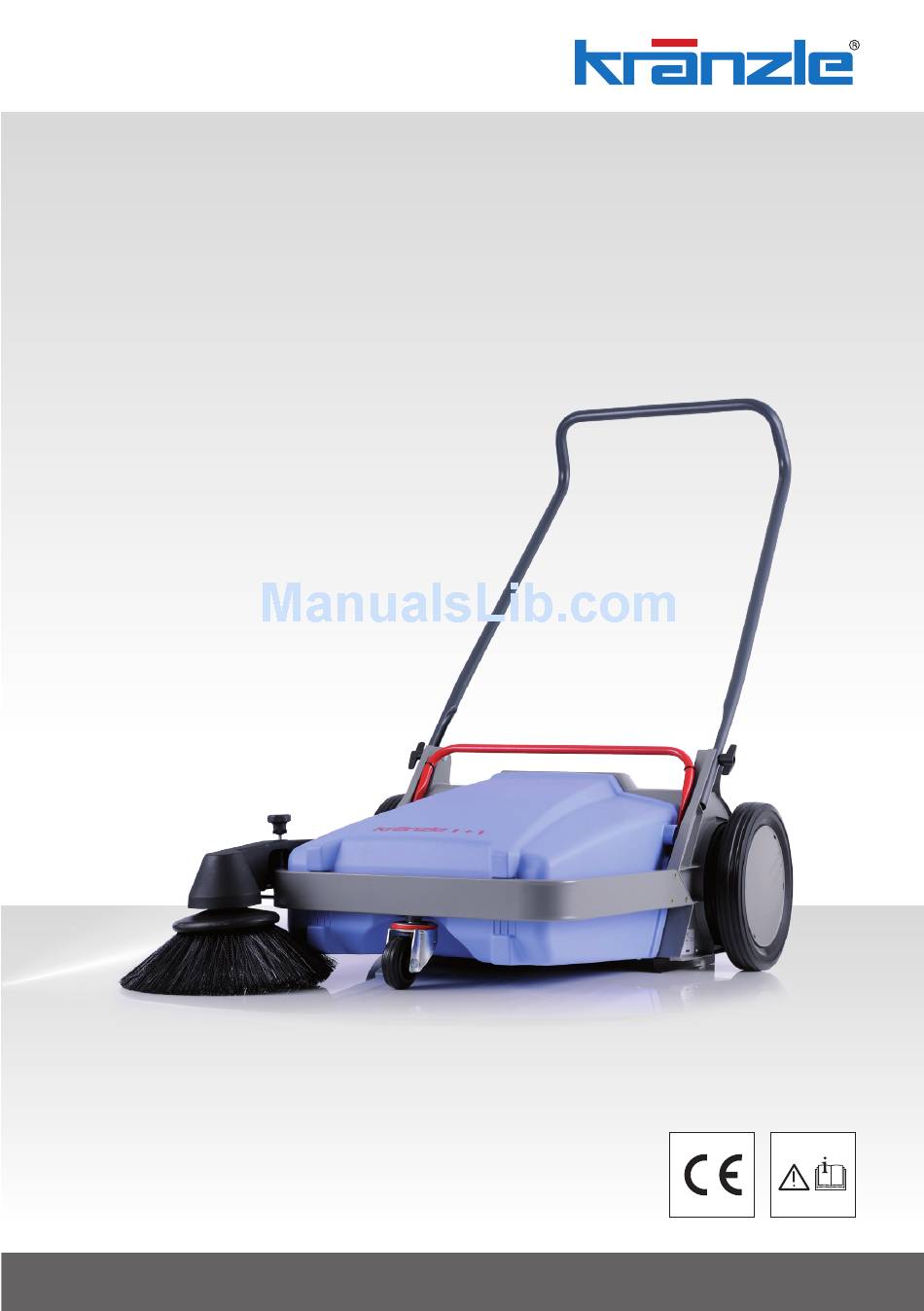

- Page 1 Original User Manual - GB - Hand powered sweeper 1 + 1 Read and conform safety instructions before use! Keep instructions in a safe place for later use and pass them on to any future user. www.kraenzle.com...
-
Page 2: Provisions For Use
Description Dear customer We would like to congratulate you on your new sweeper KRÄNZLE 1+1. To ease your introduction to the use of the sweeper, we have provided the following pages of explanations, tips and hints, which we ask you to read before using for the first time. -
Page 3: Table Of Contents
Description Table of Contents Provisions for use......14 Replacement of main broom....21 Acceptance for the machine.....14 Side broom........22 Replacement of side broom.....22 Technical Data.......15 Adjust tension of side broom Vee belt...........22 First operation.......16 Replacement of side broom Assembly.........16 Vee belt...........23 Attach handlebar......16 Sealing lips........23 Attach side broom......17 Greaser track wheels.......24... -
Page 4: First Operation
First operation Assembly For reasons of packaging, handlebar and side boom arm, to include broom and Vee belt are not assembled. After unpacking the KRÄNZLE 1+1, first assemble the handlebar and the side broom next. Attach handlebar Bolt handlebar to both sides of the housing, use the wing bolts (A/1) Note: The handlebar can be mounted in two positions, as suitable for the... -
Page 5: Attach Side Broom
First operation Attach side broom Unpack side broom arm and broom; Plug side broom on broom shaft and secure with bolt; use 10 mm spanner size. Do not overtorque bolt to avoid damage to the broom hub; Place the Vee belt in the pulley over the RH wheel;... -
Page 6: Operating The Kränzle 1+1
First operation Operating the KRÄNZLE 1+1 All controls are identified by easy-to-understand symbols which will help you to get familiar with the machine. The KRÄNZLE 1+1 uses two brooms. The dish-type side broom feeds the matter swept to the main broom. The main broom is rotating against the direction of travel of the machine and throws the dirt into the dirt hopper located at the forward end. -
Page 7: Controls
First operation Recommended adjustment (valid for sweeping roller in “as new” condition) Basic adjustment: Scale code 1,5 Scale litter ground code light-wight, unruffled dry litter basic adjustment heavy dirt, or big rough dirt quantities; humid or sticky uneven dirt handwheel for sweeping roller adjustment hopper handle butterfly nuts for fixing of handlebar... -
Page 8: Emptying The Dirt Hopper
First operation Handwheel to adjust side broom The broom may touch the floor with the forward 2/3 of its circumference only so that it can feed the rubbish to the forward end of the main broom and not sweep it around only. -
Page 9: Replacement Of Main Broom
First operation Replacement of main broom The broom roller bears 10 ea. rows of alterned soft and hard bristles and consists of two broom halves. Width: 480 mm (18.9”) Dia.: 250 mm (9.8”) Dia, wear limit: approx. 180 mm (7.1”) The broom roller is replaced as follows: Slue side broom up Tilt machine back to rest on the... -
Page 10: Side Broom
First operation Side broom The side broom is driven by a Vee belt Pull out side broom from the RH wheel. Slueing down the Plug-on new side broom and side broom will tension the belt, and secure. Do not overtorque clamp driving conditions thus will be screw to avoid squeezing the established. -
Page 11: Replacement Of Side Broom Vee Belt
First operation Replacement of side broom Vee belt To remove or to re-install a Vee belt, proceed in the following way: Remove side broom Remove washers, deflector plate and spacers from broom shaft (fig. Remove circlip, pull washers and pulley with Vee belt off shaft (key should not drop out from the shaft) Fit new Vee belt on pulley and reassemble (reverse the above... -
Page 12: Greaser Track Wheels
First operation Grease track wheels For cleaning and greasing the axle and pinion, remove track wheels as follows: Remove hub caps. Insert two screwdrivers into the slots marked by arrows, and remove the hub cap using the screwdriver as a lever, applying force in a uniform manner (fig. -
Page 13: Maintenance / Guarantee
Maintenance Maintenance work Compliance with the maintenance work recommended by KRÄNZLE will make sure that your machine is ready to operate at any time. Precautions are easier than repair - and cheaper! Should your in-house workshop not be able to perform maintenance work per our schedule, please contact your local KRÄNZLE dealer for concluding a maintenance agreement. - Page 14 Spare part list Ersatzteilliste...
- Page 15 Frame - dirt hopper - handle Müllbehälter - Rahmen - Lenkholm Spare part list sweeper 1+1 Ersatzteilliste Kehrmaschine 1+1 Bezeichnung Description Pos. Stck Sach.-Nr. Frame Rahmen 51001 Dirt hopper 51002 Schmutzbehälter Holm Handle 51003 Bow, handle Griffbügel 51004 Hex. nut Sechskant-Mutter 51005 Washer...
- Page 16 Spare part list Ersatzteilliste...
- Page 17 Broom shaft - housing - wheel assy Besenwelle - Gehäuse - Räder Spare part list sweeper 1+1 Ersatzteilliste Kehrmaschine 1+1 Bezeichnung Description Pos. Stck Sach.-Nr. Wheel cap 51016 Radkappe Rad kpl. Wheel assy 51017 (Außenzahnfelge) (outside tooth rim) Dichtungskörper Sealing body 51018 Flachrundkopfschraube Flat round head screw...
- Page 18 Spare part list Ersatzteilliste...
- Page 19 Side brush arm Seitenbesen Spare part list sweeper 1+1 Ersatzteilliste Kehrmaschine 1+1 Bezeichnung Description Pos. Stck Sach.-Nr. Seitenbesenarm Side brush arm 51049 Rändelmutter Knurled nut 51050 Handrad Hand wheel 51051 Sicherungsblech Locking plate 51052 Bolzen Bolt 51053 Hex. nut 51054 Sechkantmutter Schutzhülse Protective sleeve...
- Page 20 I. Kränzle GmbH Elpke 97 D - 33605 Bielefeld Reprint only allowed with the authorisation of Kränzle. As date of 02.06.2014 Made Germany www.kraenzle.com...
