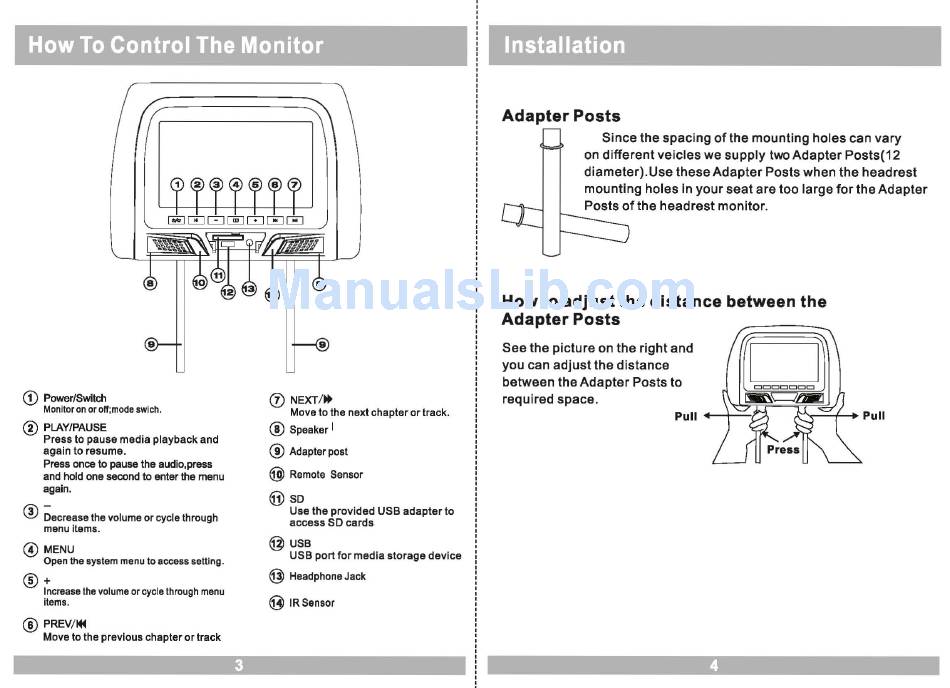

How To Control The Monitor
©
Power/Switch
Monitor on or off;mode swich.
@
PLAY/PAUSE
Press to pause media playback and
again to resume.
Press once
to
pause the audio.press
and hold one second
to
enter the menu
again.
@
Decrease the volume or cycle through
menu items.
@MENU
Open the system menu to access setting .
@+
Increase the volume or cycle through menu
items.
@
PREV/~
Move to the previous chapter or track
(j) NEXT/~
Move to the next chapter or track.
@Speaker I
®
Adapter post
@
Remote Sensor
@so
Use the provided USB adapter to
access SD cards
@USB
USB port for media storage device
~
HeadphoneJack
@
IRSensor
Installation
Adapter Posts
Since the spacing of the mounting holes can vary
on different veicles we supply two Adapter Posts(12
diameter). Use these Adapter Posts when the headrest
mounting holes in your seat are too large for the Adapter
Posts of the headrest monitor.
How to adjust the distance between the
Adapter Posts
See the picture on the right and
you can adjust the distance
between the Adapter Posts to
required space.
