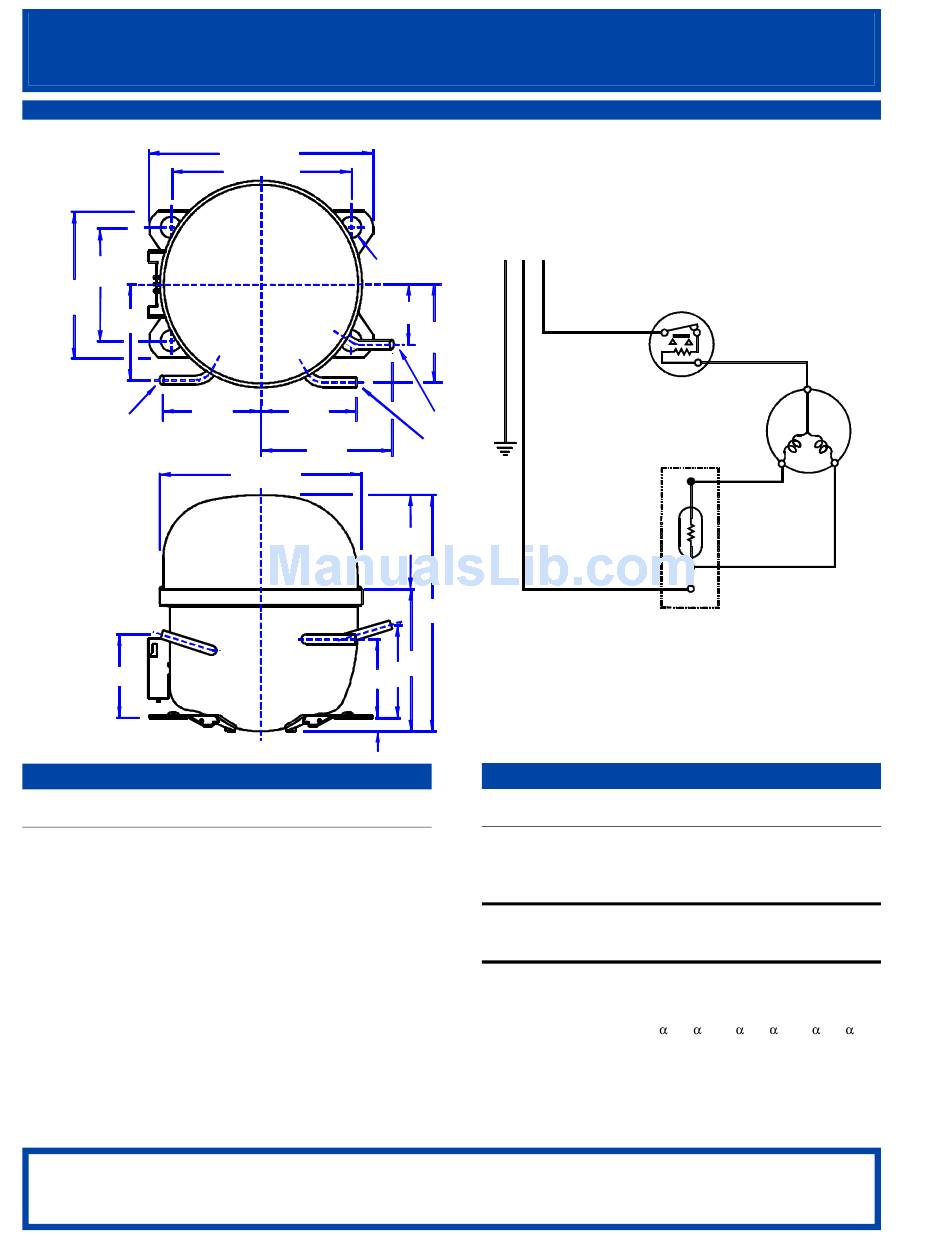

Panasonic Matsushita DD66C12GBU6 Specification Sheet page 2

Panasonic compressor specification sheet
Hide thumbs


Advertisement

MATSUSHITA
MODEL# DD66C12GBU6
101.6mm
(4.00")
131.6mm
(5.18")
86mm
(3.39")
91mm
(3.56")
Process Tube
F
Dimensions*
mm
A . . . . . . . . . . . . . . . . . . . . . 200.2 . . . . . . . . . . . . . . . . . . . 7.88
B . . . . . . . . . . . . . . . . . . . . . 73.0 . . . . . . . . . . . . . . . . . . . . 2.87
C . . . . . . . . . . . . . . . . . . . . . 127.2 . . . . . . . . . . . . . . . . . . . 5.01
D . . . . . . . . . . . . . . . . . . . . . 83.9 . . . . . . . . . . . . . . . . . . . . 3.30
E . . . . . . . . . . . . . . . . . . . . . 70.0 . . . . . . . . . . . . . . . . . . . . 2.76
F . . . . . . . . . . . . . . . . . . . . . 74.8 . . . . . . . . . . . . . . . . . . . . 2.94
* All dimensions are for reference only
This document sets forth certain operational parameters and conditions for
operation of this product. If this product is operated outside of the parameters
and conditions stated herein, buyer assumes sole and full responsibility and
shall indemnify seller with respect to all product failures and all consequences
thereof. Operation of the product outside of the parameters and conditions
specified herein shall serve to invalidate all seller warranties, if any, with respect
to the product. This document is for reference only. For specifications, please
contact Panasonic's engineering department.
Panasonic
Compressor
205.1mm (8.07")
165.1mm (6.50")
4 holes
19mm (0.75") DIA
54mm
(2.13")
87mm
(3.43")
120mm
(4.72")
185.4mm DIA
(7.30")
B
C
E
D
12.2mm (0.48")
inches
®
Single Phase
R-134a
~
88mm
(3.46")
Motor Protector
Suction
Tube
Discharge
Tube
A
Tubes
Suction . . . . . . . . . . 0.33 in. / 8.3 mm 0.035 in. / 0.9 mm Copper
Process . . . . . . . . . 0.33 in. / 8.3 mm 0.035 in. / 0.9 mm Copper
Discharge . . . . . . . . 0.33 in. / 8.3 mm 0.035 in. / 0.9 mm Copper
U.L. File # . . . . . . . . . SA 4615
C.S.A. File #'s . . . . . . LR - 36593
General Data Oil Charge . . 250 cc ± 5 cc / 15.3 cu.in. ± 0.3 cu.in.
Net Weight With Oil . . . . . . . . . . . . 20.5 lbs, 9.3 kg
Approved Oils:
FREOL . .
ICI . . . . . . . . . . . . . . . . . RL10H, RL15H, RL22H
HENKEL . . . . . . . . . . . . . .ProEco 10S,15S, 22S
Residual Moisture . . . . . . . . . . . . . . . 120 mg max.
Impurities . . . . . . . . . . . . . . . . . . . . . . 10 mg max.
Displacement . . . . . . . . . . . 6.55 cc. / 0.400 cu. in.
Panasonic Industrial Company
Refrigeration Products Department
Tel: 201 - 392 - 4249
Fax: 201 - 392 - 4315
115 V
60 Hz
R.S.I.R.
1
2
3
S
Compressor
Motor
PTC Relay
2
Tube O.D.
Wall
10,
10E,
15,
15E,
C
M
Material
22,
22E
Rev#1-5/9
