MATSUSHITA Compressor
MODEL# SD43C77JBU6
Voltage Range . . . . . . . . . 103 Volts to 127 Volts @ 60 Hz
Application . . . . . . . . . . . . Low Back Pressure
Compressor Cooling . . . . Static Cooling
Rated Performance Data
Capacity . . . . . . . . . . . . . . 488 Btu/h ±7% *
E.E.R. . . . . . . . . . . . . . . . . . 4.69 Btu/Wh ±10% *
Current . . . . . . . . . . . . . . . 0.99 Amps *
Nominal Motor Data
Rated Current . . . 0.90 Amps
Locked Rotor . . . . . . . . . . 7.99 Amps
Start Current . . . . . . . . . . 14.48 Amps
Coil Resistances
Run . . . . 4.33 Ohms
@ 68°F (20°C)
Start . . . 7.09 Ohms
*Test Conditions for Performance Specifications
Test Oil
. . . . . . . . . . . . . . . . Freol
Shell Temp . . . . . . . . . . . . . . 150.0°F / 65.0°C
Condensing Temp . . . . . . . . . 130.0°F / 54.4°C
Evaporating Temp . . . . . . . . .-10.0°F / -23.3°C
Ambient Temp . . . . . . . . . . . . 90.0°F / 32.2°C
Gas Superheat . . . . . . . . . . . 90.0°F / 32.2°C
Liquid Sub-Cooling . . . . . . . . 90.0°F / 32.2°C
Electrical Accessories
Overload Protector
Nominal Operating Characteristics
T135AH3 . 1
Model Name
Manufacturer
Matsushita
Temperature To . . . . . . . . . . . Open: 275°F ± 9°F / 135°C ± 5°C
Close: 176°F ± 27°F / 80°C ± 15°C
Trip Current . . . . . . . . . . . . . . @212°F (100°C) 3.5 to 4.5 Amps
@77°F (25°C) 11.7 Amps @ 13 sec. max.
P.T.C. Starting Device
Nominal Operating Characteristics
Model Name
Manufacturer
Base resistance
@ 77°F(25°C) ±20%
Power Consumption (max)
Operation time
Recovery time (max)
Run Capacitor
10 µF 180 V (min.)
†Although these accessories are listed by UL/CSA for use with this compressor,
Matsushita assumes no responsibility whatsoever for these or any other components
sourced by the refrigeration system manufacturer from third parties.
Panasonic
(10µF Run Cap. - VG10)
Motor Input . . . . . 104 Watts*
Type . . . . . . . . . . RSCR, PTC relay
10
PTH7M4R7MD2
Murata Mfg.
4.7
3.0
0.7 to 2.2
seconds
70
seconds
Refrigerant Control . . Capillary Tube
Evaporator
Temp. Range . . . . . . . -31°F to 23°F / -35°C to -5°C

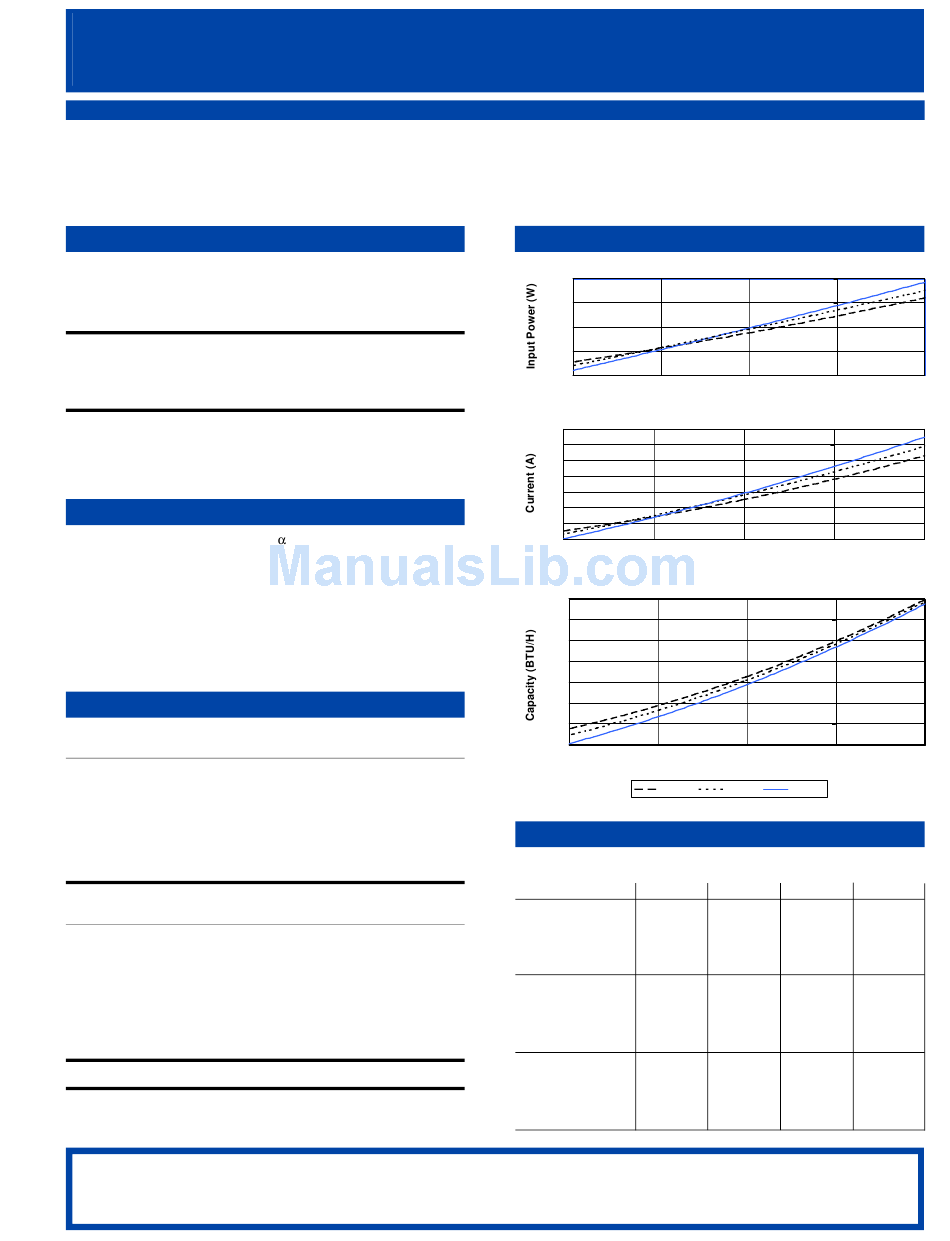

Performance Curves
145
125
105
85
65
-30
1.4
1.3
1.2
1.1
1.0
0.9
0.8
0.7
-30
900
800
700
600
500
400
300
200
-30
9 – Point Data
Condensing Temp.
130°F
120°F
Ohms
Watts
110°F
Panasonic Industrial Company
®
Refrigeration Products Department
Tel: 201 - 392 - 4249
Fax: 201 - 392 - 4315
Single Phase
R-134a
-20
-10
-20
-10
-20
-10
Evaporating Temperature (°F)
110°F
120°F
130°F
Evaporating Temp.
Rating
-30°F
-10°F
Btu/h
205
488
Watts
69
104
Amps
0.70
0.99
E.E.R.
2.97
4.69
Btu/h
246
509
Watts
73
103
Amps
0.73
0.98
E.E.R.
3.37
4.94
Btu/h
277
526
Watts
76
100
Amps
0.75
0.95
E.E.R.
3.64
5.26
115 V
60 Hz
0
10
0
10
0
10
+10°F
874
142
1.35
6.15
884
135
1.29
6.55
895
129
1.23
6.94
Rev#1-5/9
