4.
Turn the mixer master faders down. Turn on the mixer.
Make sure the controls on your powered speakers are set the same on both speakers. For example, if
you're using subs, and they have a polarity setting, make sure they're both set to the same polarity.
Also, if your powered speakers have a Mic/Line setting, make sure they're both set to Line, and if they
have their own EQ settings, disable the EQ settings on the powered speakers. Turn the level control
knobs on your powered speakers all the way down. Turn on your powered speakers and subwoofers now.
5.
Now let's create a preset to match your powered speakers. This preset is based on JBL PRX515's and
JBL PRX518's for illustration purposes.
6.
7.
4

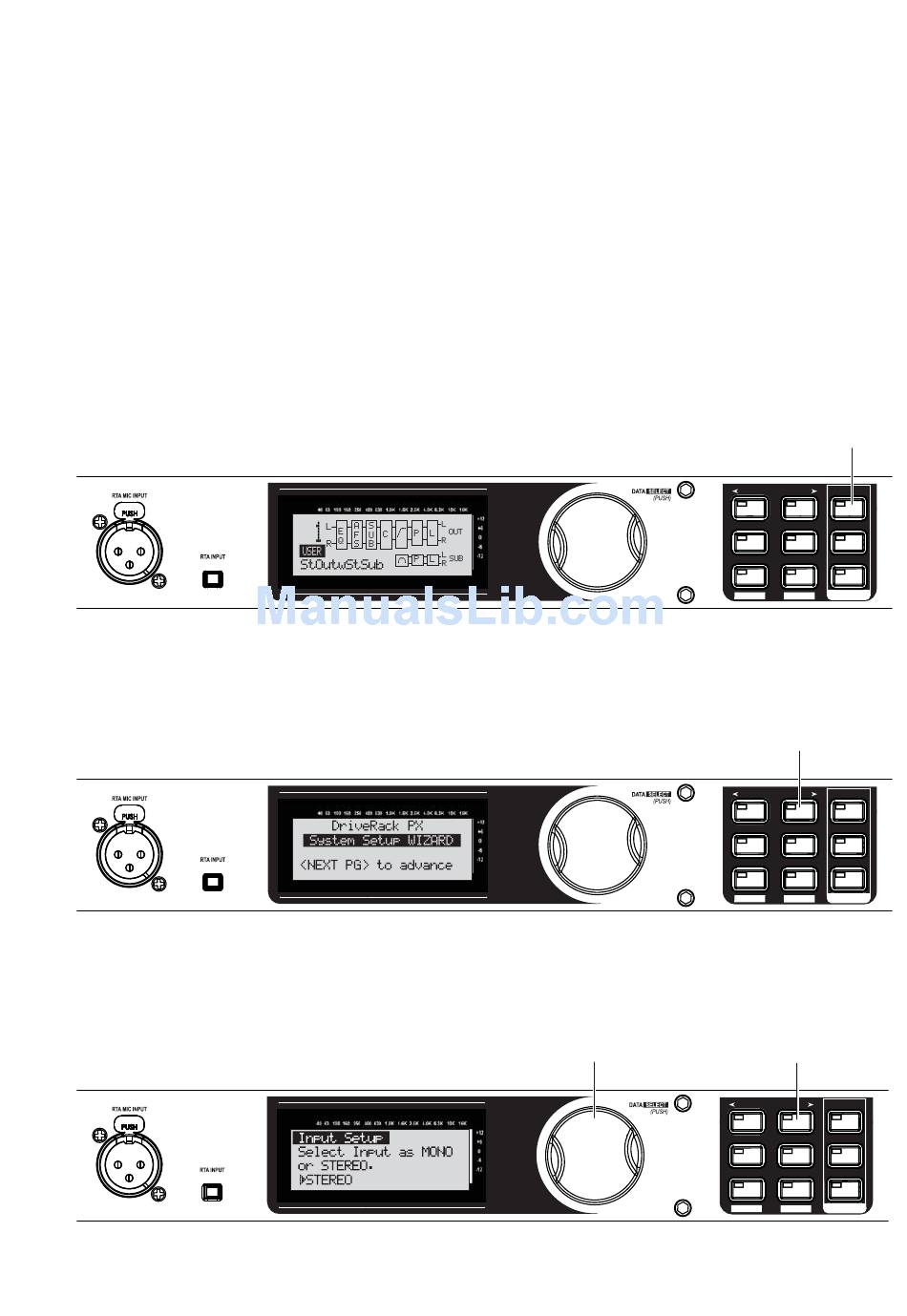

A. For this example, turn the
Data Wheel to select STEREO.
Press and hold the SETUP button
until "System Setup WIZARD" appears
in the display.
PREV PG NEXT PG
SUBHARMONIC COMP/LIMITER
PRESET STORE
UTILITY
RECALL UTILITY
Press the NEXT PG button.
PREV PG NEXT PG
SUBHARMONIC COMP/LIMITER
STORE
PRESET
RECALL UTILITY
UTILITY
B. Press the NEXT PG button.
PREV PG NEXT PG
SUBHARMONIC COMP/LIMITER
STORE
PRESET
RECALL UTILITY
UTILITY
SETUP
EQ
AFS
WIZARD WIZARD
SETUP
EQ
AFS
WIZARD
WIZARD
SETUP
EQ
AFS
WIZARD WIZARD
