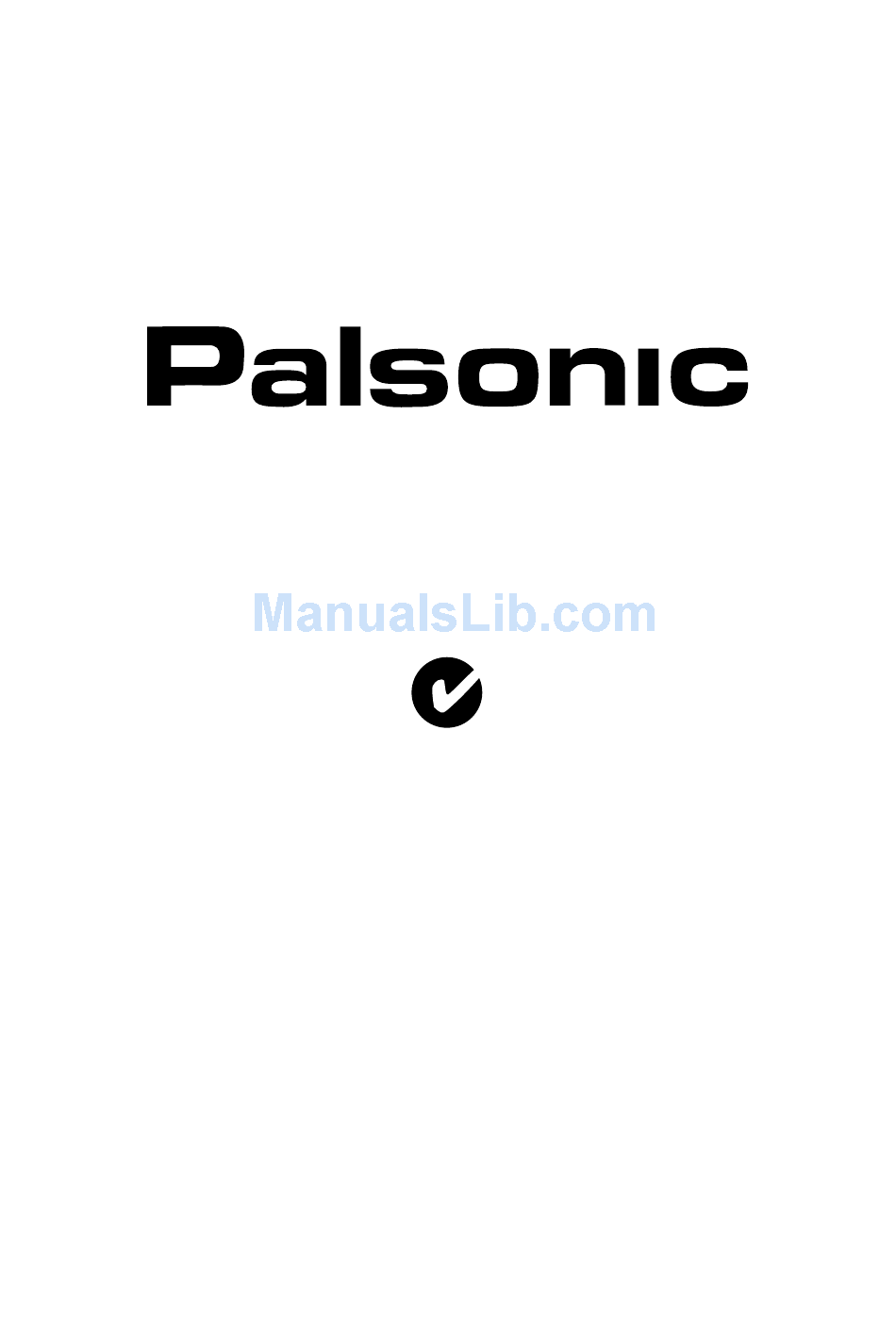

OWNER'S MANUAL
81CM CORDLESS REMOTE LCD TV/MONITOR
MODEL: TFTV812U
N111
PALSONIC CORPORATION PTY LTD
1 JOYNTON AVENUE
WATERLOO NSW 2017 AUSTRALIA
TEL: (02) 9313 7111
FAX: (02) 9313 7555
www.palsonic.com.au
PALSONIC CUSTOMER SERVICE
TELEPHONE
AUSTRALIA: 1300 657 888

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TFTV812U and is the answer not in the manual?

Questions and answers

Related Manuals for Palsonic TFTV812U

Summary of Contents for Palsonic TFTV812U

  • Page 1 OWNER'S MANUAL 81CM CORDLESS REMOTE LCD TV/MONITOR MODEL: TFTV812U N111 PALSONIC CORPORATION PTY LTD 1 JOYNTON AVENUE WATERLOO NSW 2017 AUSTRALIA TEL: (02) 9313 7111 FAX: (02) 9313 7555 www.palsonic.com.au PALSONIC CUSTOMER SERVICE TELEPHONE AUSTRALIA: 1300 657 888...

  • Page 2: Table Of Contents

    Important Information ... Important Safety Precautions ... Preparations ... Using the Remote Control ... Batteries for the Remote Control ... Power Connection ... Antenna Connection ... Identification of Controls ... Main Unit ... Remote Control ... Connections ... Cautions Before Connecting ... Connect a VCR ...
  • Page 3 Setting Sound ... Customising the Sound ... Using the Preset Sound Mode ... Adjusting On-Screen Display ... Adjusting OSD Position ... Adjusting OSD Transparency ... Setting OSD Timeout ... PIP Operations ... Viewing and Changing The Position of the PIP Frame ... Selecting the Signal Source for the PIP Frame ...

  • Page 4: Important Information

    WARNING: TO REDUCE THE RISK OF OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE. Note to CATV system installer: This reminder is provided to call the CATV system installer's attention to Article 820-40 of the National Electrical Code that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

  • Page 5: Important Safety Precautions

    Electrical energy can perform many useful functions, but it can also cause personal injuries and property damage if improperly handled. This product has been engineered and manufactured with the highest priority on safety. But IMPROPER USE CAN RESULT IN POTENTIAL ELECTRICAL SHOCK OR FIRE HAZARD. In order to prevent potential danger, please observe the following instructions when installing, operating and cleaning the product.
  • Page 6 Important Safety Precautions 12. Stand---Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. Do not place the product on an unstable trolley, stand, tripod or table. Placing the product on an unstable base can cause the product to fall, resulting in serious personal injuries as well as damage to the product.
  • Page 7 Important Safety Precautions 22. Power source---This product is intended to be supplied by a listed power supply indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the cable system.

  • Page 8: Preparations

    Using the Remote Control Use the remote control by pointing it towards the remote sensor window of the set. Objects between the remote control and sensor window may prevent proper operation. Note: the illustration is for your reference only, the remote sensor may locate differently with different model.

  • Page 9: Antenna Connection

    Antenna Connection INSTALL the unit in a room where direct light will not fall upon the screen. Total darkness or a reflection on the picture screen may cause eyestrain. Soft and indirect lighting is recommended for comfortable viewing. Optimum reception of colour requires a good signal and will generally mean that an outdoor aerial must be used. The exact type and position of the aerial will depend upon your particular area.

  • Page 10: Identification Of Controls

    Main Unit Power Indicator Remote Sensor 1. POWER Press this button to turn the unit ON from STANDBY mode. Press it again to turn the set back to STANDBY. 2. SOURCE To access signal source select menu In OSD Menu, press this button to confirm your setting or operation 3.
  • Page 11 Identification of Controls Main Unit Removing or installing the Back Cover Press the PUSH button Pull out the Cover carefully Cover Insertion HDMI AUDIO VGA IN Pb/Cb AUDIO-L COMPONENT IN Pr/Cr AUDIO-R 1. Antenna Input Allows you to connect cable or outdoor antenna 2.

  • Page 12: Remote Control

    Identification of Controls Remote Control (continued) POWER Turn the unit on or off S.S. To select sound output from the main frame or the PIP frame when in PIP mode NR (Noise Reduce) To enhance the picture quality by reducing the noise (snow) SLEEP To set Sleep timer MUTE...

  • Page 13: Connections

    Cautions before connecting Carefully check the terminals for position and type before making any connections. The illustration of the external equipment may be different depending on your model. Loose connectors can result in image or colour problems. Make sure that all connectors are securely inserted into their terminals.

  • Page 14: Connect A Camcorder

    Connect a Camcorder Yellow (VIDEO) White (AUDIO L/MONO) Red (AUDIO R) How to connect: Connect the Audio/Video cables between the Audio (L/R)/Video jacks on the unit and camcorder. To playback Camcorder 1. Turn on your LCD, press Source 2. Press Source button repeatedly to select AV1.

  • Page 15: Connect A Dvd Player

    Connect a DVD player Video cable Audio cable Rear of the DVD player How to connect a DVD Player using Component Video Connections: Connect the Video cable between the Y, Pb/Cb, Pr/Cr input jacks on the unit and Y, Pb, Pr ( or Cb, Cr) output jacks on the DVD player.

  • Page 16: Connect A Product To Hdmi

    Connect a product to HDMI HDMI cable Product with HDMI jack How to connect: Connect the HDMI cable between the HDMI input jacks on the unit and HDMI output jacks on the product. Note: The HDMI Sources are compatible with DVI displays through the use of a passive cable converter. So you may connect product with DVI output jack to the unit.

  • Page 17: Connect A Pc

    Connect a PC Audio cable How to connect: Connect a D-Sub cable between the VGA interface on the PC and the VGA input on the unit. Connect an Audio cable between the AUDIO output on the PC and AUDIO input jack on the unit. To Watch the PC screen 1.

  • Page 18: Connect A Vcr For Recording

    Connect a VCR for Recording ANTENNA INPUT AV1 INPUT/ S-VIDEO IN AV2 INPUTS AV OUT HEADPHONE Yellow (VIDEO) White (AUDIO L) Red (AUDIO R) How to connect: Connect the Audio/Video cables between the Audio (L/R)/Video jacks on the unit and VCR. To record program 1.

  • Page 19: Turning The Unit On And Off

    Turning the Unit On and Off Turning the Unit On and Off Turning On Insert the power cord into the wall outlet. Press the Power button on the remote control. The unit will be turned on and you will be ready to use its features. Turning Off With the power on, Press the Power Note:...

  • Page 20: Viewing Tv Programs

    Your LCD TV can memorise and store all the available channels. After the available channels are memorised, use CH+/- to scan the channels. Auto Search Press MENU to display the menu main page. Press repeatedly to select SOURCE menu. Press to access the submenu.

  • Page 21: Skipping Channel

    Viewing TV Programs Skipping Channels Press MENU to display the menu main page. Press repeatedly to select SOURCE menu. Press to access the submenu. Press repeatedly to select MANUAL SEARCH item. Press to access the submenu. The [CURRENT CHANNEL] will be highlighted automatically. Press to access a channel number that you want to skip.

  • Page 22: Setting Afc Function On Or Off

    Viewing TV Programs Setting AFC Function ON or OFF Press MENU to display the menu main page. Press repeatedly to select SOURCE menu. Press to access the submenu. Press repeatedly to select MANUAL SEARCH item. Press to access the submenu. Press repeatedly to select AFC item.

  • Page 23: Basic Operations

    Changing Channels Using the Channel Buttons (CH+ or CH-) Press the CH+ or CH- to change channels. When you press the CH+ or CH-, the unit changes channels in sequence. You will see all the channels that the unit has memorised. You will not see channels that were erased.

  • Page 24: Select Input Source Signal

    Select Input Source Signal Press MENU to display the menu main page. Press repeatedly to select SOURCE menu. Press to access the submenu. Press repeatedly to select PICTURE SOURCE item. Press to select. Press MENU to exit. TV -------- Select TV signal. AV1 ------- Select signal from AV IN (1) terminals.

  • Page 25: Setting Picture

    Customising the Picture Press MENU to display the menu main page. The picture menu page will be displayed automatically. Press to access the PICTURE submenu. Press to select the item you wish to change. Press to adjust the value of the item. Press MENU to exit.

  • Page 26: Adjusting Screen Aspect

    Adjusting Screen Aspect Press MENU to display the menu main page. The picture menu page will be displayed automatically. Press to access the submenu. Press repeatedly to select SIZE MODE item. Press to select a desired aspect ratio. You can select the image aspect ratio between FULL, ZOOM1, ZOOM2 and NORMAL.

  • Page 27: Setting Timer

    Setting Clock Time Making use of this function can set the current time for the TV. Press MENU to display the menu main page. Press repeatedly to select FUNCTION menu. Press to access the submenu. The [CLOCK] item will be highlighted automatically. Press to access.

  • Page 28: Setting Sleep Timer

    Setting Sleep Timer Making use of this function allows you to have the set automatically turn off after a preset time. Press MENU to display the menu main page. Press repeatedly to select FUNCTION menu. Press to access the submenu. Press repeatedly to highlight SLEEP TIMER item.

  • Page 29: Setting Sound

    Customising the Sound Press MENU to display the menu main page. Press repeatedly to select SOUND menu. Press to access the submenu. Press repeatedly to select the option items you want to adjust. Press to adjust the value. Using the Preset Sound Mode Press MENU to display the menu main page.

  • Page 30: Adjusting On-Screen Display

    Adjusting On-Screen Displays Adjusting OSD Position Press MENU to display the menu main page. Press repeatedly to select OSD menu. Press to access the submenu. Press repeatedly to select H-POSITION or V-POSITION item. Press to adjust the OSD position. Adjusting OSD Transparency Press MENU to display the menu main page.

  • Page 31: Pip Operations

    Viewing and Changing the Position of the PIP Frame Press MENU to display the menu main page. Press repeatedly to select SOURCE menu. Press to access the submenu. The [PIP MODE] item will be highlighted automatically. Press repeatedly to select OFF, P1S1, P1S2, P2S1, P2S2, P3S1, P3S2, P4S1 or P4S2.

  • Page 32: Adjustment In Vga Mode

    Adjusting the Picture Press MENU to display the menu main page. The [PICTURE] menu will be highlighted automatically. Press to access the submenu. Press repeatedly to select the item you wish to change. Press to adjust the value of the item. Press MENU to exit.

  • Page 33: Changing The Position Of Image

    Adjusting in VGA Mode Changing the Position of Image Press MENU to display the menu main page. Press repeatedly to select SCREEN menu. Press to access the submenu. Press repeatedly to select H-POSITION or V-POSITION item. Press to adjust the value of the item until the screen is well-aligned. Press MENU to exit.

  • Page 34: Troubleshooting

    Before calling for repair service, check the following items for possible remedies to an encountered symptom. Symptoms "Ghost" or double images No power No picture Good picture but no sound Good sound but poor colour Poor picture Horizontal dotted line Television not responding to remote control Snowy picture and noise...

  • Page 35: Specifications

    Type: Display Size Diagonal: Power supply: Power Consumption: Dimensions: Weight: TV System: Design and specification are subject to change without notice. Specifications LCD TV 32" AC 100-240V 50/60Hz 140W 937 (W) x 563 (D) x 242 (H) (mm) 21kg PAL BG, NTSC (AV)
  • Page 36 PALSONIC CORPORATION PTY LTD 1 JOYNTON AVENUE WATERLOO NSW 2017 AUSTRALIA TEL: (02) 9313 7111 FAX: (02) 9313 7555 www.palsonic.com.au PALSONIC CUSTOMER SERVICE TELEPHONE AUSTRALIA: 1300 657 888 604-L32U53-01 V1.0...
