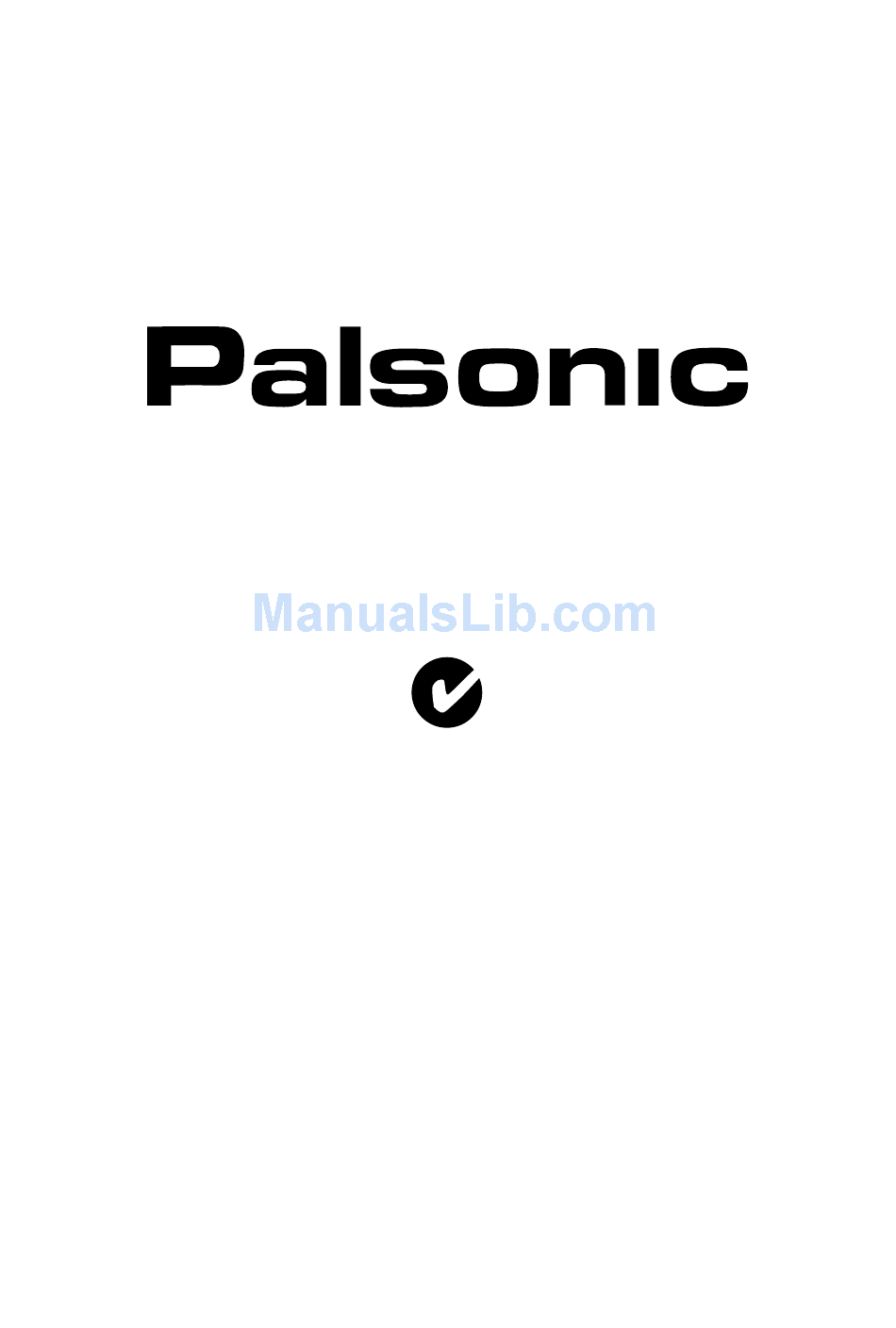

OWNER'S MANUAL
68CM CORDLESS REMOTE LCD TELEVISION & MONITOR
MODEL: TFTV680
N111
PALSONIC CORPORATION PTY LTD
1 JOYNTON AVENUE
WATERLOO NSW 2017 AUSTRALIA
TEL: (02) 9313 7111
FAX: (02) 9313 7555
www.palsonic.com.au
PALSONIC CUSTOMER SERVICE
TELEPHONE
AUSTRALIA: 1300 657 888

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TFTV680 and is the answer not in the manual?

Questions and answers

Related Manuals for Palsonic TFTV680

Summary of Contents for Palsonic TFTV680

  • Page 1 OWNER'S MANUAL 68CM CORDLESS REMOTE LCD TELEVISION & MONITOR MODEL: TFTV680 N111 PALSONIC CORPORATION PTY LTD 1 JOYNTON AVENUE WATERLOO NSW 2017 AUSTRALIA TEL: (02) 9313 7111 FAX: (02) 9313 7555 www.palsonic.com.au PALSONIC CUSTOMER SERVICE TELEPHONE AUSTRALIA: 1300 657 888...

  • Page 2: Table Of Contents

    Table of Contents Important Safety Precautions ... Preparations ... Using the Remote Control ... Batteries for the Remote Control ... Antenna Connection ... Power Connection ... Identification of Controls ... Main Unit ... Remote Control ... Connections ... Cautions before Connecting ... Connect a VCR ...
  • Page 3 Setting Sound ... Adjusting the Volume ... Adjusting the Sound Balance ... Adjusting the Headphone Volume ... Adjusting Equaliser ... Setting SRS Effect ... Stereo/Bilingual Selection ... Setting System ... Setting Colour System ... Setting Sound System ... Changing Screen Aspect Ratio ... Setting Menu Language ...

  • Page 4: Important Safety Precautions

    Important Safety Precautions Electrical energy can perform many useful functions, but it can also cause personal injuries and property damage if improperly handled. This product has been engineered and manufactured with the highest priority on safety. But IMPROPER USE CAN RESULT IN POTENTIAL ELECTRICAL SHOCK OR FIRE HAZARD. In order to prevent potential danger, please observe the following instructions when installing, operating and cleaning the product.
  • Page 5 15. Stand --- Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. Do not place the product on an unstable trolley, stand, tripod or table. Placing the product on an unstable base can cause the product to fall, resulting in serious personal injuries as well as damage to the product.

  • Page 6: Preparations

    Using the Remote Control Use the remote control by pointing it towards the remote sensor window of the set. Objects between the remote control and sensor window may prevent proper operation. Note: the illustration is for your reference only, the remote sensor may locate differently with different model.

  • Page 7: Antenna Connection

    Antenna Connection INSTALL the unit in a room where direct light will not fall upon the screen. Total darkness or a reflection on the picture screen may cause eyestrain. Soft and indirect lighting is recommended for comfortable viewing. Optimum reception of colour requires a good signal and will generally mean that an outdoor aerial must be used. The exact type and position of the aerial will depend upon your particular area.

  • Page 8: Identification Of Controls

    Identification of Controls Main Unit Power Indicator A yellow indicator lights when the power is on and a red indicator lights when in the standby mode. Remote Sensor 1. POWER Press this button to turn the unit ON from STANDBY mode. Press it again to turn the set back to STANDBY. 2.
  • Page 9 Main Unit D-Sub D-Sub AUDIO AUDIO DVI-D DVI-D AUDIO AUDIO Cb/Pb Cb/Pb Cr/Pr Cr/Pr AUDIO R AUDIO AUDIO L/MONO L/MONO 1. Antenna input Allows you to connect cable or outdoor antenna 2. Headphone jack 3. AV inputs (Video, Audio L/Mono, R) / S-Video input Receive video/audio signals from external sources such as VCR or DVD player.

  • Page 10: Remote Control

    Identification of Controls Remote Control Flip the cover, open in the direction of the arrow. (continued) 1. POWER Turn the unit on or standby. 2. CH , VOL+/- - Use to switch channels; - To display previous/next page (Teletext) VOL+/- - Use to adjust volume;...

  • Page 11: Identifications Of Controls

    Remote Control Identifications of Controls 16. POP To activate picture-out-picture 17. PIP To activate picture-in-picture 18. STEREO To select stereo, mono, bilingual To rectify the picture automatically in D-Sub mode 19. PIP-POS To select PIP frame position 20. TEXT To enter/exit teletext mode (Teletext) 21.

  • Page 12: Connections

    Connections Cautions before connecting Carefully check the terminals for position and type before making any connections. The illustration of the external equipment may be different depending on your model. Loose connectors can result in image or colour problems. Make sure that all connectors are securely inserted into their terminals.

  • Page 13: Connect A Avi Or S-Video Inputs

    Connect AVI or S-Video Inputs Examples of external devices that can be connected The unit provides Audio/Video inputs for you to connect external devices such as VCR, Video Camera or Home video game system. How to connect: Connect the Audio/Video cables between the Audio (L/R)/Video jacks on the unit and external devices.

  • Page 14: Connect A Dvd Player

    Connections (continued) Connect a DVD Player Rear of the D V D player Audio cable white (audio L) red (audio R, Pr/Cr) Green (Y) Blue (Pb/Cb) How to connect a DVD Player using Component Video Connections: Connect the Video cable between the Y, Cb, Cr input jacks on the unit and Y, Cb, Cr output jacks on the DVD player. Connect the Audio cable between the AUDIO input jack on the unit and AUDIO output jacks on the DVD player.

  • Page 15: Connect A Dtv Receiver

    Connect a DTV receiver cable Rear of the DTV receiver How to connect: Connect the cable or antenna to the antenna input jack on the DTV receiver. Conned the DVI cable between the DVI input interface on the unit and DVI output interface on the DTV receiver.

  • Page 16: Turning The Unit On And Off

    Turning the Unit On and Off Turning the Unit On and Off Turning On Insert the power cord into the wall outlet. Press the Power button on the remote control. The unit will be turned on and you will be ready to use it's features. Turning Off With the power on, Press the Power turn off.

  • Page 17: Viewing Tv Programs

    Your LCD TV can memorise and store all of the available channels. After the available channels are memorised, use to scan through the available stations. Select a Region Before you start automatic search, it is necessary to select a region firstly. Press MENU to display the menu main page.

  • Page 18: Manual Search

    Viewing TV Programs Manual Search Use Manual Search if desired channels can not be memorised or if you would like to store programs to specific channel numbers one by one. Use number buttons to directly select a channel that you want to perform manual search.

  • Page 19: Setting Favourite Channel

    Setting Favorite Channel Press MENU to display the menu main page. Press VOL+/- repeatedly to display Program menu page. Press CH to select Program No item. Press VOL+/- to select a channel that you want to set as your favourite channel. Press CH repeatedly to select Favourite item.

  • Page 20: Locking Tv Channels

    Locking TV Channels Setting Locking Function On or Off Press MENU to display the menu main page. Press VOL+/- repeatedly to display Option menu page. Press CH to select Child Lock item. Press VOL+ or ENTER to access the sub-menu. Press CH to select On or Off.

  • Page 21: Basic Operations

    Changing Channels Using the Channel Buttons (CH Press the CH or CH to change channels. When you press the CH or CH memorised. You will not see channels that were skipped. Direct Accessing Channels Press the number buttons to go directly to a channel. To select a one-digit channel: Input the channel number by using the 0-9 number buttons directly.

  • Page 22: Setting Picture

    Setting Picture Using the Preset Picture Mode Press MENU to display the menu main page. The [Video] menu page will be highlighted automatically. Press CH to select Mode item. Press VOL+ or ENTER to access the sub-menu. Press CH to select a desired picture mode. Press ENTER to confirm and press MENU repeatedly to exit.

  • Page 23: Setting Sound

    Adjusting the Volume You may quickly adjust the volume by using VOL+ or VOL-. The unit also allows you to adjust volume through OSD menu as follows. Press MENU to display the menu main page. Press VOL+/- repeatedly to display Audio menu page. Press CH to select Volume item.

  • Page 24: Setting Srs Effect

    Setting Sound (continued) Setting SRS effect Press MENU to display the menu main page. Press VOL+/- repeatedly to display Audio menu page. Press CH to select SRS Mode item. Press VOL+ or ENTER to access the sub-menu. Press CH to select On or Off. Press ENTER to confirm and press MENU repeatedly to exit.

  • Page 25: Setting System

    Setting Colour System Press MENU to display the menu main page. Press VOL+/- to display Program menu page. Press CH repeatedly to select Color System item. Press VOL+ or ENTER to access the sub-menu. Press CH to select a proper colour system. Press ENTER to confirm and press MENU repeatedly to exit.

  • Page 26: Setting Menu Background

    System Setting (continued) Setting Menu Background Press MENU to display the menu main page. Press VOL+/- repeatedly to display Option menu page. Press CH repeatedly to select Menu Background item. Press VOL+ or ENTER to access the sub-menu. Press CH to select Transparent or Opaque.

  • Page 27: Changing Screen Layout

    Selecting Screen Layout Press MENU to display the menu main page. Press VOL+/- repeatedly to display Option menu page. Press CH repeatedly to select MultiWin Mode item. Press VOL+ or ENTER to access the sub-menu. Press CH to select Off, POP, 6 Windows or 9 Windows. Press ENTER to confirm and press MENU repeatedly to exit.

  • Page 28: Pip Operations

    PIP Operations Viewing the Picture-in-Picture This unit includes a two-tuner Picture-in-Picture (PIP) feature. This allows you to watch two live broadcasts simultaneously, one in the full size "main" picture and one in a smaller "window" picture. The main window program can come from a TV broadcast or other external source, while the PIP window always displays TV program.

  • Page 29: Adjustment In D-Sub/Dvi Mode

    With working in D-Sub or DVI mode, this unit allows you to perform many adjustments. Adjusting Image Horizontal Size Press MENU to display the menu main page. Press VOL+/- repeatedly to display Screen menu page. Press CH to select H Size item. Press VOL+/- to adjust until you are satisfied.

  • Page 30: Smoothing The Picture

    Adjustment in D-Sub/DVI Mode Smoothing the Picture Press MENU to display the menu main page. Press VOL+/- repeatedly to display Screen menu page. Press CH repeatedly to select Smoothing Mode item. Press VOL+ or ENTER to access the sub-menu. Press CH to select Both on, Only Ver.

  • Page 31: Teletext

    What Is Teletext? Teletext broadcasts pages of information and entertainment to specially equipped television sets. Your System receives Teletext signals broadcast by a TV network, and decodes them into graphical format for viewing. News, weather and sports information, stock exchange prices and programme previews are among the many services available.

  • Page 32: Troubleshooting

    Troubleshooting Before calling for repair service, check the following items for possible remedies to an encountered symptom. Symptoms "Ghost" or double images No power No picture Good picture but no sound Good sound but poor colour Poor picture Horizontal dotted line Television not responding to remote control Snowy picture and noise...

  • Page 33: Specifications

    Type Display Size diagonal Display Feature LCD Panel Resolution Pixel Pitch Maximum Colours Brightness Contrast Viewing Angle TV System Channel Coverage System PAL-D/K 1-12 PAL-B/G 2-12 PAL-I 2-12 SECAM-B/G 2-12 SECAM-D/K 1-12 SECAM-L' SECAM-L 5-12 Teletext Maximum Audio Output Power Supply Power Consumption Unit Weight (kg) Unit Dimensions (WxHxD) (mm)
  • Page 34 Specifications (continued) Supported Display Format: D-Sub/DVI-D: 1024 x 768 @ 75Hz, 70Hz, 60Hz 720 x 400 @ 70Hz YPbPr: 480P @ 60Hz 720P @ 60Hz 1080i @ 50Hz, 60Hz 576P @ 50Hz Accessories Standard Accessories: 1 User Manual 1 AC Power Cord 1 Remote Control 2 AAA Batteries 1 Audio/Video Cable (RCA)
  • Page 35 PALSONIC CORPORATION PTY LTD 1 JOYNTON AVENUE WATERLOO NSW 2017 AUSTRALIA TEL: (02) 9313 7111 FAX: (02) 9313 7555 www.palsonic.com.au PALSONIC CUSTOMER SERVICE TELEPHONE AUSTRALIA: 1300 657 888 604-L27M6S3-02...
