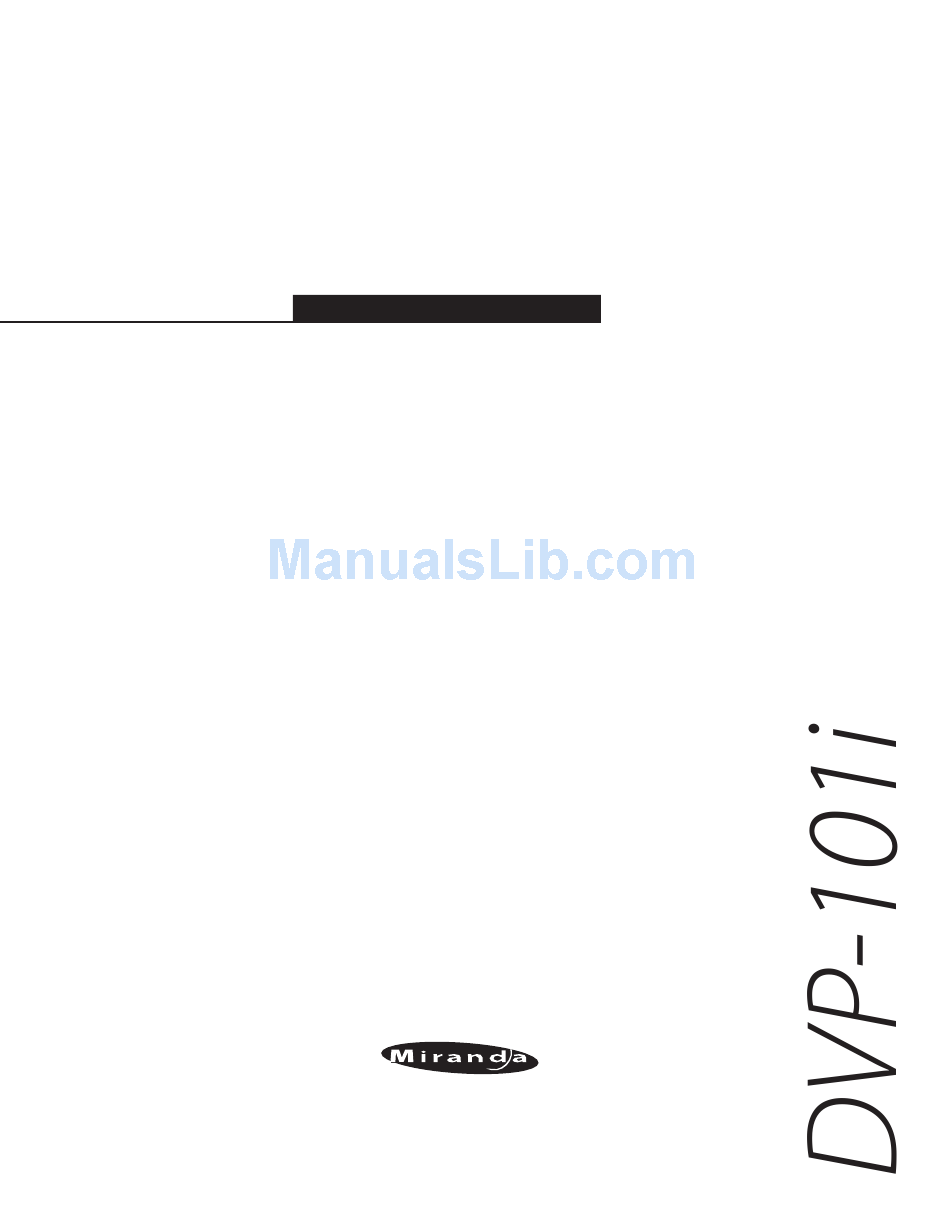

Guide to Installation and Operation
Copyright 2002 Miranda Technologies Inc.
imaging Series
DVP-101i
M081-9900-201
Specifications may be subject to change.
Printed in Canada
August 2002
Miranda
Technologies inc.
3499 Douglas-B.-Floreani
St-Laurent, Québec, Canada H4S 1Y6
Tel. 514-333-1772
Fax. 514-333-9828
www.miranda.com
4:2:2 Digital Video
Processor/
Synchronizer

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DVP-101i and is the answer not in the manual?

Questions and answers

Related Manuals for Miranda DVP-101i

Summary of Contents for Miranda DVP-101i

  • Page 1 Series 4:2:2 Digital Video DVP-101i Processor/ Synchronizer Guide to Installation and Operation M081-9900-201 Copyright 2002 Miranda Technologies Inc. Specifications may be subject to change. Printed in Canada August 2002 Miranda Technologies inc. 3499 Douglas-B.-Floreani St-Laurent, Québec, Canada H4S 1Y6 Tel.
  • Page 2 Equipment that fails after the warranty period, has been operated or installed in a manner other than that specified by Miranda, or has been subjected to abuse or modification, will be repaired for time and material charges at the Buyer’s expense.
  • Page 3 Miranda to be beyond repair, the customer must purchase a new product at current retail prices. The Buyer will pay freight and insurance charges for the return of the defective product or part to the manufacturer for repair. Miranda Technologies will pay freight and insurance charges for the return of the repaired product or part to the Buyer.

  • Page 4: Table Of Contents

    Contents DVP-101i 4:2:2 Digital Video Processor/Synchronizer ........1 Introduction ......................1 Features......................2 Typical Applications ..................3 1.3.1 Audio Mux/Demux Applications .............3 1.3.2 Hot Switching ..................4 Installation .......................5 Unpacking ......................5 DVP-101i Mechanical Installation..............5 2.2.1 imaging Quartet, Quartet-C and Quartet-M Housing Frame ....5 2.2.2 imaging Symphonie Housing Frame............6 2.2.2 imaging Solo Housing Frame ..............7...
  • Page 5 3.9.4 Closed Captioning................26 3.10 Configuration ....................26 3.10.1 Loading User Presets .................26 3.10.2 Saving User Presets ................27 3.11 Factory Reset ....................27 3.12 Direct Access Controls ..................27 3.12.1 Freeze Pushbutton ................27 3.12.2 Test Pushbutton..................27 Specifications ......................29 Schematic Diagrams.....................31...

  • Page 6: Dvp-101I 4:2:2 Digital Video Processor/Synchronizer

    All DVP-101i adjustments and selections can be controlled remotely with Miranda’s iControl software and RCP-100. The DVP-101i is a member of the imaging family of digital video cards and therefore requires the imaging Quartet, Quartet-C or Quartet-M, imaging Solo or imaging Symphonie housing frame for mounting and power.

  • Page 7: Features

    1.2 Features • Serial digital 4:2:2 input with active loop-through output (270 Mbps) • Reference input with passive loop-through output • Automatic 525/625 input format detection • 12-bit signal processing • EDH monitoring and insertion • 2 serial digital 4:2:2 outputs, each with 2 embedded AES digital audio groups •...

  • Page 8: Typical Applications

    DVP can extract embedded audio, pass it to the DAP module for processing and re-embed the audio at the output. A delay tracking output allows the audio processor to match the delay introduced by the DVP-101i. The figures below show typical applications involving both the DVP-101i and DAP-711i/712i. Note that only one audio group can be processed by a DAP-712i module;...

  • Page 9: Hot Switching

    Figure 1.5 illustrates a typical hot switch setup. For a smooth transfer to occur when switching between two sources, set the FRZE-MODE to ERR (error on input signal). Immediately after a switch is performed on the routing switcher, DVP-101i will detect an input error thereby performing a freeze. The DVP-101i automatically switches to the last errorless field or black.

  • Page 10: Installation

    M, Symphonie or Solo imaging housing frames in order to provide power to the card. This section describes how to install the DVP-101i in any of these housing frames. It is not necessary to switch off the power from these housing frames when installing the DVP-101i .

  • Page 11: Imaging Symphonie Housing Frame

    2. Select an empty compartment. 3. Carefully place the DVP-101i between the module guides and slowly push the module towards the rear of the frame until the module's edge connector is secured to its rear module. A light pressure to mate the connectors may be required.

  • Page 12: Imaging Solo Housing Frame

    Connector labels have been shipped with your DVP-101i. Select the label according to your housing frame model. This label is to be installed on the housing frame's rear panel in order to identify the DVP-101i external connectors. To install the label, follow these steps.

  • Page 13: Imaging Symphonie Connector Label

    Figure 2.4 DVP-101i rear panel label installation (imaging Quartet-M is shown in this example) 2.3.2 imaging Symphonie Connector Label To install the Symphonie label, follow these steps while referring to Figure 2.2. 1. On Symphonie’s rear panel, locate the appropriate connectors.

  • Page 14: Dvp-101I Electrical Installation

    Connect a serial digital video signal, conforming to the SMPTE 259M-C standard to the BNC labeled 4:2:2 IN. The DVP-101i will automatically switch to the detected line format and turn on the corresponding LED on the module’s front end (figure 3.1).
  • Page 15 DVP-101i and use the onboard audio bus connectors as shown in section 2.1 Mechanical Installation.) The DVP-101i also shorts the GPI output to ground when an automatic freeze is in progress, and optionally when a freeze is detected on the incoming video.

  • Page 16: Operation

    This LED turns on to indicate the FRS-101i has detected a 625-line format signal connected to 4:2:2 IN. • This LED lights up to indicate that the DVP-101i has detected an error on the serial digital video signal connected to 4:2:2 IN, and, when Input Freeze...

  • Page 17: Menu Introduction

    REF LED flashes. • When an external reference is present, the video input is frame synchronized with the reference signal; this LED turns on to indicate that the DVP-101i is in frame sync mode. • FREEZE...
  • Page 18 If the menu is currently being accessed and no push-button has been pressed for 1 minute, the DVP-101i automatically exits from the menu, thereby returning to normal mode. At the same time, changes made to the current parameter will be stored.
  • Page 19 (continued) TIMG FRAM [0,1,2,3,4,5,6,7] (FRM) (LINE) VERT [0,1,...,524] for 525-lines or [0,1,...,624] for 625-lines (µS) HORZ [0,0.037,...,64] FINE [-40,...,0,1,...,+40] (no unit) DMUX [OFF, GRP1, GRP2, GRP3, GRP4] ABUS see note 1 below see note 1 below [OFF, GRP1, GRP2, GRP3, GRP4] [MUTE, PASS] VBIT DMUX...

  • Page 20: Digital Procamp Functions

    3.4 Digital ProcAmp Functions These functions allow the adjustment of different parameters for both the analog and digital video outputs. Y, Cb and Cr gains may be adjusted individually or simultaneously; the black level, hue and saturation may also be controlled. Additional controls are also provided for horizontal picture positioning and cable equalization.

  • Page 21: Black Level Adjustment

    –800 to +800, the default value being set at 0. Perform the following steps to adjust saturation: 1. Press SELECT to enter the menu. PROC is displayed.. 2. Press SELECT to enter the ProcAmp menu. Y is displayed. Depress the “+” push-button until SAT is displayed.

  • Page 22: Horizontal Picture

    Note that when the reference is not present and the DVP-101i is locked to the input, a zero phasing (vertical timing and horizontal timing set to 0) is not possible because of the minimum processing delay of the card.

  • Page 23: Vertical Timing Delay

    allows additional frames to be added after/before the frame sync. As an example, a frame phasing of 4 will produce a delay between 4 and 5 frames. When there is no reference and the phasing is done on the video, the frame phasing adjustment adds a delay in frame increments between the input and output video (Frame Delay/Frame Buffer mode).

  • Page 24: Horizontal Fine Timing Delay

    9. To return to normal mode, press ESC. 3.6 Audio Functions The DVP-101i can de-embed up to 2 audio groups from the ancillary data space of the video input, pass it to companion DAP-711i/712i Audio Processor modules and re-embed it at the output (see section 2.1 DVP-101i Mechanical Installation for details about DAP module installation).

  • Page 25: Audio Embedding

    Because some audio equipment does not properly mute the audio when the V bit is set, the DVP-101i can be instructed to mute the audio for the duration of the V bit or to pass the audio as is. When Mute is selected, the DVP- 101i will smoothly mute the audio signal, then resume passing the current audio when the V bit is cleared (see figure 3.3).

  • Page 26: Ancillary Data Blanking Functions

    7. Press SELECT to store the new VBIT selection setting. VBIT is displayed. 8. Press ESC to return to ABUS. 9. To return to normal mode, press ESC. Figure 3.3 Audio Muting During VBIT Presence VBIT Audio signal 3.7 Ancillary Data Blanking Functions 3.7.1 HANC Blanking Incoming horizontal ancillary data can be entirely blanked or can pass to the digital video output.

  • Page 27: Vanc Blanking

    8. To return to normal mode, press ESC. 3.8 Freeze Functions The DVP-101i has a manual freeze pushbutton situated on the front edge of the module (see figure 3.1 Front Panel Interface) that allows a user to freeze (grab) a video image.

  • Page 28: Freeze Type

    To change the freeze mode follow these steps: 1. Press SELECT to enter the menu. PROC is displayed. 2. Press the “ + “ push-button until FRZE is displayed. 3. Press SELECT; MODE is displayed. 4. Press SELECT to enable the Freeze Mode menu. The current Freeze Mode selection is displayed.

  • Page 29: Input Video Freeze Detection

    In addition to providing an automatic freeze on incoming signals with detected errors, the DVP-101i has the ability to detect that the incoming video itself is frozen. An alarm is raised once the frozen state has been detected for longer than a user-specified period.

  • Page 30: Horizontal Blanking Setting

    It is possible, with the color framing adjustment, to set the desired subcarrier phase to horizontal reference point (SC/H) of the outputs with respect to the input reference signal. Table 3.3 provides an example. Here, we describe the difference between a NEAR and +1 color framing for NTSC outputs.

  • Page 31: Closed Captioning

    3.9.3 Horizontal Blanking Setting For the composite analog output, the blanking interval can be set to narrow (as per SMPTE 259M : all pixels are passed) or wide (as per SMPTE-170M). To select the desired horizontal blanking setting, perform the following steps: 1.

  • Page 32: Saving User Presets

    4. Press the “+“ push-button to display YES. 5. Press SELECT to reset all parameter values to factory values for the current video format. After the reset is complete, the DVP-101i returns to FACT. NOTE: USER parameters, set remotely with the iControl option, are not reset to their default values after a factor reset 3.12 Direct Access Controls...
  • Page 33 The Test pushbutton enables and disables the test patterns at the output. Test patterns are: 75% color bars (with 100% white), 100% color bars and black respectively. When depressed, the test pattern is enabled and the yellow LED located next to it lights up. Depressing the Test pushbutton consecutively will cycle through the 3 test patterns (depressing after BLAK is displayed disables the test pattern output).

  • Page 34: Specifications

    Return Loss: > 15 dB up to 270 MHz Jitter (Wideband): < 0.2 UI (0.74ns) p-p Delay Tracking: Miranda video-audio tracking signal Audio Bus I/O: 10 pin connector to audio processor COMPOSITE ANALOG OUTPUT Signal (2): NTSC (525/60) SMPTE 170M...
  • Page 35 16 µs in delay mode Processing Delay: 2 lines (min) in frame sync mode PROCESSING PERFORMANCE (ANALOG OUTPUT) Quantization: 10 bits Sampling: 54 MHz (4X Oversampling) Freq. Response: +/- 0.1 dB to 5.5 MHz Noise (Unweighted): <-62 dB to 5.75 MHz Diff.

  • Page 36: Schematic Diagrams

    5 Schematic DIagrams...

Table of Contents
