Summary of Contents for Ventrac KR502

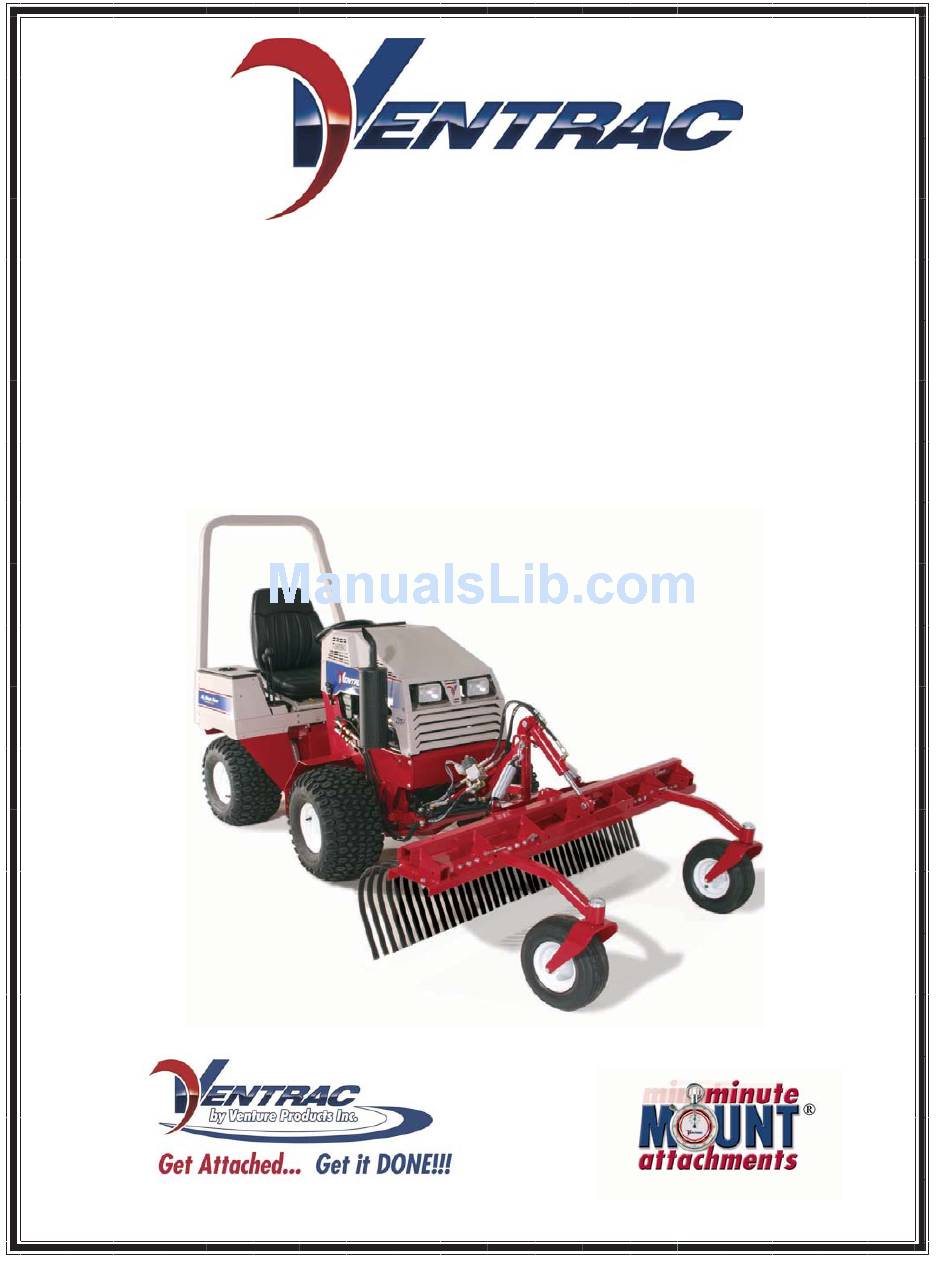

- Page 1 OWNER/OPERATOR’S MANUAL & PARTS LIST TERRA RAKE Model KR502 Serial # 1050-1127 Model KR702 Serial # 1050-1173 Revised 01/09/09 09.10023...
-
Page 2: To The Owner
TO THE OWNER Product Identification If you need to contact an Authorized Ventrac Dealer for information on servicing your product, always provide the Product Model and Serial numbers. Please fill in the following information for future reference. See picture below to find the loca- tion of the identification number. -
Page 3: Table Of Contents
TABLE OF CONTENTS INTRODUCTION SECTION A Description & Specifications ....... . . A-1 SAFETY SECTION B Safety Symbols . - Page 4 An additional feature is the ability to remount the hitch on the opposite side of the tine frame and use it on the rear of the Ventrac that is equipped with a three point hitch and a Ventrac 3N1 hitch.
- Page 5 SAFETY ATTENTION This symbol identifies potential health and safety hazards. It marks safety precautions. Your safety and the safety of others is involved. SIGNAL WORD DEFINITIONS Indicates an imminently hazardous situa- tion which, if not avoided, will result in death or serious injury. This signal word is limited to the most extreme cases.
-
Page 6: Decals
SAFETY The following decals must be maintained on your Ventrac attachment. If any decals are faded or missing, contact your dealer promptly for replacements. Page & Decal Description Part Number Location E-1, #18 (2) Danger - Pinching Hazard 00.0102 E-3, #24 Warning - Read Owner's Manual 00.0217... -
Page 7: General Safety Procedures
SAFETY General Safety Procedures for Ventrac Tractors, Attachments, & Accessories Read and understand the operator’s manual before operating this equipment. Observe and follow all safety decals. DO NOT let children or any untrained person operate the tractor or attachment. Make sure that all operators of this equipment are thoroughly trained in using it safely. - Page 8 SAFETY Before making any repairs or adjustments, engage the parking brake, lower attachment to the ground, shut the engine off, and remove the key. Read and understand the operator’s manual before operating this equipment. The rake tines should comb not dig. Severe con- tact with the ground, debris, rocks, etc.
-
Page 9: Attaching
* Refer to tractor manual for operation of controls. Operating Tips: The Ventrac Terra Rake is designed to operate with the tines pushing material. If you need to back up, the rake should be raised to the transport position. The rake tines should comb not dig. The tines should engage the ground enough to cause them to have some stretch and spring back movement. -
Page 10: Tire Pressure
MAINTENANCE Grease the front wheel bearings every 20 hours. Tire pressure should be maintained at 20 PSI. Tines function best when they are aligned well with each other. Bent tines should be replaced or straightened. Some realignment can be done by hand. Over bending is required because the hardened tines will spring back. - Page 11 PARTS MANUAL KR502/KR702...
-
Page 12: Main Frame & Wheels
PARTS ILLUSTRATED DRAWING MAIN FRAME & WHEELS... - Page 13 8 ..53.0133 ... WHEEL, ASM 13 X 5 X 6 CASTER (KR502 Serial # 1092-) ..2...
-
Page 14: Hitch Frame, Height Adjuster, & Hydraulics
PARTS ILLUSTRATED DRAWING HITCH FRAME, HEIGHT ADJUSTER, & HYDRAULICS... - Page 15 PARTS ILLUSTRATED DRAWING HITCH FRAME, HEIGHT ADJUSTER, & HYDRAULICS REF. PART NO. DESCRIPTION QTY. 1 ..00.0211 ... DECAL, KR HEIGHT INDICATOR ..... 1 2 .
-
Page 16: Rake Extensions & Hydraulic Height Adjust
OPTIONAL PARTS ILLUSTRATED DRAWING RAKE EXTENSIONS & HYDRAULIC HEIGHT ADJUST... - Page 17 OPTIONAL PARTS ILLUSTRATED DRAWING RAKE EXTENSIONS & HYDRAULIC HEIGHT ADJUST REF. PART NO. DESCRIPTION QTY. 1 ..90.0610 ... BOLT, 3/8-16 USS X 1 1/4 ......12 2 .
- Page 18 Ventrac equipment. Proof of purchase may be required by the dealer to substantiate any warranty claim. Only warranty work performed and submitted by an Authorized Ventrac Dealer may be eligible for warranty credit.
- Page 19 (i) damage or defects due to or arising out of repair of Ventrac turf equipment by person or persons other than an authorized Ventrac service dealer or the installation of parts other than genuine Ventrac parts or Ventrac recommended parts.
