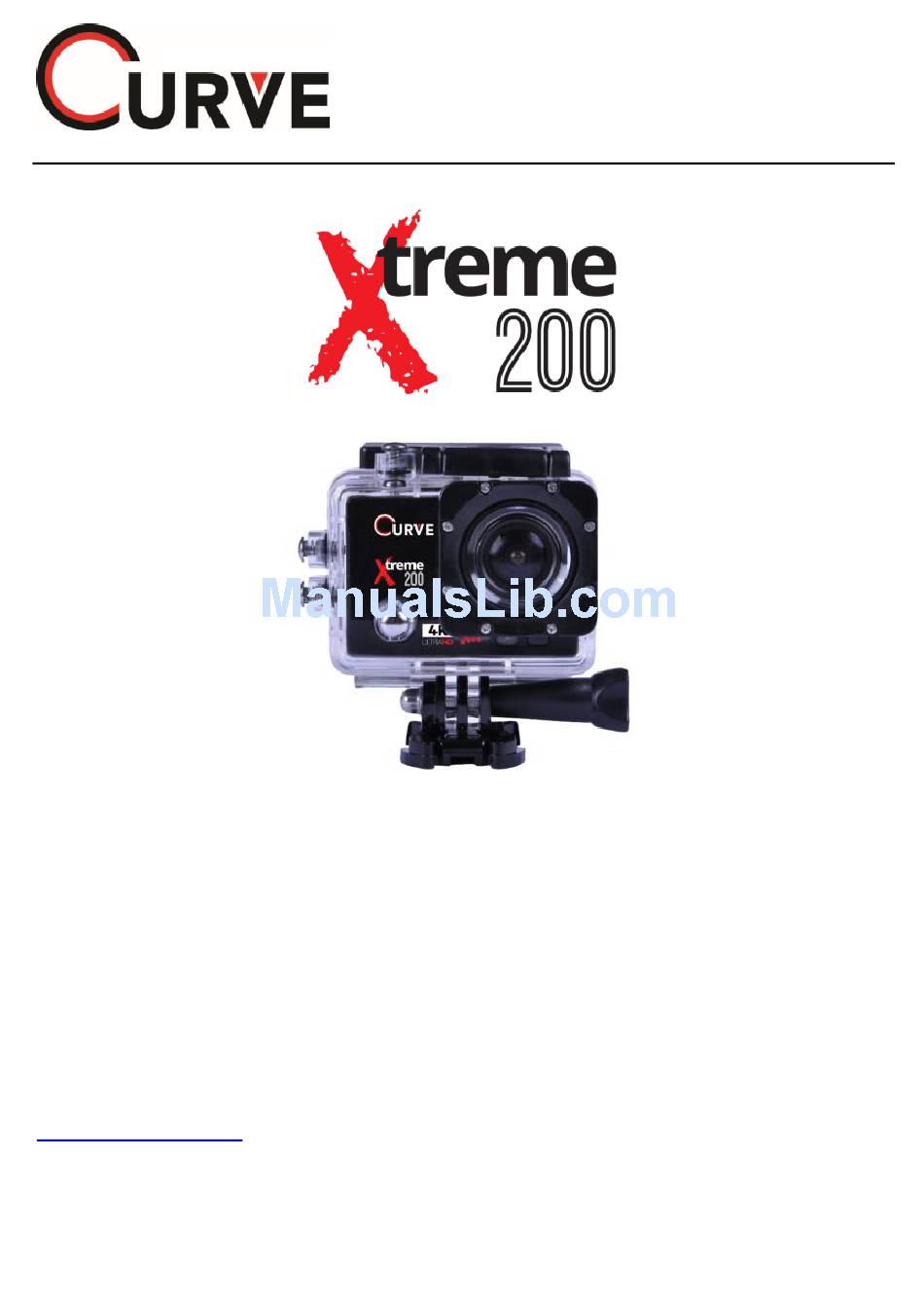

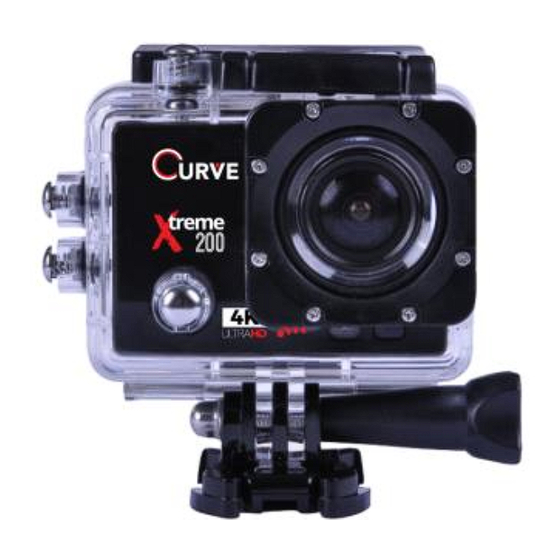

WIFI-4K Digital Sports Camera
Trademarks
All brand and product names are trademarks or registered
trademarks of Maka GPS Technologies Group. In association with
Maka GPS Technologies Private Limited (Singapore), Maka GPS
Technologies Sdn. Bhd. (Malaysia), Maka Technologies Group
(H.K.) Limited. and Maka Corporation USA
Inc.
The information in this manual is subject to change without notice.
www.makagps.com
4/2016. R1.1
1
© 2016 Maka Technologies Group. All Rights Reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Xtreme 200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Curve Xtreme 200

Summary of Contents for Curve Xtreme 200

  • Page 1 WIFI-4K Digital Sports Camera Trademarks All brand and product names are trademarks or registered trademarks of Maka GPS Technologies Group. In association with Maka GPS Technologies Private Limited (Singapore), Maka GPS Technologies Sdn. Bhd. (Malaysia), Maka Technologies Group (H.K.) Limited. and Maka Corporation USA Inc.
  • Page 2 Safety information To prevent injury to yourself and others or damage to your device, read the safety information about your device before using the device. Warning Failure to comply with safety warnings and regulations can cause serious injury or death. Do not use damaged power cords or plugs, or loose electrical sockets Unsecured connections can cause electric shock or fire.
  • Page 3 Use manufacturer-approved batteries, chargers, accessories, and supplies Using generic batteries or chargers may shorten the life of your device or cause the device to malfunction. They may also cause a fire or cause the battery to explode. Use only Maka GPS Technologies Group-approved battery and charger specifically designed for your device.
  • Page 4 Prevent the battery from coming into contact with metal objects, as this can create a connection between the + and – terminals of your battery and lead to temporary or permanent battery damage. Never use a damaged charger or battery. Do not bite or suck the device or the battery Doing so may damage the device or result in an explosion or fire.
  • Page 5 Caution Failure to comply with safety cautions and regulations can cause injury or property damage Do not use your device near other electronic devices Most electronic devices use radio frequency signals. Your device may interfere with other electronic devices. Do not expose the device to heavy smoke or fumes Doing so may damage the outside of the device or cause it to malfunction.
  • Page 6 Do not store your device in very hot or very cold areas. It is recommended to use your device at temperatures from 0 °C to60 °C and humidity from 10% to 80% Doing so may cause the screen to malfunction, result in damage to the device, or cause the battery to explode.
  • Page 7 Leaving batteries unused over time may reduce their lifespan and performance. It may also cause the batteries to malfunction or explode, or cause a fire. Your device may wear out over time. Some parts and repairs are covered by the warranty within the validity period, but damages or deterioration caused by using unapproved accessories are not.
  • Page 8 Correct disposal of this product (Waste Electrical & Electronic Equipment) (Applicable in countries with separate collection systems) This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste.
  • Page 9 Disclaimer Some content and services accessible through this device belong to third parties and are protected by copyright, patent, trademark and/or other intellectual property laws. Such content and services are provided solely for your personal non-commercial use. You may not use any content or services in a manner that has not been authorised by the content owner or service provider.
  • Page 10 Third party services may be terminated or interrupted at any time, and Maka GPS Technologies Group makes no representation or warranty that any content or service will remain available for any period of time. Content and services are transmitted by third parties by means of networks and transmission facilities over which Maka GPS Technologies Group has no control.
  • Page 11 About this manual This device provides high quality digital recording device using Maka’s high standards and technological expertise. This user manual is specially designed to detail the device’s functions and features. Please read this manual before using the device to ensure safe and proper use.

  • Page 12: Table Of Contents

    Table of Contents 1. Accessories list………………………………..……………………………….. 13 2. General Precautions…………………...…………………………………..14-15 3. Introduction………………………………………………………………..4. Specification…………………………………………………………………... 17 5. Feature (Device and RF Remote)...………………………………………..18-20 6. SD card installation/format………………………………………………..21-22 7. Camera Start up / Shut Down…………………..…………………………… 8. Battery Installation / Charges…………………………………………….…… 23-24 9.

  • Page 13: Accessories List

    Short Connector Quick Release (For Charging and with Screw with Screw Type 1 Buckle with Screw Data Transfer) Curved/Flat Bike Helmet Curve Release Adaptor Adhesive Mount Bandage Buckle Connector Short Connector Bike Roll Bar Waterproof Battery with Screw Type 2...

  • Page 14: General Precautions

    General Precautions Please use this camera in accordance with the following security measures to avoid damage. Keep away from camera environment. High fire or extreme temperatures can deform the camera casing, causing heat source damage to the internal electronic components and possibly making the camera malfunction.
  • Page 15 USB cable Do not modified or cut, pull hard or heavy compression on the USB cable. It may cause damage to the USB cable. Exception Any strange sound, smell, abnormal heating, please handling immediately remove the battery, unplug the USB cable and inform your distributor for advised.

  • Page 16: Introduction

    3, Introduction  This camera is a type of high-end 4K UHD sports camera, which meet marketing demand and also it has the industry-leading functions like digital video, photographs, timing photography during video, video display, playback, inverted photography, and document protection. 30m waterproof water housing makes it more convenient for taking wonderful video on and in the water.

  • Page 17: Specification

    4、Specification 2.0’’ 960*240 LCD （dedicated outdoor products） LCD Screen Light Sensor 5MP CMOS Sensor Solution/Sensor V3 / Sony179A Lens 170 degree FOV with A+ grade high resolution WIFI 802.11b/g/n RF Remote Yes (Pairing not require) RF Remote Battery Included (Lithium Battery CR2032 3V type) Language Simplified Chinese, Traditional...

  • Page 18: Feature (Device And Rf Remote)

    5、Feature The Front/Left and right side（with lens）& RF Remote Name Function / Description Mode 1． Switch on/ off ( long press for 3 to 5 seconds) button/Power 2． Menu button to toggle mode and setting On/Off button 3． Exit button when entering into wrong setting Lighting Indicator Light without flashing indicate device on Light blinking indicate recording start...
  • Page 19 LCD Screen 2.0 inch LCD panel Up Button / Wifi Selection button Button 4x Zoom-in Button before or during recording/Photoshot (quick press to zoom in) Wifi turn on/off (Press and hold 3sec to turn on and quick press to exit ) Speaker Playback with voice capture during recording Down button...
  • Page 20 Introduction for symbols shown Name Mode Function description Current mode Recording icon will be in Red Record mode Resolution Video resolution/photo Resolution recording/photo resolution taken Capacity Balance of the Sd card Video/photo capacity to record balance capacity Showing if sd card is SD Card indication detected (White is loaded and Grey is no card)

  • Page 21: Sd Card Installation/Format

    6、SD Installation Your device accepts memory cards with maximum capacities of 64 GB. Depending on the memory card manufacturer and type, some memory cards may not be compatible with your device. Some memory cards may not be fully compatible with the device. Using an incompatible card may damage the device or the memory card, or corrupt the data stored in it.
  • Page 22 On the device 1 Press on the Shooting Button to stop the device from recording 2 Press on the MENU (On/Off) button to switch off the device 3 Pull out the memory card only until device fully shut down. Do not remove the memory card while the device is transferring or accessing information.

  • Page 23: Camera Start Up / Shut Down

    A goodbye message will be displayed on screen as shown in the image below. Curve Xtreme200 4K UHD WIFI Digital Roadcorder will be switch on and off automatically if you have permanently connected it to the car charger.

  • Page 24: Mode Switch

    Battery charging a. Install the battery into the camera. b. Connect the camera with computer through data cable. c. Connect the camera with the power adapter by getting through power supply. a、Long press the power button for 3~5 seconds for startup b.

  • Page 25: Video Settings

    10. Video Setting Press MENU button to get into the mode setting interface when camera power on. Then press Shoot button to enter. There are 5 type of setting as shown below 10.1 Video Resolution 10.1.1 Press Up/Down button to select video resolution once get into setting interface.

  • Page 26: Loop Recording

    10.3.1 Press Up/Down button to select Time-lapse once get into setting interface. 10.3.2 Press Shooting button to enter selection of the frequency needed to be set. 10.3.3 Once selection done, press Shooting Button to confirm and exit previous menu interface 10.4 Loop Recording 10.4.1 Press Up/Down button to select looping recording...

  • Page 27: Photo Settings

    selection 10.5.3 Press Up/Down button to select resolution with preferred frame per second 10.5.4 Press Shooting button to confirm the selected mode choose when quick recording during mode change and exit to previuos interface. 11 Photo Setting Press MENU button to get into the mode setting interface when camera power on.

  • Page 28: Auto (Continuous)

    11.2.1 Press Up/Down button to select Timed once get into setting interface 11.2.2 Press Shoot button to confirm and enter for selection 11.2.3 Press Up/Down button to select Timed preferred 11.2.4 Press Shooting button to confirm the Timed selected and exit to previuos interface 11.3 Auto (Continuous Delay) This function once set to selected continuous delay time will activate on Photo Mode.

  • Page 29: Basic Settings

    11.4.1 Press Up/Down button to select DramaShot once get into setting interface 11.4.2 Press Shoot button to confirm and enter for selection 11.4.3 Press Up/Down button to select the number of photo to be taken per shot preferred 11.4.4 Press Shooting button to select and exit to previous interface 12 Basic Setting Press MENU button to get into the mode setting interface...

  • Page 30: White Balance (Photo)

    12.2 White Balance White balance function help you to select record or photo taking base on the environment condition for better quality taking. It is always recommended to set as Auto if normal user 12.2.1 Press Up/Down button to select White Balance once get into setting interface 12.2.2 Press Shoot button to confirm and enter for...

  • Page 31: Image Rotation

    12.3.3 Open smartphone Wifi to detect network (Action Cam) 12.3.4 Enter default password : 1234567890 when prompt Password could be change in apps program once connected 12.3.5 Open Apps and add device (Action Cam) to start live view and start your recording/Photo taking and other setting 12.4 Image Rotation 12.4.1 Press Up/Down button to select Image Rotation...

  • Page 32: Led Indicator Light

    12.6.2 Press Shoot button to confirm and enter for selection 12.6.3 Press Up/Down button for selection (50Hz, 60Hz, Auto) and Shoot button to confirm and exit back into setting interface 12.7 LED Light Indicator 12.7.1 Press Up/Down button to select LED Light Indicator once get into setting interface 12.7.2 Press Shooting button to select...

  • Page 33: Auto Shutdown

    12.9.1 Press Up/Down button select Auto Screensaver once get into setting interface 12.9.2 Press Shoot button to confirm and enter for selection 12.9.3 Press Up/Down button for selection Shoot button to confirm and exit back into previous interface 12.10 Auto Shut down This function will assist to shut down device at a selected time to conserve battery energy if no recording is detected 12.10.1 Press...

  • Page 34: Language

    13.1 Language 13.1.1 Press Up/Down button to select language once get into setting interface 13.1.2 Press Shoot button to confirm and enter for selection 13.1.3 Press Up/Down button for 14 selection (eg. Eng,Ch) and Shoot button to confirm and exit back into setting interface 13.2 Date &...

  • Page 35: Firmware Version

    13.4.2 Press Shoot button to confirm and enter for selection 13.4.3 Press UP/Down button for Confirmation/cancel selection and Shoot button to confirm and exit back into previous interface 13.3 Firmware Version Firmware version 20160115V03 dtd:20160115 14 Video/Photo Playback Press MENU button to get into the mode playback interface when camera power on.

  • Page 36: Troubleshooting / Time Lapse Table Reference

    16. Troubleshooting Question Reason Solution The captured image is not MicroSD card might be full. Make sure to stop recording before stored shutting down. Image is not saved before the power outage. All buttons are invalid Procedural error or faulty Press RESET button to restart the Operation DVR.
  • Page 37 Encounter “card error” when MicroSD card might be corrupted. Reformat the memory card. If issue pictures or videos recording still persist, replace a new memory card. No image is displayed on a Cable plug might not be plugged in Ensure AV/ HDMI cable is plug into high-definition TV screen properly.
