Curve Xtreme 50 User Manual

Wifi-fhd digital sports camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

WIFI-FHD Digital Sports Camera
Trademarks
All brand and product names are trademarks or registered
trademarks of Maka GPS Technologies Group. In association with
Maka GPS Technologies Private Limited (Singapore), Maka GPS
Technologies Sdn. Bhd. (Malaysia), Maka Technologies Group
(H.K.) Limited. and Maka Corporation USA
Inc.
The information in this manual is subject to change without notice.
www.makagps.com
4/2016. R1.1
1
© 2016 Maka Technologies Group. All Rights Reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Xtreme 50 and is the answer not in the manual?

Questions and answers

Related Manuals for Curve Xtreme 50

Summary of Contents for Curve Xtreme 50

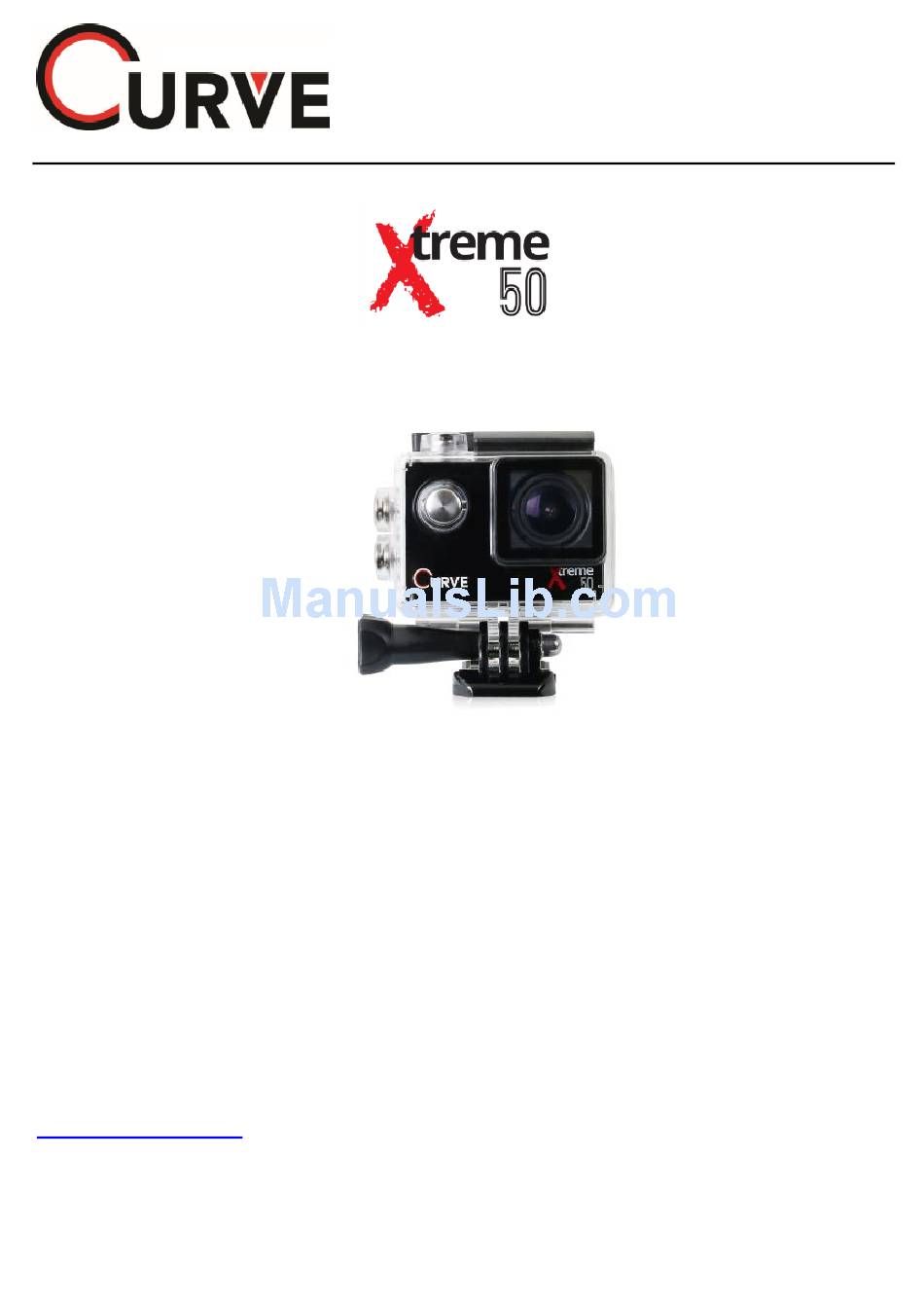

  • Page 1 WIFI-FHD Digital Sports Camera Trademarks All brand and product names are trademarks or registered trademarks of Maka GPS Technologies Group. In association with Maka GPS Technologies Private Limited (Singapore), Maka GPS Technologies Sdn. Bhd. (Malaysia), Maka Technologies Group (H.K.) Limited. and Maka Corporation USA Inc.
  • Page 2 Safety information To prevent injury to yourself and others or damage to your device, read the safety information about your device before using the device. Warning Failure to comply with safety warnings and regulations can cause serious injury or death. Do not use damaged power cords or plugs, or loose electrical sockets Unsecured connections can cause electric shock or fire.
  • Page 3 Use manufacturer-approved batteries, chargers, accessories, and supplies Using generic batteries or chargers may shorten the life of your device or cause the device to malfunction. They may also cause a fire or cause the battery to explode. Use only Maka GPS Technologies Group-approved battery and charger specifically designed for your device.
  • Page 4 Prevent the battery from coming into contact with metal objects, as this can create a connection between the + and – terminals of your battery and lead to temporary or permanent battery damage. Never use a damaged charger or battery. Do not bite or suck the device or the battery Doing so may damage the device or result in an explosion or fire.
  • Page 5 Caution Failure to comply with safety cautions and regulations can cause injury or property damage Do not use your device near other electronic devices Most electronic devices use radio frequency signals. Your device may interfere with other electronic devices. Do not expose the device to heavy smoke or fumes Doing so may damage the outside of the device or cause it to malfunction.
  • Page 6 Do not store your device in very hot or very cold areas. It is recommended to use your device at temperatures from 0 °C to60 °C and humidity from 10% to 80% Doing so may cause the screen to malfunction, result in damage to the device, or cause the battery to explode.
  • Page 7 Leaving batteries unused over time may reduce their lifespan and performance. It may also cause the batteries to malfunction or explode, or cause a fire. Your device may wear out over time. Some parts and repairs are covered by the warranty within the validity period, but damages or deterioration caused by using unapproved accessories are not.
  • Page 8 Correct disposal of this product (Waste Electrical & Electronic Equipment) (Applicable in countries with separate collection systems) This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste.
  • Page 9 Disclaimer Some content and services accessible through this device belong to third parties and are protected by copyright, patent, trademark and/or other intellectual property laws. Such content and services are provided solely for your personal non-commercial use. You may not use any content or services in a manner that has not been authorised by the content owner or service provider.
  • Page 10 Third party services may be terminated or interrupted at any time, and Maka GPS Technologies Group makes no representation or warranty that any content or service will remain available for any period of time. Content and services are transmitted by third parties by means of networks and transmission facilities over which Maka GPS Technologies Group has no control.
  • Page 11 About this manual This device provides high quality digital recording device using Maka’s high standards and technological expertise. This user manual is specially designed to detail the device’s functions and features. Please read this manual before using the device to ensure safe and proper use.

  • Page 12: Table Of Contents

    Table of Contents 1. Accessories list………………………………..……………………………13 2. General Precautions…………………...…………………………………..14-15 3. Introduction………………………………………………………………...16 4. Specification………………………………………………………………..17 5. Feature……………………………………………………………………...18-23 6. SD card installation/format………………………………………………..23-25 7. Camera Start up / Shut Down…………………..………………………… 25 8. Battery Installation……………………………………………………….…26 9. Battery charge……………………………………………………………….26 10. Mode Switch…………………………………………………………….…26 11. Settings………………………………………………………………….….27-42 11.1 Driving Recorder………………………………………………..27-32 11.1 Video Resolution………………………………………………..27-32 11.2 Looping Video…….…………………………………………..32-36 11.3 Time Stamp….………………………………………………….36-40...

  • Page 13: Accessories List

    Short Connector Quick Release (For Charging and with Screw with Screw Type 1 Buckle with Screw Data Transfer) Curved/Flat Bike Helmet Curve Release Adaptor Adhesive Mount Bandage Buckle Connector Short Connector Bike Roll Bar Waterproof Battery with Screw Type 2...

  • Page 14: General Precautions

    General Precautions Please use this camera in accordance with the following security measures to avoid damage. Keep away from camera environment. High fire or extreme temperatures can deform the camera casing, causing heat source damage to the internal electronic components and possibly making the camera malfunction.
  • Page 15 camera or even cause a fire. USB cable Do not modified or cut, pull hard or heavy compression on the USB cable. It may cause damage to the USB cable. Exception Any strange sound, smell, abnormal heating, please handling immediately remove the battery, unplug the USB cable and inform your distributor for advised.

  • Page 16: Introduction

    3, Introduction  This camera is a type of high-end full HD sports camera, which meet marketing demand and also it has the industry-leading functions like digital video, photographs, timing photography during video, video display, playback, inverted photography, and document protection. 30m waterproof water housing makes it more convenient for taking wonderful video on and in the water.

  • Page 17: Specification

    4、Specification 2.0’’ 320*240 LCD （dedicated outdoor products） LCD Screen Light Sensor 3MP CMOS Sensor Solution/Sensor SPCA6330A/OV2710 (Omnivision) Lens 170 degree FOV with A+ grade high resolution WIFI Language Simplified Chinese, Traditional Chinese, English Video Resolution 1080FHD (1920*1080 30FPS ) 720P (1280*720 60FPS) Video Format...

  • Page 18: Feature

    5、Feature The Front/Left and right side（with lens） Name Function / Description Mode 1． Switch on/ off ( long press for 3 to 5 seconds) button/Power 2． Menu button to toggle mode and setting On/Off button 3． Exit button when entering into wrong setting Shooting Button Recording Button Confirm/Enter Button...
  • Page 19 Lighting Indicator Red light without flasing indicate device on Red light blinking indicate recording start Lens Screen capture during recording photography *Always keep the lens clean for clear quality SD card slot Please switch off the camera before insert the SD card then play the camera.
  • Page 20 Introduction for symbols shown Name Mode Function description Current mode Recording icon will be in Red Record mode Capacity Time shown are recording Video capacity duration taken Capacity Balance of the Sd card Video balance capacity to record capacity Current mode Photo taking Photo mode Capacity...

  • Page 21: Removing The Memory Card

    6、SD Installation Your device accepts memory cards with maximum capacities of 32 GB. Depending on the memory card manufacturer and type, some memory cards may not be compatible with your device. Some memory cards may not be fully compatible with the device. Using an incompatible card may damage the device or the memory card, or corrupt the data stored in it.
  • Page 22 On the device 1 Press on the Shooting Button to stop the device from recording 2 Press on the MENU (On/Off) button to switch off the device 3 Pull out the memory card only until device fully shut down. Do not remove the memory card while the device is transferring or accessing information.

  • Page 23: Camera Start Up / Shut Down

    A goodbye message will be displayed on screen as shown in the image below. Curve Xtreme50 FHD WIFI Digital Roadcorder will be switch on and off automatically if you have permanently connected it to the car charger.

  • Page 24: Mode Switch

    9、Battery charging a. Install the battery into the camera. b. Connect the camera with computer through data cable. c. Connect the camera with the power adapter by getting through power supply. a、Long press the power button for 3~5 seconds for startup b.

  • Page 25: Driving Recorder

    11.1 Driving Recorder 11.1.1 Press MENU or UP/Down button to select driving recorder once get into setting interface. 11.1.2 Press Shooting button to select and confirm the Yes/No 11.1.3 Press Menu or UP/Down button to select and Shooting button to confirm and exit into setting interface. 11.2 Resolution setting 11.2.1 Press MENU or UP/Down button to select video resolution once get into setting interface.

  • Page 26: Time Stamp

    time preferred 11.3.4 Press Shooting button to confirm the video cycle time choose (Off, 2 minutes, 3 minutes, 5 minutes, 10 minutes) and exit to setting interface 11.4 Time Stamp 11.4.1 Press MENU or UP/Down button to select Time Stamp once get into setting interface 11.4.2 Press Shoot button to confirm and enter for selection...

  • Page 27: Photo Resolution

    11.6 Photo resolution 11.5.1 Press MENU or UP/Down button to select Time Stamp once get into setting interface 11.5.2 Press Shoot button to confirm and enter for selection 11.5.3 Press MENU, UP/Down button to select resolution for photo preferred (2M, 5M, 8M, 12M) 11.5.4 Press Shooting button to select and exit to setting interface 11.7 Burst Photo –...

  • Page 28: Continuous Lapse

    11.9 Continuous lapse - For usage during mode Continuous-lapse is link up with time lapse when a photo is taken without pressing shooting button after first time was press. It is always recommended to set as off. If happen to on function will require to press Shooting button to stop.

  • Page 29: Sound Indicator

    11.10.3 Press MENU, UP/Down button for 15 selection (eg. Eng,Ch) and Shoot button to confirm and exit back into setting interface 11.11 Date & Time 11.11.1 Press MENU or UP/Down button to select date & Time once get into setting interface 11.11.2 Press Shoot button to confirm and enter for selection 11.11.3 Press UP/Down button to set the date base on...

  • Page 30: Upside Down

    interface once setting completed 11.13 Upside Down This function will be use when using a car mount mounting onto dashboard use for driving recording purposes 11.13.1 Press MENU or UP/Down button to select upside down once get into setting interface 11.13.2 Press Shoot button to confirm and enter for selection 11.13.3...

  • Page 31: Power Saver

    11.15 Power Saver This function enable user to monitor and help keep track if card is functioning or not in operation. Device will shut down base on time set too if device is not in use for recording to save power consume. 11.15.1 Press MENU or UP/Down button to select Power Saver once get into setting interface 11.15.2 Press Shoot button to confirm and enter for...

  • Page 32: Recording Playback Function

    12. Recording Playback When camera power on, press UP button to switch to file playback interface, showing video/photo Icon. 12.1 Press Up/Down button to toggle to playback icon 12.2 Press Shoot button to enter playback file. 12.3 Press Up/Down button to toggle file for playback selection 12.4 Press Shoot button to start playback 12.5 Press Menu button to go back video/photo and follow...

  • Page 33: Wifi Connection

    15.1 Download EZ iCam Apps or Scan QR below 15.2 Activate device Wifi connection 15.3 Wifi connection (iCam-Curve Xtreme50) will be shown on mobile 15.4 Default password is set as 1234567890 15,5 Once Wifi is pair enter apps to add device (iCam-Curve Xtreme50) and your ready to go.

  • Page 34: Troubleshooting

    15. Troubleshooting Question Reason Solution The captured image is not MicroSD card might be full. Make sure to stop recording stored before shutting down. Image is not saved before the power outage. All buttons are invalid Procedural error or faulty Press RESET button to restart Operation the DVR.
  • Page 35 Auto stop recording in Use a compatible SDHC Get a microSD card that has video mode microSD card for HD video minimum 8GB Class 10 speed. recording. Encounter “file MicroSD card might be Reformat the memory card. error” when trying to corrupted.
