  • Page 1 CoreNVR 9/16 Network Video Recorder Quick Installation Guide...
  • Page 2 QR code here. CoreNVR 16 Please consult with the FAQs <http://www.airlivesecurity.com/prod uct/corenvr16/faq> before writing to OvisLink Tech Support Team for further assistance For any other question, please read the user manual in the CD or mail to tech@airlive.com for technical support.

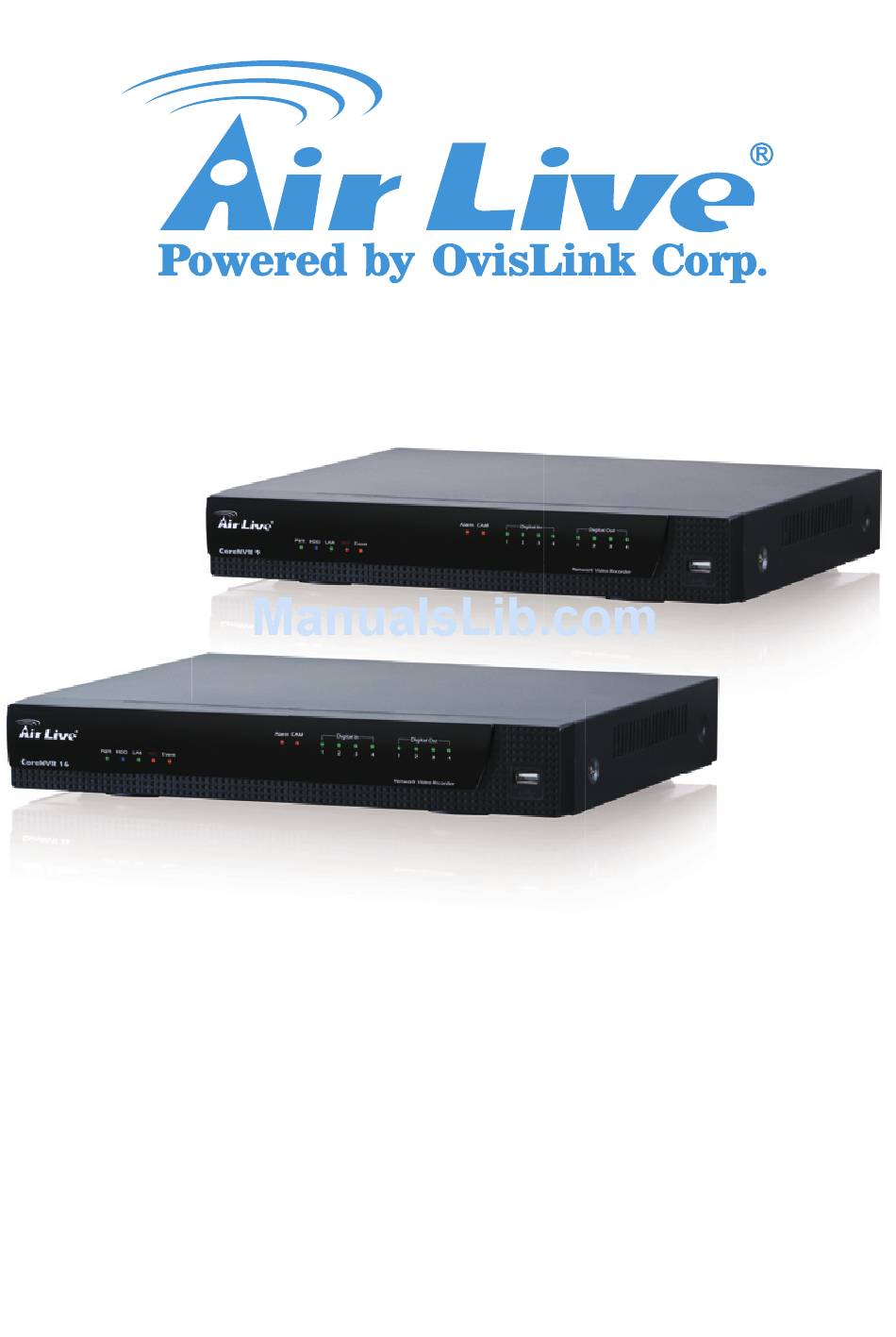

  • Page 3 CoreNVR 9/16 Package Contents Please check the package contents and contact your distributor if any part is missing. Screws from the case CoreNVR 9/16 Silver screws 12V / 4.16A Power Adapter Black screws HDD cradle Declaration of Conformity We, Manufacturer/Importer OvisLink Corp.

  • Page 4: Status Led

    I/O Interface Alarm LED Digital Output LED Alarm CAM Digital In Digital Out PWR HDD Event CoreNVR 9 Network Video Recorder Status LED Digital Input LED Video Output LAN Port Audio Out Port AUDIO OUT DC 12V eSATA MIC IN RESET Power DC In...
  • Page 5 HDD Installation Steps Before to use the CoreNVR 9/CoreNVR 16. The SATAII Hard Drive should be installed. Please follow the step 1 ~ 7 to install the Hard Drive. 1. Remove the screws from the box.
  • Page 6 HDD Installation Steps 2. Lift up and remove the cover.
  • Page 7 HDD Installation Steps 3. Assemble HDD cradles with silver screws.
  • Page 8 HDD Installation Steps 4. Assemble HDD into case with black screws.
  • Page 9 HDD Installation Steps 5. Connect SATA power cable and data cable between HDD and main board.
  • Page 10 HDD Installation Steps 6. Put on the cover back.
  • Page 11 HDD Installation Steps 7. Assemble all screws back properly.

  • Page 12: Start To Use Corenvr

    Start to use CoreNVR After the Hard Drive is installed. Please connect the VGA Cable monitor and mouse. Then, turn on the CoreNVR 9/16’s power and wait until the system is ready. CoreNVR VGA Cable USB Mouse Monitor...
  • Page 13 Login CoreNVR Login CoreNVR 9/16 system by default username and password. Default username: admin Default password: airlive Login Username admin Password Login...

  • Page 14: System Setting

    System Setting Click to enter the setting page.

  • Page 15: Auto Setting

    Auto Setting Click “Auto Setting” at setting page then press "OK" without input any information. CoreNVR 9/16 will auto install AirLive cameras which installed under same network. Auto Setting Auto Setting Auto Setting Filter Model Name IP Address MAC Address...

  • Page 16: Motion Detection

    Motion Detection Setup Motion parameter in "System Setting" ->"Motion Detection".

  • Page 17: Schedule Recording

    Schedule Recording Default Recording type is "Continues Recording". Enter "System Setting" ->"Schedule" to change the recording type to "Motion" to save the Hard disk space.
