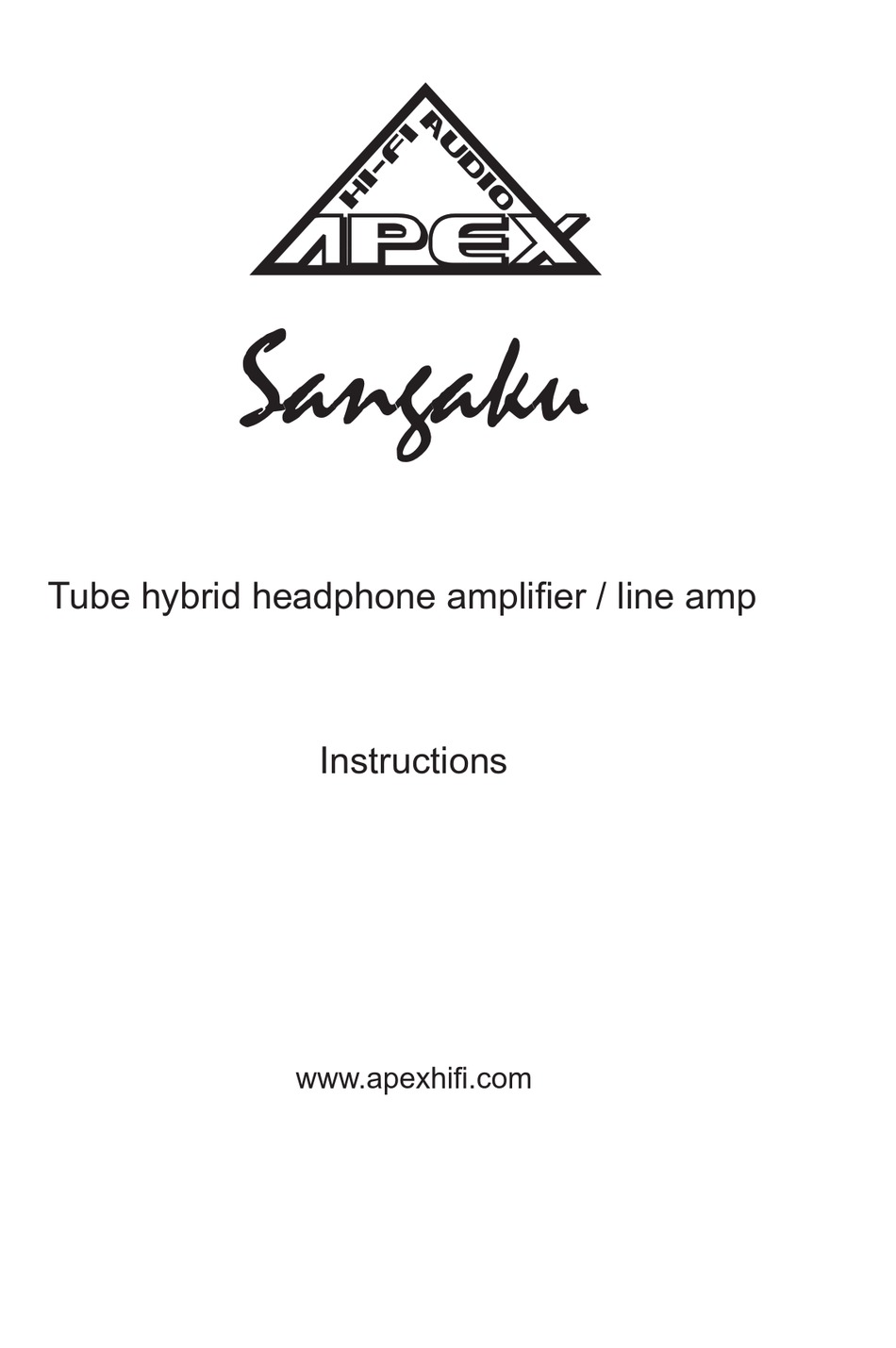

- Page 1 Sangaku Tube hybrid headphone amplifier / line amp Instructions www.apexhifi.com...
-
Page 2: Specifications
Solid state buffers provide both unbalanced and balanced outputs with a very low output impedance to drive the headphones. The Sangaku can drive any headphones, from 16 ohms to 600 ohms, and has enough gain for even inefficient headphones. -
Page 3: Rear Panel Connections
The Sangaku is not supplied with a power cord. It has a standard IEC power inlet. The power switch on the back of the amplifier disconnects all power, similar to unplugging it. - Page 4 Operation Power-On and Off The Sangaku is powered on or off by pressing the”POWER” button on the front panel. When in standby mode (with the rear power switch on), the green “STBY” LED is illuminated. In standby mode, the outputs are disabled, and all internal power to the amplifier circuitry (including to the tubes) is turned off.
