SPT 226
INSTRUCTION MANUAL
PORTABLE CD/MP3 ANALOGUE FM RADIO
NÁVOD K OBSLUZE
PŘENOSNÉ ANALOGOVÉ FM RÁDIO S PŘEHRÁVÁNÍM CD/MP3
NÁVOD NA OBSLUHU
PRENOSNÉ ANALÓGOVÉ FM RÁDIO S PREHRÁVANÍM CD/MP3
FELHASZNÁLÓI KÉZIKÖNYV
HORDOZHATÓ ANALÓG FM RÁDIÓ CD/MP3 LEJÁTSZÁSSAL
INSTRUKCJA OBSŁUGI
PRZENOŚNE RADIO ANALOGOWE FM Z ODTWARZACZEM CD/MP3
Advertisement
Table of Contents
Related Manuals for Sencor SPT 226
Summary of Contents for Sencor SPT 226

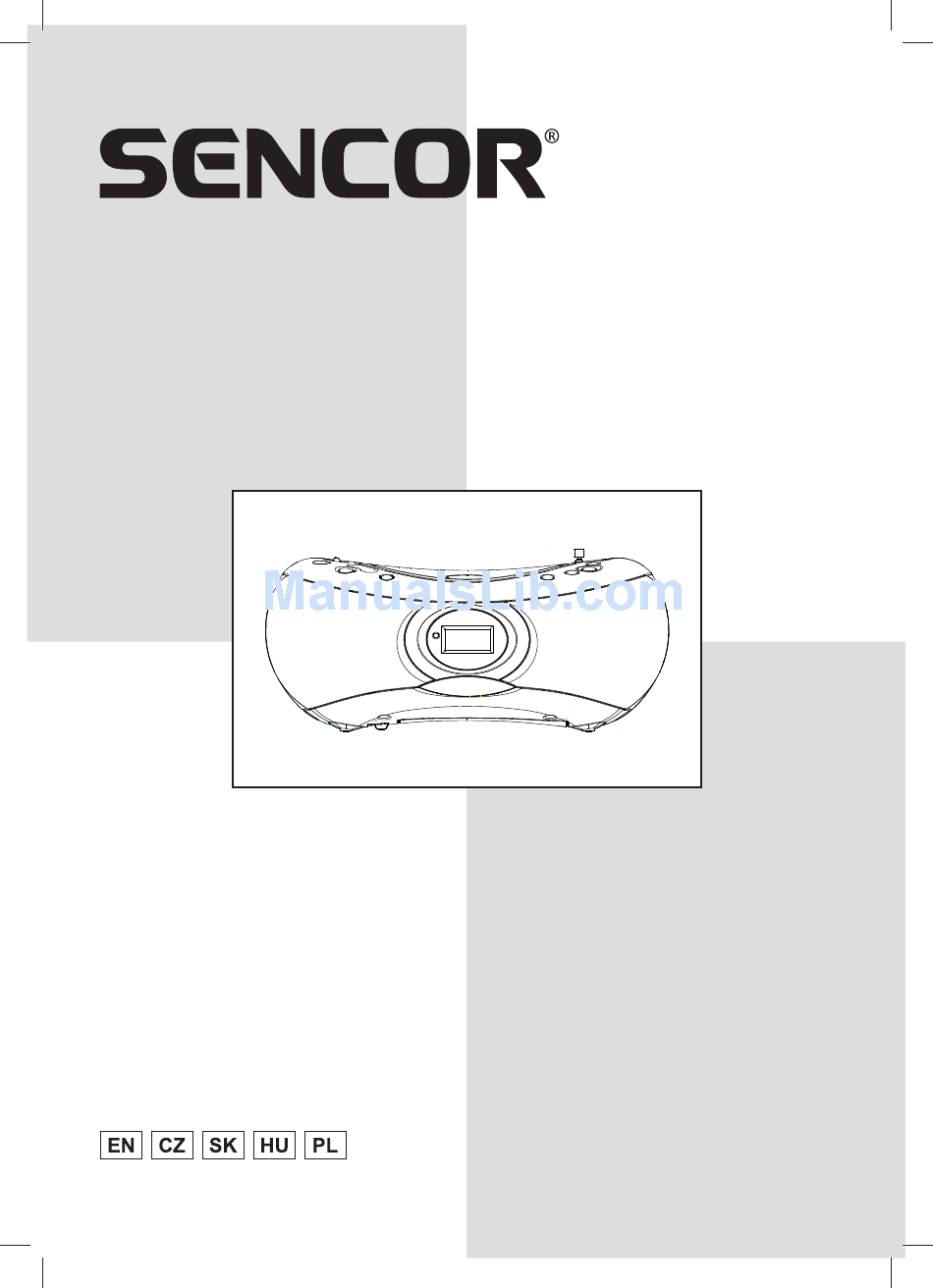

- Page 1 SPT 226 INSTRUCTION MANUAL PORTABLE CD/MP3 ANALOGUE FM RADIO NÁVOD K OBSLUZE PŘENOSNÉ ANALOGOVÉ FM RÁDIO S PŘEHRÁVÁNÍM CD/MP3 NÁVOD NA OBSLUHU PRENOSNÉ ANALÓGOVÉ FM RÁDIO S PREHRÁVANÍM CD/MP3 FELHASZNÁLÓI KÉZIKÖNYV HORDOZHATÓ ANALÓG FM RÁDIÓ CD/MP3 LEJÁTSZÁSSAL INSTRUKCJA OBSŁUGI PRZENOŚNE RADIO ANALOGOWE FM Z ODTWARZACZEM CD/MP3...
-
Page 3: Safety Precautions
Safety Precautions • Read all instructions carefully before using the unit and keep them for further reference. • Retain the manual. If you pass the unit onto a third party makes sure to include this manual. • Check that the voltage marked on the rating label matches your mains voltage. Damage •... - Page 4 Interference • Do not place the unit on or near appliances which may cause electromagnetic interference. If you do it, it may adversely affect the operating performance of the unit, and cause a distorted picture or sound. Batteries • Batteries used in the unit are easily swallowed by young children and this is dangerous. •...
- Page 5 Owner’s record For your convenience, record the model number and serial number for future reference. Model no.:..............................Serial no.: ..............................EN - 3...
-
Page 6: Product Overview
Product Overview Front View 1. Speakers 2. LCD Display 3. FM Stereo Indicator 4. Telescopic Antenna 5. NEXT Button CD: search the next track. 6. PLAY/PAUSE Button CD: start/pause playback. 7. BACK Button CD: search the previous tracks 8. STOP Button Top View CD: stop playback or delete a program. -
Page 7: Power Supply
Power Supply Connect AC power Caution: • Risk of product damage! Ensure that the power supply voltage corresponds to the voltage printed on the rating label located on back or bottom of the unit. Warning: • Risk of electric shock! When you disconnect the AC power, always pull the plug from the wall outlet. -
Page 8: General Operation
General Operation 1. To switch on and select your operation source, adjust the FUNCTION Selector to CD/MP3 or FM ST.. 2. Adjust the sound with VOLUME Control. 3. To switch off the unit, adjust the FUNCTION Selector to OFF. Note: To avoid unnecessary energy consumption, always adjust the FUNCTION Selector to OFF. Radio Reception 1. -
Page 9: Play Options
CD/MP3 Operation You can play commercially available audio CDs including CD-R, CD-RW and MP3 fi les. Note: • Even if this portable radio-CD player is able to read CD-R and CD-RW discs, in addition to conventional compact discs, it is not possible to offer a 100% guarantee that all CD-R/ RW discs can be read;... -
Page 10: Program Play Sequence
Program play sequence You may store up to 20 tracks can be programmed for disc play in any order. Be sure to press the STOP button before use. 1. Press the PROGRAM/RESTART button to activate programming. • „PROGRAM“ and „P01“ indicators will show on the display. 2. -
Page 11: Maintenance
Maintenance Cleaning the Unit • To clean the unit, wipe the case with slightly moist, lint-free cloth. • Do not use any cleaning fl uids containing alcohol, ammonia or abrasives. • Do not spray any aerosol at or near the unit. Note: Ensure the unit is fully unplugged from the mains socket before cleaning. -
Page 12: Troubleshooting
Troubleshooting If a fault occurs, fi rst check the points listed below before taking the set for repair. If you are unable to remedy a problem by following hints, consult your dealer or service center. Note: Do not open the unit as there is a risk of electric shock. Under no circumstances should you try to repair the set yourself;... - Page 13 Environmental information All unnecessary packaging materials have been omitted. The packaging can be easily separated into three materials: cardboard, polystyrene and plastic. Your set consists of materials which can be recycled if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging, dead batteries and old equipment.
-
Page 14: Specifications
Specifi cations Power Supply: Mains: AC 230V~50Hz Battery: DC 2x6V (8xUM-2, batteries not included) Power Consumption: Dimensions: 257(L) x 200(W) x 118(H) mm Weight: 1.25 kg Frequency Range: FM 88-108MHz Output Power (RMS): 1.2W x 2 Earphones Jack: 3.5mm (The technical characteristics are liable to change without notice) EN - 12... - Page 15 EN - 13...
- Page 16 INSTRUCTIONS AND INFORMATION REGARDING THE DISPOSAL OF USED PACKAGING MATERIALS Dispose of packaging material at a public waste disposal site. DISPOSAL OF USED ELECTRICAL AND ELECTRONIC APPLIANCES The meaning of the symbol on the product, its accessory or packaging indicates that this product shall not be treated as household waste.
