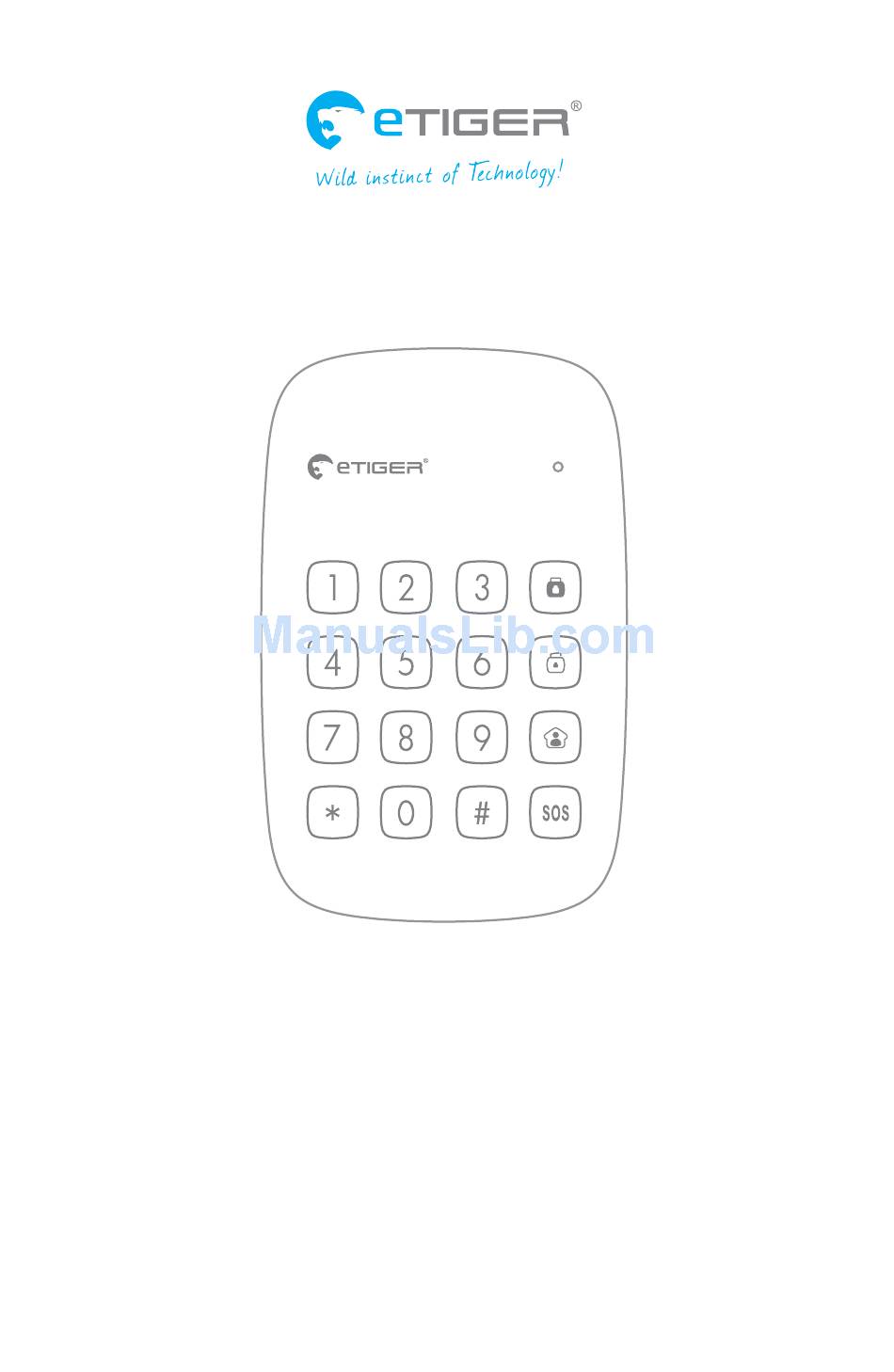

- Page 1 ES-K1A Wireless Keypad www.etiger.com...
-
Page 2: Box Content
Foreword Thank you for purchasing the ES-K1A. The ES-K1A is a keypad that enables you to arm and disarm your alarm system, or arm it in Home Mode. Before entering your home, all you need to do is to type your passcode and press the Disarm button [ ], or swipe the RFID tag (sold separately) in front of the RFID reader to disarm the system. - Page 3 Appearance Rear cover LED indicator RFID reader Arm / Unlock Disarm Home Mode / Unlock SOS Key Battery compartment Tamper switch RFID tag (125 KHz) sold separately. The keypad supports up to 50 RFID tags. Refer to the instructions on page 9 of this manual to learn how to register an RFID tag in the keypad.
-
Page 4: Preparation Before Use
Screw the rear cover to a door frame or to a wall. The ES-K1A is powered by 3 AAA batteries. Before using for the first time, remove the Fasten the front cover of the keypad to the rear cover and screw them together. - Page 5 Default admin code : 123456 To connect the keypad to an eTIGER siren, set the wireless siren to Connection Mode (refer to the manual of your eTIGER siren if necessary). Press the Arm [ ] Remark or Home Mode [ ] key on the keypad to switch to Normal Mode. Then type [your Correct operation: 1 beep and the LED light blinks once.
-
Page 6: Arm The System
Register an RFID tag in the ES-K1A Usage 1. Press Arm [ ] or Home Mode [ ] The keypad can be used as a remote control. Your user code or your admin code on the keypad to unlock it. -
Page 7: Emergency Call
All the sensors in regular zones are armed except those in the Home Mode zone. The sensors in the Home Mode zone are disarmed so that users can move inside their home. For more information on the setup of zones, please refer to the user manual of your eTIGER alarm system. -
Page 8: Enter Setup Mode
Press Arm [ ] or Home Mode [ ] on the Only the Exit delay can be set on the keypad. The Entry delay can be set on the keypad to unlock it. control panel (refer to the user manual of your eTIGER alarm system). Type [admin code+#] to enter Setup mode. - Page 9 Enable / Disable deactivation by RFID tag Keyboard clicks Enable deactivation of the system by RFID tag Keyboard clicks can be turned on or off. If keyboard clicks are off, the successful setup notification sound will be off too. Turn keyboard clicks on 1.
-
Page 10: Change User Code
Change user code Reset The user code may be required to interact with the control panel (arm or disarm the system, or switch to Home Mode). We recommend you to change the user After having reset the keypad, the user code, the admin code, and other settings code before using the keypad for the first time. -
Page 11: Care And Maintenance
For a safer use and a longer lifetime of the ES-K1A, we recommend you to follow the keypad. the instructions listed below. The keypad is installed Install the keypad and the... -
Page 12: Maintenance
European Technical Adaptation Committee (TAC). Manufactured in China. Images, illustrations and text are non-contractual. ETIGER and the ETIGER logo ETIGER EUROPE are registered trademarks and the property of ETIGER. Rue de la Loi, 25, 7100 La Louvière, Belgium Copyright ©... - Page 13 www.etiger.com...
