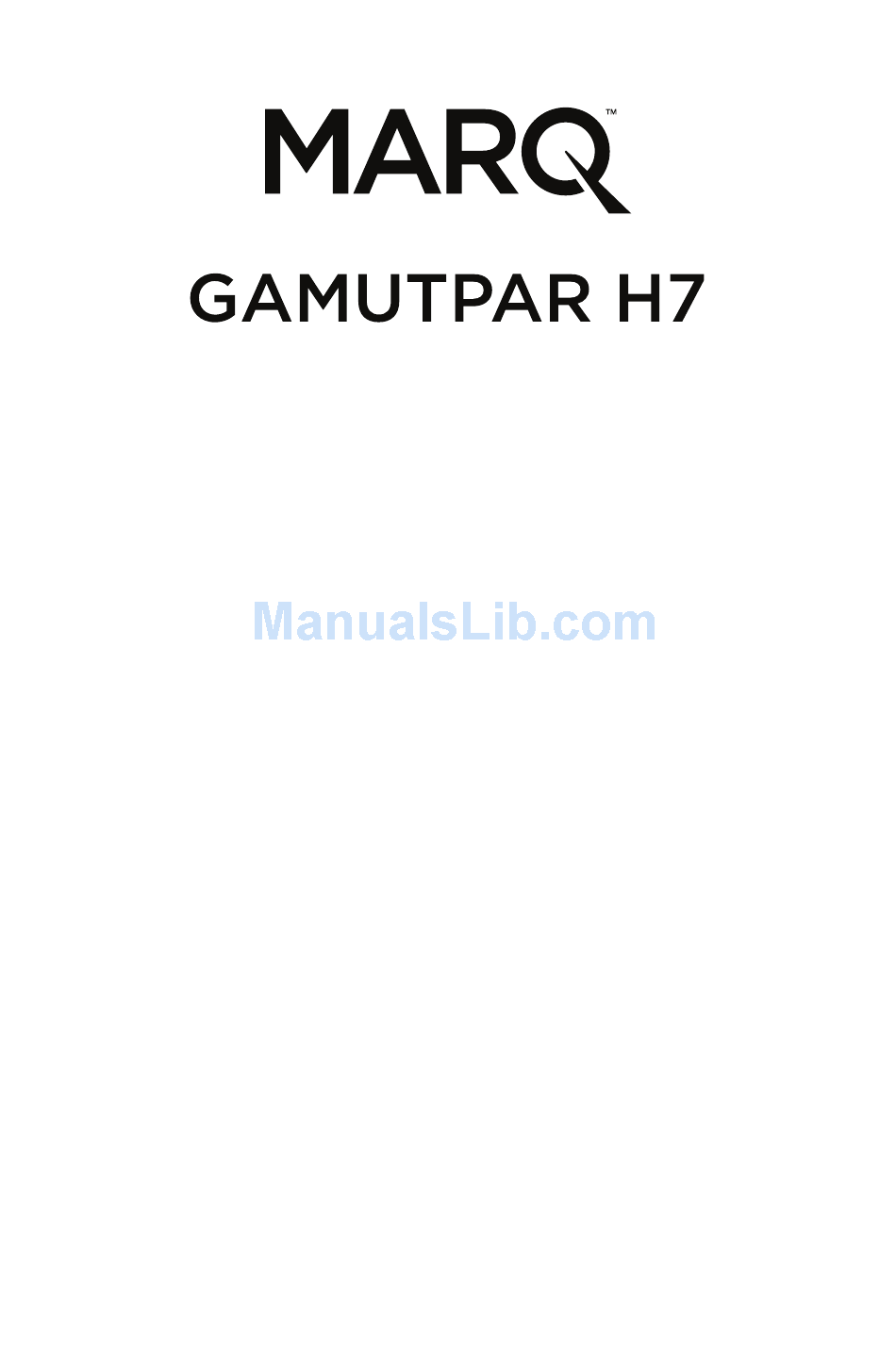

- Page 1 English Quickstart Guide...
-
Page 2: Box Contents
Introduction Box Contents Gamut PAR H7 Quickstart Guide Power Cable Safety & Warranty Manual Signal Cable Important: Visit marqlighting.com to download the complete User Guide. Support For the latest information about this product (documentation, technical specifications, system requirements, compatibility information, etc.) and product registration, visit marqlighting.com. For additional product support, visit marqlighting.com/support. -
Page 3: Bottom Panel
Features Bottom Panel 1. Power In: Use a standard power cable (included) to connect this input to a power outlet. 2. Power Out: Use a standard power cable to connect this output to an additional fixture. This connection will supply power to the additional fixture when this one is connected a power outlet. -
Page 4: Power Information
Setup Note: Items not listed under the Introduction > Box Contents are sold separately. Power Information Before connecting the fixture to a power outlet, make sure the power cable is not crimped or damaged. Also, make sure the power outlet’s voltage is within the range stated on this product (on its housing or decal). - Page 5 Linking When using multiple Gamut PAR H7 fixtures, you can link (“daisy-chain”) them so that each each fixture supplies power and/or sends DMX data to the next one. This helps reduce clutter in your cabling and save you setup time. You do not have to link fixtures for both power and DMX control;...
-
Page 6: Operation
Operation Menu Options To use the menu: • Press Enter to select a menu, setting, or option. • Press Menu to return to the previous menu. • Use the Up and Down buttons to change the currently shown setting or option. Menu Submenu Setting /... -
Page 7: Dmx Functions
DMX Functions You can control Gamut PAR H7 by linking it to a DMX controller. Please see the complete User Guide at marqlighting.com to learn how to do this. See below for charts of the available functions. 11-Channel Operation Channel Function Value Description Dimmer... - Page 8 11-Channel Operation (continued) Channel Function Value Description Color Presets 080–083 C-20: A+UV (continued) 084–087 C-21: W+UV 088–091 C-22: R+G+B 092–095 C-23: R+G+A 096–099 C-24: R+G+W 100–103 C-25: R+G+UV 104–107 C-26: R+B+A 108–111 C-27: R+B+W 112–115 C-28: R+B+UV 116–119 C-29: R+A+W 120–123 C-30: R+A+UV 124–127...
- Page 9 11-Channel Operation (continued) Channel Function Value Description Color Presets 208–211 C-52: G+B+A+W (continued) 212–215 C-53: G+B+A+UV 216–219 C-54: G+B+W+UV 220–223 C-55: G+A+W+UV 224–227 C-56: B+A+W+UV 228–231 C-57: R+G+B+A+W 232–235 C-58: R+G+B+A+UV 236–239 C-59: R+G+B+W+UV 240–243 C-60: R+G+A+W+UV 244–247 C-61: R+B+A+W+UV 248–251 C-62: G+B+A+W+UV 252–255...
- Page 10 8-Channel Operation Channel Function Value Description Dimmer 000–255 Master dimmer, all colors, dark (000) to bright (255) Red Dimmer 000–255 Red linear dimmer, dark (000) to bright (255) Green Dimmer 000–255 Green linear dimmer, dark (000) to bright (255) Blue Dimmer 000–255 Blue linear dimmer, dark (000) to bright (255) Amber Dimmer...
-
Page 11: Technical Specifications
Technical Specifications Specifications are subject to change without notice. 7 LEDs, 10 W each, 6-color (red, green, blue, Light Type white, amber, UV) Power 100 W Internal Temperature 32–104 °F / 0–40 °C Wavelength (UV) 395–405nm 1150 lux @ 3 m Illuminance Strobe Rate 0.7 t/s (0.7 Hz) –... - Page 12 marqlighting.com Manual Version 1.2...
