t

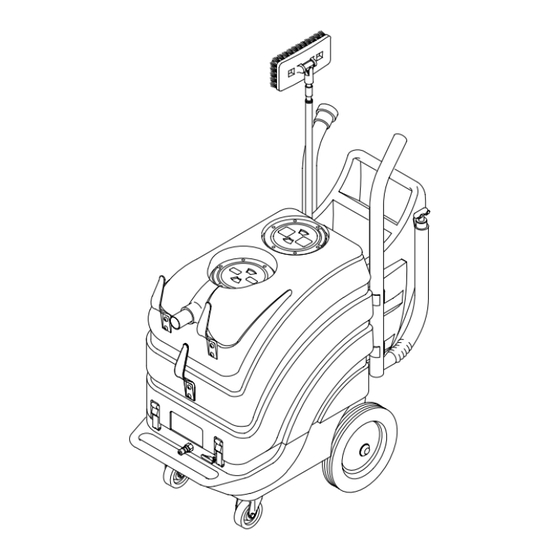

Quick Clean 1500
All Surface Cleaner
Limpiador universal de superficies
Model No.:
Operator and Parts Manual
609640
Manual del Operador y Piezas
609799 - Can.
NOBLES
12875 RANSOM STREET
HOLLAND MI 49424 U.S.A.
609759
CUSTOMER SERVICE: 1-800-365-6625
FAX: 1–800–678–4240
Rev. 02 (07-00)
Home
Find... Go To..

Advertisement

loading
Need help?

Need help?

Do you have a question about the Quick Clean 1500 and is the answer not in the manual?

Questions and answers

Related Manuals for Nobles Quick Clean 1500

Summary of Contents for Nobles Quick Clean 1500

  • Page 1 Quick Clean 1500 All Surface Cleaner Limpiador universal de superficies Model No.: Operator and Parts Manual 609640 Manual del Operador y Piezas 609799 - Can. NOBLES 12875 RANSOM STREET HOLLAND MI 49424 U.S.A. 609759 CUSTOMER SERVICE: 1-800-365-6625 FAX: 1–800–678–4240 Rev. 02 (07-00) Home Find...
  • Page 2 PARTS LIST LISTA DE PIEZAS UPPER HOUSING GROUP – GRUPO DEL BASTIDOR SUPERIOR Drain hose has changed to new style - see part numbers Quick Cleant 1500 (07–00) Home Find... Go To..
  • Page 3 602750 HOOK, HOSE O-RING 140307 CLAMP, HOSE 3/4 TO 1–3/4 140713 RIVET, POP 3/16 X .251–.375 609750 DECAL, QUICK CLEAN 1500 230905 TUBE, INLET 609733 TANK, RECOVERY GREEN 230845 PLATE, CORD CLAMP ASSEMBLY / CONJUNTO INCLUDED IN ASSEMBLY / INCLUIDO EN EL CONJUNTO...
  • Page 4 PARTS LIST LISTA DE PIEZAS LOWER HOUSING GROUP – GRUPO DEL BASTIDOR INFERIOR Quick Cleant 1500 (07–00) Home Find... Go To..
  • Page 5 PARTS LIST LISTA DE PIEZAS LOWER HOUSING GROUP – GRUPO DEL BASTIDOR INFERIOR PART # DESCRIPTION QTY. PART # DESCRIPTION QTY. DMOTOR, VAC 5.7 2STG (120V) 25151 25202 BARB, HOSE DBRUSH, CARBON (2–PK) 190155 140519 NUT, 10–24 KEP 130133 TERMINAL, ML DSCNT 140196 SCREW, 10–24X1 140308...
  • Page 6 PARTS LIST LISTA DE PIEZAS HANDLE GROUP – GRUPO DEL MANGO Quick Cleant 1500 (07–00) Home Find... Go To..
  • Page 7 PARTS LIST LISTA DE PIEZAS HANDLE GROUP – GRUPO DEL MANGO PART # DESCRIPTION QTY. PART # DESCRIPTION QTY. DCORD, POWER 25’ W/GFCI 609754 610733 CLIP, WAND DCORD GRIP, NYLON/BLK W/NUT 130166 140825 SCREW, #6X1/2 609734 HANDLE, GREEN 140197 SCREW, 10–24X3/8 DSWITCH, ROCKER DPST SEAL 608605 140231...
  • Page 8 PARTS LIST LISTA DE PIEZAS PLUMBING GROUP – GRUPO DE PLOMERIA Quick Cleant 1500 (07–00) Home Find... Go To..
  • Page 9 PARTS LIST LISTA DE PIEZAS PLUMBING GROUP – GRUPO DE PLOMERIA PART # DESCRIPTION QTY. PART # DESCRIPTION QTY. 150933 FITTING, 1/4F QD MALE BRS SER60 150525 FITTING, 1/8MX1/4H BARB BRS 150615 FITTING, 1/4M NIPL–CLOSE BRS 210014 VALVE, TOGGLE – WITH NUT 140058 WASHER, .543X.875X.062 WAND 609922...
  • Page 10 PARTS LIST LISTA DE PIEZAS SOLUTION PUMP GROUP – GRUPO DE LA BOMBA DE SOLUCION PART # DESCRIPTION QTY. PART # DESCRIPTION QTY. 180100 PUMP, TWIN PISTON (COMPLETE) 190310 DSHAFT KEY 190301 DVALVE KIT, SET OF 4 190303 DKIT, O-RING (INCLUDES 2 O-RINGS) 190302 DKIT, CYLINDER SLEEVE 190304...
  • Page 11 PARTS LIST LISTA DE PIEZAS TELESCOPING BRUSH WAND/HOSE TOOL ACCESSORY KIT CEPILLO TELESCOPICO JUEGO DE ACCESORIOS DE HERRAMIENTAS DE VARILLA/MANGUERA PART # DESCRIPTION QTY. 610731 DHANDLE TELESCOPING LARGE 609650 DBRUSH D RECOMMENDED STOCK ITEMS / ARTICULOS RECOMENDADOS PARA MANTENER EN EXISTENCIA VACUUM AND BLOWER HOSES MANGUERAS DE ASPIRACION Y SOPLADOR...
  • Page 12 PARTS LIST LISTA DE PIEZAS SPRAY GUN AND SOLUTION HOSE FORMULA – REVOLVER ROCIADOR CON MANGUERA PART # DESCRIPTION QTY. DFORMULA, 710 CLEANER 609801 PART # DESCRIPTION QTY. (4–1 GAL) 610845 KIT, SPRAY GUN AND HOSE W/QDC DFORMULA, 720 RINSE (4–1 GAL) 609802 610791 GUN, SPRAY COMPLETE...
  • Page 13 ELECTRICAL DIAGRAMS DIAGRAMAS ELECTRICAS 120V WIRING VACUUM/BLOWER SWITCH DIAGRAM – PUMP DIAGRAMA DE SWITCH CABLEADO DE 120V POWER CORD HOUR METER BLOWER MOTOR VACUUM MOTOR PUMP MOTOR 120V LADDER 120 VAC DIAGRAM – PUMP DIAGRAMA SWITCH ESCALONADO PUMP DE 120V HOUR METER MOTOR...
  • Page 14 OPTIONS OPCIONES 15 FT (4.6 M) VACUUM AND 15 FT (4.6 M) SPRAY GUN SOLUTION HOSE BLOWER HOSES – – MANGUERAS DE 15 PIES MANGUERA DE 15 PIES (4.6 M) DE (4.6 M) DE ASPIRACION Y SOPLADO REVOLVER ROCIADOR PART # DESCRIPTION QTY.
  • Page 15 OPTIONS OPCIONES 13 IN (330 mm) CARPET CLEANING FLOOR TOOL – 13 PIES (330 mm) EL ACCESORIO PARA LIMPIAR ALFOMBRAS PART # DESCRIPTION QTY. PART # DESCRIPTION QTY. 600049 TOOL, 13“ FLOOR (COMPLETE) 150913 COUPLER, QUICK SER. 60 200403.BK TOOL, 13” FLOOR 160175 HOSE, SOLUTION HP 200939...
