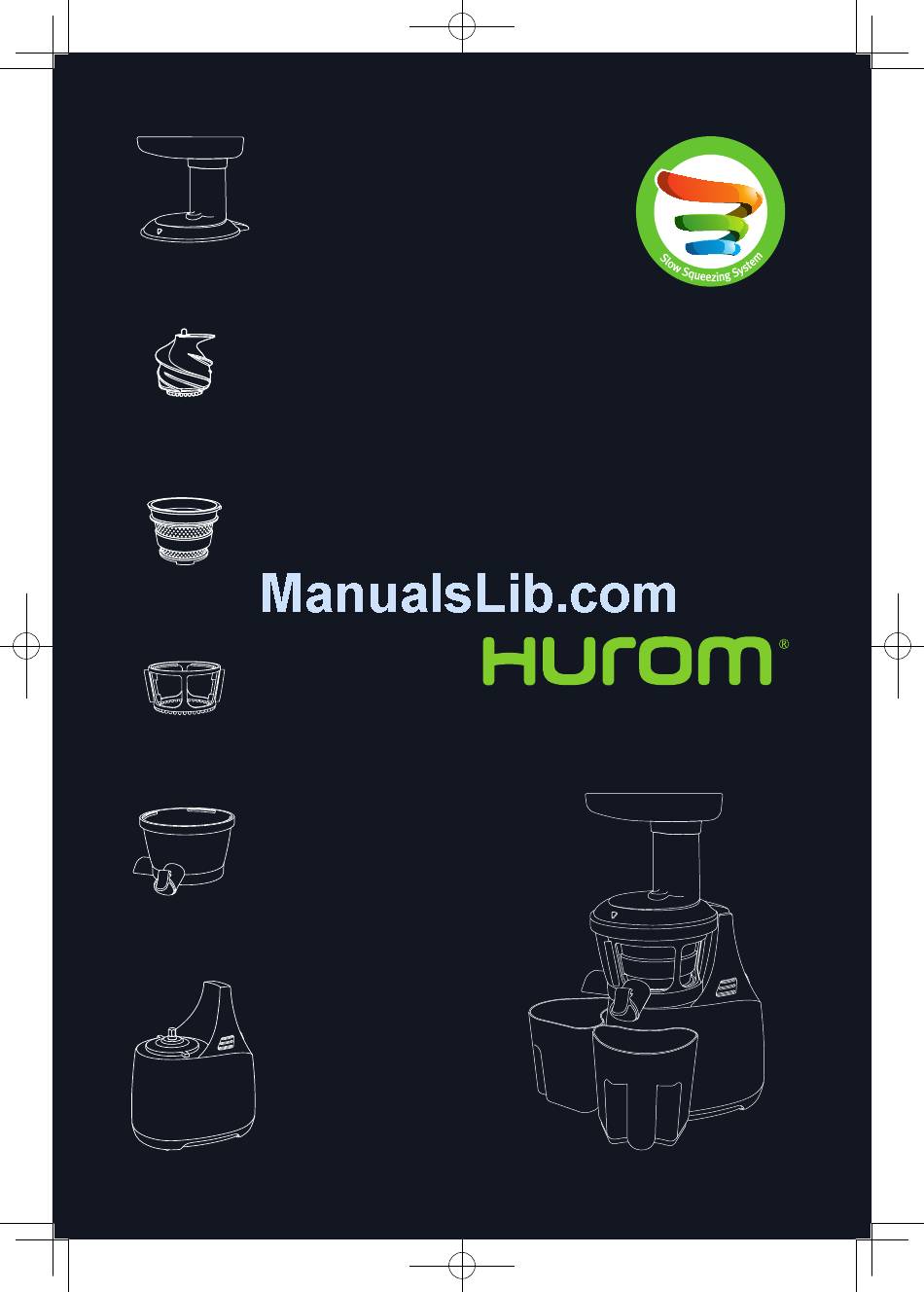

- Page 1 Product Contents HE SERIES HE_4PJ12170_V.01.indd 1 2013-01-24 오후 4:38:19...
-
Page 2: Table Of Contents
Hurom Juicer Manual For Household Use (Warranty Included) 1 Read “Precautions for safe use (Page 4)” carefully and use the appliance properly. 2 Keep the manual within reach anytime and save it for future reference. 3 Check if the voltage indicated on the base of the appliance corresponds to the local voltage before you connect the appliance. -
Page 3: Dear Hurom Customers
HUROM juice. Hurom juice as an alternative meal Make Hurom juice as an alternative meal in rich taste and balanced nutrients by mixing banana, corn or boiled potato, sweet potato and pumpkin, etc. supplementing calories with essential nutrients. -
Page 4: General Description And Parts Names
GENERAL DESCRIPTION AND PARTS NAMES HOPPER PULP CONTAINER SQUEEZING SCREW JUICE CONTAINER COARSE STRAINER FINE STRAINER HOPPER LID SPINNING BRUSH CLEANING BRUSH BOWL SMALL CLEANING BRUSH BASE PUSHER HE_4PJ12170_V.01.indd 4 2013-01-24 오후 4:38:20... -
Page 5: Specific Terms For Parts
1 pusher, 1 hopper, 1 hopper Lid, 1 screw, 1 fine strainer, 1 coarse strainer, 1 spinning brush, 1 bowl, 1 base, 1 juice container, ATTACHMENT 1 pulp container, 1 small cleaning brush, 1 cleaning brush, 1 manual www.hurom.com I HE_4PJ12170_V.01.indd 5 2013-01-24 오후 4:38:20... -
Page 6: Precautions For Safe Use
PRECAUTIONS FOR SAFE USE All users of this appliance must read and understand this safety precaution before operating. WARNING Hazards or unsafe practices which could result in serious personal injury or death. CAUTION Hazards or unsafe practices which could result in minor personal injury or appliance damage. SIGN EXAMPLES This sign indicates contents that may cause risk of a fire or an electrical shock. -
Page 7: Warnings And Cautions
FOR SAFETY, MUST DO GROUNDING CONNECTION. ALSO, DO NOT DO THE GROUNDING ON GAS PIPE, PLASTIC WATER PIPE, TELEPHONE WIRE, ETC. It could cause an electric shock, a fire, a malfunction and an explosion. Be sure to use the socket with ground connection. www.hurom.com HE_4PJ12170_V.01.indd 7 2013-01-24 오후 4:38:21... - Page 8 WARNINGS AND CAUTIONS NEVER DISASSEMBLE BOWL SET DURING OPERATION OR INSERT FINGERS, FOREIGN OBJECTS SUCH AS FORKS, SPOONS, ETC. INTO FEEDING TUBE OR JUICE OUTLET. It may cause an injury, an accident or a failure. THIS APPLIANCE IS NOT INTENDED FOR USE BY PERSONS (INCLUDING CHILDREN) WITH REDUCED PHYSICAL, SENSORY OR MENTAL CAPABILITIES, OR LACK OF EXPERIENCE AND KNOWLEDGE, UNLESS THEY HAVE BEEN GIVEN SUPERVISION OR INSTRUCTION CONCERNING USE OF THE APPLIANCE BY A PERSON RESPONSIBLE FOR THEIR SAFETY.
- Page 9 WHEN MOVING THE APPLIANCE, ENSURE TO MOVE IT HOLDING GRIPS TIGHTLY AT THE BASE BOTTOM WITH BOTH HANDS. If attempting to hold bowl or the edge of the base, the base falls causing an injury or a failure. www.hurom.com HE_4PJ12170_V.01.indd 9 2013-01-24 오후 4:38:23...
-
Page 10: Slow Juicer Assembly
SLOW JUICER ASSEMBLY STEP Align hopper front triangle [ ▼] with bowl triangle OPEN ] first and turn it to clockwise until it clicks so that the hopper triangle [ ] is aligned with bowl triangle [Close STEP Make sure to press the screw down into the strainer as in STEP 2. -
Page 11: Slow Juicer Assembly In Detail
Open Insert extraction packing at the bottom of the bowl hard enough into the pulp outlet. Make sure bowl outer groove aligns with base bump completely. Base bump Extraction packing Bowl outer groove www.hurom.com I HE_4PJ12170_V.01.indd 11 2013-01-24 오후 4:38:24... -
Page 12: How To Use The Appliance
HOW TO USE THE APPLIANCE REAR VIEW Wash the fruits and/or vegetables and cut them into pieces that fit into the feeding tube. Place the suitable pieces into feeding tube slowly and press with a pusher. Use fresh fruits and vegetable for juicing as they contain more juice themselves. -
Page 13: Juice Cap And Extraction Packing
This is the pulp stopper made of silicone at the bottom of the bowl. Make sure to close extraction packing always as shown below before use. For cleaning, let extraction packing opened and start washing. (Page 16) CLOSED Extraction packing www.hurom.com HE_4PJ12170_V.01.indd 13 2013-01-24 오후 4:38:25... -
Page 14: When The Screw Is Stopped During Operation (How To Use [Reverse/Rev] Button)
WHEN THE SCREW IS STOPPED DURING OPERATION (REVERSE/REV BUTTON) Click [Reverse/REV] button in operating switches and stop the appliance. Stop Press [Reverse/REV] button in operating switches for 3~5 seconds and release it. Repeat this process 2~3 times. Reverse is the button pushing ingredients upward. Reverse only works while the button is pressed and held. -
Page 15: Important Safeguards In Use
(GRAPES, APRICOT, BERRIES, ETC.). It may cause the hopper unopened. NOTE Frozen fruit or withered ingredients stored in the refrigerator for a long time may produce less juice or it is even hard to squeeze them. www.hurom.com HE_4PJ12170_V.01.indd 15 2013-01-24 오후 4:38:25... -
Page 16: Disassembly, Cleaning And Care
DISASSEMBLY, CLEANING AND CARE FIGURE IN ORDER Juice outlet HE_4PJ12170_V.01.indd 16 2013-01-24 오후 4:38:26... - Page 17 Always wash the bowl set immediately after each use. Without wash-up, remained pulps get dried up and stuck onto it. It makes difficult to disassemble or wash them. Also, it may cause degradation in performance. www.hurom.com HE_4PJ12170_V.01.indd 17 2013-01-24 오후 4:38:27...
-
Page 18: Bowl Disassembly And Wash
BOWL DISASSEMBLY AND WASH juice cap packing bowl packing Remove Juice Cap packing and bowl packing. Open juice cap first. Hold the bowl and juice cap with one hand and remove juice cap packing with the other hand like taking it off. When removing it, be careful not to drop the juice cap and bowl. It may cause damage to the juice cap. Remove the bowl packing like pinching and twisting it with two fingers. -
Page 19: Sterilization And Easy Cleaning System
Whenever changing the ingredient, it is not necessary to disassemble and wash the bowl. After juicing, make sure to disassemble and wash the bowl set. www.hurom.com HE_4PJ12170_V.01.indd 19 2013-01-24 오후 4:38:27... -
Page 20: Spinning Brush Disassembly And Wash
SPINNING BRUSH DISASSEMBLY AND WASH Remove the spinning brush from strainer. Detach the silicone brush from spin- ning brush. Spinning brush Silicone brush As shown to the left, hold the outer part of silicone brush with your fingers and pull it out to the arrow direction. -
Page 21: Spinning Brush Assembly
Pull it until you cannot pull it any longer. If units are operating without fully assembled, there is a risk of breakage. Hold up and down of ‘outer wing’ and pull it tight enough. www.hurom.com HE_4PJ12170_V.01.indd 21 2013-01-24 오후 4:38:28... -
Page 22: Bowl Packing Assembly
BOWL PACKING ASSEMBLY Hold the bowl packing like pinching. As shown to the left in a dotted circle, let the protru- sion part on the bowl packing face upward and hold it like pinching with your thumb and index finger. Bowl packing Insert the bowl packing into the bowl hole. -
Page 23: Juice Cap Packing Assembly
Insert it in from the top to the juice cap. Be careful not to drop the bowl. Organize the packing to seal off completely. If the packing is not completely sealed, it may cause juice leaking. www.hurom.com HE_4PJ12170_V.01.indd 23 2013-01-24 오후 4:38:28... -
Page 24: Troubleshooting
Check the details below before contacting Technical Support for repair or service. If you need information or if you have a problem, please contact the local Customer Care Center or visit www.hurom.com. When applying for after sales service, check the manufacturer’s serial number or bar code. -
Page 25: Appliance Specifications
APPLIANCE SPECIFICATIONS APPLIANCE STANDARDS PRODUCT NAME Hurom Slow Juicer MODEL NAME HE Series RATED VOLTAGE 230-240 V RATED FREQUENCY 50 Hz RATED POWER 150 W CONSUMPTION RPM (REVOLUTIONS 70 RPM PER MINUTE) CORD LENGTH 1.4 m▼▼ MOTOR Single-phase induction motor... -
Page 26: Warranty
Important: To better protect your purchase, fill out and mail this form to a local distributor where you have purchased, and keep the original receipt. This certifies that the Hurom Slow Juicer is warranted by Hurom Co., Ltd. to be free from defects in material construc- tion and workmanship. - Page 27 MEMO www.hurom.com HE_4PJ12170_V.01.indd 27 2013-01-24 오후 4:38:29...
- Page 28 4PJ12170_V.01 www.hurom.com Copyright© All Rights Reserved by HUROM HE_4PJ12170_V.01.indd 28 2013-01-24 오후 4:38:29...
