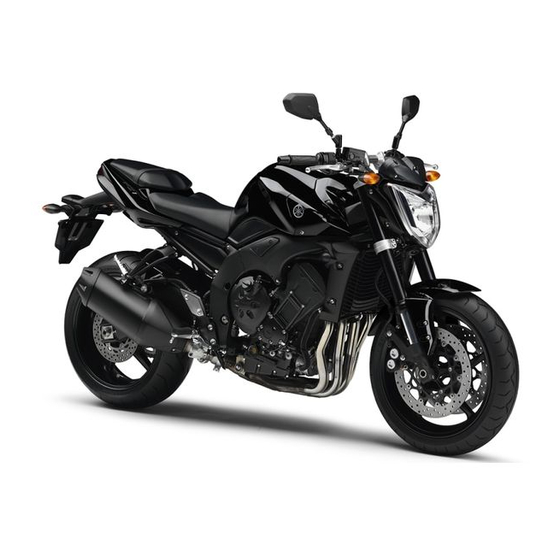

Yamaha FZ1-N Owner's Manual

Hide thumbs Also See for FZ1-N:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Service Manual, Owner's Manual
Read this manual carefully before operating this vehicle.
OWNER'S MANUAL
FZ1-N
FZ1-NA
2D1-28199-E4

Advertisement

Table of Contents
loading

Related Manuals for Yamaha FZ1-N

Summary of Contents for Yamaha FZ1-N

  • Page 1 Read this manual carefully before operating this vehicle. OWNER’S MANUAL FZ1-N FZ1-NA 2D1-28199-E4...
  • Page 2 Read this manual carefully before operating this vehicle. This manual should stay with this vehicle if it is sold. YAMAHA MOTOR ELECTRONICS CO., LTD. 1450-6, Mori, Mori-machi, Shuchi-gun, Shizuoka-ken, 437-0292 Japan DECLARATION of CONFORMITY Company: YAMAHA MOTOR ELECTRONICS CO., LTD. Address: 1450-6, Mori, Mori-Machi, Shuchi-gun, Shizuoka-Ken, 437-0292 Japan Hereby declare that the product: Kind of equipment: IMMOBILIZER...
  • Page 3 Yamaha a reputation for dependability. Please take the time to read this manual thoroughly, so as to enjoy all advantages of your FZ1-N/FZ1-NA. The Owner’s Man- ual does not only instruct you in how to operate, inspect and maintain your motorcycle, but also in how to safeguard yourself and others from trouble and injury.

  • Page 4: Important Manual Information

    IMPORTANT MANUAL INFORMATION EAU10132 Particularly important information is distinguished in this manual by the following notations: This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.
  • Page 5 IMPORTANT MANUAL INFORMATION EAU10200 FZ1-N/FZ1-NA OWNER’S MANUAL ©2009 by Yamaha Motor Co., Ltd. 1st edition, June 2009 All rights reserved. Any reprinting or unauthorized use without the written permission of Yamaha Motor Co., Ltd. is expressly prohibited. Printed in Japan.

  • Page 6: Table Of Contents

    PRE-OPERATION CHECKS ..... 4-1 Adjusting the clutch lever free play ........... 6-19 INSTRUMENT AND CONTROL OPERATION AND IMPORTANT Brake light switches (FZ1-N) ..6-19 FUNCTIONS ........3-1 RIDING POINTS......... 5-1 Brake light switches (FZ1-NA) ..6-20 Immobilizer system ......3-1 Starting the engine ......5-1 Checking the front and rear brake Main switch/steering lock ....3-2...
  • Page 7 Replacing a turn signal light bulb ...........6-33 Replacing the license plate light bulb ...........6-34 Replacing an auxiliary light bulb ...6-34 Supporting the motorcycle ....6-35 Front wheel (FZ1-N) ......6-36 Rear wheel (FZ1-N).......6-37 Troubleshooting ......6-39 Troubleshooting charts ....6-40 MOTORCYCLE CARE AND STORAGE ..........7-1 Matte color caution ......7-1...

  • Page 8: Safety Information

    SAFETY INFORMATION EAU10283 Safe Riding • Ride where other motorists can Perform the pre-operation checks each see you. Avoid riding in another time you use the vehicle to make sure it motorist’s blind spot. Be a Responsible Owner is in safe operating condition. Failure to Many accidents involve inexperi- As the vehicle’s owner, you are respon- inspect or maintain the vehicle properly...
  • Page 9 SAFETY INFORMATION due to excessive speed or under- This motorcycle is designed for on- A passenger should also observe cornering (insufficient lean angle road use only. It is not suitable for the above precautions. for the speed). off-road use. • Always obey the speed limit and Avoid Carbon Monoxide Poisoning never travel faster than warrant- Protective apparel...
  • Page 10 Yamaha accessories, which are avail- Shifting weights can create a sud- accessories to your motorcycle. Use able only from a Yamaha dealer, have den imbalance. Make sure that ac- extra care when riding a motorcycle been designed, tested, and approved cessories and cargo are securely that has added cargo or accessories.
  • Page 11 SAFETY INFORMATION modifications not specifically recom- clearance or cornering clearance, tor and may limit control ability, mended by Yamaha, even if sold and limit suspension travel, steering therefore, such accessories are installed by a Yamaha dealer. travel or control operation, or ob- not recommended.

  • Page 12: Description

    12.Engine oil drain bolt (page 6-9) 5. Fuel injection system fuse (page 6-29) 13.Engine oil filter cartridge (page 6-9) 6. Storage compartment (FZ1-N) (page 3-21) 7. Passenger seat lock (page 3-19) 8. Shock absorber assembly spring preload adjusting ring (page 3-23)

  • Page 13: Right View

    DESCRIPTION EAU10420 Right view 1. Owner’s tool kit (page 6-1) 9. Front fork rebound damping force adjusting screw (page 3-21) 2. Luggage strap holder (page 3-25) 10.Engine oil level check window (page 6-9) 3. Rider seat lock lever (page 3-19) 11.Brake pedal (page 3-15) 4.

  • Page 14: Controls And Instruments

    DESCRIPTION EAU10430 Controls and instruments 1. Clutch lever (page 3-14) 2. Left handlebar switches (page 3-13) 3. Main switch/steering lock (page 3-2) 4. Multi-function meter unit (page 3-8) 5. Right handlebar switches (page 3-13) 6. Throttle grip (page 6-15) 7. Brake lever (page 3-15)

  • Page 15: Instrument And Control Functions

    Do not expose any key to exces- a Yamaha dealer to have them re-reg- sively high temperatures. istered. Do not use the key with the red Do not place any key close to bow for driving.

  • Page 16: Main Switch/Steering Lock

    INSTRUMENT AND CONTROL FUNCTIONS Keep other immobilizer system EAU10472 EAU36870 Main switch/steering lock keys away from the main switch All electrical circuits are supplied with as they may cause signal inter- power, the meter lighting, taillight, li- ference. cense plate light and auxiliary lights come on, and the engine can be start- ed.
  • Page 17 INSTRUMENT AND CONTROL FUNCTIONS EAU10683 To unlock the steering ECA11020 LOCK NOTICE The steering is locked, and all electrical Do not use the parking position for systems are off. The key can be re- an extended length of time, other- moved.

  • Page 18: Indicator And Warning Lights

    The oil level warning high beam of the headlight is switched light will flash ten times, then go off for 2.5 seconds. If this occurs, have a Yamaha dealer check the vehicle. EAU11254 Oil level warning light “ ”...
  • Page 19 INSTRUMENT AND CONTROL FUNCTIONS ECA10021 NOTICE Do not continue to operate the en- gine if it is overheating. For radiator-fan-equipped vehi- cles, the radiator fan(s) automati- cally switch on or off according to the coolant temperature in the ra- diator. If the engine overheats, see page 6-40 for further instructions.
  • Page 20 INSTRUMENT AND CONTROL FUNCTIONS Coolant Display Conditions What to do temperature Under 39 °C Message “Lo” is displayed. OK. Go ahead with riding. (Under 103 °F) 40–116 °C Temperature is displayed. OK. Go ahead with riding. (104–242 °F) Stop the vehicle and allow it to idle until 117–139 °C Temperature display flashes.
  • Page 21 If this oc- circuit. tem reverts to conventional braking. curs, have a Yamaha dealer check the Therefore, be careful not to cause When the key is turned to “OFF” and 30 self-diagnosis system. (See page 3-11...

  • Page 22: Multi-Function Meter Unit

    INSTRUMENT AND CONTROL FUNCTIONS EAU3942E multi-function meter unit Tachometer Multi-function meter unit equipped with the following: a speedometer a tachometer an odometer two tripmeters (which show the distance traveled since they were last set to zero) a fuel reserve tripmeter (which shows the distance traveled since the left segment of the fuel meter 1.

  • Page 23: Fuel Meter

    INSTRUMENT AND CONTROL FUNCTIONS Clock 5. Push the “RESET” button to set mode “F-TRIP” and start counting the the minutes. distance traveled from that point. In that 6. Push the “SELECT” button and case, push the “SELECT” button to then release it to start the clock. switch the display between the various tripmeter and odometer modes in the Odometer and tripmeter modes...
  • Page 24 When the coolant temperature display mately 3 seconds. If this occurs, have a switch the coolant temperature display is selected, “C” is displayed for one Yamaha dealer check the electrical cir- to the air intake temperature display. second, and then the coolant tempera- cuit.

  • Page 25: Self-Diagnosis Device

    “OFF”. lizer system circuits, the immobilizer Yamaha dealer and have the stan- When the air intake temperature system indicator light will flash and the dard keys re-registered.

  • Page 26: Anti-Theft Alarm (Optional)

    This model can be equipped with an 5. Push the “SELECT” button to con- optional anti-theft alarm by a Yamaha firm the selected brightness level. dealer. Contact a Yamaha dealer for The display will return to the odom- more information.

  • Page 27: Handlebar Switches

    INSTRUMENT AND CONTROL FUNCTIONS EAU12348 Right position. To cancel the turn signal Handlebar switches lights, push the switch in after it has re- turned to the center position. Left EAU12500 Horn switch “ ” Press this switch to sound the horn. EAU12660 Engine stop switch “...

  • Page 28: Clutch Lever

    INSTRUMENT AND CONTROL FUNCTIONS EAU12733 EAU12820 EAU12870 Hazard switch “ ” Clutch lever Shift pedal With the key in the “ON” or “ ” posi- tion, use this switch to turn on the haz- ard lights (simultaneous flashing of all turn signal lights).

  • Page 29: Brake Lever

    Brake lever Brake pedal ABS (for ABS models) The brake lever is located at the right The Yamaha ABS (Anti-lock Brake handlebar grip. To apply the front System) features a dual electronic con- brake, pull the lever toward the handle- trol system, which acts on the front and bar grip.

  • Page 30: Fuel Tank Cap

    However, special tools are not properly closed and locked. required, so please consult your Yamaha dealer when performing EWA11091 WARNING this test. Make sure that the fuel tank cap is ECA16120 properly closed after filling fuel.

  • Page 31: Fuel

    WARNING pump nozzle into the fuel tank filler Gasoline is poisonous and can Your Yamaha engine has been de- hole. Stop filling when the fuel cause injury or death. Handle gaso- signed to use regular unleaded gaso- reaches the bottom of the filler line with care.

  • Page 32: Fuel Tank Breather/Overflow Hose

    FZ1-NA Fuel tank breather/overflow leaded fuel will extend spark plug life hose and reduce maintenance costs. FZ1-N 1. Fuel tank breather hose 2. Original position (paint mark) Before operating the motorcycle: 1. Fuel tank breather hose Check the fuel tank breather/over- 2.

  • Page 33: Catalytic Converters

    INSTRUMENT AND CONTROL FUNCTIONS EAU13445 ECA10701 EAU39322 Catalytic converters Seats NOTICE This vehicle is equipped with catalytic Use only unleaded gasoline. The use converters in the exhaust system. Passenger seat of leaded gasoline will cause unre- EWA10862 pairable damage to the catalytic WARNING To remove the passenger seat converter.
  • Page 34 INSTRUMENT AND CONTROL FUNCTIONS Make sure that the seats are properly secured before riding. 1. Rider seat lock lever 2. Remove the key. To install the rider seat Rider seat 1. Insert the projection on the front of the rider seat into the seat holder To remove the rider seat as shown, and then push the rear 1.

  • Page 35: Storage Compartment (Fz1-N)

    This storage compartment is designed When storing the Owner’s Manual or pression damping force adjusting to hold an optional genuine Yamaha other documents in the storage com- screw. CYCLELOK. (Other locks may not fit.) partment, be sure to wrap them in a ECA10101 When placing a CYCLELOK in the stor- plastic bag so that they will not get wet.
  • Page 36 INSTRUMENT AND CONTROL FUNCTIONS Spring preload Rebound damping force 1. Current setting 2. Front fork cap bolt 1. Spring preload adjusting bolt 1. Rebound damping force adjusting screw To increase the spring preload and The rebound damping force is adjusted Spring preload setting: thereby harden the suspension, turn on the right front fork leg only.

  • Page 37: Adjusting The Shock Absorber Assembly

    INSTRUMENT AND CONTROL FUNCTIONS pression damping force and thereby EAU39344 Rebound damping setting: Adjusting the shock absorber soften the compression damping, turn Minimum (soft): assembly the adjusting screw in direction (b). 26 click(s) in direction (b)* This shock absorber assembly is Standard: 18 click(s) in direction (b)* equipped with a spring preload adjust-...
  • Page 38 INSTRUMENT AND CONTROL FUNCTIONS To increase the spring preload and Rebound damping force thereby harden the suspension, turn To obtain a precise adjustment, it is ad- the adjusting ring in direction (a). To de- visable to check the actual total number crease the spring preload and thereby of clicks or turns of the damping force soften the suspension, turn the adjust-...

  • Page 39: Luggage Strap Holders

    Take the shock from the hooks, and then install the absorber assembly to a Yamaha seat with the straps hanging out from dealer for any service. under the passenger seat. (See page 3-19.)

  • Page 40: Exup System

    INSTRUMENT AND CONTROL FUNCTIONS EAU41941 EAU15303 below and have a Yamaha dealer re- EXUP system Sidestand pair it if it does not function proper- This model is equipped with Yamaha’s The sidestand is located on the left side EXUP (EXhaust Ultimate Power valve) of the frame.

  • Page 41: Ignition Circuit Cut-Off System

    INSTRUMENT AND CONTROL FUNCTIONS EAU44892 Ignition circuit cut-off system The ignition circuit cut-off system (com- prising the sidestand switch, clutch switch and neutral switch) has the fol- lowing functions. It prevents starting when the trans- mission is in gear and the side- stand is up, but the clutch lever is not pulled.
  • Page 42 INSTRUMENT AND CONTROL FUNCTIONS WARNING With the engine turned off: 1. Move the sidestand down. If a malfunction is noted, have a Yamaha 2. Make sure that the engine stop switch is set to “ ”. dealer check the system before riding.

  • Page 43: For Your Safety - Pre-Operation Checks

    • If necessary, add recommended coolant to specified level. 6-11 • Check cooling system for leakage. • Check operation. • If soft or spongy, have Yamaha dealer bleed hydraulic system. • Check brake pads for wear. Front brake • Replace if necessary.
  • Page 44 • Make sure that operation is smooth. • Check cable free play. Throttle grip 6-15, 6-25 • If necessary, have Yamaha dealer adjust cable free play and lubricate cable and grip housing. • Make sure that operation is smooth. Control cables 6-24 •...
  • Page 45 • Tighten if necessary. Instruments, lights, signals • Check operation. — and switches • Correct if necessary. • Check operation of ignition circuit cut-off system. Sidestand switch 3-26 • If system is not working correctly, have Yamaha dealer check vehicle.

  • Page 46: Operation And Important Riding Points

    Yamaha dealer. The transmission is in the neutral a turnover. In this case, the multi-func- position.

  • Page 47: Shifting

    (See page 5-2.) The properly lubricated only when neutral indicator light should come the engine is running. Inade- on. If not, ask a Yamaha dealer to quate lubrication may damage check the electrical circuit. the transmission. 1. Shift pedal 3.

  • Page 48: Tips For Reducing Fuel Consumption

    Yamaha dealer check the vehi- to the correct operating clearances. Turn the engine off instead of let- cle.

  • Page 49: Parking

    OPERATION AND IMPORTANT RIDING POINTS EAU17213 Parking When parking, stop the engine, and then remove the key from the main switch. EWA10311 WARNING Since the engine and exhaust system can become very hot, park in a place where pedestri- ans or children are not likely to touch them and be burned.

  • Page 50: Periodic Maintenance And Adjustment

    If If you do not have the tools or experi- you are not familiar with vehicle ser- ence required for a particular job, have vice, have a Yamaha dealer perform a Yamaha dealer perform it for you. service.

  • Page 51: Periodic Maintenance Chart For The Emission Control System

    From 50000 km (30000 mi), repeat the maintenance intervals starting from 10000 km (6000 mi). Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools, data and technical skills.

  • Page 52: General Maintenance And Lubrication Chart

    PERIODIC MAINTENANCE AND ADJUSTMENT EAU1770C General maintenance and lubrication chart ODOMETER READING ANNUAL ITEM CHECK OR MAINTENANCE JOB 1000 km 10000 km 20000 km 30000 km 40000 km CHECK (600 mi) (6000 mi) (12000 mi) (18000 mi) (24000 mi) √ Air filter element •...
  • Page 53 PERIODIC MAINTENANCE AND ADJUSTMENT ODOMETER READING ANNUAL ITEM CHECK OR MAINTENANCE JOB 1000 km 10000 km 20000 km 30000 km 40000 km CHECK (600 mi) (6000 mi) (12000 mi) (18000 mi) (24000 mi) • Check chain slack, alignment and condition. Every 1000 km (600 mi) and after washing the motorcycle, riding in the rain or Drive chain •...
  • Page 54 PERIODIC MAINTENANCE AND ADJUSTMENT ODOMETER READING ANNUAL ITEM CHECK OR MAINTENANCE JOB 1000 km 10000 km 20000 km 30000 km 40000 km CHECK (600 mi) (6000 mi) (12000 mi) (18000 mi) (24000 mi) Rear suspension re- lay arm and con- √...
  • Page 55 PERIODIC MAINTENANCE AND ADJUSTMENT EAU18680 Air filter • This model’s air filter is equipped with a disposable oil-coated paper element, which must not be cleaned with com- pressed air to avoid damaging it. • The air filter element needs to be replaced more frequently when riding in unusually wet or dusty areas. Hydraulic brake service •...

  • Page 56: Removing And Installing The Panel

    PERIODIC MAINTENANCE AND ADJUSTMENT EAU18751 FZ1-N Removing and installing the panel The panel shown needs to be removed to perform some of the maintenance jobs described in this chapter. Refer to this section each time the panel needs to be removed and installed.

  • Page 57: Checking The Spark Plugs

    Do not attempt to diagnose wipe off any grime from the spark plug such problems yourself. Instead, have threads. a Yamaha dealer check the vehicle. If a spark plug shows signs of electrode Tightening torque: Spark plug: erosion and excessive carbon or other 12.5 Nm (1.25 m·kgf, 9.0 ft·lbf)

  • Page 58: Engine Oil And Oil Filter Cartridge

    PERIODIC MAINTENANCE AND ADJUSTMENT EAU19908 4. Remove the engine oil filler cap, Engine oil and oil filter car- the engine oil drain bolt and its tridge gasket to drain the oil from the The engine oil level should be checked crankcase.
  • Page 59 Make sure that the O-ring is properly 17 Nm (1.7 m·kgf, 12 ft·lbf) An oil filter wrench is available at a seated. Yamaha dealer. 8. Install the engine oil drain bolt and 7. Install the new oil filter cartridge its new gasket, and then tighten 6.

  • Page 60: Coolant

    NOTICE correct, immediately turn the engine on a cold engine since the level In order to prevent clutch slip- off and have a Yamaha dealer check varies with engine temperature. page (since the engine oil also the vehicle. Make sure that the vehicle is posi- lubricates the clutch), do not 11.
  • Page 61 Have a be protected against frost and Yamaha dealer change the coolant. corrosion. If water has been WARNING! Never attempt to remove added to the coolant, have a...

  • Page 62: Replacing The Air Filter Element

    PERIODIC MAINTENANCE AND ADJUSTMENT EAU39364 Replacing the air filter element The air filter element should be re- placed at the intervals specified in the periodic maintenance and lubrication chart. Replace the air filter element more frequently if you are riding in un- usually wet or dusty areas.
  • Page 63 If any fuel hose is damaged, do not start the engine but have a Yamaha dealer replace the hose, other- wise fuel may leak, creating a 1. Air filter element fire hazard.

  • Page 64: Adjusting The Engine Idling Speed

    3.0–5.0 mm (0.12–0.20 in) at the engine idling speed, turn the screw in throttle grip. Periodically check the direction (b). throttle cable free play and, if neces- sary, have a Yamaha dealer adjust it. 1. Idle adjusting screw 6-15...

  • Page 65: Valve Clearance

    Rear: from occurring, the valve clearance the specified tires. 290 kPa (2.90 kgf/cm², 42 psi) must be adjusted by a Yamaha dealer FZ1-N 90–196 kg (198–432 lb) at the intervals specified in the periodic Tire air pressure FZ1-NA 90–189 kg (198–417 lb): maintenance and lubrication chart.
  • Page 66 Tire information glass fragments in it, or if the sidewall is high-speed ride. cracked, have a Yamaha dealer re- After extensive tests, only the tires list- place the tire immediately. ed below have been approved for this model by Yamaha Motor Co., Ltd.

  • Page 67: Cast Wheels

    Manufacturer/model: fore each ride. If any damage is DUNLOP/D221G found, have a Yamaha dealer re- FRONT and REAR: Tire air valve: place the wheel. Do not attempt TR412 even the smallest repair to the Valve core: wheel.

  • Page 68: Adjusting The Clutch Lever Free Play

    If the specified free play cannot be ob- play tained as described above or if the clutch does not operate correctly, have a Yamaha dealer check the internal clutch mechanism. 1. Rear brake light switch 2. Rear brake light switch adjusting nut 1.

  • Page 69: Brake Light Switches (Fz1-Na)

    Brake light switches (FZ1-NA) Checking the front and rear touches the brake disc, have a Yamaha The brake light, which is activated by brake pads dealer replace the brake pads as a set.

  • Page 70: Checking The Brake Fluid Level

    Mixing fluids may result in a ing it to become ineffective. harmful chemical reaction and Rear brake (FZ1-N) Before riding, check that the brake fluid lead to poor braking performance. is above the minimum level mark and Be careful that water does not en- replenish if necessary.

  • Page 71: Changing The Brake Fluid

    Changing the brake fluid Drive chain slack mal for the brake fluid level to grad- Have a Yamaha dealer change the The drive chain slack should be ually go down. However, if the brake fluid at the intervals specified in...
  • Page 72 PERIODIC MAINTENANCE AND ADJUSTMENT to chain slippage or breakage. Tightening torques: To prevent this from occurring, Axle nut: keep the drive chain slack with- 150 Nm (15.0 m·kgf, 110 ft·lbf) Locknut: in the specified limits. [ECA10571] 16 Nm (1.6 m·kgf, 11 ft·lbf) Using the alignment marks on each side of the swingarm, make sure that both drive chain pullers are in the same...

  • Page 73: Cleaning And Lubricating The Drive Chain

    If a cable is damaged wet areas. Service the drive chain as or does not move smoothly, have a follows. Yamaha dealer check or replace it. WARNING! Damage to the outer ECA10583 NOTICE sheath may interfere with proper ca-...

  • Page 74: Checking And Lubricating The Throttle Grip And Cable

    The operation of the throttle grip should Brake pedal be checked before each ride. In addi- tion, the cable should be lubricated by a Yamaha dealer at the intervals speci- fied in the periodic maintenance chart. Shift pedal The operation of the brake and shift...

  • Page 75: Checking And Lubricating The Brake And Clutch Levers

    EWA10731 WARNING If the sidestand does not move up and down smoothly, have a Yamaha dealer check or repair it. Otherwise, the sidestand could contact the ground and distract the operator, re- The operation of the brake and clutch sulting in a possible loss of control.

  • Page 76: Checking The Front Fork

    WARNING! To avoid injury, of it falling over. have a Yamaha dealer check or re- [EWA10751] securely support the vehicle so 2. Hold the lower ends of the front pair it.

  • Page 77: Checking The Wheel Bearings

    EWA10760 WARNING To charge the battery Electrolyte is poisonous and Have a Yamaha dealer charge the bat- dangerous since it contains sul- tery as soon as possible if it seems to furic acid, which causes severe have discharged. Keep in mind that the burns.

  • Page 78: Replacing The Fuses

    FZ1-N stant-voltage battery charger, have a Yamaha dealer charge your battery. To store the battery 1. If the vehicle will not be used for more than one month, remove the battery, fully charge it, and then place it in a cool, dry place.
  • Page 79 PERIODIC MAINTENANCE AND ADJUSTMENT FZ1-NA FZ1-N FZ1-NA 1. Main fuse 1. Fuse box 1. Ignition fuse 2. Fuse box 2. Ignition fuse 2. Signaling system fuse 3. Fuel injection system fuse 3. Signaling system fuse 3. Taillight fuse 4. Fuel injection system spare fuse 4.
  • Page 80 5. If the fuse immediately blows remove the battery cover. rating than recommended to again, have a Yamaha dealer avoid causing extensive dam- check the electrical system. age to the electrical system and 6.

  • Page 81: Replacing The Headlight Bulb

    PERIODIC MAINTENANCE AND ADJUSTMENT EAU34384 Replacing the headlight bulb This model is equipped with a quartz bulb headlight. If the headlight bulb burns out, replace it as follows. ECA10650 NOTICE Take care not to damage the follow- ing parts: Headlight bulb 1.

  • Page 82: Replacing The Tail/Brake Light Bulb

    6. Install the headlight unit by install- the bulb) by turning it counter- ing the bolts. clockwise. 7. Have a Yamaha dealer adjust the headlight beam if necessary. 1. Screw 2. Remove the burnt-out bulb by pushing it in and turning it counter- 1.

  • Page 83: Replacing The License Plate Light Bulb

    PERIODIC MAINTENANCE AND ADJUSTMENT EAU24312 3. Remove the burnt-out bulb by pull- EAU39383 Replacing the license plate Replacing an auxiliary light ing it out. light bulb bulb 4. Insert a new bulb into the socket. 1. Remove the license plate light unit This model is equipped with two auxil- 5.

  • Page 84: Supporting The Motorcycle

    PERIODIC MAINTENANCE AND ADJUSTMENT EAU24350 Supporting the motorcycle Since this model is not equipped with a centerstand, follow these precautions when removing the front and rear wheel or performing other maintenance requiring the motorcycle to stand up- right. Check that the motorcycle is in a stable and level position before starting any maintenance.

  • Page 85: Front Wheel (Fz1-N)

    6-35. WARNING 3. Remove the brake hose holder on For the ABS model, have a Yamaha each side by removing the bolt and dealer remove and install the wheel. nut. 4. Remove the brake caliper on each...

  • Page 86: Rear Wheel (Fz1-N)

    WARNING legs. 2. Insert the wheel axle. For the ABS model, have a Yamaha 3. Lower the front wheel so that it is dealer remove and install the wheel. on the ground, and then put the sidestand down.
  • Page 87 PERIODIC MAINTENANCE AND ADJUSTMENT 2. Lift the rear wheel off the ground EAU39412 To install the rear wheel according to the procedure on If the drive chain is difficult to re- 1. Install the wheel and the brake cal- page 6-35. move, remove the wheel axle first, iper bracket by inserting the wheel 3.

  • Page 88: Troubleshooting

    150 Nm (15.0 m·kgf, 110 ft·lbf) represent quick and easy procedures for checking these vital systems your- self. However, should your motorcycle require any repair, take it to a Yamaha dealer, whose skilled technicians have the necessary tools, experience, and know-how to service the motorcycle properly.

  • Page 89: Troubleshooting Charts

    Remove the spark plugs and check the electrodes. The engine does not start. Have a Yamaha dealer check the vehicle. Check the battery. 4. Battery The engine turns over The battery is good.
  • Page 90 Start the engine. If the engine overheats again, have a The coolant level Yamaha dealer check and repair the cooling system. is OK. If coolant is not available, tap water can be temporarily used instead, provided that it is changed to the recommended coolant as soon as possible.

  • Page 91: Motorcycle Care And Storage

    Rust and corrosion can develop matte colored finished parts. Be Cleaning even if high-quality components are sure to consult a Yamaha dealer for ECA10772 advice on what products to use be- used. A rusty exhaust pipe may go un- NOTICE fore cleaning the vehicle.
  • Page 92 MOTORCYCLE CARE AND STORAGE off any detergent residue using Test the product on a small hid- plenty of water, as it is harmful den part of the windshield to Salt sprayed on roads in the winter may to plastic parts. make sure that it does not leave remain well into spring.

  • Page 93: Storage

    WARNING To prevent corrosion, avoid Contaminants on the brakes or tires Consult a Yamaha dealer for ad- damp cellars, stables (because can cause loss of control. vice on what products to use. of the presence of ammonia)
  • Page 94 MOTORCYCLE CARE AND STORAGE 3. Perform the following steps to pro- 4. Lubricate all control cables and the tect the cylinders, piston rings, etc. pivoting points of all levers and from corrosion. pedals as well as of the side- a. Remove the spark plug caps stand/centerstand.

  • Page 95: Specifications

    0.6–0.7 mm (0.024–0.028 in) –20 –10 0 10 20 30 40 50 ˚C With oil and fuel: Clutch: FZ1-N 214.0 kg (472 lb) Clutch type: Recommended engine oil grade: FZ1-NA 221.0 kg (487 lb) Wet, multiple-disc API service SG type or higher, JASO...
  • Page 96 Gear ratio: Loading: Rim size: 1st: 17M/C x MT6.00 Maximum load: 38/15 (2.533) Front brake: FZ1-N 196 kg (432 lb) 2nd: FZ1-NA 189 kg (417 lb) Type: 33/16 (2.063) (Total weight of rider, passenger, cargo and Dual disc brake 3rd:...
  • Page 97 SPECIFICATIONS Charging system: Coolant temperature warning light: AC magneto Battery: Engine trouble warning light: Model: ABS warning light: YTZ14S FZ1-NA LED Voltage, capacity: Immobilizer system indicator light: 12 V, 11.2 Ah Headlight: Fuses: Bulb type: Main fuse: Halogen bulb Bulb voltage, wattage × quantity: 50.0 A Headlight fuse: Headlight:...

  • Page 98: Consumer Information

    Record the key identification number, vehicle identification number and mod- el label information in the spaces pro- vided below for assistance when ordering spare parts from a Yamaha dealer or for reference in case the vehi- cle is stolen. KEY IDENTIFICATION NUMBER: 1.
  • Page 99 1. Model label The model label is affixed to the frame under the rider seat. (See page 3-19.) Record the information on this label in the space provided. This information will be needed when ordering spare parts from a Yamaha dealer.
  • Page 100 Handlebar switches ......3-13 Seats ............. 3-19 Brake lever..........3-15 Hazard switch ........3-14 Shifting ............5-2 Brake light switches (FZ1-N)....6-19 Headlight bulb, replacing ...... 6-32 Shift pedal ..........3-14 Brake light switches (FZ1-NA) ....6-20 High beam indicator light ......3-4 Shock absorber assembly, adjusting ..3-23...
  • Page 101 Turn signal indicator lights ...... 3-4 Turn signal light bulb, replacing.... 6-33 Turn signal switch......... 3-13 Valve clearance ........6-16 Vehicle identification number....9-1 Wheel bearings, checking ....6-28 Wheel (front) (FZ1-N) ......6-36 Wheel (rear) (FZ1-N) ......6-37 Wheels..........6-18...
  • Page 104 YAMAHA MOTOR CO., LTD. PRINTED ON RECYCLED PAPER PRINTED IN JAPAN 2009.07-0.3×1 CR...
