Summary of Contents for YuLongDa H02

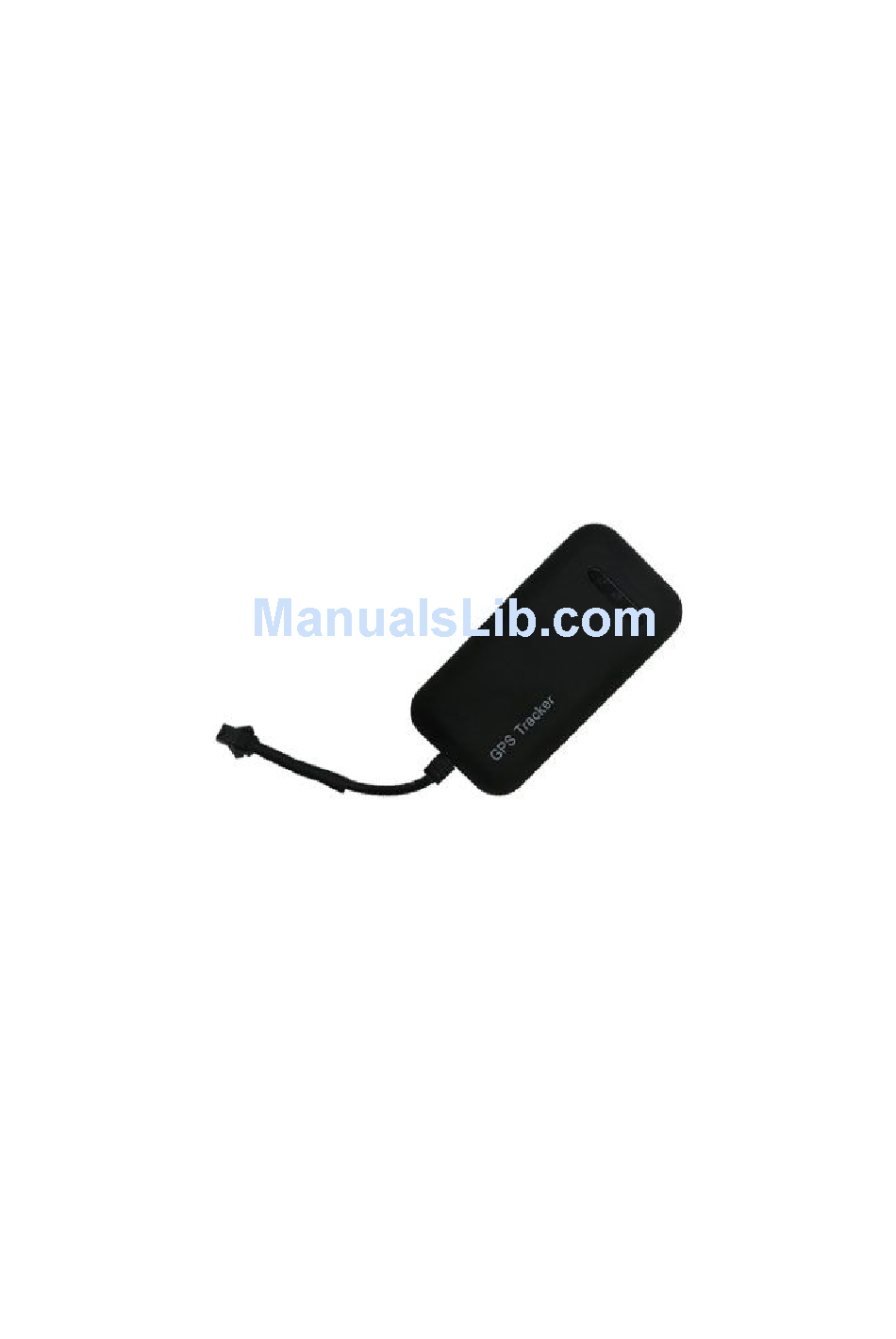

- Page 1 GPS ANTI-THEFT ALERT SYSTEM (GPS+GSM+SMS/GPRS) Fast Installation Instruction & User Manual In order to install and operate the GPS tracker in right method and properly, please read this Fast Installation Instruction & User Manual before installation, Thank you.
- Page 2 Catalog H02 Models.......................... 2 Package & Accessories....................2 Functions..........................2 Technical Parameter......................2 LED Indication.........................2 Red LED (Power status indication)................2 Yellow LED (GSM status indication)................2 Blue LED (GPS status indication)................. 2 Device Appearance........................2 Installation Instructions....................2 Before Installation......................2 Installation..........................2 Terminal wiring Instructions................... 2 Terminal Operations......................
-
Page 3: A. H02 Models
A. H02 Models H02 Normal Version – Real-time Tracking, Vibration Alarms; H02 Upgrade Version – Real-time Tracking, Vibration Alarms, Voice Monitoring; H02 Enhanced Version – Real-time Tracking, Vibration Alarms, Cut-off Engine or Oil pump; H02 Multi-function Version – Real-time Tracking, Vibration Alarms, Voice Monitoring, Cut-off Engine or Oil pump, SOS Emergency Alarms, External Power Cut Alarm;... -
Page 4: E. Led Indication
GPRS: Class12,TCP/IP; Voltage range: DC 9-24V; Standby Current: ≈0.2mA; Power Consumption: 0.3w/h; GPS initialization: Cold boot 38s (Open sky) Warm boot 2s (Open sky) GPS Accuracy: 10m(2D RM); Working Temperature: -2℃ - +70℃； Working Humidity: 20%-80%RH;... -
Page 5: F. Device Appearance

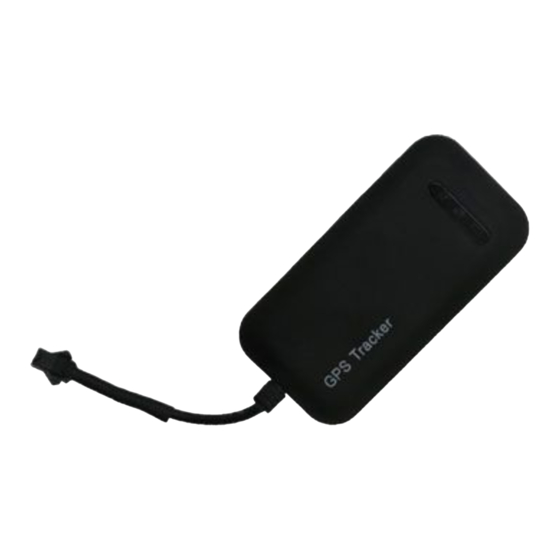

F. Device Appearance H02-U H02-E H02-M G. Installation Instructions 1. Before Installation Open the package, please look over whether the part number is correct and whether accessories complete, if not, please contact your distributor for further assistance; Choose correct SIM card, a SIM card will be needed to insert into the terminal, please consult distributors options for further use;... -
Page 6: H. Terminal Wiring Instructions
2. Installation The terminal is a high-tech GPS positioning device, choose distributor suggested professional installation company, mechanic to install and set-up; Please follow the terminal installation order, DO NOT REVERSE, during the installation, DO NOT POWER UP THE TERMINAL; Suggest install in hidden places;... - Page 7 H02-U H02-E H02-M...
- Page 8 1. Power wire, ACC detection wire, Engine power or oil control relay wire (7pin) The terminal standard power voltage is 9V-24VDC, please use the original power wire supplied by the original factory, red wire is power source positive end, black wire is the negative end;...
-
Page 9: Start-Up/Shut-Down
Loudspeaker wire (1 pin) Connect with the external vehicle speaker, with a microphone, it can make 2 ways phone calls, or send voice alarms when theft behavior was detected; MIC wire (1 pin) Connect with external microphone, used in voice monitoring case or phone calls; 2. -
Page 10: Google Address Link
Google Address Link Send SMS: GOOGLE to terminal, it will reply the terminal current geography location link http://maps.google.com/maps/?f=q&hl=en&&q=31.237395,121.390373333333;S= 0;D=2012-5-23 12:00:00;D=0 Please note: the default time is Greenwich time, actual time needs to add your time zone number e.g.: enquiry time is 12:00:00, Chinese time is 20:00:00 (+ 8 hours) Vibration Alarm ... -
Page 11: Voice Monitoring(Optional)
alarm, it will send a main power cut off alarm SMS to bound cellphone, and meanwhile upload the alarm information to live tracking monitoring system. SMS e.g.: Alarm main power failure, Please pay attention! Voice Monitoring(Optional) Send SMS: JT to the terminal The terminal will call back and the administrator will able to monitor the voices. - Page 12 Is vehicle parked in the basement or other places without GSM signal; Monitoring the offline area, is signal one offline or all of them, then we can decide whether it is a telecom operator problem; SIM card credit run out? ...
-
Page 13: Gps Vehicle Tracking Terminal Warranty Card
GPS VEHICLE TRACKING TERMINAL WARRANTY CARD Please Note: Any upgrade of this products later on , notifications will only be sent to distributors; Any changes on appearance or colour, pictures are only for information, take practicality as standard; ...
