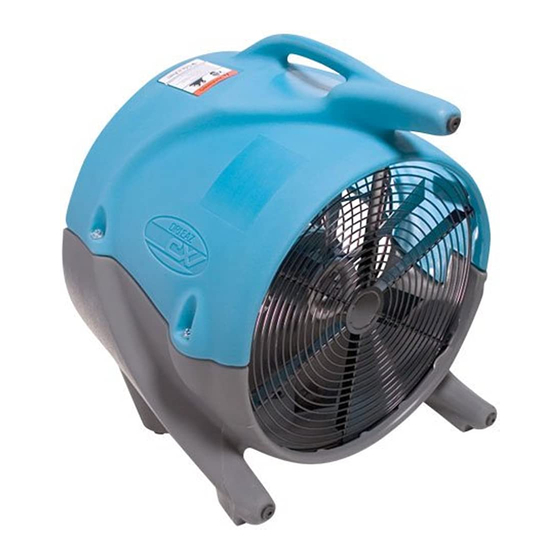

The Jet CXV is a high-powered airmover for the speed-drying of building structures and
contents. It is designed for maximum airflow with minimal amp draw, as well as versatility, durability and ease of use.
Read and understand manual before operating.
ELECTRIC SHOCK HAZARD
WARNING! Unit must be grounded.
Use indoors only.
Do not operate in standing water.
If motor or wiring gets wet, allow to dry completely
before using.
Clean with compressed air or vacuum or wipe with a
damp cloth. Do not use hose or pressure washer.
To reduce the risk of fire or electric shock, do not use
this airmover with any solid-state speed control
device.
Insert 3-prong plug on power cord only into outlet with
Ground Fault Circuit Interrupting device.
Do not use adaptor.
Never cut off third prong.
Do not use an extension cord.
FIRE HAZARD
Keep air intakes and grills clear of obstructions and
dirt. Reduced airflow can cause motor to overheat.
Keep away from draperies or other material that could
block air intakes.
Keep away from open flames and heat sources.
Do not use or store where flammable vapors such as
from gasoline, solvents or thinners may be present.
07-01568B 05-29 Copyright 2007 Dri-Eaz Products, Inc.
Owner's Manual –
Dri-Eaz Jet CXV TurboDryer
DRI-EAZ PRODUCTS, INC.
15180 Josh Wilson Road, Burlington, WA USA 98233
Fax: (360) 757-7950 Phone US: (360) 757-7776
Read And Save These Instructions
www.dri-eaz.com
SAFETY INSTRUCTIONS
WARNING! Unplug unit before opening housing for
cleaning or servicing.
Always operate the unit on a stable, level surface.
Turn off unit. Unplug unit before lifting or moving. The
powerful airflow can make the unit difficult to control.
Inspect the power cord before use. If cord is
damaged, do not use. Replace with a cord of the
same type and amperage rating. Protect cord from
damage by turning off unit before unplugging. Always
grasp the plug (not pulling on the cord) to unplug.
The unit is designed to operate on a 115V/60 Hz
electrical connection. Make sure that the electrical
outlet is grounded.
Handle the unit carefully. Do not drop, throw, or place
on unstable surface where it could fall. Rough
treatment can damage the unit, and may create a
hazardous condition or void the warranty.
Keep children away from unit. Be sure unit is
inaccessible to children when it is not attended.
INTRODUCTION
The Jet CXV TurboDryer is a high-powered airmover for speed
drying of building structures and contents. It is designed for
use in commercial carpet or hard surface floor cleaning or
water damage restoration, offering maximum airflow with
minimal amp draw.
THE JET CXV TURBODRYER FEATURES:
Two protective grills; front grill with focused vanes for
channeling high-velocity air
.25 HP motor
Three-speed switch – 1.5, 2.0 and 3.0 amps
GFCI outlet for connecting up to 3 units (9 amps max.)
Stackable for storage and transportation
Designed for use with the Unimover hand truck to transport
multiple units
1
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Jet CXV TurboDryer and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Dri-Eaz Jet CXV TurboDryer

  • Page 1 INTRODUCTION • Insert 3-prong plug on power cord only into outlet with The Jet CXV TurboDryer is a high-powered airmover for speed Ground Fault Circuit Interrupting device. drying of building structures and contents. It is designed for • Do not use adaptor.
  • Page 2: Parts Identification

    Housing airflow is required). Check for proper operation before leaving the unit Back View (open for cleaning/maintenance) unattended. Do not move or carry the Jet CXV TurboDryer when it is running. CONTROLS RANSPORTING AND TORING...
  • Page 3: Maintenance

    EXTERIOR INSPECTION: Inspect exterior components and FOR PARTS AND SERVICE CALL YOUR LOCAL DISTRIBUTOR, make sure they are properly installed. Listen to the unit for or the Dri-Eaz Service Department at 888-867-3235 or (360) abnormal sounds. Repair or replace components as needed. 757-7776 CLEAN EXTERIOR: Clean the housing with a damp cloth.
  • Page 4: Peligro De Descarga Eléctrica

    INTRODUCCIÓN PELIGRO DE INCENDIO El Jet CXV TurboDryer es un extractor de alto rendimiento de • Mantenga las entradas de aire y las rejillas libres de uso comercial para secar de forma rápida las estructuras y los obstrucciones y suciedad.
  • Page 5: Identificación De Piezas

    FUNCIONAMIENTO DE JET CXV COLOCACIÓN Durante el secado, coloque al menos un Jet CXV TurboDryer por habitación contra las paredes (con el lado de la bisagra tocando la pared), cuando utilice varias unidades colóquelas a una distancia de 10-14 pies (3,5 – 4,2 m.) entre sí y orientadas en la misma dirección.
  • Page 6: Mantenimiento

    Tenga cuidado con los puntos de presión cuando compruebe que está funcionando correctamente. No manipule la cubierta; de no manipularse con cuidado pudiera mueva ni transporte el Jet CXV TurboDryer mientras está ocasionar lesiones personales. funcionando. Cuando vuelva a colocar los componentes en la unidad después de limpiarlos, el motor debe colocarse en la unidad...
  • Page 7: Especificaciones

    Las especificaciones están sujetas a cambio sin previo aviso. Algunos valores pueden ser aproximados. PARA OBTENER PIEZAS Y SERVICIO TÉCNICO, LLAME A SU DISTRIBUIDOR LOCAL o al Departamento de Servicio Técnico de Dri-Eaz, al 888-867- 3235 ó (360) 757-7776. 07-001568B 05-29 Copyright 2007 Dri-Eaz Products, Inc.
  • Page 8: Directives De Sécurité

    INTRODUCTION DANGER D'INCENDIE • Le Jet CXV TurboDryer est un appareil de ventilation à grande S'assurer que les prises d'air et grilles à air sont puissance pour le séchage rapide de structures et de contenu dégagées en permanence. Une circulation réduite de l'air peut entraîner la surchauffe du moteur.
  • Page 9: Identification Des Pièces

    1 MPLACEMENT Pour le séchage, placez au moins un Jet CXV TurboDryer par pièce contre les murs (le côté charnière touchant le mur). Lorsque vous utilisez plusieurs appareils, espacez-les de 3 à 4 mètres et orientez-les dans la même direction. Utilisez autant d'appareils que nécessaire pour obtenir un flux d'air maximal...
  • Page 10: Entretien

    Vous ne devez ni déplacer effiloché ou endommagé. Ne l'utilisez pas s'il n'est pas en ni porter le Jet CXV TurboDryer pendant qu'il est en parfait état. fonctionnement.
  • Page 11: Spécifications

    Les spécifications sont sujettes à modification sans avis préalable. Certaines valeurs peuvent être approximatives. POUR TOUT RENSEIGNEMENT CONCERNANT LES PIÈCES ET LES RÉVISIONS, VEUILLEZ CONTACTER VOTRE DISTRIBUTEUR LOCAL ou le service après vente Dri-Eaz au 888-867-3235 ou (360) 757-7776 07-001568B 05-29 Copyright 2007 Dri-Eaz Products, Inc.
