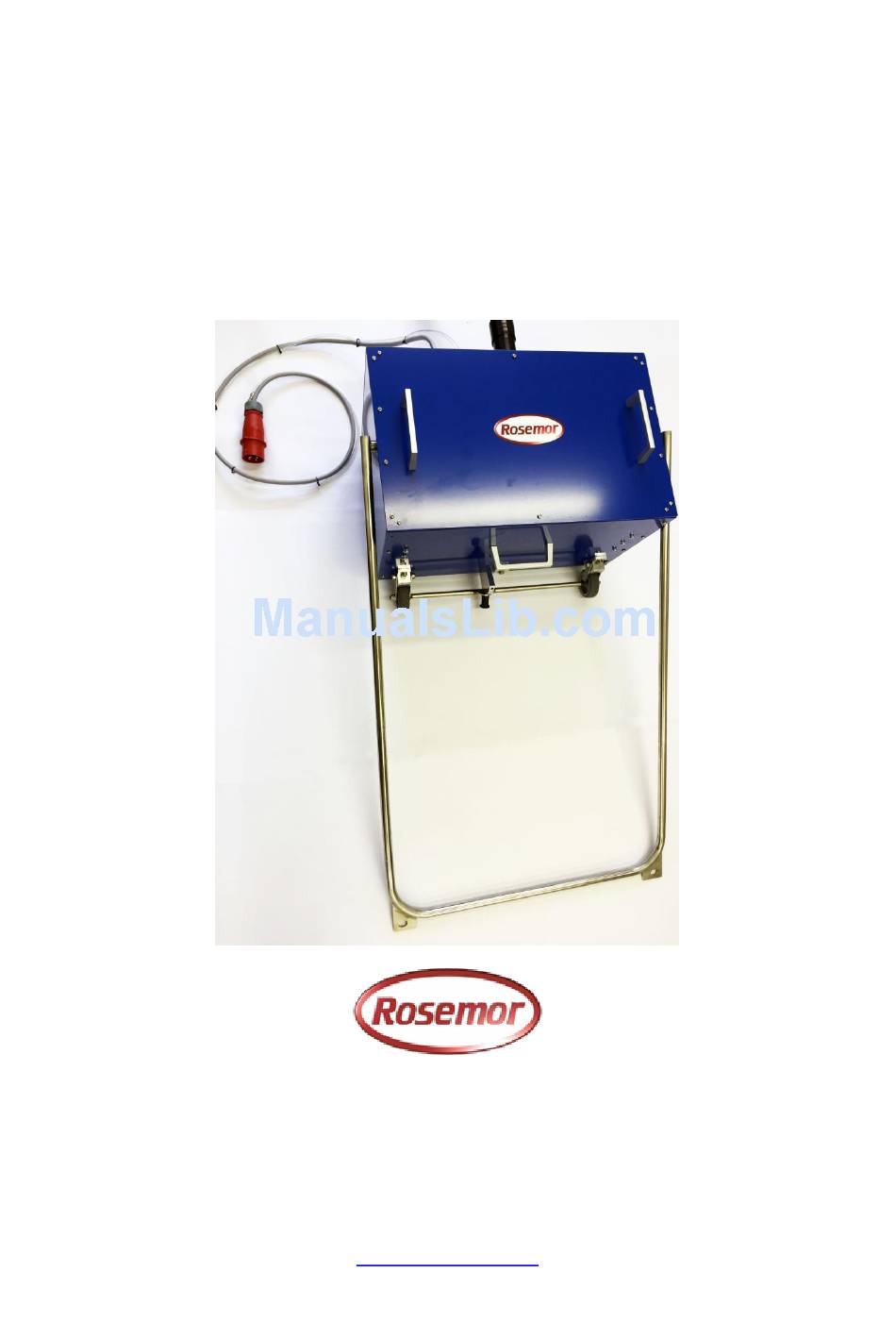

- Page 1 Operation and Maintenance Instructional Manual Automatic Travelator Deep Cleaner (ET15B Attachment) ROSEMOR INTERNATIONAL LIMITED UNIT F MOSES WINTER WAY WALLINGFORD OXFORDSHIRE OX10 9FE TELEPHONE (+44)01491 838011 FAX (+44)01491 832010 info@rosemor.com www.rosemor.com www.rosemor.net...
- Page 2 Safety and reliability are absolutely essential to guarantee a long and trouble-free service life of the ET15 and T10. In order to fulfil these requirements, the operator must obtain sufficient skill in handling the machine, its maintenance and care. It is therefore vital that the operator receives instruction and training from Rosemor International Ltd specialists before the cleaning machine is started for the first time.
-
Page 3: Table Of Contents
3.10 Ending the cleaning process ......................12 4 Maintenance / Care ....................13 5 Attaching the T10 module..................14 5.1 Lowering the Wheels on the T10……………………………………............ 15 5.2 Starting the Cleaning Cycle……………………………………………………………………………….. 15 7 Replacing and Maintaining the T10 Brushes ……………..………………………...15... -
Page 4: Safety Instructions
• The automatic travelator/travelator deep cleaning machine ET15 & T10 is not intended, nor suitable for cleaning hazardous or flammable dirt. • The machine is not fire-proof. -
Page 5: Modifications And Changes To The Machine
Automatic Escalator/Travelator Deep Cleaning Machine – T10 V1.0 1.6 Modifications and changes to the must be observed and only original spare parts machine used; otherwise safety of the machine could be impaired. If the power cable is damaged, it must... -
Page 6: Warning Signs And Stickers
T10 attachment. There stickers may never be are trailing hoses and cables between the removed! ET15B and T10, extra care must be taken when Damaged or illegible warning moving about this area. signs and stickers must be... -
Page 7: Description
Automatic Escalator/Travelator Deep Cleaning Machine – T10 V1.0 2 Description 2.1 Technical data Working width: 600 mm Continuous cleaning: Max. air volume of suction: 162 m³ / h Low pressure: 300 mbar A.C. current Type of current/ frequency: 50 Hz... -
Page 8: List Of Reference Numbers
Automatic Escalator/Travelator Deep Cleaning Machine – T10 V1.0 2.2 List of reference numbers Retractable Wheels Key switch Handle Touch operation of pump Service hours counter Automatic ON Cycle Selection Mains Cable Suction machine OFF/ON Chemical Hose LOWER machine Vacuum Hose Connection... -
Page 9: Operation
Automatic Escalator/Travelator Deep Cleaning Machine – T10 V1.0 3 Operation 3.1 Before start-up All local safety regulations and instructions must be observed for each start-up. The travelator must be inspected jointly with the party responsible for the travelator, who should also be informed of any discoloration or paint stains etc. -
Page 10: Filling Fresh Water
Automatic Escalator/Travelator Deep Cleaning Machine – T10 V1.0 3.2 Filling fresh water The operator must furthermore obtain instruction on manual control of the travelator or else ensure that some person familiar with the Unlock quick release coupling and workings of the travelator is available near by at separate from fresh-water tank ... -
Page 11: Subsequent Cleaning
Automatic Escalator/Travelator Deep Cleaning Machine – T10 V1.0 3.7 Subsequent cleaning All valid regulations regarding waste water must Manual cleaning equipment has been developed be strictly observed when by Rosemor International Ltd by means of the dirty water is being comprehensive practical tests. -
Page 12: Ending The Cleaning Process
Automatic Escalator/Travelator Deep Cleaning Machine – T10 V1.0 3.10 Ending the cleaning process Move machine as described in Section 3.11 with the travelator to the lowest completely extended step. The machine is then raised over the lifting spindle drive (18). - Page 13 Automatic Escalator/Travelator Deep Cleaning Machine – T10 V1.0 4.0 Troubleshooting and remedy Fault Cause Remedy Lifting spindles (18) are not in Press LOWER key (6) once Machine can not be started with AUTOSTART end position again Spray nozzle (37) is blocked...
-
Page 14: Attaching The T10 Module
Place the guide bars in the trolley brackets (Fig. 27) as shown in Fig. 28 With the power socket facing the ET15, place the T10 next to the guide bars (Fig. 29). Push the guide bars on to the protruding pins as shown in Fig. -
Page 15: Starting The Cleaning Cycle
