D - R
I N A I L
The IE-MiniMc ships from the
factory with DIN-clips, allowing
installation on
Depending on the installation,
you can mount IE-MiniMc paral-
lel or perpendicular to the DIN-
rail.

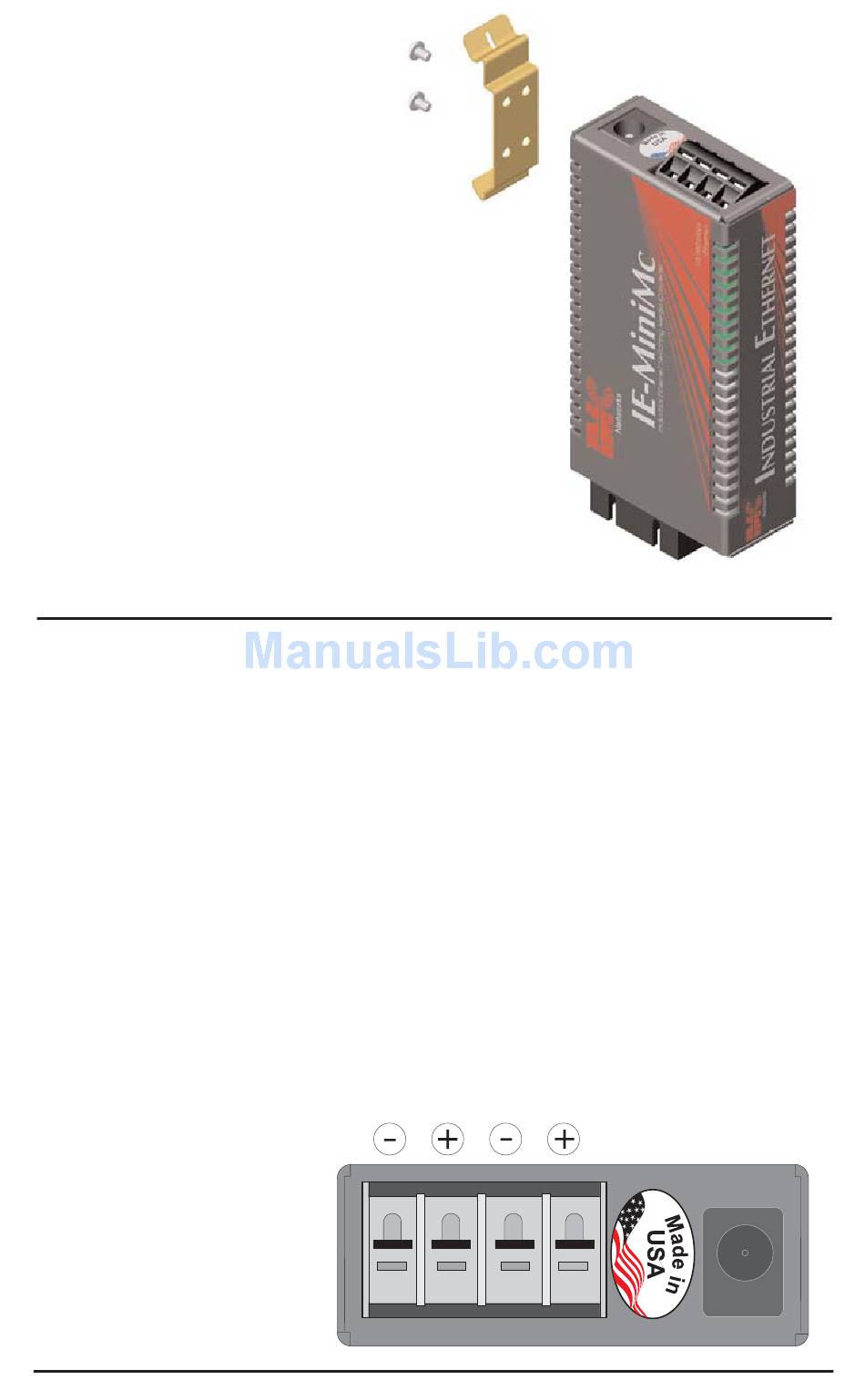

Use the supplied screws to
attach the DIN clips to the IE-
MiniMc, then snap the convert-
er to the DIN-Rail.
NOTE: The DIN clips are designed
for use on a DIN-35 rail.
To remove the converter from
the DIN-rail, use a flat-blade
screwdriver in the slot to gently
pry the converter from the rail.
Powering the IE-MiniMc
IE-MiniMc includes multiple powering options. You can use any of the fol-
lowing options, or more than one for redundancy:
• A country-specific, high-reliability AC power adapter (included)
• A USB-power cord (not included)
• The IEEE 802.3af Power over Ethernet standard; draws power from
power sourcing equipment
• The 4-terminal DC power block
A P
B O U T O W E R
The Power Over Ethernet technology allows the IE-MiniMc to be a
Powered Device (PD) and draw power when connected to Power Sourcing
Equipment (PSE) that is also compliant with the IEEE 802.3af standard. Power
Source Equipment distributes an electrical current across existing copper
data cabling.
D C P
O W E R
You can also power the
IE-MiniMc with the DC ter-
minal block . The following
illustration shows the posi-
tive and negative terminals
for IE-MiniMc.
power source, connect to
any one positive and any
M
O U N T I N G
a DIN-rail.
O
V E R
S W
U P P L Y
From a
E
T H E R N E T A N D
I
I R I N G N S T R U C T I O N S
