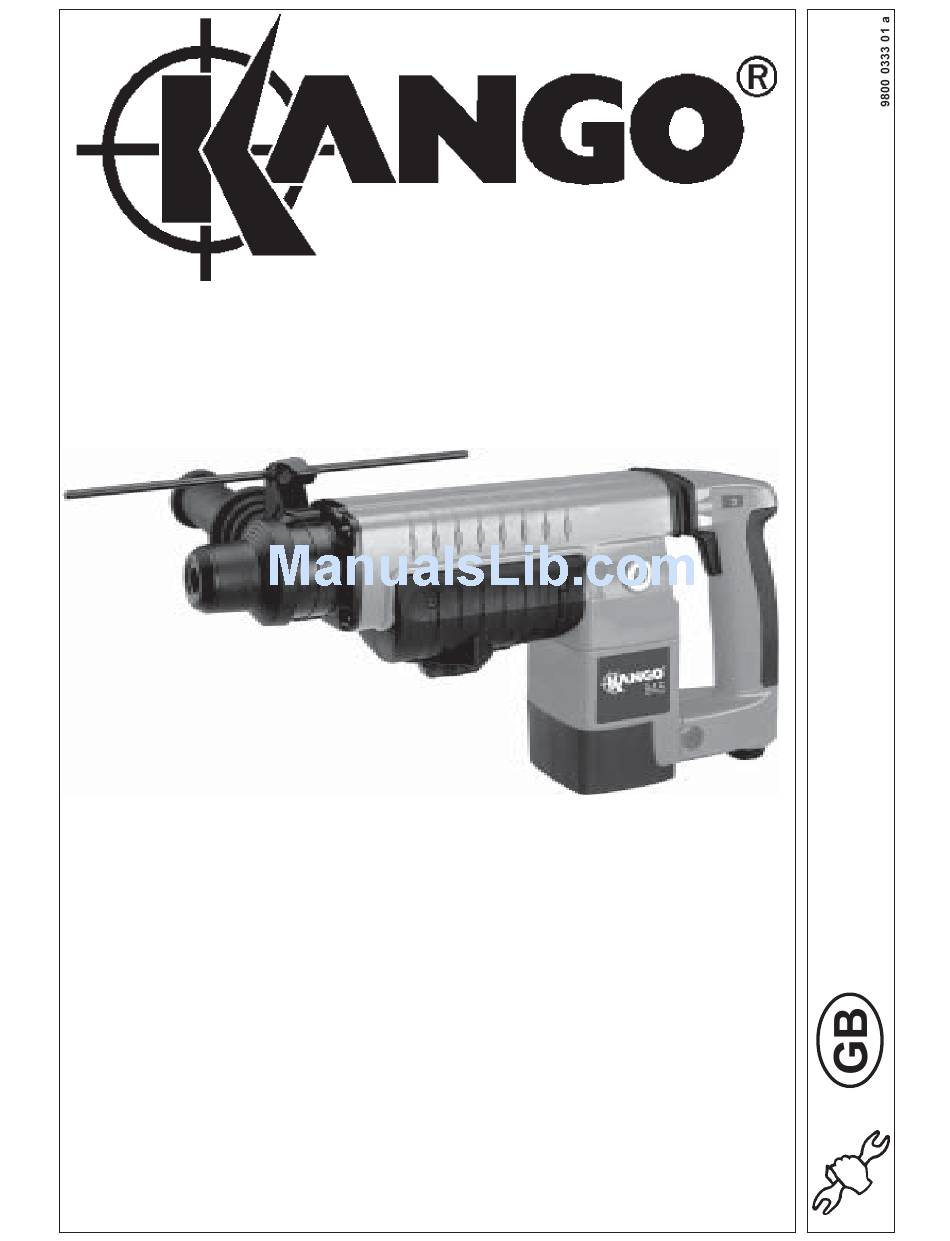

- Page 1 845M Date Code 0001L2001...
-
Page 2: Warranty And Liability Statement
Service and Repair Manual Model 845M General For best performance hammers should be serviced at regular intervals, any indication that the hammer is not performing as specified should be investigated to prevent any adverse damage occuring. ALL SEALS, GASKETS, GREASE OR OTHER PARTS DEEMED NECESSARY FOR SERVICING ARE IN THE SERVICE KIT. - Page 3 Service and Repair Manual Model 845M EXAMPLE: Component Parts (Small #) Are Included When Ordering The Assembly (Large #). %SEE PAGE 5 FOR ADDITIONAL LUBRICATION AND SERVICE NOTES FIG. PART NO. DESCRIPTION OF PART NO. REQ. 9170 4652 10 Speed Control Switch FIG.
- Page 4 Service and Repair Manual Model 845M NOTE: USE OIL ON ALL AREAS TO BE PRESS FIT Assemble Thrust Washers #107 and Belleville Spring Washers #78 into Intermediate Housing #46 as illustrated. FASTENER TORQUE SPECIFICATIONS (IN.LBS.) SEATING TORQUE FIG. NO. MINIMUM...
- Page 5 Service and Repair Manual Model 845M FIG. PART NO. DESCRIPTION OF PART NO. REQ. LUBRICATION NOTES: (TYPE "S2" GREASE, NO. 9170 4664 70) 9170 3256 50 1/8" Steel Ball (12) 9170 3258 60 Spacer Fill Piston #95 with grease and...
- Page 6 Service and Repair Manual Model 845M INSERT SMALL FIG. NOTES SCREW DRIVER HERE 54, 55, 56 TO REMOVE BELLY SHROUD #56 FROM TOOL, INSERT SMALL SCREW DRIVER INTO GROOVE BETWEEN BELLY AND SIDE SHROUDS #54 AND #55, ABOUT 1/3 OF THE WAY FROM THE MOTOR END, AS SHOWN.
- Page 7 Service and Repair Manual Model 845M As an aid to reassembly, take note of wire routing and position in wire guides and traps while dismantling tool. Tuck all wiring into left handle half prior to assembling right handle half. This will avoid pinched wires.
-
Page 8: Electrical Testing
Service and Repair Manual Model 845M ELECTRICAL TESTING Electrical test Before assemby all electrical parts MUST be checked for safety, and that they conform to specification. Testing the Armature (Flash Testing) Armature shaft to lamination pack 1500 Volts (min) Lamination pack to commutator... -
Page 9: Fault Finding
Service and Repair Manual Model 845M WARNING LETHAL VOLTAGES PRESENT!! IMPORTANT On completion of the assembly, the unit must be flash tested at 4000 volts. Flash Test With the breaker completely assembled and with the switch "ON", apply 2000 volts initially and increase rapidly to 4000 volts between the main casting and one of the pins of the plug on the power supply cord. - Page 10 Atlas Copco Berema AB, Sickla Industriväg 1A, S-105 23 Nacka Sweden Telephone: +46 (0) 8 743 9600 Fax: +46 (0) 8 743 9650 9800 0333 01 a 55-24-3875 Drwg. 3 04/02...
