Axiom Audio SW36XFA User Manual

KEY FEATURES
• Very High Output
• High-strength, water repellent, glass fiber reinforced cones • Tetracoil® dual voice coil for extended linear response and increased power handling
• Digitally controlled Class D amplifier module with SMPS
INTRODUCTION
The SW36XFA subwoofer is designed to deliver high quality low frequency reproduction
where very high output is a key requirement, together with well defined deep bass response
and fast transient response. Its compact size and light weight make it suitable for several
different uses, ranging from touring applications to fixed installations and high-level dance
clubs.
The SW36XFA is a very high quality powered subwoofer system featuring some of the most
advanced technologies for low frequency reproduction. Its unique and innovative design is
based on a configuration that can be defined as Manifolded Band Pass.
It uses manifolding of the front side of the cones to maximize the mutual coupling between
the two drivers. This innovative configuration does not use any large resonant cavity to load
the speaker, but very compact cavities in order to obtain advantages in terms of definition,
both at the lowest end and the upper bass.
The SW36XFA subwoofer system is equipped with two high power 18" (460mm) transducers
capable of very long excursion (up to 30mm peak-to-peak), and featuring a a large
displacement suspension system. These transducers use Tetracoil technology, where two
different, axially separated magnetic gaps and two inside-outside 100mm (4" ) diameter
voice coils are wound on the same former and suspended evenly in the two magnetic gaps.
This creates an equivalent voice coil diameter greater than 6", resulting in a larger heat
dissipation area for and increased power handling. Additional key advantages of the Tetracoil technology are also minimized distortion and a very
symmetric and flat inductance curve. Cones are made of very high-stiffness fiberglass reinforced paper, featuring also invisible water repellent
treatment. The SW36XFA is processed by 40bit, 96kHz floating point CORE DSP and powered by DA SERIES digital power modules. The DA module
employed for powering the SW36XFA delivers in an ultra-compact package a maximum power of 4000W and features PFC (Power Factor Correction),
a technology able to guarantee always the highest level of power regardless of any eventual fluctuations of the power supply.
TECHNICAL SPECIFICATION
Acoustical
System type
Transducer
Frequency response (±3 dB)
Maximum Peak SPL @ 1m
Electrical
Input Impedance
Input Sensitivity
Signal Processing
Direct access Controls
Remote Controls
Network protocol
Output Power
* Nominal consumption is measured with pink noise with a crest factor of 12
dB, this can be considered a standard music program.
revision 2015-09-30

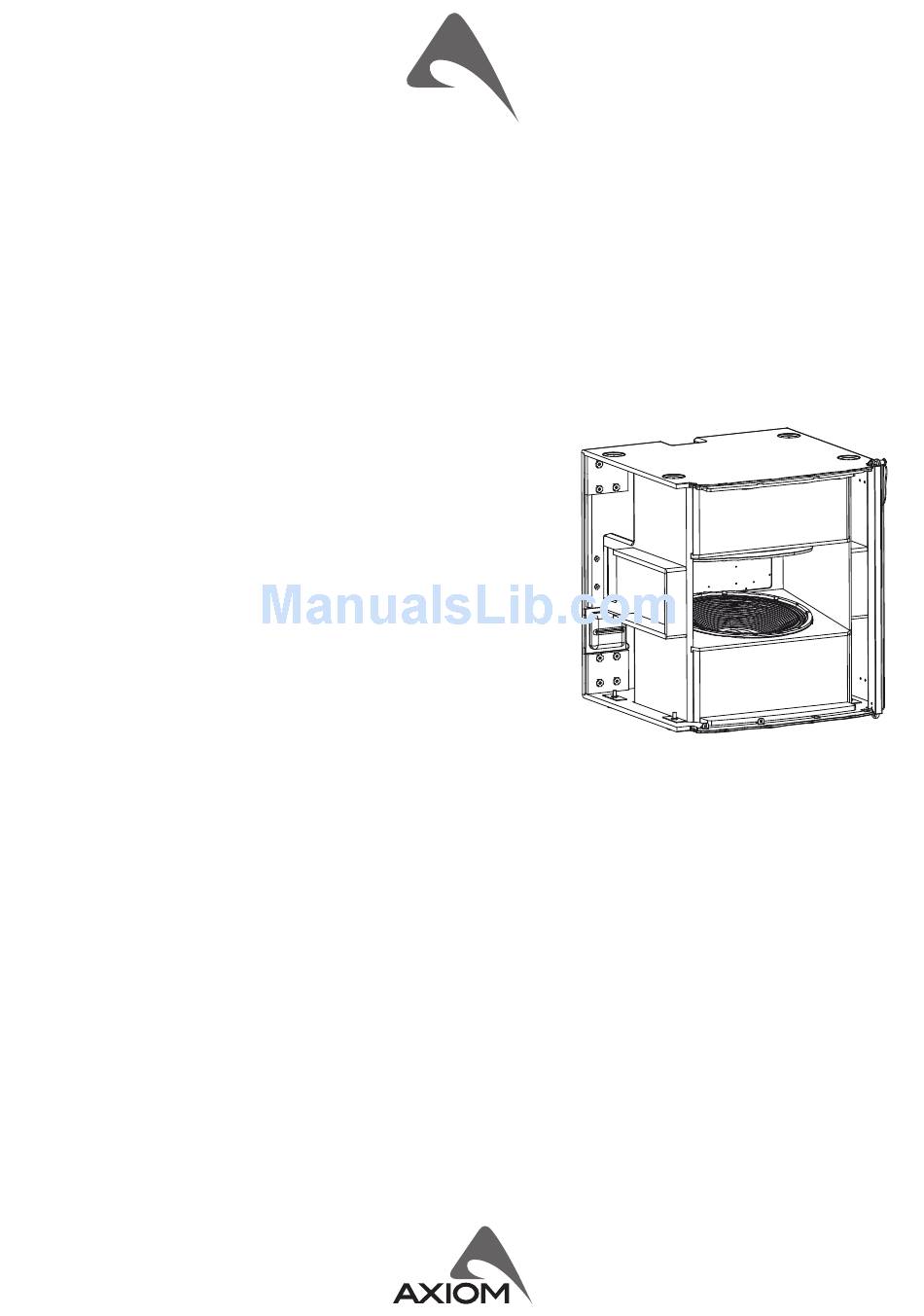

USER MANUAL

SW36XFA
active subwoofer
Manifolded Band Pass
Two 18" (460 mm), 100mm (4in) Tetracoil®
dual voice coil, equivalent to a single coil
diameter larger than 152mm (>6in).
Water repellent cone and epoxy coated
plates.
Ultra linear suspension behavior.
36 Hz – 100 Hz (Processed)
143 dB
20 kΩ balanced
+4 dBu / 1.25 V
CORE processing, 96kHz / 40bit floating
point SHARC DSP, 24 bit AD/DA converters
4 Presets: Standard, InfraSub, Cardioid,
User. Network Termination, GND Link
PRONET control software
CANBUS
2000 W + 2000 W
• Manifolded Band Pass configuration for very high output in compact size
• 96KHz / 40 bit floating point CORE processing with PRONET remote control
Amplifier Type
Mains Voltage Range (Vac)
Mains Connector
Consumption*
IN / OUT Connectors
IN / OUT Network Connectors ETHERCON® (NE8FAV)
Mechanical
Width
Height
Depth
Depth Including Wheels
Construction
Paint
Wheels
Transport
Net Weight
Class D with Variable Switching Frequency
and SMPS and PFC and PFC
100-240 V~ 50/60 Hz
PowerCon TRUE1 - NAC3PX (In/Out)
600 W (nominal) 1800 W (max)
Neutrik XLR-M / XLR-F
746 mm (29.4")
795 mm (31.3")
710 mm (27.9")
838 mm (32.9")
15 mm, reinforced Phenolic Birch
High resistance, water based paint
4 heavy-load 100 mm ø (optional)
6 handles
91.2 Kg (201.1 lbs.) without wheels
