CONGRATULATIONS on your choice of a Remote Alarm System by Crimestopper Security Products Inc. This
booklet contains the information necessary for installing, using, and maintaining your alarm system. If any
questions arise, contact your installation dealer or Crimestopper Security Products Inc. at the Tech Support
number below.
*IMPORTANT INFORMATION: Primary and Optional Features:
-PRIMARY: These are features that must be connected in order for the system to operate properly; i.e. the
Siren, L.E.D., +12V Power, Ground, Door pin, Flashing lights Override/Program/Valet Button etc.
-OPTIONAL: These are features to be connected if desired or agreed upon by the installing dealer. These
features may also require additional parts and/or labor fees. Consult with your installer beforehand; i.e. Door
Locks, Starter disable, Hood/Trunk trigger, and Auxiliary Remote Outputs etc.
This installation book is designed for the installer or individual with an existing understanding of automotive
electrical systems, along with the ability to test and connect wires for proper operation. To ease installation, we
suggest that you READ THIS MANUAL before beginning your installation. This book is provided as a GENERAL
GUIDLINE and the information contained herein may differ from your vehicle.
TECH SUPPORT
Mon-Fri 8:00 AM-4:30 PM Pacific Time
(800) 998-6880
REV.
10-2012
REMOTE CONTROL ALARM SYSTEM
OPERATING INSTRUCTIONS
INTRODUCTION
This device complies with FCC Rules part 15. Operation is subject to
the following two conditions: 1) This device may not cause interference,
and (2) this device must accept any interference that may be received,
including interference that may cause undesired operation.
manufacturer is not responsible for any radio or TV interference caused
by unauthorized modification to this equipment. Such modification
could void the user's authority to operate the equipment.
FS-22
The
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Fortress Automotive Security FS-22
Summary of Contents for Fortress Automotive Security FS-22
-
Page 1: Operating Instructions
FS-22 REMOTE CONTROL ALARM SYSTEM OPERATING INSTRUCTIONS INTRODUCTION CONGRATULATIONS on your choice of a Remote Alarm System by Crimestopper Security Products Inc. This booklet contains the information necessary for installing, using, and maintaining your alarm system. If any questions arise, contact your installation dealer or Crimestopper Security Products Inc. at the Tech Support number below. -
Page 2: Table Of Contents
TABLE OF CONTENTS Operation Cautions & Warnings……..…………..…………………………………………………………….………2 The Remote Control…..……………………………...……………………..……………………….…….….…..……..3 Quick Chart Button Functions…..……………..……………….…….………………….…….…………...……….…4 Operating Instructions………………………..……………….…….………………….…….…………...……….…5-8 Alarm Trigger Diagnostics.………………..……………….…….………………….…….…………...………………9 Car Jack Protection..…………..…………..……………………………………………...…………………..……..…10 Transmitter Programming.………………………………….…………………………….……………...…………..11 2 Vehicle Programming…………..…………..………………….…………………………….…………….……..…..12 Battery Replacement…….……………………………………..……………………………..……………..…….…13 Data Port Interface…………………………………………………………………………………………………..…14 OPERATION CAUTIONS & WARNINGS CRIMESTOPPER SECURITY PRODUCTS, INC. and its VENDORS shall not be liable for any accident resulting from the use of this equipment. -
Page 3: The Remote Control

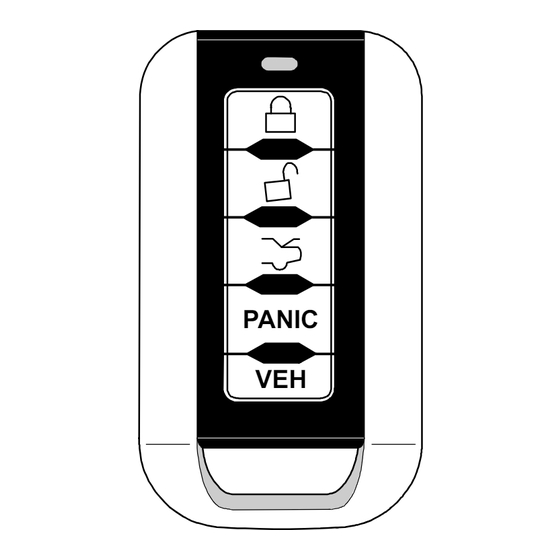

THE REMOTE CONTROL VEH 1 = Green LED VEH 2 = Red LED Remote AUX Outputs Lock / Arm (Thru Data) Unlock / Disarm AUX 1 = Trunk + Lock AUX 2 = Trunk + Unlock Trunk Release AUX 3 = Trunk + Panic Panic Mode AUX 4 = Lock + Panic PANIC... -
Page 4: Quick Chart Button Functions
QUICK CHART BUTTON FUNCTIONS Button Button Button Options Button Button Functions Button Options Functions Selects between Press and Hold for Lock Doors & Arm Press Twice for Horn Vehicle #1 and 2 seconds. LED System Honk Confirmation Vehicle #2 Changes Color Press Twice for Press and Hold for Unlock Doors &... - Page 5 OPERATION INSTRUCTIONS ARMING To arm the alarm and lock the doors, press the Lock button on the transmitter. You will hear a single siren chirp and the lights will flash once. The system will arm, the doors will lock and the starter will be disabled if these optional features are installed.
-
Page 6: Operating Instructions
OPERATING INSTRUCTIONS REMOTE PANIC PROTECTION To sound the alarm upon command (panic), press and hold the Panic Button for at least 2 seconds until the siren sounds. Press the Unlock Button to reset panic mode. IGNITION-CONTROLLED DOOR LOCKS: (Programmable Option # 13) The doors will automatically lock when the ignition is turned on and will unlock when the ignition is turned off. - Page 7 OPERATING INSTRUCTIONS EMERGENCY OVERRIDE / DISARM If you have lost the transmitter or it stops working for any reason and the Alarm is armed, you will have to open the door with the key, which will activate the alarm. Turn the ignition on and press the override/program button for about 5 seconds (until siren stops).
- Page 8 OPERATING INSTRUCTIONS ARM / DISARM using OEM REMOTE (Requires databus module) This option allows the OEM factory remote to Arm and Disarm the alarm system when you lock and unlock the doors. This feature only works on newer CANBUS vehicle using a Data Module that supports this feature. Default = Off.
-
Page 9: Alarm Trigger Diagnostics
ALARM TRIGGER DIAGNOSTICS PRIOR INTRUSION ALERT If the system was triggered in your absence, the dash LED will be flashing rapidly. When the system is disarmed you will hear 3 chirps and 3 light flashes. Carefully inspect your vehicle to see if there is any damage or a theft has occurred. -
Page 10: Carjack Protection
CARJACK PROTECTION ACTIVE CARJACK: Option 17-1 Active Carjack is armed only thru the remote. While the Ignition is on, press and hold the Panic button for 3 seconds. The parking lights will flash 2 times and the LED will begin to flash rapidly to confirm the beginning of a Carjack countdown. -
Page 11: Transmitter Programming
TRANSMITTER PROGRAMMING NOTE: All transmitters must be learned at the time of programming. This system can learn up to 4 remotes. 1. Turn key to the ON position and press program button 4 times. 2. After a short delay, the unit will flash the parking lights 4 times, Siren 4 times, Horn 4 times and status LED will be on solid. -
Page 12: Vehicle Programming
2 VEHICLE OPERATION / PROGRAMMING 2 VEHICLE CONTROL Your remotes have the ability to control a second vehicle with a Crimestopper system installed. All Remotes for that vehicle must be learned at the time of programming. When you program your remote at the second vehicle, that vehicle’s original remote must also be programmed. -
Page 13: Battery Replacement
BATTERY REPLACEMENT To Replace the Battery: The Remote Control uses three CR-2016 Lithium 3 Volt Batteries. Simply remove the four Phillips screws holding the back cover in place. Slide old batteries out and remove plastic cover. Insert the new batteries into plastic cover and slide into place with the (+) end facing up. -
Page 14: Data Port Interface
2-Way DATA PORT Some vehicles require a Databus Module to Bypass the factory Immobilizer and operate the keyless entry Databus modules are used to communicate with the vehicles computer at the OBD2 Data connector or Canbus wires. This reduces installation error. Crimestopper Systems with DP Series have a direct Data Port Plug-In for the Databus bypass module. - Page 16 A Division of www.crimestopper.com Phone (800) 998-6880 ONLINE TECHNICAL SUPPORT FAX (805) 581-9500 www.crimestopper.com © 2012 Crimestopper Security Products...
