Connecting the Torpedo VM-202

The VM-202 offers a solution for silent and quality sound pick-up in many situations. The following illustrations
show the most common applications the VM-202 has been created for.

1 Routing the Inputs/Outputs

The VM-202 is a dual channel processor accepting mono or stereo input signals that can be treated as

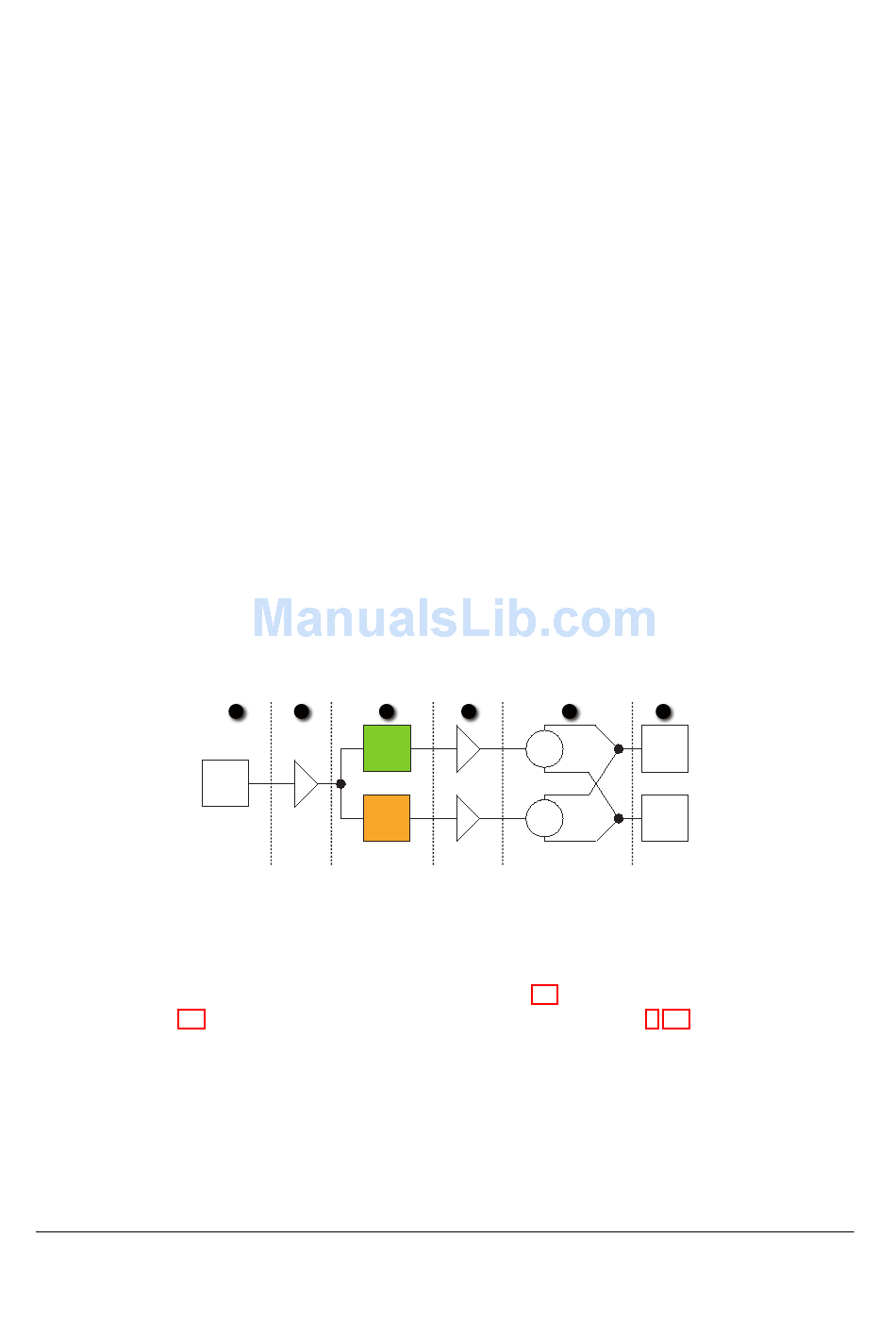

independent or linked. The following illustration presents the various elements and how there are config-
ured.
• Inputs are illustrated by 1 ou 2
• The simulation channels are illustrated by A ou B
• Outputs are illustrated by L ou R
The different input/output modes are described in the table 3.1 and the 9 different routing modes are
illustrated in table 3.2. To modify the routing configuration, please refer to part 4. 4.2. Please note that the
default routing mode is MONO to DUAL MONO.
Two Notes Audio Engineering
1 2 3
A
1
B
1 Input 3
2 Gain 4
Torpedo VM-202
4
Simulation Channel 5 Pan
Volume 6 Output
5 6
L
R
