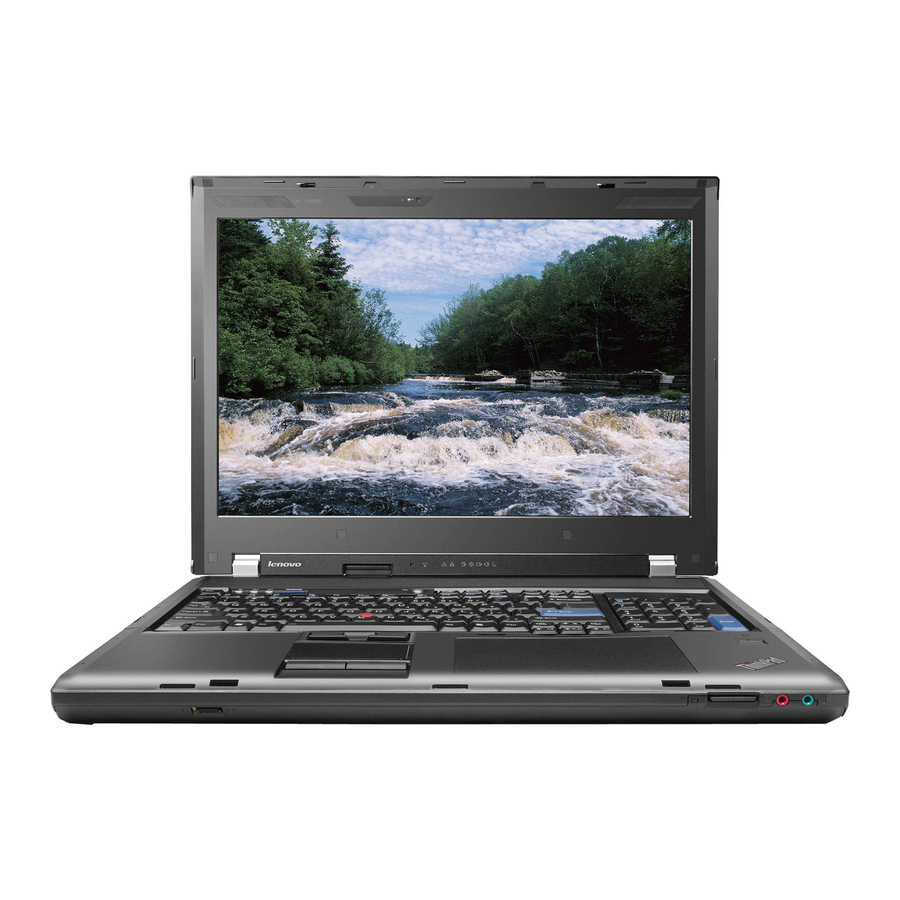

Lenovo ThinkPad W700 Hardware Maintenance Manual

Hide thumbs Also See for ThinkPad W700:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Troubleshooting Manual, Manual
ThinkPad W700, W700ds, W701, and W701ds
Hardware Maintenance Manual
Downloaded from LpManual.com Manuals

Advertisement

Table of Contents
loading

Related Manuals for Lenovo ThinkPad W700

Summary of Contents for Lenovo ThinkPad W700

  • Page 1 ThinkPad W700, W700ds, W701, and W701ds Hardware Maintenance Manual Downloaded from LpManual.com Manuals...
  • Page 2 Appendix A “Notices” on page 209. Ninth Edition (March 2013) © Copyright Lenovo 2008, 2013. LIMITED AND RESTRICTED RIGHTS NOTICE: If data or services is delivered pursuant a General Services Administration “GSA” contract, use, reproduction, or disclosure is subject to restrictions set forth in Contract No.

  • Page 3: Table Of Contents

    ....63 Lenovo ThinkVantage Toolbox (Lenovo System Screw notices ....
  • Page 4 Chapter 10. Locations ..1120 DIMM slot cover and DIMM under keyboard Front view (for ThinkPad W700 and W701) ..for W701 and W701ds ...

  • Page 5: About This Manual

    About this manual ® This manual contains service and reference information for the following ThinkPad products. ThinkPad W700 and W700ds MT 2752, 2753, 2754, 2757, 2758, 2762, and 2763 ThinkPad W701 and W701ds MT 2500, 2541, 2542, 2543, 2544, 4323, and 4326 Use this manual along with the advanced diagnostic tests to troubleshoot problems.
  • Page 6 ThinkPad W700, W700ds, W701, and W701ds Hardware Maintenance Manual Downloaded from LpManual.com Manuals...

  • Page 7: Chapter 1. Safety Information

    • Reinstall all covers correctly before returning the machine to the customer. • Fan louvers on the machine help to prevent overheating of internal components. Do not obstruct fan louvers or cover them with labels or stickers. © Copyright Lenovo 2008, 2013 Downloaded from LpManual.com Manuals...

  • Page 8: Electrical Safety

    – Power supply units – Pumps – Blowers and fans – Motor generators – Similar units to listed above This practice ensures correct grounding of the units. ThinkPad W700, W700ds, W701, and W701ds Hardware Maintenance Manual Downloaded from LpManual.com Manuals...

  • Page 9: Safety Inspection Guide

    • If an electrical accident occurs: – Use caution; do not become a victim yourself. – Switch off power. – Send another person to get medical aid. Safety inspection guide The purpose of this inspection guide is to assist you in identifying potentially unsafe conditions. As each machine was designed and built, required safety items were installed to protect users and service technicians from injury.

  • Page 10: Grounding Requirements

    The safety notices in this section are provided in the following languages: • English • Arabic • Brazilian Portuguese • French • German • Hebrew • Japanese • Korean • Spanish • Traditional Chinese DANGER ThinkPad W700, W700ds, W701, and W701ds Hardware Maintenance Manual Downloaded from LpManual.com Manuals...
  • Page 11 DANGER DANGER DANGER DANGER DANGER DANGER Chapter 1 Safety information Downloaded from LpManual.com Manuals...
  • Page 12 DANGER ThinkPad W700, W700ds, W701, and W701ds Hardware Maintenance Manual Downloaded from LpManual.com Manuals...
  • Page 13 PERIGO PERIGO PERIGO Chapter 1 Safety information Downloaded from LpManual.com Manuals...
  • Page 14 PERIGO PERIGO PERIGO PERIGO PERIGO ThinkPad W700, W700ds, W701, and W701ds Hardware Maintenance Manual Downloaded from LpManual.com Manuals...
  • Page 15 DANGER DANGER DANGER DANGER DANGER Chapter 1 Safety information Downloaded from LpManual.com Manuals...
  • Page 16 DANGER DANGER DANGER VORSICHT VORSICHT ThinkPad W700, W700ds, W701, and W701ds Hardware Maintenance Manual Downloaded from LpManual.com Manuals...
  • Page 17 VORSICHT VORSICHT VORSICHT VORSICHT VORSICHT VORSICHT Chapter 1 Safety information Downloaded from LpManual.com Manuals...
  • Page 18 ThinkPad W700, W700ds, W701, and W701ds Hardware Maintenance Manual Downloaded from LpManual.com Manuals...
  • Page 19 Chapter 1 Safety information Downloaded from LpManual.com Manuals...
  • Page 20 ThinkPad W700, W700ds, W701, and W701ds Hardware Maintenance Manual Downloaded from LpManual.com Manuals...
  • Page 21 Chapter 1 Safety information Downloaded from LpManual.com Manuals...
  • Page 22 ThinkPad W700, W700ds, W701, and W701ds Hardware Maintenance Manual Downloaded from LpManual.com Manuals...

  • Page 23: Laser Compliance Statement (Multilingual Translations)

    Laser compliance statement (multilingual translations) The laser compliance statements in this section are provided in the following languages: • English • Arabic • Brazilian Portuguese Chapter 1 Safety information Downloaded from LpManual.com Manuals...
  • Page 24 • French • German • Hebrew • Japanese • Korean • Spanish • Traditional Chinese ThinkPad W700, W700ds, W701, and W701ds Hardware Maintenance Manual Downloaded from LpManual.com Manuals...
  • Page 25 Chapter 1 Safety information Downloaded from LpManual.com Manuals...
  • Page 26 ThinkPad W700, W700ds, W701, and W701ds Hardware Maintenance Manual Downloaded from LpManual.com Manuals...
  • Page 27 Chapter 1 Safety information Downloaded from LpManual.com Manuals...
  • Page 28 ThinkPad W700, W700ds, W701, and W701ds Hardware Maintenance Manual Downloaded from LpManual.com Manuals...
  • Page 29 Chapter 1 Safety information Downloaded from LpManual.com Manuals...
  • Page 30 ThinkPad W700, W700ds, W701, and W701ds Hardware Maintenance Manual Downloaded from LpManual.com Manuals...

  • Page 31: Chapter 2. Important Service Information

    – “FRU identification for CTO, CMV, and GAV products” on page 27 Important: Advise customers to contact the Lenovo Customer Support Center if they need any assistance in obtaining or installing any software fixes, drivers, and UEFI BIOS downloads. Telephone numbers for Lenovo Support are available at:http://www.lenovo.com/support/phone...

  • Page 32: Strategy For Replacing A Hard Disk Drive

    MT and 3-digit model, where model = “CTO” (Example: 1829-CTO). Custom Model Variant (CMV) This is a unique configuration that has been negotiated between IBM or Lenovo and the customer. A unique 4-digit MT and 3-digit model is provided to the customer to place orders (Example: 1829-W15). A CMV is a special bid offering.

  • Page 33: Fru Identification For Cto, Cmv, And Gav Products

    = a “fixed part number”, not “CTO” (Example: 1829-F1U). • PEW can be accessed at the following Web site: http://www.lenovo.com/support/site.wss/document.do?lndocid=LOOK-WARNTY Select Warranty lookup. Input the MT and the Serial number and the list of key commodities will be returned in the PEW record under COMPONENT INFORMATION.
  • Page 34 ThinkPad W700, W700ds, W701, and W701ds Hardware Maintenance Manual Downloaded from LpManual.com Manuals...

  • Page 35: Chapter 3. General Checkout

    “What to do first” on page 29 • “Checkout guide” on page 30 – “Diagnostics using PC-Doctor for Dos” on page 30 – “Lenovo ThinkVantage Toolbox (Lenovo System Toolbox)” on page 33 – “PC-Doctor for Windows” on page 33 – “FRU tests” on page 33 •...

  • Page 36: Checkout Guide

    PC-Doctor. Note: PC-Doctor for DOS is available at the following Web site: http://www.lenovo.com/support To create the PC-Doctor diagnostic CD, follow the instructions on the Web site. For some possible configurations of the computer, PC-Doctor might not run correctly. To avoid this problem, you need to initialize the computer setup by use of the BIOS Setup Utility before you run PC-Doctor.

  • Page 37: Testing The Computer

    Configuration utility for DOS. The utility is available on the following Web site: http://www.lenovo.com/support PC-Doctor cannot be used to test a device that is in the docking station, even if the computer supports the docking station.
  • Page 38 • Tech Support Form • Battery Rundown • View Test Log • Print Log • Save Log • Full Erase Hard Drive • Quick Erase Hard Drive ThinkPad W700, W700ds, W701, and W701ds Hardware Maintenance Manual Downloaded from LpManual.com Manuals...

  • Page 39: Lenovo Thinkvantage Toolbox (Lenovo System Toolbox)

    You can also run this program as either of the following: • Click Start ➙ All Programs ➙ Lenovo ThinkVantage Tools ➙ System Health and Diagnostics. • Click Start ➙ Control Panel ➙ System and Security ➙ Lenovo's System Health and Diagnostics. Windows Vista and Windows XP: Click Start ➙...
  • Page 40 3. If the problem does not recur, return the DIMM to its place, remove the other one, and run the test again. ThinkPad W700, W700ds, W701, and W701ds Hardware Maintenance Manual Downloaded from LpManual.com Manuals...

  • Page 41: Power System Checkout

    You are here because the computer fails only when the ac adapter is used. • If the power problem occurs only when the ThinkPad W700 Mini Dock is used, replace the Mini Dock. • If the power-on indicator does not turn on, check the power cord of the ac adapter for correct continuity and installation.

  • Page 42: Checking Operational Charging

    The resistance must be 4 to 30 K Ω. If the resistance is not correct, replace the battery pack. If the resistance is correct, replace the system board. ThinkPad W700, W700ds, W701, and W701ds Hardware Maintenance Manual Downloaded from LpManual.com Manuals...

  • Page 43: Checking The Backup Battery

    Checking the backup battery Do the following: 1. Power off the computer, and unplug the ac adapter from it. 2. Turn the computer upside down. 3. Remove the battery pack (see “1010 Battery pack” on page 68). 4. Remove the backup battery (see “1100 Backup battery” on page 82). 5.
  • Page 44 ThinkPad W700, W700ds, W701, and W701ds Hardware Maintenance Manual Downloaded from LpManual.com Manuals...

  • Page 45: Chapter 4. Related Service Information

    “Symptom-to-FRU index” on page 44 Service Web site: When the latest maintenance diskette and the system program service diskette become available, they will be posted on http://www.lenovo.com/spm Restoring the factory contents by using Product Recovery discs When the hard disk drive (HDD) or solid state drive (SSD) is replaced because of a failure, no Product Recovery program is on the new drive.
  • Page 46 11. After you have completed the Windows setup, you might want to restore the original startup sequence. Start the Setup Utility program and then press F9 to restore the default settings. Press F10 to save and exit the Setup Utility. ThinkPad W700, W700ds, W701, and W701ds Hardware Maintenance Manual Downloaded from LpManual.com Manuals...

  • Page 47: Passwords

    Attention: If the user HDP has been forgotten, check whether a master HDP has been set. If it has, it can be used for access to the hard disk drive. If no master HDP is available, neither Lenovo nor Lenovo authorized service technicians provide any services to reset either the user or the master HDP, or to recover data from the hard disk drive.

  • Page 48: How To Remove The Hard-Disk Password

    Attention: If User only mode is selected and the user HDP has been forgotten and cannot be made available to the service technician, neither Lenovo nor Lenovo authorized service technicians provide any services to reset the user HDPs or to recover data from the hard disk drive. The hard disk drive can be replaced for a scheduled fee.

  • Page 49: Screen Blank Mode

    Screen blank mode If the time set on the “Turn off monitor” timer in the operating system expires, the LCD backlight turns off. To put the computer into screen blank mode, do as follows: 1. Press Fn+F3. A panel for selecting a power plan (in Windows XP, power scheme) appears. 2.

  • Page 50: Symptom-To-Fru Index

    If no numeric code is displayed, check the narrative descriptions of symptoms. If the symptom is not described there, go to “Intermittent problems” on page 51. ThinkPad W700, W700ds, W701, and W701ds Hardware Maintenance Manual Downloaded from LpManual.com Manuals...

  • Page 51: Numeric Error Codes

    Note: For a device not supported by diagnostic codes in the ThinkPad Notebooks, see the manual for that device. Numeric error codes Table 2. Numeric error codes Symptom or error FRU or action, in sequence 0175 System board. Bad CRC1, stop POST task—The EEPROM checksum is not correct.
  • Page 52 2. Replace the backup battery and run BIOS Setup Utility to reset the time and date. 0252 Reset the password by running BIOS Setup Utility. Password checksum bad—The password is cleared. ThinkPad W700, W700ds, W701, and W701ds Hardware Maintenance Manual Downloaded from LpManual.com Manuals...
  • Page 53 Table 2. Numeric error codes (continued) FRU or action, in sequence Symptom or error 0260 1. Charge the backup battery for more than 8 hours by System timer error. connecting the ac adapter. 2. Replace the backup battery and run BIOS Setup Utility to reset the time and date.
  • Page 54 Inform the following information to the customer: If in the Warning: Your internal hard disk drive (HDD) may not primary bay the customer is using a non-IBM or non-Lenovo function correctly on this system. Ensure that your hard disk drive (HDD), or an old generation IBM HDD which...

  • Page 55: Error Messages

    Table 2. Numeric error codes (continued) FRU or action, in sequence Symptom or error 2110 1. Reseat the hard disk drive. Read error on HDD0 (Main hard disk drive) 2. Main hard disk drive. 3. System board. 2112 1. Reseat the hard disk drive. Read error on HDD1 (Ultrabay hard disk drive) 2.

  • Page 56: Beep Symptoms

    If the LCD you are servicing has two or less visible defective pixels, it should not be considered faulty. However, if the LCD has three or more visible defective pixels, it will be deemed as defective by Lenovo and it should be replaced.

  • Page 57: Intermittent Problems

    • This policy applies to all ThinkPad Notebooks purchased on 1 January, 2008 or later. • Lenovo will not provide replacement if the LCD is within specification as we cannot guarantee that any replacement LCD will have zero pixel defects.
  • Page 58 6. If the problem does not recur, reconnect the removed devices one at a time until you find the failing FRU. 7. If the problem remains, replace the following FRUs one at a time (do not replace a nondefective FRU): a. System board b. LCD assembly ThinkPad W700, W700ds, W701, and W701ds Hardware Maintenance Manual Downloaded from LpManual.com Manuals...

  • Page 59: Chapter 5. Installing And Configuring Raid

    Before you install and configure RAID, make sure of the current RAID setting on the computer you are servicing. ThinkPad W700, W700ds, W701, and W701ds supports either RAID Level 0 (RAID 0) or RAID Level 1 (RAID 1). Confirm the RAID setting information provided from the customer at first, then proceed with the installation.

  • Page 60: Deleting Raid Volumes

    RAID volume, and then reinstall the operating system. All data on the hard disks will be erased during this process. For more information, see “Creating RAID volumes” on page 53. ThinkPad W700, W700ds, W701, and W701ds Hardware Maintenance Manual Downloaded from LpManual.com Manuals...

  • Page 61: Chapter 6. Status Indicators

    Chapter 6. Status indicators This chapter presents the system status indicators that show the status of the computer. © Copyright Lenovo 2008, 2013 Downloaded from LpManual.com Manuals...
  • Page 62 The battery is charged between 5% to 20% of the capacity, and orange being charged. (slow): Blinking The battery is charged between 0% to 5% of the capacity. orange (rapid): ThinkPad W700, W700ds, W701, and W701ds Hardware Maintenance Manual Downloaded from LpManual.com Manuals...
  • Page 63 Table 7. Status indicators (continued) Indicator Meaning AC power status Green: The computer is connected to the ac power supply. Sleep (standby) Green: The computer is in sleep (standby) mode. status Blinking The computer is entering sleep (standby) mode or hibernation mode, green: or is resuming normal operation.
  • Page 64 ThinkPad W700, W700ds, W701, and W701ds Hardware Maintenance Manual Downloaded from LpManual.com Manuals...

  • Page 65: Chapter 7. Fn Key Combinations

    • Computer display and external monitor (same image) • Computer display and external monitor (extended desktop) • External monitor only Note: To switch between the computer display and an external monitor, the Win+P key combination is also available. © Copyright Lenovo 2008, 2013 Downloaded from LpManual.com Manuals...
  • Page 66 • Eject ThinkPad PC from Mini Dock: This button is displayed only if the ThinkPad computer has been attached to a ThinkPad W700 Mini Dock. If you click this button, the computer is detached from the ThinkPad W700 Mini Dock.
  • Page 67 Table 8. Fn key combinations (continued) Key combination Description Fn+End The computer display becomes dimmer. The purpose of this method is to change the brightness level temporarily. On Windows Vista, the default brightness level is loaded after sleep (standby), hibernation, reboot, or detaching or attaching an ac adapter.
  • Page 68 ThinkPad W700, W700ds, W701, and W701ds Hardware Maintenance Manual Downloaded from LpManual.com Manuals...

  • Page 69: Chapter 8. Fru Replacement Notices

    Never use a screw that you removed. Use a new one. Make sure that all of the screws are tightened firmly. • Ensure torque screw drivers are calibrated correctly following country specifications. © Copyright Lenovo 2008, 2013 Downloaded from LpManual.com Manuals...

  • Page 70: Retaining Serial Numbers

    If you replace the system board, you must restore the serial number of the system unit to its original value. Before replacing the system board, save the original serial number by doing the following: 1. Install the LENOVO ThinkPad Hardware Maintenance Diskette Version 1.76 or later, and restart the computer.

  • Page 71: Reading Or Writing The Eca Information

    When you replace the system board, you must set the UUID on the new system board as follows: 1. Install the LENOVO ThinkPad Hardware Maintenance Diskette Version 1.76 or later, and restart the computer. 2. From the main menu, select 4. Assign UUID. A new UUID is created and written. If a valid UUID already exists, it is not overwritten.
  • Page 72 ThinkPad W700, W700ds, W701, and W701ds Hardware Maintenance Manual Downloaded from LpManual.com Manuals...

  • Page 73: Chapter 9. Removing And Replacing A Fru

    • The second screen is designed to be opened at an angle of 0 ( ) to 30 ( ) degrees to the main display. Do not open it to an angle of more than 30 degrees. To do so might damage it. © Copyright Lenovo 2008, 2013 Downloaded from LpManual.com Manuals...

  • Page 74: 1010 Battery Pack

    Important notice for replacing a battery pack: ThinkVantage Toolbox (in Windows 7) and Lenovo System Toolbox (in Windows Vista and Windows XP) have an automatic battery diagnostic that determines if the battery pack is defective. A battery pack FRU should not be replaced unless this diagnostic shows that the battery is defective.

  • Page 75: 1020 Digitizer Pen

    If ThinkVantage Toolbox or Lenovo System Toolbox is not installed in the computer, the customer should download this program before a non-physically damaged battery pack is replaced. Note that a physically damaged battery pack is non-warranty replacement. DANGER Use only the battery specified in the parts list for your computer. Any other battery could ignite or explode.

  • Page 76: 1030 Serial Ultrabay Enhanced Device

    1040 Hard disk drive (HDD) cover, HDD and HDD rubber rails or solid state drive (SSD) and storage converter For access, remove this FRU: • “1010 Battery pack” on page 68 Important: ThinkPad W700, W700ds, W701, and W701ds Hardware Maintenance Manual Downloaded from LpManual.com Manuals...
  • Page 77 • Do not drop the hard disk drive or apply any physical shock to it. The hard disk drive is sensitive to physical shock. Improper handling can cause damage and permanent loss of data. • Before removing the drive, have the user make a backup copy of all the information on it if possible. •...

  • Page 78: 1050 Dimm Slot Cover And Dimm

    When installing: The rubber rails on the hard disk drive must be attached to the replacement drive. Otherwise the drive cannot be installed properly. SSD and storage converter: 1050 DIMM slot cover and DIMM For access, remove this FRU: ThinkPad W700, W700ds, W701, and W701ds Hardware Maintenance Manual Downloaded from LpManual.com Manuals...
  • Page 79 “1010 Battery pack” on page 68 Table 13. Removal steps of DIMM slot cover and DIMM Note: Loosen the screws , but do not remove them. For ThinkPad W700 and W700ds: Chapter 9 Removing and replacing a FRU Downloaded from LpManual.com Manuals...
  • Page 80 When installing:Insert the notched end of the DIMM into the socket. Press the DIMM firmly, and pivot it until it snaps into the place. Make sure that it is firmly fixed in the slot and does not move easily. For ThinkPad W701 and W701ds: ThinkPad W700, W700ds, W701, and W701ds Hardware Maintenance Manual Downloaded from LpManual.com Manuals...

  • Page 81: 1060 Palm Rest Or Palm Rest With Fingerprint Reader

    Table 13. Removal steps of DIMM slot cover and DIMM (continued) When installing: Insert the notched end of the DIMM into the socket. Press the DIMM firmly, and pivot it until it snaps into the place. Make sure that it is firmly fixed in the slot and does not move easily. Note: If only one DIMM is used on the computer you are servicing, the card must be installed in the lower slot of the slots under the keyboard.
  • Page 82 Table 14. Removal steps of palm rest (continued) When installing: When you attach the palm rest, do as follows: ThinkPad W700, W700ds, W701, and W701ds Hardware Maintenance Manual Downloaded from LpManual.com Manuals...
  • Page 83 Table 15. Installation of the palm rest 1. Attach the color sensor connector and the fingerprint reader connector firmly to the system board. Some models have only the fingerprint reader connector. 2. Attach the palm rest as shown in this figure. Chapter 9 Removing and replacing a FRU Downloaded from LpManual.com Manuals...

  • Page 84: 1070 Digitizer Pen Case Assembly

    “1040 Hard disk drive (HDD) cover, HDD and HDD rubber rails or solid state drive (SSD) and storage converter” on page 70 • “1060 Palm rest or palm rest with fingerprint reader” on page 75 ThinkPad W700, W700ds, W701, and W701ds Hardware Maintenance Manual Downloaded from LpManual.com Manuals...

  • Page 85: 1080 Bluetooth Daughter Card (Bdc-2.1) For W701 And W701Ds

    Table 16. Removal steps of digitizer pen case assembly Step Screw (quantity) Color Torque M2 × 3.5 mm, wafer-head, nylon-coated (1) Silver 0.181 Nm (1.85 kgfcm) 1080 Bluetooth daughter card (BDC-2.1) for W701 and W701ds For access, remove these FRUs in order: •...

  • Page 86: 1090 Keyboard

    “1040 Hard disk drive (HDD) cover, HDD and HDD rubber rails or solid state drive (SSD) and storage converter” on page 70 • “1060 Palm rest or palm rest with fingerprint reader” on page 75 Table 18. Removal steps of keyboard ThinkPad W700, W700ds, W701, and W701ds Hardware Maintenance Manual Downloaded from LpManual.com Manuals...
  • Page 87 Table 18. Removal steps of keyboard (continued) Icon Torque Step Screw (quantity) Color M2 × 17 mm, wafer-head, nylon-coated (1) Black 0.181 Nm (1.85 kgfcm) Lift the keyboard a little in the direction shown by arrow , and then detach the connector When installing: Make sure that the keyboard edges are under the frame as shown in this figure.

  • Page 88: 1100 Backup Battery

    “1090 Keyboard” on page 80 Table 19. Removal steps of backup battery For ThinkPad W700 and W700ds: When installing: Make sure that the battery connector is attached firmly. ThinkPad W700, W700ds, W701, and W701ds Hardware Maintenance Manual Downloaded from LpManual.com Manuals...

  • Page 89: 1110 Numeric Keypad

    Table 19. Removal steps of backup battery (continued) For ThinkPad W701 and W701ds: When installing: Make sure that the battery connector is attached firmly. 1110 Numeric keypad For access, remove these FRUs in order: • “1010 Battery pack” on page 68 •...
  • Page 90 Screw (quantity) Color Torque M2 × 3.5 mm, wafer-head, nylon-coated (1) Silver 0.181 Nm (1.85 kgfcm) Slide the keypad a little in the direction shown by arrow ThinkPad W700, W700ds, W701, and W701ds Hardware Maintenance Manual Downloaded from LpManual.com Manuals...
  • Page 91 Table 20. Removal steps of numeric keypad (continued) When installing: Make sure that the keypad edges are under the frame as shown in this figure. Chapter 9 Removing and replacing a FRU Downloaded from LpManual.com Manuals...

  • Page 92: 1120 Dimm Slot Cover And Dimm Under Keyboard For W701 And W701Ds

    “1040 Hard disk drive (HDD) cover, HDD and HDD rubber rails or solid state drive (SSD) and storage converter” on page 70 • “1060 Palm rest or palm rest with fingerprint reader” on page 75 • “1090 Keyboard” on page 80 ThinkPad W700, W700ds, W701, and W701ds Hardware Maintenance Manual Downloaded from LpManual.com Manuals...
  • Page 93 Table 21. Removal steps of DIMM slot cover and DIMM under keyboard Note: Loosen the screw , but do not remove it. Note: If only one DIMM is used on the computer you are servicing, the card must be installed in the lower slot. Chapter 9 Removing and replacing a FRU Downloaded from LpManual.com Manuals...

  • Page 94: 1130 Keyboard Bezel And Speaker Assembly

    Table 22. Removal steps of keyboard bezel for W700 and W700ds For ThinkPad W700 and W700ds: Step Screw (quantity) Color Torque Black 0.392 Nm M2.5 × 9 mm, wafer-head, nylon-coated (5) (4 kgfcm) ThinkPad W700, W700ds, W701, and W701ds Hardware Maintenance Manual Downloaded from LpManual.com Manuals...
  • Page 95 Table 22. Removal steps of keyboard bezel for W700 and W700ds (continued) When installing: Make sure that all the claws are attached firmly. When installing: Make sure that the connector cable is routed as shown in this figure. Chapter 9 Removing and replacing a FRU Downloaded from LpManual.com Manuals...
  • Page 96 Table 24. Removal steps of keyboard bezel for W701 and W701ds For ThinkPad W701 and W701ds: Step Screw (quantity) Color Torque M2.5 × 9 mm, wafer-head, nylon-coated (4) Black 0.392 Nm (4 kgfcm) ThinkPad W700, W700ds, W701, and W701ds Hardware Maintenance Manual Downloaded from LpManual.com Manuals...
  • Page 97 Table 24. Removal steps of keyboard bezel for W701 and W701ds (continued) Note: Loosen the screws , but do not remove them. Chapter 9 Removing and replacing a FRU Downloaded from LpManual.com Manuals...
  • Page 98 When installing: Make sure that the connector cable is routed as shown in this figure. Table 25. Removal steps of speaker assembly for W701 and W701ds Step Screw (quantity) Color Torque ThinkPad W700, W700ds, W701, and W701ds Hardware Maintenance Manual Downloaded from LpManual.com Manuals...

  • Page 99: 1140 Wireless Usb Adapter Or Intel Turbo Memory Minicard

    Table 25. Removal steps of speaker assembly for W701 and W701ds (continued) 0.181 Nm M2 × 3.5 mm, small-head, nylon-coated (3) Silver (1.85 kgfcm) 1140 Wireless USB adapter or Intel Turbo Memory Minicard Note: If the Intel Turbo Memory Minicard is installed in the half-size PCI Express Mini Card slot as shown in “1140 Wireless USB adapter or Intel Turbo Memory Minicard”...

  • Page 100: 1150 Pci Express Mini Card For Wireless Lan/Wimax

    “1010 Battery pack” on page 68 • “1040 Hard disk drive (HDD) cover, HDD and HDD rubber rails or solid state drive (SSD) and storage converter” on page 70 ThinkPad W700, W700ds, W701, and W701ds Hardware Maintenance Manual Downloaded from LpManual.com Manuals...
  • Page 101 “1130 Keyboard bezel and speaker assembly” on page 88 Table 27. Removal steps of PCI Express Mini Card for wireless LAN/WiMAX for W700 and W700ds For ThinkPad W700 and W700ds: In step , unplug the jacks by using the removal tool antenna RF connector (P/N: 08K7159) or pick the connectors with your fingers and gently unplug them in direction of the arrow.
  • Page 102 Torque Step Screw (quantity) Color M2 × 3 mm, thin-head, nylon-coated (2) Black 0.181 Nm (1.85 kgfcm) ThinkPad W700, W700ds, W701, and W701ds Hardware Maintenance Manual Downloaded from LpManual.com Manuals...

  • Page 103: 1160 Intel Turbo Memory Minicard

    Table 28. Removal steps of PCI Express Mini Card for wireless LAN/WiMAX for ThinkPad W701 and W701ds (continued) When installing: • In models with wireless LAN card that has two antenna connectors, plug the gray cable into the jack labeled MAIN, and the black cable into the jack labeled AUX on the card.

  • Page 104: 1170 Cpu Thermal Device/Fan

    M2 × 3 mm, thin-head, nylon-coated (2) Silver 0.181 Nm (1.85 kgfcm) 1170 CPU thermal device/fan For access, remove these FRUs in order: • “1010 Battery pack” on page 68 ThinkPad W700, W700ds, W701, and W701ds Hardware Maintenance Manual Downloaded from LpManual.com Manuals...
  • Page 105 • “1130 Keyboard bezel and speaker assembly” on page 88 Table 30. Removal steps of CPU thermal device/fan for W700 and W700ds For ThinkPad W700 and W700ds: Note: Loosen the screws , and , but do not remove them. When you attach the fan, secure the screws in order as shown in this figure.
  • Page 106 For the new CPU thermal device/fan, you need to peel the thin film off from the rubber marked • Make sure that the fan connector is attached firmly. ThinkPad W700, W700ds, W701, and W701ds Hardware Maintenance Manual Downloaded from LpManual.com Manuals...

  • Page 107: And

    Table 32. Removal steps of CPU thermal device/fan for W701 and W701ds For ThinkPad W701 and W701ds: Note: Loosen the screws , and , but do not remove them. When you attach the fan, secure the screws in order as shown in this figure. Attention: Do not handle the fan roughly.

  • Page 108: 1180 Vga Thermal Device/Fan And Thermal Putty

    If once you remove the thermal device/fan, you need to attach new thermal putty on the video card before you reinstall the thermal device/fan. Order the thermal putty FRU when you service the thermal device/fan. ThinkPad W700 and W700ds do not have this thermal putty. For access, remove these FRUs in order: •...
  • Page 109 Table 34. Removal steps of VGA thermal device/fan (continued) For ThinkPad W700ds and W701ds: Attention: Do not handle the fan roughly. Improper handling of the fan can cause distortion or deformation and imperfect contact with components. Chapter 9 Removing and replacing a FRU Downloaded from LpManual.com Manuals...
  • Page 110 Table 34. Removal steps of VGA thermal device/fan (continued) Table 35. Installation of the VGA thermal device/fan in ThinkPad W700 and W700ds When installing: • Before you attach the fan assembly to the computer, apply thermal grease, at an amount of 0.2 grams, on the part marked as in the following figure.

  • Page 111: 1190 Cpu

    Table 36. Installation of the VGA thermal device/fan and thermal putty in ThinkPad W701 and W701ds When installing: • Before you attach the fan assembly to the computer, attach new thermal putty on the video card as shown as this figure. •...

  • Page 112: 1200 Video Card

    “1040 Hard disk drive (HDD) cover, HDD and HDD rubber rails or solid state drive (SSD) and storage converter” on page 70 • “1060 Palm rest or palm rest with fingerprint reader” on page 75 • “1090 Keyboard” on page 80 ThinkPad W700, W700ds, W701, and W701ds Hardware Maintenance Manual Downloaded from LpManual.com Manuals...

  • Page 113: Step Screw (Quantity)

    • “1120 DIMM slot cover and DIMM under keyboard for W701 and W701ds” on page 86 • “1130 Keyboard bezel and speaker assembly” on page 88 Table 38. Removal steps of video card Torque Step Screw (quantity) Color M2 × 3.5 mm, shoulder type, nylon-coated (2) Black 0.181 Nm (1.85 kgfcm)

  • Page 114: 1210 Hdd I/O Sub Card

    Table 39. Removal steps of HDD I/O sub card for W700 and W700ds For ThinkPad W700 and W700ds: For models with 34-mm ExpressCard/54-mm ExpressCard slot: Torque Step Screw (quantity) Color ThinkPad W700, W700ds, W701, and W701ds Hardware Maintenance Manual Downloaded from LpManual.com Manuals...
  • Page 115 Table 39. Removal steps of HDD I/O sub card for W700 and W700ds (continued) 0.181 Nm M2 × 3.5 mm, small-head, nylon-coated (2) Silver (1.85 kgfcm) M2.5 × 5 mm, wafer-head, nylon-coated (1) Silver 0.392 Nm (4 kgfcm) For models with 34-mm ExpressCard/Smart Card slot: Step Screw (quantity) Color...
  • Page 116 (4 kgfcm) Table 40. Removal steps of HDD I/O sub card for W701 and W701ds For ThinkPad W701 and W701ds: For models with 34-mm ExpressCard/54-mm ExpressCard slot: ThinkPad W700, W700ds, W701, and W701ds Hardware Maintenance Manual Downloaded from LpManual.com Manuals...
  • Page 117 Table 40. Removal steps of HDD I/O sub card for W701 and W701ds (continued) Torque Step Screw (quantity) Color M2 × 14 mm, small-head, nylon-coated (2) Silver 0.181 Nm (1.85 kgfcm) M2 × 3.5 mm, small-head, nylon-coated (1) Silver 0.181 Nm (1.85 kgfcm) M2.5 ×...
  • Page 118 0.181 Nm (1.85 kgfcm) M2 × 3.5 mm, small-head, nylon-coated (3) Silver 0.181 Nm (1.85 kgfcm) 0.392 Nm M2.5 × 5 mm, wafer-head, nylon-coated (1) Silver (4 kgfcm) ThinkPad W700, W700ds, W701, and W701ds Hardware Maintenance Manual Downloaded from LpManual.com Manuals...

  • Page 119: 1220 Lcd Unit And Lcd Cable Cap

    • “1140 Wireless USB adapter or Intel Turbo Memory Minicard” on page 93 • “1150 PCI Express Mini Card for wireless LAN/WiMAX” on page 94 Table 41. Removal steps of LCD unit for W700 and W700ds For ThinkPad W700 and W700ds: Step Screw cap...
  • Page 120 M2 × 10 mm, wafer-head, nylon-coated (2) (1.85 kgfcm) Step is only for ThinkPad W700ds. When installing: In ThinkPad W700ds, make sure that the cable connector is attached firmly. ThinkPad W700, W700ds, W701, and W701ds Hardware Maintenance Manual Downloaded from LpManual.com Manuals...
  • Page 121 Table 41. Removal steps of LCD unit for W700 and W700ds (continued) When installing: 1. Route the antenna cables along the cable guides and secure them with the tapes. As you route the cables, make sure that they are not subjected to any tension. Tension could cause the cables to be damaged by the cable guides, or a wire to be broken.
  • Page 122 M2.5 × 9 mm, wafer-head, nylon-coated (2) Black 0.392 Nm (4 kgfcm) Step Screw (quantity) Color Torque M2 ×3.5 mm, wafer-head, nylon-coated (1) Silver 0.181 Nm (1.85 kgfcm) ThinkPad W700, W700ds, W701, and W701ds Hardware Maintenance Manual Downloaded from LpManual.com Manuals...
  • Page 123 Table 42. Removal steps of LCD unit for W701 and W701ds (continued) Torque Step Screw (quantity) Color M2.5 × 9 mm, wafer-head, nylon-coated (4) Black 0.392 Nm (4 kgfcm) M2 × 12 mm, wafer-head, nylon-coated (2) Black 0.181 Nm (1.85 kgfcm) Step is only for ThinkPad W701ds.

  • Page 124: 1230 Structure Frame

    • “1140 Wireless USB adapter or Intel Turbo Memory Minicard” on page 93 • “1150 PCI Express Mini Card for wireless LAN/WiMAX” on page 94 • “1220 LCD unit and LCD cable cap” on page 113 ThinkPad W700, W700ds, W701, and W701ds Hardware Maintenance Manual Downloaded from LpManual.com Manuals...
  • Page 125 Table 43. Removal steps of structure frame Step Screw (quantity) Color Torque Hex stud, nylon-coated (4) Silver 0.392 Nm ( 4 kgfcm) Step Screw (quantity) Color Torque 0.392 Nm M2.5 × 5 mm, wafer-head, nylon-coated (3) Silver (4 kgfcm) 0.181 Nm M2 ×...
  • Page 126 Screw (quantity) Color Torque Black 0.181 Nm M2 × 10 mm, wafer-head, nylon-coated (4) (1.85 kgfcm) Black 0.181 Nm M2 × 10 mm, wafer-head, nylon-coated (2) (1.85 kgfcm) ThinkPad W700, W700ds, W701, and W701ds Hardware Maintenance Manual Downloaded from LpManual.com Manuals...

  • Page 127: 1240 Odd Switch Sub Card For W700 And W700Ds

    1240 ODD switch sub card for W700 and W700ds For access, remove these FRUs, in order: • “1010 Battery pack” on page 68 • “1040 Hard disk drive (HDD) cover, HDD and HDD rubber rails or solid state drive (SSD) and storage converter”...

  • Page 128: 1250 Audio And Card Reader I/O Card

    Table 45. Removal steps of audio and card reader I/O card Torque Step Screw (quantity) Color M2 × 3.5 mm, wafer-head, nylon-coated (1) Silver 0.181 Nm (1.85 kgfcm) ThinkPad W700, W700ds, W701, and W701ds Hardware Maintenance Manual Downloaded from LpManual.com Manuals...

  • Page 129: 1260 System Board And Base Cover

    Table 45. Removal steps of audio and card reader I/O card (continued) When installing: Make sure the connector is attached firmly. 1260 System board and base cover Note: When you replace following system boards, you also need to replace FRUs listed in the following table. 42W8199 System board for MXM-support, with TPM for W700 42W8201...
  • Page 130 Following components soldered on the top side of the system board are extremely sensitive. When you service the system board, avoid any kind of rough handling. For ThinkPad W700 and W700ds: MCH (Memory Controller Hub) Video sub card (Mobile PCI Express Module) ThinkPad W700, W700ds, W701, and W701ds Hardware Maintenance Manual Downloaded from LpManual.com Manuals...
  • Page 131 Accelerometer chip for the HDD Active Protection System™ ICH (I/O Controller Hub) Upper side of the system board: Bottom side of the system board: Chapter 9 Removing and replacing a FRU Downloaded from LpManual.com Manuals...
  • Page 132 Video sub card (Mobile PCI Express Module) Accelerometer chip for the HDD Active Protection System Upper side of the system board: Bottom side of the system board: ThinkPad W700, W700ds, W701, and W701ds Hardware Maintenance Manual Downloaded from LpManual.com Manuals...
  • Page 133 Table 46. Removal steps of system board and base cover Step Screw (quantity) Color Torque M2 × 3.5 mm, wafer-head, nylon-coated (3) Silver 0.181 Nm (1.85 kgfcm) Note: Step is only for W700 and W700ds. Turn the system board over, and then disconnect the PC Card/ExpressCard slots assembly or PC Card/Smart Card slots assembly from the system board.
  • Page 134 FCC labels, find duplicates of them in the label kit and apply them to the new base cover. For the location of each label, refer the following figure: For ThinkPad W700 and W700ds: ThinkPad W700, W700ds, W701, and W701ds Hardware Maintenance Manual Downloaded from LpManual.com Manuals...

  • Page 135: 2010 Lcd Front Bezel (Lcd Cover Kit)

    For the location of each label, refer the following figure: For ThinkPad W701 and W701ds: 2010 LCD front bezel (LCD cover kit) For access, remove this FRU: • “1010 Battery pack” on page 68 Table 47. Removal steps of LCD front bezel Step Screw cap Screw (quantity)

  • Page 136: 2020 Inverter Card

    2020 Inverter card For access, remove these FRUs in order: • “1010 Battery pack” on page 68 • “2010 LCD front bezel (LCD cover kit)” on page 129 ThinkPad W700, W700ds, W701, and W701ds Hardware Maintenance Manual Downloaded from LpManual.com Manuals...
  • Page 137 Table 48. Removal steps of inverter card for W700 and W700ds For ThinkPad W700 and W700ds: Step Screw (quantity) Color Torque Black 0.181 Nm M2 × 3.5 mm, wafer-head, nylon-coated (2) (1.85 kgfcm) When installing: In some models, Make sure that connector that has pink cable and white cable...

  • Page 138: 2030 Integrated Camera

    2030 Integrated camera For access, remove these FRUs in order: • “1010 Battery pack” on page 68 • “2010 LCD front bezel (LCD cover kit)” on page 129 ThinkPad W700, W700ds, W701, and W701ds Hardware Maintenance Manual Downloaded from LpManual.com Manuals...
  • Page 139 Table 50. Removal steps of integrated camera When installing: Make sure that the connector is attached firmly. Step Screw (quantity) Color Torque M2 × 3.5 mm, thin-head, nylon-coated (2) Black 0.181 Nm (1.85 kgfcm) Chapter 9 Removing and replacing a FRU Downloaded from LpManual.com Manuals...

  • Page 140: 2040 Bluetooth Daughter Card (Bdc-2.1) For W700 And W700Ds

    “1220 LCD unit and LCD cable cap” on page 113 • “2010 LCD front bezel (LCD cover kit)” on page 129 • “2020 Inverter card” on page 130 • “2030 Integrated camera” on page 132 ThinkPad W700, W700ds, W701, and W701ds Hardware Maintenance Manual Downloaded from LpManual.com Manuals...
  • Page 141 • “2040 Bluetooth daughter card (BDC-2.1) for W700 and W700ds” on page 134 Table 52. Removal steps of LCD panel, hinges, and LCD cable Step is only for ThinkPad W700 and W700ds. Chapter 9 Removing and replacing a FRU Downloaded from LpManual.com Manuals...
  • Page 142 M2.5 × 7 mm, wafer-head, nylon-coated (4) Black 0.392 Nm (4 kgfcm) When installing: Make sure that the connector is attached firmly. For ThinkPad W700 and W701: Step Screw (quantity) Color Torque ThinkPad W700, W700ds, W701, and W701ds Hardware Maintenance Manual Downloaded from LpManual.com Manuals...
  • Page 143 Torque Step Screw (quantity) Color M2 × 3 mm, wafer-head, nylon-coated (6) Black 0.181 Nm (1.85 kgfcm) For ThinkPad W700 and W701, skip steps from For ThinkPad W700ds and W701ds: Step Screw (quantity) Color Torque Black 0.392 Nm M2.5 × 7 mm, wafer-head, nylon-coated (5) (4 kgfcm) M2.5 ×...

  • Page 144: 2060 Second Lcd Bezel (Second Lcd Cover Kit) (For Thinkpad W700Ds And W701Ds)

    • “1140 Wireless USB adapter or Intel Turbo Memory Minicard” on page 93 • “1150 PCI Express Mini Card for wireless LAN/WiMAX” on page 94 • “1220 LCD unit and LCD cable cap” on page 113 ThinkPad W700, W700ds, W701, and W701ds Hardware Maintenance Manual Downloaded from LpManual.com Manuals...
  • Page 145 • “2010 LCD front bezel (LCD cover kit)” on page 129 • “2020 Inverter card” on page 130 • “2030 Integrated camera” on page 132 • “2040 Bluetooth daughter card (BDC-2.1) for W700 and W700ds” on page 134 • “2050 LCD panel, hinges, and LCD cable” on page 134 Table 53.

  • Page 146: 2070 Second Lcd Panel (For Thinkpad W700Ds And W701Ds)

    “2050 LCD panel, hinges, and LCD cable” on page 134 • “2060 Second LCD bezel (second LCD cover kit) (for ThinkPad W700ds and W701ds)” on page 138 ThinkPad W700, W700ds, W701, and W701ds Hardware Maintenance Manual Downloaded from LpManual.com Manuals...

  • Page 147: 2080 Second Lcd Cable Assembly (For Thinkpad W700Ds And W701Ds)

    Table 54. Removal steps of second LCD panel (for ThinkPad W700ds and W701ds) 2080 Second LCD cable assembly (for ThinkPad W700ds and W701ds) For access, remove these FRUs in order: • “1010 Battery pack” on page 68 • “1040 Hard disk drive (HDD) cover, HDD and HDD rubber rails or solid state drive (SSD) and storage converter”...
  • Page 148 Screw (quantity) Color M2.5 × 4.5 mm, wafer-head, nylon-coated (3) Silver 0.392 Nm (4 kgfcm) M2.5 × 7 mm, wafer-head, nylon-coated (1) Silver 0.392 Nm (4 kgfcm) ThinkPad W700, W700ds, W701, and W701ds Hardware Maintenance Manual Downloaded from LpManual.com Manuals...
  • Page 149 Table 55. Removal steps of second LCD cable assembly (for ThinkPad W700ds) (continued) Chapter 9 Removing and replacing a FRU Downloaded from LpManual.com Manuals...
  • Page 150 Table 56. Removal steps of second LCD cable assembly (for ThinkPad W701ds) For ThinkPad W701ds: ThinkPad W700, W700ds, W701, and W701ds Hardware Maintenance Manual Downloaded from LpManual.com Manuals...
  • Page 151 Table 56. Removal steps of second LCD cable assembly (for ThinkPad W701ds) (continued) Torque Step Screw (quantity) Color M2.5 × 4.5 mm, wafer-head, nylon-coated (3) Silver 0.392 Nm (4 kgfcm) M2.5 × 7 mm, wafer-head, nylon-coated (1) Silver 0.392 Nm (4 kgfcm) Chapter 9 Removing and replacing a FRU...

  • Page 152: 2090 Second Lcd Hinges And Second Lcd Rear Cover (Second Lcd Cover Kit) (For Thinkpad W700Ds And W701Ds)

    “1040 Hard disk drive (HDD) cover, HDD and HDD rubber rails or solid state drive (SSD) and storage converter” on page 70 • “1060 Palm rest or palm rest with fingerprint reader” on page 75 • “1090 Keyboard” on page 80 ThinkPad W700, W700ds, W701, and W701ds Hardware Maintenance Manual Downloaded from LpManual.com Manuals...
  • Page 153 • “1130 Keyboard bezel and speaker assembly” on page 88 • “1140 Wireless USB adapter or Intel Turbo Memory Minicard” on page 93 • “1150 PCI Express Mini Card for wireless LAN/WiMAX” on page 94 • “1220 LCD unit and LCD cable cap” on page 113 •...
  • Page 154 LCD unit is aligned to the right edge of the main LCD cover as shown in in this figure. To adjust the alignment, adjust the fastening of screws ThinkPad W700, W700ds, W701, and W701ds Hardware Maintenance Manual Downloaded from LpManual.com Manuals...

  • Page 155: 2100 Wireless Lan Antenna Assembly And Wireless Usb Antenna

    Table 57. Removal steps of second LCD hinges and second LCD rear cover (second LCD cover kit) (for ThinkPad W700ds and W701ds) (continued) 2100 Wireless LAN antenna assembly and wireless USB antenna • “1010 Battery pack” on page 68 • “1040 Hard disk drive (HDD) cover, HDD and HDD rubber rails or solid state drive (SSD) and storage converter”...

  • Page 156: Color Torque Silver 0.181 Nm (1.85 Kgfcm)

    Wireless USB antenna (only for W700 and W700ds) Wireless LAN antenna assembly Note: Some models do not have the Wireless USB antenna ThinkPad W700, W700ds, W701, and W701ds Hardware Maintenance Manual Downloaded from LpManual.com Manuals...
  • Page 157 Table 58. Removal steps of wireless LAN antenna assembly and UWB antenna (continued) • For models with a damaged wireless USB antenna installed, remove the damage antenna and should NOT replace it. • For models with a non-damaged wireless USB antenna installed, leave it installed in the computer. Chapter 9 Removing and replacing a FRU Downloaded from LpManual.com Manuals...
  • Page 158 ThinkPad W700, W700ds, W701, and W701ds Hardware Maintenance Manual Downloaded from LpManual.com Manuals...

  • Page 159: Chapter 10. Locations

    Chapter 10. Locations This chapter presents the location of ThinkPad W700, W700ds, W701, and W701ds features and hardware. Front view (for ThinkPad W700 and W701) ThinkLight Integrated camera (for some models) Status indicators Note: For the description of each indicator, see Chapter 6 “Status indicators” on page 55.
  • Page 160 Serial Ultrabay Enhanced latch Serial Ultrabay Enhanced device eject lever Serial Ultrabay Enhanced Digitizer pen RJ-11 (modem) connector USB (Universal serial bus) connectors Digitizer pad Volume control buttons ThinkVantage button ThinkPad W700, W700ds, W701, and W701ds Hardware Maintenance Manual Downloaded from LpManual.com Manuals...

  • Page 161: Front View (For Thinkpad W700Ds And W701Ds)

    Front view (for ThinkPad W700ds and W701ds) ThinkLight Integrated camera (for some models) Status indicators Note: For the description of each indicator, see Chapter 6 “Status indicators” on page 55. Stereo speakers Second screen Numeric keypad Fingerprint reader TrackPoint pointing stick TrackPoint buttons Touch pad Touch pad buttons...

  • Page 162: Rear View

    Status indicators Note: For the description of each indicator, see Chapter 6 “Status indicators” on page 55. ExpressCard/Smart Card/CompactFlash card slot ExpressCard/Smart Card/CompactFlash card eject button ExpressCard slot ThinkPad W700, W700ds, W701, and W701ds Hardware Maintenance Manual Downloaded from LpManual.com Manuals...

  • Page 163: Bottom View

    Universal serial bus (USB) 2.0 connectors (for W700 and W700ds) USB 3.0 connector (upper connector) and USB/eSATA combo connector (lower connector) (for W701 and W701ds) IEEE 1394 connector AC power connector RJ-45 (Ethernet) connector DVI (Digital Visual Interface) connector External monitor connector DisplayPort Bottom view Memory-upgrade slot...
  • Page 164 ThinkPad W700, W700ds, W701, and W701ds Hardware Maintenance Manual Downloaded from LpManual.com Manuals...

  • Page 165: Chapter 11. Parts List

    These CRUs are isolated parts within the computer that are concealed by an access panel that is typically secured by more than two screws. Once the access panel is removed, the specific CRU is visible. • FRUs marked with are available as options. © Copyright Lenovo 2008, 2013 Downloaded from LpManual.com Manuals...

  • Page 166: Overall

    Overall ThinkPad W700, W700ds, W701, and W701ds Hardware Maintenance Manual Downloaded from LpManual.com Manuals...
  • Page 167 Table 59. Parts list—Overall No. FRU FRU no. See “” on page . LCD unit (see “LCD FRUs forThinkPad W700” on page 184, “LCD FRUs for ThinkPad W700ds” on page 188, “LCD FRUs for ThinkPad W701” on page 189, or “LCD FRUs for ThinkPad W701ds” on page 193.) Numeric keypad 42T3903 Keyboard bezel assembly with speaker for W700 and W700ds...
  • Page 168 • 2758-CTO, EAx, EBx, ECx, EDx, LYx, LZx, M2x, M4x, MVx, MWx, EEx, EFx, EKx, E2x, E3x, ELx, FEx, M3x, M5x, M6x, FFx, MKx, MLx, MMx, MPx, MQx, MRx, FQx, MXx, MYx, MZx, N2x, NAx, NBx • 2762-CTO • 2763-CTO ThinkPad W700, W700ds, W701, and W701ds Hardware Maintenance Manual Downloaded from LpManual.com Manuals...
  • Page 169 Table 59. Parts list—Overall (continued) No. FRU FRU no. 55Y3713 2-GB DDR3-1066 SDRAM SO-DIMM (PC3-8500) card • 2500-CTO • 2541-CTO • 2542-CTO • 2543-CTO • 2544-CTO • 4323-CTO • 4326-CTO 4-GB DDR3-1066 SDRAM SO-DIMM (PC3-8500) card 51J0494 • 2752-CTO, E7x, EUx, EWx, FBx, F2x, F4x, FKx, MBx, MGx, MTx •...
  • Page 170 • 2541-CTO, 4Jx, 4Px, 4Qx, 5Kx, 26x, 4Rx, 4Ux, 54x, 56x, 57x, 2Px, 5Ax • 2542-CTO, 5Ax • 2543-CTO • 2544-CTO • 4323-CTO, 35x, 36x, 37x, 38x, 39x • 4326-CTO, 4Ex, 4Fx, 4Gx ThinkPad W700, W700ds, W701, and W701ds Hardware Maintenance Manual Downloaded from LpManual.com Manuals...
  • Page 171 Table 59. Parts list—Overall (continued) No. FRU FRU no. 60Y5656 System board assembly, MXM-support, non-TPM for W701ds • 2500-CTO, 3Ex • 2541-CTO • 2542-CTO • 2543-CTO • 2544-CTO • 4323-CTO • 4326-CTO ODD switch sub card only for W700 and W700ds 42W8045 N 42W8044 N Audio and card reader I/O card for W700 and W700ds...
  • Page 172 • 2752-CTO, EUx, F2x, E5x, F4x, F5x, F8x, F9x, FAx, M9x, N3x, N4x • 2753-CTO, MHx • 2754-CTO • 2757-CTO • 2758-CTO, EBx, EDx, EFx, ELx, FEx, LZx, M7x, MKx • 2762-CTO • 2763-CTO ThinkPad W700, W700ds, W701, and W701ds Hardware Maintenance Manual Downloaded from LpManual.com Manuals...
  • Page 173 Table 59. Parts list—Overall (continued) No. FRU FRU no. Blu-ray combo drive, 12.7 mm 45T2617 • 2500-CTO, 22x, 3Dx, 3Ex, 3Fx, 2Ax, 2Bx, 3Vx, 3Xx, 3Yx, 3Zx, 42x, 43x, 44x, 45x, 46x, 47x, 48x, 49x, 4Cx • 2541-CTO, 4Rx, 4Sx, 4Ux, 55x, 56x, 57x, 2Nx, 2Px •...
  • Page 174 • 2752-CTO, ESx, EUx, EWx, F2x, E5x, F4x, F5x, F8x, F9x, FAx, FGx, FBx, FCx • 2753-CTO • 2754-CTO, FNx • 2757-CTO • 2758-CTO, EAx, EBx, LYx, M3x, M4x, EJx, EKx • 2762-CTO • 2763-CTO ThinkPad W700, W700ds, W701, and W701ds Hardware Maintenance Manual Downloaded from LpManual.com Manuals...
  • Page 175 Table 59. Parts list—Overall (continued) No. FRU FRU no. Note: When you replace the HDD or HDDs used in the models with RAID mode, be sure to install HDDs that have same FRU No.s both in HDD slot 0 and in slot 1. SATA hard disk drive, 320 GB, 9.5 mm, 5,400 rpm 42T1583 •...
  • Page 176 • 2752-CTO, E7x, EPx, EQx, ETx, EVx, FCx, E4x, F6x, F7x, FJx, FLx, MNx, MSx, N5x, FHx • 2753-CTO, E6x, E7x, MNx • 2754-CTO, EMx • 2757-CTO • 2758-CTO, EGx, EKx, E2x • 2762-CTO • 2763-CTO ThinkPad W700, W700ds, W701, and W701ds Hardware Maintenance Manual Downloaded from LpManual.com Manuals...
  • Page 177 Table 59. Parts list—Overall (continued) No. FRU FRU no. Note: When you replace the HDD or HDDs used in the models with RAID mode, be sure to install HDDs that have same FRU No.s both in HDD slot 0 and in slot 1. SATA hard disk drive, 160 GB, 9.5 mm, 7,200 rpm 45N7251 •...
  • Page 178 • 2754-CTO, M8x • 2757-CTO, FPx, LXx • 2758-CTO, LZx, M2x, M5x, M6x, M7x, MMx, MQx, MRx, MVx, MWx, MXx, MYx, MZx, N2x, NAx • 2762-CTO • 2763-CTO ThinkPad W700, W700ds, W701, and W701ds Hardware Maintenance Manual Downloaded from LpManual.com Manuals...
  • Page 179 Table 59. Parts list—Overall (continued) No. FRU FRU no. Note: When you replace the HDD or HDDs used in the models with RAID mode, be sure to install HDDs that have same FRU No.s both in HDD slot 0 and in slot 1. SATA hard disk drive, 320 GB, 9.5 mm, 7,200 rpm 42T1571 •...
  • Page 180 — SATA solid state drive, 64 GB, 9 mm 45N8201 • 2752-CTO, FBx, FHx • 2753-CTO • 2754-CTO • 2757-CTO • 2758-CTO, EJx • 2762-CTO • 2763-CTO ThinkPad W700, W700ds, W701, and W701ds Hardware Maintenance Manual Downloaded from LpManual.com Manuals...
  • Page 181 Table 59. Parts list—Overall (continued) No. FRU FRU no. — 41W0516 ** SATA solid state drive, 80 GB, 9 mm • 2752-CTO, MTx • 2753-CTO • 2754-CTO • 2757-CTO • 2758-CTO, Mpx • 2762-CTO • 2763-CTO — SATA solid state drive, 80 GB, 9 mm 41W0524 ** •...
  • Page 182 • 2752-CTO, ERx, F2x, F5x, F6x, F8x, F9x, FAx, FBx, FCx, FDx • 2753-CTO • 2754-CTO, EMx, ENx • 2757-CTO, LXx • 2758-CTO, E2x, EAx, EDx, EFx, EJx • 2762-CTO • 2763-CTO ThinkPad W700, W700ds, W701, and W701ds Hardware Maintenance Manual Downloaded from LpManual.com Manuals...
  • Page 183 Table 59. Parts list—Overall (continued) No. FRU FRU no. 43Y6525 Intel Turbo Memory Minicard, 4GB (half size) • 2752-CTO, ESx, ETx, EUx, EVx, EWx, F4x, F7x, FLx, N3x, N4x • 2753-CTO • 2754-CTO • 2757-CTO • 2758-CTO, EGx, EHx, M5x •...
  • Page 184 CPU assembly, Intel Core 2 Extreme mobile processor X 9100 (3.06 GHz), C-0 42W8043 N • 2752-CTO, F6x, F7x, N8x • 2753-CTO, E6x, MJx • 2754-CTO • 2757-CTO • 2758-CTO, M2x • 2762-CTO • 2763-CTO ThinkPad W700, W700ds, W701, and W701ds Hardware Maintenance Manual Downloaded from LpManual.com Manuals...
  • Page 185 Table 59. Parts list—Overall (continued) No. FRU FRU no. 42W8291 N CPU assembly, Intel Core 2 Extreme mobile processor X 9100 (3.06 GHz), E-0 • 2752-CTO • 2753-CTO • 2754-CTO • 2757-CTO • 2758-CTO • 2762-CTO • 2763-CTO CPU assembly, Intel Core 2 Extreme mobile processor QX 9300 (2.53 GHz) 42W8116 N •...
  • Page 186 • 2500-CTO, 3Dx, 3Ex, 3Fx, 3Qx, 3Rx • 2541-CTO, 2Px, 2Qx, 4Tx, 4Ux, 4Vx, 4Wx, 4Xx, 4Yx, 4Zx, 52x • 2542-CTO • 2543-CTO • 2544-CTO • 4323-CTO • 4326-CTO ThinkPad W700, W700ds, W701, and W701ds Hardware Maintenance Manual Downloaded from LpManual.com Manuals...
  • Page 187 Table 59. Parts list—Overall (continued) No. FRU FRU no. 60Y3193 Intel Centrino Ultimate-N 6300 • 2500-CTO, 24x, 2Xx, 3Ax, 3Bx, 3Cx, 2Ex, 2Gx, 2Lx, 2Mx, 3Gx, 3Hx, 3Jx, 3Kx, 5Cx, 5Dx, 5Ex, 5Fx, 3Lx, 3Mx, 3Nx, 5Gx, 5Hx, 2Cx, 3Px, 3Qx, 3Rx, 3Sx, 3Tx, 3Ux, 3Vx, 3Wx, 3Xx, 3Yx, 3Zx, 42x, 43x, 44x, 45x, 46x, 47x, 48x, 49x, 4Ax, 4Bx, 4Cx •...
  • Page 188 • 2752-CTO, EPx, E4x, FGx, FKx, MAx, MCx, FLx, MNx, N6x, N7x, N8x • 2753-CTO, E6x, MNx • 2754-CTO • 2757-CTO • 2758-CTO, E2x, LYx, FFx, MLx, MQx, MZx, NAx • 2762-CTO • 2763-CTO ThinkPad W700, W700ds, W701, and W701ds Hardware Maintenance Manual Downloaded from LpManual.com Manuals...
  • Page 189 Table 59. Parts list—Overall (continued) No. FRU FRU no. Palm rest assembly with fingerprint reader, color sensor, and digitizer for W700 and W700ds 44C9506 • 2752-CTO, E7x, ERx, ESx, ETx, EUx, EVx, EWx, FBx, FCx, FDx, F2x, E5x, F3x, F4x, F5x, F6x, F7x, F8x, F9x, FAx, FHx, FJx, M9x, MBx, MEx, MGx, MUx, FSx, FWx, FXx, N3x, N4x, N9x •...

  • Page 190: Lcd Frus Forthinkpad W700

    AC adapter (see “AC adapters” on page 197.) LCD FRUs forThinkPad W700 In ThinkPad W700, there are following types of LCDs. • 17.0-in. WXGA+ TFT LCD (Table 60 “Parts list—17.0-in. WXGA+ TFT” on page 185) • 17.0-in. WUXGA TFT LCD (Table 61 “Parts list—17.0-in. WUXGA TFT” on page 186) ThinkPad W700, W700ds, W701, and W701ds Hardware Maintenance Manual Downloaded from LpManual.com Manuals...
  • Page 191 Table 60. Parts list—17.0-in. WXGA+ TFT No. FRU FRU no. 43Y9790 LCD cover kit W700 LCD bezel 45N6048 Chapter 11 Parts list Downloaded from LpManual.com Manuals...
  • Page 192 • 2758-CTO, EAx, EBx, ECx, EDx, EEx, EFx, M2x, M3x, M4x, M5x, M6x, FFx, MLx, MPx, MQx, MRx, MVx, MXx, MZx, N2x • 2762-CTO • 2763-CTO 43Y9791 Hinges for W700 LCD cable assembly for W700 44C5388 ThinkPad W700, W700ds, W701, and W701ds Hardware Maintenance Manual Downloaded from LpManual.com Manuals...
  • Page 193 Table 61. Parts list—17.0-in. WUXGA TFT (continued) No. FRU FRU no. Integrated camera 42W8015 N • 2752-CTO, EQx, ERx, ESx, ETx, EVx, E4x, F5x, F8x, F9x, FAx, FGx, FHx, FJx, FKx, MDx, MEx, MFx, MNx, MSx, MTx, MUx, FSx, FTx, FUx, FXx, N5x, N6x, N7x, N8x, N9x •...

  • Page 194: Lcd Frus For Thinkpad W700Ds

    LCD FRUs for ThinkPad W700ds ThinkPad W700, W700ds, W701, and W701ds Hardware Maintenance Manual Downloaded from LpManual.com Manuals...

  • Page 195: Lcd Frus For Thinkpad W701

    Table 62. Parts list—17.0-in. WUXGA TFT and 10.6-in. WXGA TFT second screen No. FRU FRU no. 45N3888 LCD cover kit for W700ds LCD front bezel 45N6048 LCD panel, 17.0-in. WUXGA 42T0542 • 2752-CTO, E7x, EPx, EUx, EWx, FBx, FCx, FDx, F2x, E5x, F3x, F4x, M9x, MAx, MBx, MGx, FVx, FWx, N3x, N4x •...
  • Page 196 Table 63. Parts list—17.0-in. WXGA+ TFT No. FRU FRU no. 60Y4915 LCD cover kit for W701 LCD bezel 60Y4917 ThinkPad W700, W700ds, W701, and W701ds Hardware Maintenance Manual Downloaded from LpManual.com Manuals...
  • Page 197 Table 63. Parts list—17.0-in. WXGA+ TFT (continued) No. FRU FRU no. 42T0785 LCD panel, 17.0-in. WXGA+ • 2500-CTO, 3Ax, 3Gx, 5Cx • 2541-CTO, 2Qx, 5Jx, 58x • 2542-CTO, 58x • 2543-CTO • 2544-CTO • 4323-CTO • 4326-CTO LCD panel, 17.0-in. WXGA+ 42T0789 •...
  • Page 198 • 4323-CTO, 33x, 34x • 4326-CTO, 4Dx 60Y5002 LCD cable cap Wireless LAN antenna kit for W701 45M2877 N LED controller board 60Y5728 Clear plate kit 60Y4918 ThinkPad W700, W700ds, W701, and W701ds Hardware Maintenance Manual Downloaded from LpManual.com Manuals...

  • Page 199: Lcd Frus For Thinkpad W701Ds

    LCD FRUs for ThinkPad W701ds Chapter 11 Parts list Downloaded from LpManual.com Manuals...

  • Page 200: Keyboard

    42T3277 42T3147 Brazilian Portuguese 42T3240 42T3304 42T3174 Bulgarian 42T4145 42T4142 42T4138 Canadian French (058) 42T3211 42T3275 42T3145 — Canadian French (Acnor) 42T3274 42T3144 42T3214 42T3278 42T3148 Czech ThinkPad W700, W700ds, W701, and W701ds Hardware Maintenance Manual Downloaded from LpManual.com Manuals...

  • Page 201: Miscellaneous Parts

    Table 66. Parts list—Keyboard (continued) Language Danish 42T3215 42T3279 42T3149 Dutch 42T3223 42T3287 42T3157 Finnish, Swedish 42T3230 42T3294 42T3164 French 42T3217 42T3281 42T3151 German 42T3218 42T3282 42T3152 Greek (U.S. English and Greek layout) 42T3219 42T3283 42T3153 Hebrew 42T3221 42T3285 42T3155 Hungarian 42T3220 42T3284...
  • Page 202 • Digitizer pen button • Lens (LED optical drive) • Lens (LED multimedia) • Dust filter (medium) • Dust filter (small) • Screw caps (oval) • Battery latch ThinkPad W700, W700ds, W701, and W701ds Hardware Maintenance Manual Downloaded from LpManual.com Manuals...

  • Page 203: Ac Adapters

    Table 67. Parts list—Miscellaneous parts (continued) • Battery latch knob • Battery latch spring • Wireless LAN knob sheet System miscellaneous parts for W700 and W700ds: 43Y9788 • (a) Cable assembly, HDD daughter FFC • (b) Cable assembly, ODD switch (discrete) •...

  • Page 204: Power Cords

    42T5083 42T5168 • models -CTO, xxG Israel 42T5062 42T5147 • models -CTO, xxG Italy 42T5047 42T5132 • models -CTO, xxG Korea 42T5077 42T5162 • models -CTO, xxK ThinkPad W700, W700ds, W701, and W701ds Hardware Maintenance Manual Downloaded from LpManual.com Manuals...
  • Page 205 Table 71. Parts list—3-pin power cords (1.0 m) (continued) Region CRU ID Switzerland 42T5044 42T5129 • models -CTO, xxG Taiwan 42T5071 42T5156 • models -CTO, xxV U.K., China (Hong Kong S.A.R.) 42T5035 42T5120 • models -CTO, xxB, xxG, xxH Table 72. Parts list—3-pin power cords (1.8 m) Region CRU ID Argentina...

  • Page 206: Recovery Discs

    Norwegian 58Y0103 Polish 58Y0104 Russian 58Y0106 58Y0105 Russian (English-enabled) Simplified Chinese 58Y0089 Slovenian 58Y0107 58Y0108 Spanish Swedish 58Y0109 Traditional Chinese 58Y0111 58Y0097 Traditional Chinese (Hong Kong S.A.R.) ThinkPad W700, W700ds, W701, and W701ds Hardware Maintenance Manual Downloaded from LpManual.com Manuals...

  • Page 207: Windows Xp Professional (64 Bit) Dvds

    Table 73. Parts list—Windows XP Professional (32 bit) recovery DVDs (continued) Language Turkish 58Y0110 Windows XP Professional (64 bit) DVDs Windows XP Professional (64 bit) DVDs are available as the operating system in the following models, however, Windows XP Professional is not preloaded in the computer: •...

  • Page 208: Windows Vista Business (64 Bit) Dvds

    77x, 79x, 7Ax, E3x, EAx, EBx, ECx, EDx, EEx, EFx, EGx, EHx, EJx, EKx, ELx, FEx, FFx, FQx, LYx, LZx, M3x, M4x, M6x, M7x, MKx, MLx, MMx, MPx, MQx, MRx, MVx, MXx, MYx, MZx, N2x • 2762-CTO • 2763-CTO ThinkPad W700, W700ds, W701, and W701ds Hardware Maintenance Manual Downloaded from LpManual.com Manuals...
  • Page 209 Table 76. Parts list—Windows Vista Business (64 bit) DVDs Language 58Y0044 Czech Danish 58Y0045 English 58Y0066 English (modem-disabled) 58Y0065 58Y0910 English, Finnish, and Swedish (in Sweden) English, French, German, and Dutch (in Belgium and Luxemburg) 58Y0909 English, French, German, and Italian (in Switzerland) 58Y0908 French 58Y0046...

  • Page 210: Windows Vista Ultimate (64 Bit) Dvds

    Windows 7 Professional (64 bit) DVDs Windows 7 Professional (64 bit) is preinstalled as the operating system in the following models: • 2752-CTO • 2753-CTO • 2754-CTO • 2762-CTO • 2763-CTO ThinkPad W700, W700ds, W701, and W701ds Hardware Maintenance Manual Downloaded from LpManual.com Manuals...
  • Page 211 Table 79. Parts list—Windows 7 Professional (64 bit) recovery DVDs Language Brazilian Portuguese 58Y3753 Czech 58Y3756 Danish 58Y3757 Dutch 58Y3768 English 58Y3781 English (for India) 58Y3758 58Y3780 English (modem-disabled) English, Finnish, and Swedish (in Sweden) 58Y3783 English, French, German, and Dutch (in Belgium and Luxemburg) 58Y3782 58Y3784 English, French, German, and Italian (in Switzerland)
  • Page 212 Russian 76Y1011 Russian (English-enabled) 76Y1009 Serbian-Latin 76Y1015 Simplified Chinese 58Y4991 Slovak 76Y1012 Slovenian 76Y1013 76Y1014 Spanish Traditional Chinese 58Y4992 Traditional Chinese (Hong Kong S.A.R.) 76Y1000 Turkish 76Y1016 ThinkPad W700, W700ds, W701, and W701ds Hardware Maintenance Manual Downloaded from LpManual.com Manuals...

  • Page 213: Common Service Tools

    USB floppy diskette drive tool kit Test card for integrated Smart Card 42W7820 — LENOVO ThinkPad Hardware Maintenance Diskette Version 1.76 or later Note: Download the file from the following Web site: http://www.lenovo.com/spm Chapter 11 Parts list Downloaded from LpManual.com Manuals...
  • Page 214 ThinkPad W700, W700ds, W701, and W701ds Hardware Maintenance Manual Downloaded from LpManual.com Manuals...

  • Page 215: Appendix A. Notices

    Lenovo representative for information on the products and services currently available in your area. Any reference to a Lenovo product, program, or service is not intended to state or imply that only that Lenovo product, program, or service may be used. Any functionally equivalent product, program, or service that does not infringe any Lenovo intellectual property right may be used instead.

  • Page 216: Trademarks

    Trademarks The following terms are trademarks of Lenovo in the United States, other countries or both: Active Protection System Lenovo Rescue and Recovery ThinkLight ThinkPad ThinkVantage TrackPoint Ultrabay Ultrabay 2000 Ultrabay Plus UltraNav IBM (used under license) is trademark of the International Business Machines Corporation in the United States, other countries, or both.
  • Page 217 Downloaded from LpManual.com Manuals...
  • Page 218 Part Number: 43Y9442_08 Printed in (1P) P/N: 43Y9442_08 *1P43Y9442_08* Downloaded from LpManual.com Manuals...

This manual is also suitable for:
