Page 1: Lcd Monitor

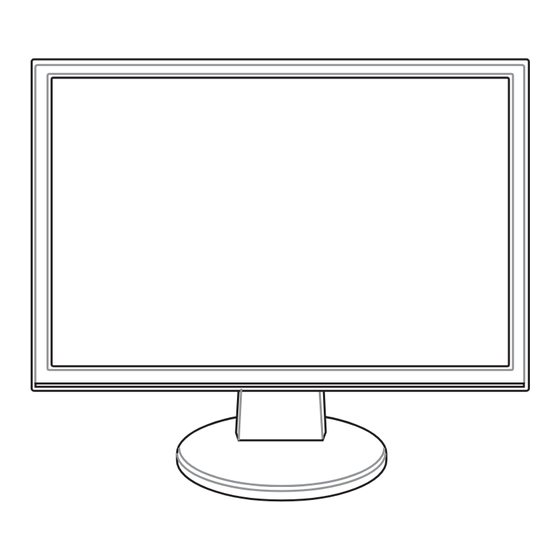

VW202xR/VW202B LCD Monitor User Guide Downloaded from ManualMonitor.com Manuals... - Page 2 Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing.
-
Page 3: Table Of Contents
General instruction OSD (On-Screen Display) menu ........... 1 3.1.1 How to reconfigure ............. 1 3.1.2 OSD Function Introduction ..........1 ASUS EzLink Display (VW202B only) ..........4 3.2.1 System requirements ............4 3.2.2 Installing ASUS EzLink Display: ......... 5 3.2.3 Using ASUS EzLink Display: .......... -
Page 4: Notices
Notices Federal Communications Commission Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: • This device may not cause harmful interference, and • This device must accept any interference received including interference that may cause undesired operation. -
Page 5: Tco Development
TCO Development Congratulations! The display you have just purchased carries the TCO’03 Displays label. This means that your display is designed, manufactured and tested according to some of the strictest quality and environmental requirements in the world. This makes for a high performance product, designed with the user in focus that also minimizes the impact on our natural environment. -
Page 6: Safety Information
Safety information • Before setting up the monitor, carefully read all the documentation that came with the package. • To prevent fire or shock hazard, never expose the monitor to rain or moisture. • Never try to open the monitor cabinet. The dangerous high voltages inside the monitor may result in serious physical injury. -
Page 7: Care & Cleaning
Care & Cleaning • Before you lift or reposition your monitor, it is better to disconnect the cables and power cord. Follow the correct lifting techniques when positioning the monitor. When lifting or carrying the monitor, grasp the edges of the monitor. Do not lift the display by the stand or the cord. - Page 8 Refer to the following sources for additional information and for product and software updates. ASUS websites The ASUS websites worldwide provide updated information on ASUS hardware and software products. Refer to http://www.asus.com Optional documentation Your product package may include optional documentation that may have been added by your dealer.
-
Page 9: Welcome
Thank you for purchasing the ASUS VW202xR/VW202B LCD monitor! The latest widescreen LCD monitor from ASUS provides a crisper, broader, and brighter display, plus a host of features that enhance your viewing experience. With these features, you can enjoy the convenience and delightful visual... -
Page 10: Monitor Introduction
Monitor introduction 1.3.1 Front view Base Button: • Use this hotkey to switch from five video preset modes (Game Mode, Night View Mode, Scenery Mode, Standard Mode, Theater Mode) with SPLENDID™ Video Enhancement Technology. • Exit the OSD menu or go back to the previous menu as the OSD menu is active. -
Page 11: Back View
DVI port. This 24-pin port is for PC (Personal Computer) DVI-D digital signal connection. USB port (VW202B only). This port is for the built-in USB hub and ASUS EzLink Display connection. VGA port. This 15-pin port is for PC VGA connection. - Page 12 Chapter 1: Product introduction Downloaded from ManualMonitor.com Manuals...
-
Page 13: Assembling The Monitor Base
Hold the stand to prevent the monitor from falling when you change its angle. • You can adjust the monitor’s angle from -3º to 20º. -3º~20º It is normal that the monitor slightly shakes while you adjust the the viewing angle. ASUS VW202xR/VW202B LCD Monitor Downloaded from ManualMonitor.com Manuals... -
Page 14: Detaching The Arm/Base (For Vesa Wall Mount)
Detaching the arm/base (for VESA wall mount) The detachable arm/base of the VW202xR/VW202B LCD monitor is specially designed for VESA wall mount. To detach the arm/base: Have the front of the monitor face down on a table. Remove the rubbers in the four screw holes (Figure 1). -
Page 15: Connecting The Cables
Turning on the monitor Gently press the power button . See page 1-2 for the location of the power button. The power indicator lights up in blue to show that the monitor is ON. ASUS VW202xR/VW202B LCD Monitor Downloaded from ManualMonitor.com Manuals... - Page 16 Chapter 2: Setup Downloaded from ManualMonitor.com Manuals...
-
Page 17: Osd (On-Screen Display) Menu
Night View Mode: best choice for dark-scene game or movie with • SPLENDID™ Video Enhancement. In the Standard Mode, the Satuation and Sharpness functions are not • user-configurable. In the other modes, the sRGB function is not user-configurable. • ASUS VW202xR/VW202B LCD Monitor Downloaded from ManualMonitor.com Manuals... - Page 18 Contrast: the adjusting range is from 0 to 100. • ASCR: turns on/off the ASCR(ASUS Smart Contrast Ratio) function. • Sharpness: the adjusting range is from 0 to 100. • Saturation: the adjusting range is from 0 to 100.
- Page 19 German, Italian, French, Dutch, Spanish, Russian, Traditional Chinese, Simplified Chinese, and Japanese. Aspect Control: adjusts the aspect ratio to “Full” or “4:3”. • Information: shows the monitor information. • Reset: “Yes” allows you to restore the default setting. • ASUS VW202xR/VW202B LCD Monitor Downloaded from ManualMonitor.com Manuals...
-
Page 20: Asus Ezlink Display (Vw202B Only)
ASUS EzLink Display (VW202B only) ASUS EzLink Display allows you to transfer digital video signal from your PC to your LCD via a standard USB 2.0 cable. Without the necessity of purchasing additional graphics cards, EzLink Display provides the flexibility for multi-screen applications. -
Page 21: Installing Asus Ezlink Display
POST, motherboard BIOS, or DOS environment. • ASUS EzLink Display supports 16-bit and 32-bit desktop color depth only. • We recommend that you use the following media players for the optimum video playback quality: Windows Media Player 11 (www.microsoft.com/windows/windowsmedia/default.mspx) -
Page 22: Using Asus Ezlink Display
Sets the location of the extended desktop Enables desktop extension Mirrors the content of the primary desktop to the extended desktop Turn off the mirror/extended display Launches the Windows Display Settings ® tool 3. ASUS EzLink Display (USB_XXXX-XXXXXXXXXXXX) Chapter 3: General Instruction Downloaded from ManualMonitor.com Manuals... -
Page 23: Specifications Summary
VGA cable, DVI cable, audio cable, power cord, quick start guide, warranty card Regulation approvals Energy Star , CB, CE, Gost-R, CCC, CSA, FCC, C-Tick, ® BSMI, VCCI, TCO03, RoHS, WEEE, PSB *Specifications are subject to change without notice. ASUS VW202xR/VW202B LCD Monitor Downloaded from ManualMonitor.com Manuals... - Page 24 Specifications summary (VW202SR) Panel Type TFT LCD Panel size 20" (16:10) wide screen Max. Resolution WSXGA+ 1680 x 1050 Pixel pitch 0.258mm Brightness (Typ.) 250cd/m Brightness (Max.) 300cd/m Contrast Ratio (Typ.) 800:1 Contrast Ratio (Max.) 3000:1 (with ASCR ON) Viewing angle(H/V) CR>10 160˚/160˚...
- Page 25 Chinese, Japanese) Accessories VGA cable, power cord, quick start guide, warranty card Regulation approvals Energy Star , CB, CE, Gost-R, CCC, CSA, FCC, C-Tick, ® BSMI, VCCI, TCO03, RoHS, WEEE, PSB *Specifications are subject to change without notice. ASUS VW202xR/VW202B LCD Monitor Downloaded from ManualMonitor.com Manuals...
- Page 26 Specifications summary (VW202B) Panel Type TFT LCD Panel size 20" (16:10) wide screen Max. Resolution WSXGA+ 1680 x 1050 Pixel pitch 0.258mm Brightness (Typ.) 250cd/m Brightness (Max.) 300cd/m Contrast Ratio (Typ.) 800:1 Contrast Ratio (Max.) 3000:1 (with ASCR ON) Viewing angle(H/V) CR>10 160˚/160˚...
-
Page 27: Troubleshooting (Faq)
• Adjust the volume settings of both your monitor and computer. • Ensure that the computer sound card driver is properly installed and activated. ASUS VW202xR/VW202B LCD Monitor 3-11 Downloaded from ManualMonitor.com Manuals... -
Page 28: Supported Operating Modes
Supported operating modes Standard Resolution Horizontal Vertical Pixel Frequency Frequency Frequency 20 x 400 31.4KHz 0Hz 28.32MHz 640 x 480 31.4KHz 60Hz 25.18MHz 640 x 480 3.90KHz 2Hz 31.50MHz 640 x 480 3.50KHz 5Hz 31.50MHz SVGA 800 x 600 35.16KHz 56Hz 36.00MHz 800 x 600...
