Kenwood DPC-885 Service Manual

Hide thumbs Also See for DPC-885:

Advertisement

Quick Links

Download this manual See also: Instruction Manual

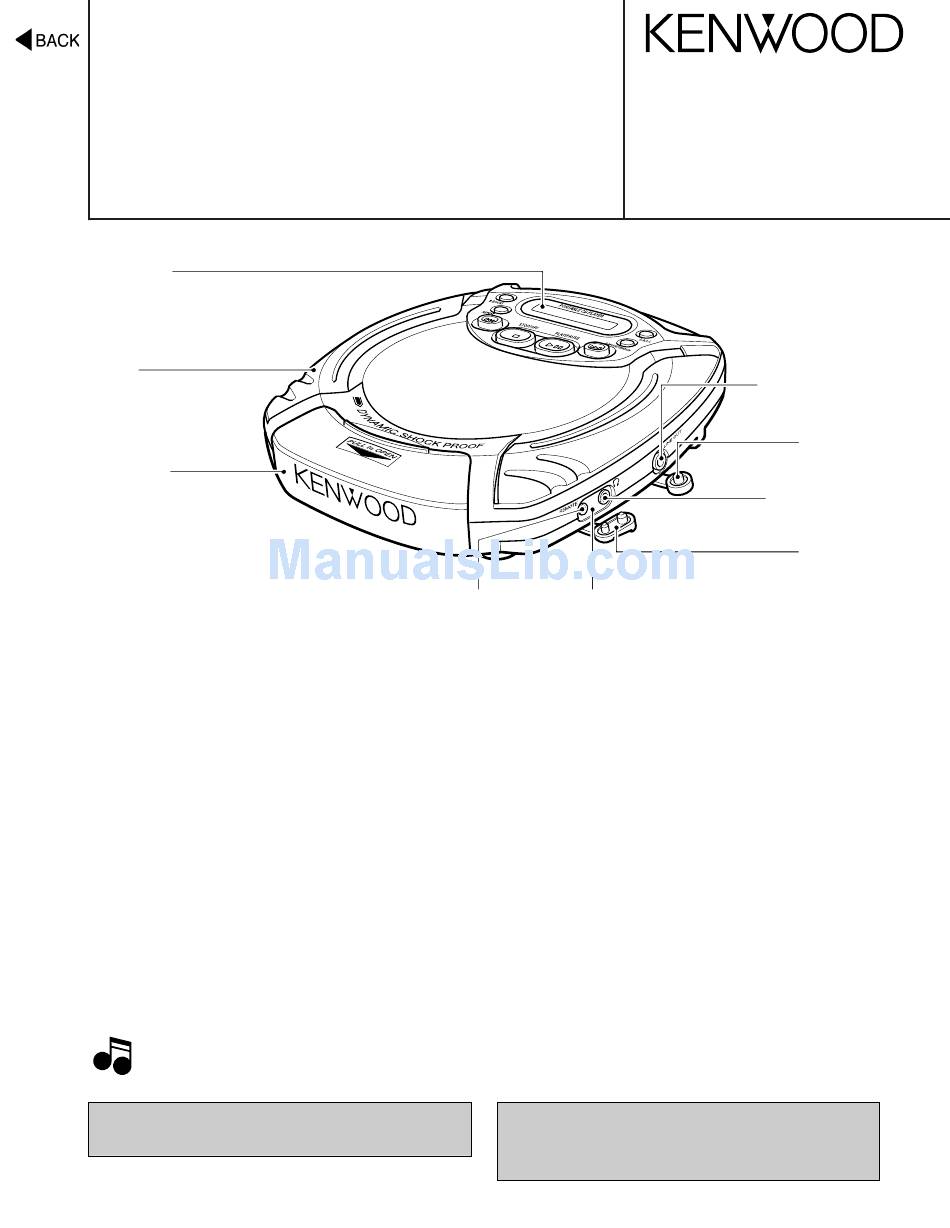

PORTABLE CD PLAYER
DPC-885
SERVICE MANUAL
Front glass
(B10-2397-04)
Cover *
(F07-)
Holder
(J19-5841-03)
[ Format ]
System.....................................................................................................................................Compact disc digital audio system
Laser .............................................................................................................................................................Semiconductor laser
[ Audio ]
Frequency response ..................................................................................................................................20 Hz ~ 20 kHz, ±3 dB
Headphone output (16 Ω, 1 kHz) ........................................................................................................................10 mW + 10 mW
(Headphone output level / impedance .........................................................................................................max. 450 mV / 2.2 Ω)
[For CHINA and Duty Free Shop in JAPAN]
Digital output optical....................................................................................................-21 dBm ~ -15 dBm (wave length 660 nm)
[For other countries]
LINE output level/impedance..................................................................................................................................550 mV/702 Ω
[ Power supply ]
External DC supply....................................................................................................................................................DC 4.5 ~ 6 V
Rechargeable batteries (NB - 130) x 2............................................................................................................................DC 2.4 V
Commercially-available alkaline batteries (LR6/AA) x 2....................................................................................................DC 3 V
Battery life (continuous repeat playback)
(Figures inside parentheses are the values when D.A.S.C. is ON.)
Commercially-available alkaline batteries (LR6/AA) x 2 ..........................................................................Approx. 17.5 (15) hours
Rechargeable batteries (NB-130) x 2.......................................................................................................Approx. 9.0 (8.0) hours
Dimensions (W x H x D) ...................................................................................132mm x 32mm x 153mm (5 - 3/16" x 1 - 1/4" x 6")
Weight (net)................................................................................................................................................................270 g (9.5 oz.)
1. KENWOOD follows a policy of continuous advancements in development. For this reason specifications may be changed without
notice.
Notes
2. Sufficient performance may not be exhibited at extremely cold locations (where water freezes.).
In compliance with Federal Regulations, following are
reproductions of labels on, or inside the product relating to laser
product safety.
Miniature phone jack
(E11-0278-05)

SPECIFICATIONS

KENWOOD-Crop. certifies this equipment conforms to DHHS
Regulations No. 21 DFR 1040. 10, Chapter 1, Subchapter J.
DANGER : Laser radiation when open and interlock defeated.
AVOID DIRECT EXPOSURE TO BEAM
© 1997-9/B51-5352-00 (K/K) 3447
Packing
(G53-0073-04)
Illustration is K type.
* Refer to parts list on page 17.
Electric circuit module
(W02-2527-05)
Cap
(F09-0133-04)
Miniature phone jack
(E11-0371-05)
Cap
(F09-0132-04)
