PROception proSTL1 KIT Instructions For Installation And Use

Compatibility disclaimer
Occasionally equipment may be found that cannot be controlled via starLINK. Although we
guarantee that starLINK equipment will perform its intended opto-electronic functions,
PROception cannot guarantee interoperability of this system with every piece of audio or
video equipment on the market. Some known incompatibilities are listed under the heading
“Compatibility” on Page 1.
2-Year Guarantee
This guarantee covers failure of your PROception product resulting from manufacturing
defect within a period of 2 years from the date of supply to the end-user.
This guarantee does not cover damage to the product caused by abuse, tampering, defective
installation or natural causes such as lightning discharge. Repair or attempted repair, other
than by the manufacturer, will render this guarantee void.
This guarantee does not affect a consumer’s statutory rights.
Performance data given are typical unless otherwise stated. Proception Limited reserves the right to change
product designs and specifications without prior notice.
Proception Limited,
177-187 Rutland Road
SHEFFIELD
S3 9PT
United Kingdom
Web: http://www.proception.co.uk/
e-mail: support@proception.co.uk
Page 8
PROception
INSTRUCTIONS FOR INSTALLATION AND USE
PROception starLINK is a wired remote control extender system. It is used where the
outputs from set-top box equipment such as VCR, DVD, satellite and digital receivers,
etc. are ‘piped’ to TV sets in one or more additional rooms. StarLINK facilitates remote
control of the set-top equipment from these other rooms, enabling you, for example, to
watch digital satellite programmes on a bedroom TV with full control of the Digibox.
Basics
In these instructions we refer to the location of the central set-top equipment as the
master location – this is usually the living room or lounge, where the main TV is situated.
Other rooms which receive wired TV signals distributed from the master location are
called extension rooms. The set-top equipment at the master location is referred to as the
source equipment.
These instructions assume that the source equipment is already installed and working
satisfactorily, with good TV signals from the aerials and satellite dish (if fitted).
Single extension room
This starLINK kit contains all the parts (except cable) necessary to install a basic system to
distribute signals from the master location to one extension room with remote control of
the source equipment. (Existing extension wiring can usually also be used.)
Multiple extension rooms
StarLINK can also be used in homes equipped with a PROception starBOX RF hub. The
starBOX system incorporates a special starLINK-compatible distribution amplifier which
allows up to five or ten extension rooms (depending on the starBOX model fitted) to be
connected.
Compatibility
Multi-extension-room remote control with starLINK can only be achieved where a
PROception starBOX is fitted. StarLINK is not compatible with other types of ‘return path
amplifier’ and may not be compatible with amplifier bypass kits from other manufacturers.
StarLINK is a wired infra-red re-emission type of remote control extender and is compatible
with the majority of household sound and vision equipment. StarLINK is not compatible
with UK Digital Cable set-top boxes or with B&O ‘Beolink’.

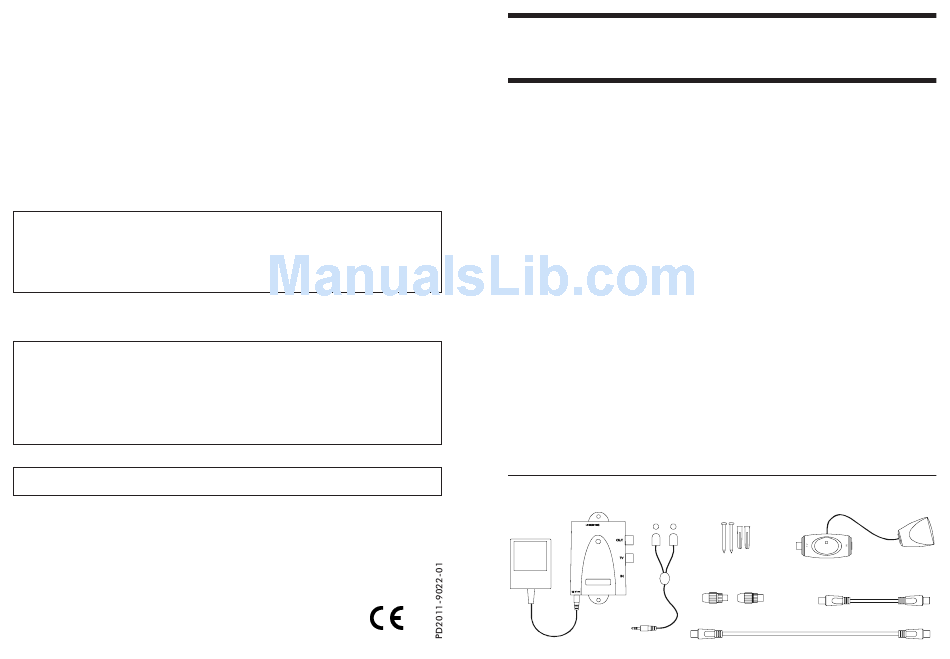

Fig. 1 – Contents of kit.
Base unit Emitters
with s/a pads
PSU
(one male, one female)
PRO ception
proSTL1KIT
‘Universal’ I-R Remote
Control Extender Kit
Fixings
PROception
proS TL1 EYE
Coupler
Coaxial connectors
Short flylead
Long flylead
‘Eye’
Page 1
