Summary of Contents for Tomberlin E-MERGE

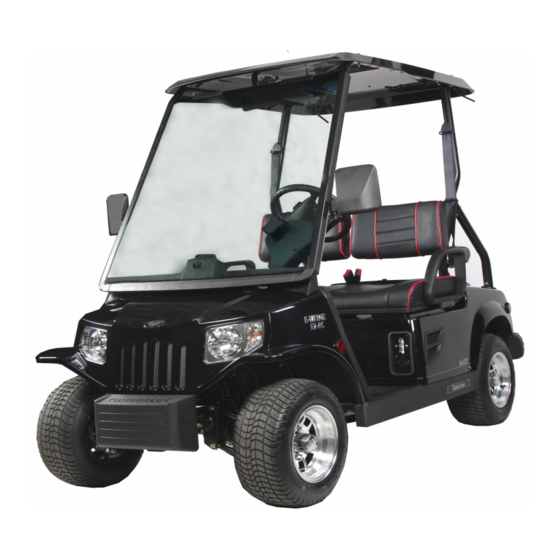

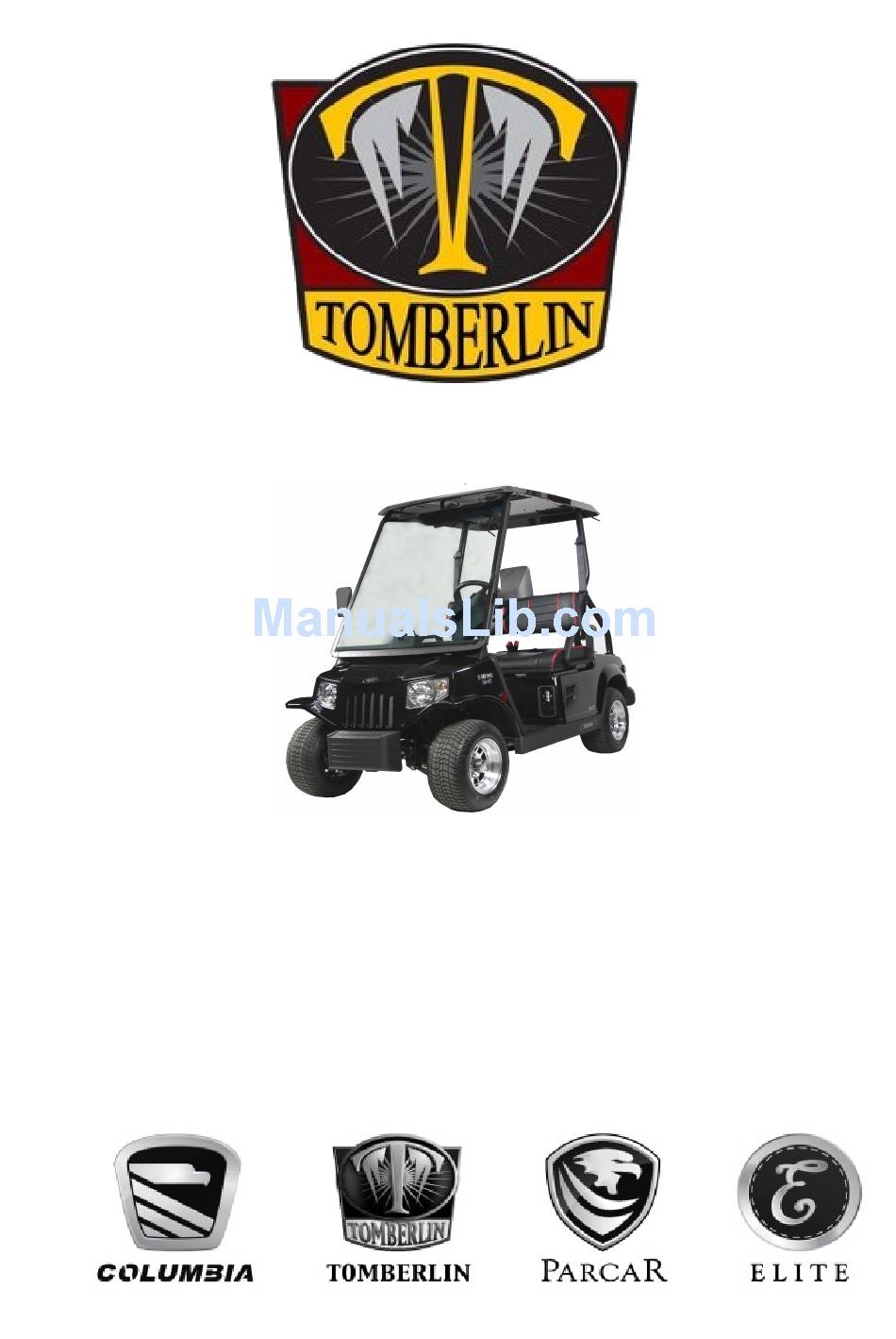

  • Page 1 E-MERGE OPERATOR’S MANUAL Columbia ParCar Custom Carts, Inc.
  • Page 3 OR AS A PTV AT 19 MPH.
  • Page 4 This vehicle is not designed to be used in conjunction with child safety seat. Do not use or install child safety seat in any seat or position in the vehicle. Always obey and follow laws and regulations regarding the transportation of children. Children that require the use of a child safety seat in a regular type automobile should not be transported in this vehicle.
  • Page 5 FOREWARD FOLLOW ALL BATTERY MANUFACTURE SAFETY , CARE AND MAINTENANCE GUIDENCE .
  • Page 6 Page4 E-Merge Operator's Manual...
  • Page 7 • CI ea n in g and a p p ea ran ce ------------------------------------------------------------------------------------------------------------ 3 1 • Vehic l e s p eci f i cations ----------------------------------------------------------------------------------------------------------------------------------- 3 2 -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- 3 3 • W arrant y E-Merge Operator's Manual Page 5...
  • Page 8 PRECAUTIONS The E-Merge is designed and manufactured as a PTV or an LSV. It is important that every Operator become familiar with safe operation of the vehicle as described in this Operating Manual and also with all applicable State, Local, and Community regulations governing the use of an LSV , Golf Car or PTV.
  • Page 9 Any referance to Battery Care or maintenance is intended as general safety guidelines. Always consult and follow the recommendations of your battery manufacturer if contrary to those expressed herein. Never exceed your skill level by performing services you are not trained to accomplish. When in doubt, Stop and call a professional. Inspect battery terminals, cables and batteries before each use.
  • Page 10 is detected contact your local fire department immediately. Do not store your vehicle inside if any of these conditions exist. Only use recommended batteries of the correct size. 2. To carry out repair work:turn the run/tow switch to the middle position (see Figure 1).
  • Page 11 ..,,,., - ------- -------"' Operating de - ----- Dash po --------- --------- --------- High /Low speed switch elerator pedal Cup holder ----- ----- ----- ----- ----- Seat heated switch Figure 2 Charger Figure 3 E-Merge Operator's Manual Page 9...
  • Page 12 CONTROLS 1. It is imperative that all operators of the E-Merge be familiar with the controls prior to operation. 2. To avoid unintentional acceleration and vehicle damage, do not turn the direction selector switch (forward/reverse) until vehicle has come to a complete stop.
  • Page 13 Emergency Switch The Emergency Switch is located on the forth position from right side of Dashboard.(Please see figure Figure Figure Light switch of Inner Mirror The switch is located above the Inner Mirror. (Please see figure Page 11 E-Merge Operator's Manual...
  • Page 14 Brake Pedal The brake pedal is the larger foot pedal located to the left of the accelerator pedal. The brake pedal engages all four of the E-Merge wheels for shorter stopping distances. To slow the vehicle down, the operator should depress the brake pedal.
  • Page 15 When the light bar is at the top of indicator, the battery pack contains a full charge. When the battery discharge is down by 70%, the two remaining lights will flicker as a warning.
  • Page 16 can be set by depressing the set buttons. This feature is especially useful in measuring the distance between each charge cycle. The reading of the speedometer can be programmed to read out in either miles or ilometers. To change the display simply press and hold the small button on the left.
  • Page 18 • Do not exceed the recommend number of occupants for the vehicle; o Maximum occupants on the single bench E-Merge: Two (E2) o Maximum occupants on the two bench E-Merge: Four (E4) CAUTION • Inspect the safety belt webbing and hardware periodically. Check for cuts, frays or loose parts.
  • Page 19 E-merge is limited even while going down an incline, The motor will engage to limit the top speed of the vehicle. The motor acts as a generator, transferring some of the excess energy into recharging the batteries.
  • Page 20 Never drink and drive. Not only is drinking and driving un...
  • Page 21 8. Slowy apply the accelerator. 9. Use the brake to stop and limit vehicle speed. Do not exceed 5 mph(8 kph).
  • Page 22 8. Use floor Jacks or hire cradles to Remove weight off of the fires. nspections before each use...
  • Page 23 H. Components such as the motor, controller, and res i stor may become hot dur i ng operat i on. To avo i d burns, allow these components time to cool before performing service on the vehicle. E-Merge Operator's Manual Page 21...
  • Page 24 Check if it is normal, if not, please contact your dealer for service. Check maximun speed of a vehicle( 19.9mph)
  • Page 25 Tomberlin qualified technician.
  • Page 26 Brake fluid reservoi r Figure 25 • The second b raking system is an electronic motor b rake that will activate when the E-Merge comes to a complete stop, the key is turned off or the b atteries are b elow 24 volts.
  • Page 27 1 gallon water and 1 cup baking soda. Do not allow solution to enter the batteries. Rinse off residual solution. 2. The electrolyte level in the batteries should be checked weekly by removing the battery caps and visually inspecting the level as shown below. E-Merge Operator's Manual Page 25...
  • Page 28 5. After each use, the E-merge should be placed on charge. The batteries should never be left discharged longer than absolutely necessary.
  • Page 29 This vehicle is equipped with a charger interlock feature. This feature prevents vehicle from operating when the charger is connected to an AC power source. circuit should be between 100-240 volt and , no longer than 30-feet (10m).
  • Page 30 1.Always connect the charger to a GROUNDED outlet. When using an extension cord, avoid excessive voltage drops by using a grounded, 3-wire, 12-AWG cord no longer than 30 feet (10m). 2. Never connect a charger to the same outlet as any other device.
  • Page 31 1. For flooded lead-acid batteries, regularly check water levels of each battery cell after charging and add distilled water as required to level specified by battery manufacturer. Follow the maintenance and safety instructions recommended by the battery manufacturer.
  • Page 32 covered or present a tripping hazard. Alway utilize a charger cord sized for heavy power loads,consult an electrician in the event of any doubt.
  • Page 33 Visit www.lesterelectrical.com, manufacturer of the charger for more details and maintenance tips.
  • Page 34 980 1060 980 1060 38.61 41.76 38.61 41.76 1719.9 AC motor(kw/R.min) 5.0/5000 5.0/5000 AC motor(hp/R.min) 6.803/5000 6.803/5000 450/48 450/48 19.9 19.9...
  • Page 35  In  the  absence  of  a  full   s ervice  dealer,  Tomberlin’s   l imit   o f   l iability   i s   r estricted   t o   a  parts  only  warranty   a s  ...
  • Page 36  character.   T omberlin   v ehicles   d o   n ot   r ide   l ike   a   t raditional   g olf   c ar.   S ome  Tomberlin  vehicles  may  look  similar  ...
  • Page 37 Owners  Responsibility:   O w n e r s   a r e   r e s p o n s i b l e   t o   always   operate   and   maintain  ...
  • Page 38 Vanish   S eries   a nd   A nvil   D e f o r m a t i o n )   Tomberlin   a ccessories   properly   All   o ther   T omberlin   b randed   v ehicles  ...
  • Page 39 Other   e xclusions   i nclude   f ailures   associated   with   modifying   the   vehicle   or   installing   accessories   n o t   s p e c i f i c a l l y   authorized   by   Tomberlin™,   a ny  incidental  expenses  or  inconvenience  you  may  suffer  due  to  the  ...
  • Page 40   are   as   follows:   • Fully  Charge  at  least  every  30  days Tomberlin’s   B attery   S elect   • Check  water  level  weekly  and  after  fully  charging.  Use  only  distilled Program   o ffers   f lexibility   a t  ...
  • Page 41 &$ *++* & %&+ ##&. + /#,* &% & % %+# $* &) # $ ++ &%* &% &. #&% % $'#  .))%+0 $0 #*+4 *& + &- /#,* &%* % # $ ++ &%* $0 %&+ ''#0 +& 0&,6 Tomberlin is a registered trademark of Columbia ParCar Custom Carts, Inc.
  • Page 42 Tomberlin   r eserves   a ll   r ights   t o   i mprove,   m odify   o r   c hange   t he   d esign   o r   o peration   o f  ...
  • Page 44 THE COLUMBIA VEHICLE GROUP 2505 Industrial Street Leesburg, Florida 34748 www.columbiausa.com 352.323.4966 3902100-FYB2X48-0000 201604001...
