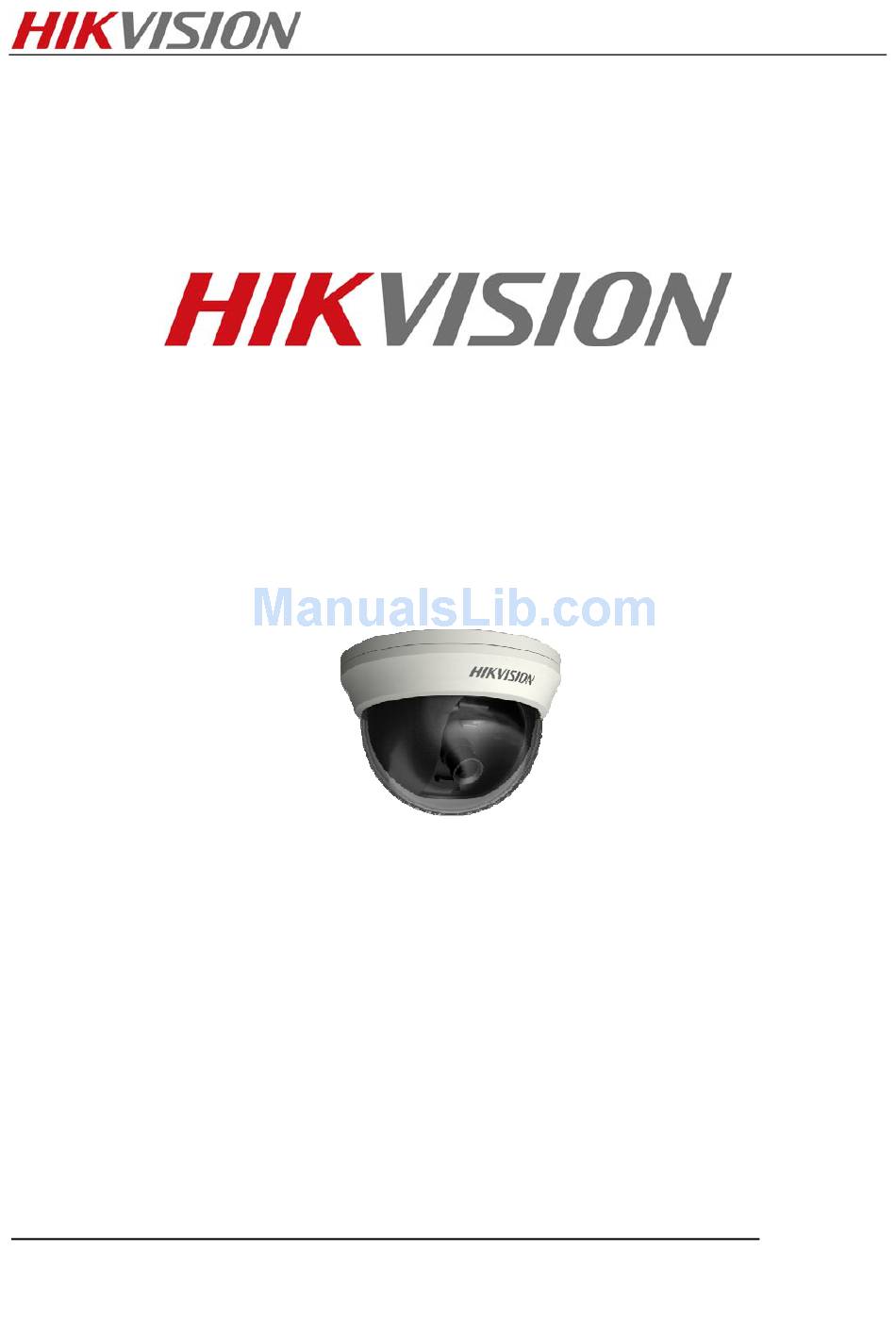

- Page 1 Hikvision Technical Manual DS-2CC5192P(N) Analog Camera Technical Manual ©2006 – 2011 by HIKVISION. All rights reserved.
- Page 2 It may not be reproduced in whole or in part, in any form, or by any means or be used for any other purpose without prior written consent of HIKVISION and then only on the condition that this notice is included in any such reproduction. No information as to the contents or...
- Page 3 Hikvision Technical Manual Contents 1. Key Features 2. Specifications 3. Dimension ©2006 – 2011 by HIKVISION. All rights reserved.
- Page 4 Min. Illumination 0.28 Lux @ (F2.0, AGC ON) PAL: 1/50 s to 1/100,000 s Shutter Time NTSC: 1/60 s to 1/100,000 s Lens 3.6 mm @ F2.0 (2.8 mm, 6 mm, 8 mm, 12 mm, 16 mm optional) Angle of view: 78° (3.6 mm) Lens Mount M12 Angle Adjustment Pan: 0 ‐ 355°, Tilt: 0 ‐ 90°, Rotation: 0 ‐ 355° Day & Night Electronic Horizontal Resolution 650 TVL Synchronization Internal synchronization 1Vp‐p composite output (75 Ω/BNC); Video Output Test monitor out [1Vp‐p composite output (75 Ω/BNC), device line] S/N Ratio More than 52 dB General Operating Conditions ‐10 °C ‐ 60 °C (14 °F ‐ 140 °F) Humidity 90% or less (non‐condensing) ©2006 – 2011 by HIKVISION. All rights reserved.
- Page 5 Hikvision Technical Manual Power Supply 12 V DC ± 10% Power Consumption Max. 2 W Dimension Φ 97.8 x 64.4 mm (φ 3.85” x 2.54”) Weight 300 g (0.66 lbs) 3. Dimension Unit: mm ©2006 – 2011 by HIKVISION. All rights reserved.
