Roger Access Control System
Installation guide for
HRT82AC air conditioning control panel
Firmware version: 1.0.4.9 or newer
Hardware version: 1.0
Document version: Rev. A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HRT82AC and is the answer not in the manual?

Questions and answers

Summary of Contents for Roger HRT82AC

  • Page 1 Roger Access Control System Installation guide for HRT82AC air conditioning control panel Firmware version: 1.0.4.9 or newer Hardware version: 1.0 Document version: Rev. A...
  • Page 2: Description And Specification

     Functional description of HRC series controllers  Installation guide for HRC series controllers In order to acquire the first one it is necessary to obtain Roger consent and sign non-disclosure agreement (NDA). The second one is available at www.roger.pl.
  • Page 3: Power Supply

    Fig. 3 Connection to controller without 12VDC power supply output 3.2 Power supply HRT82AC requires 12VDC nominal power supply. The power must be connected to 12V and GND terminals. Additionally, the GND terminal is used as reference potential for the RACS CLK/DTA bus.
  • Page 4: Front Panel

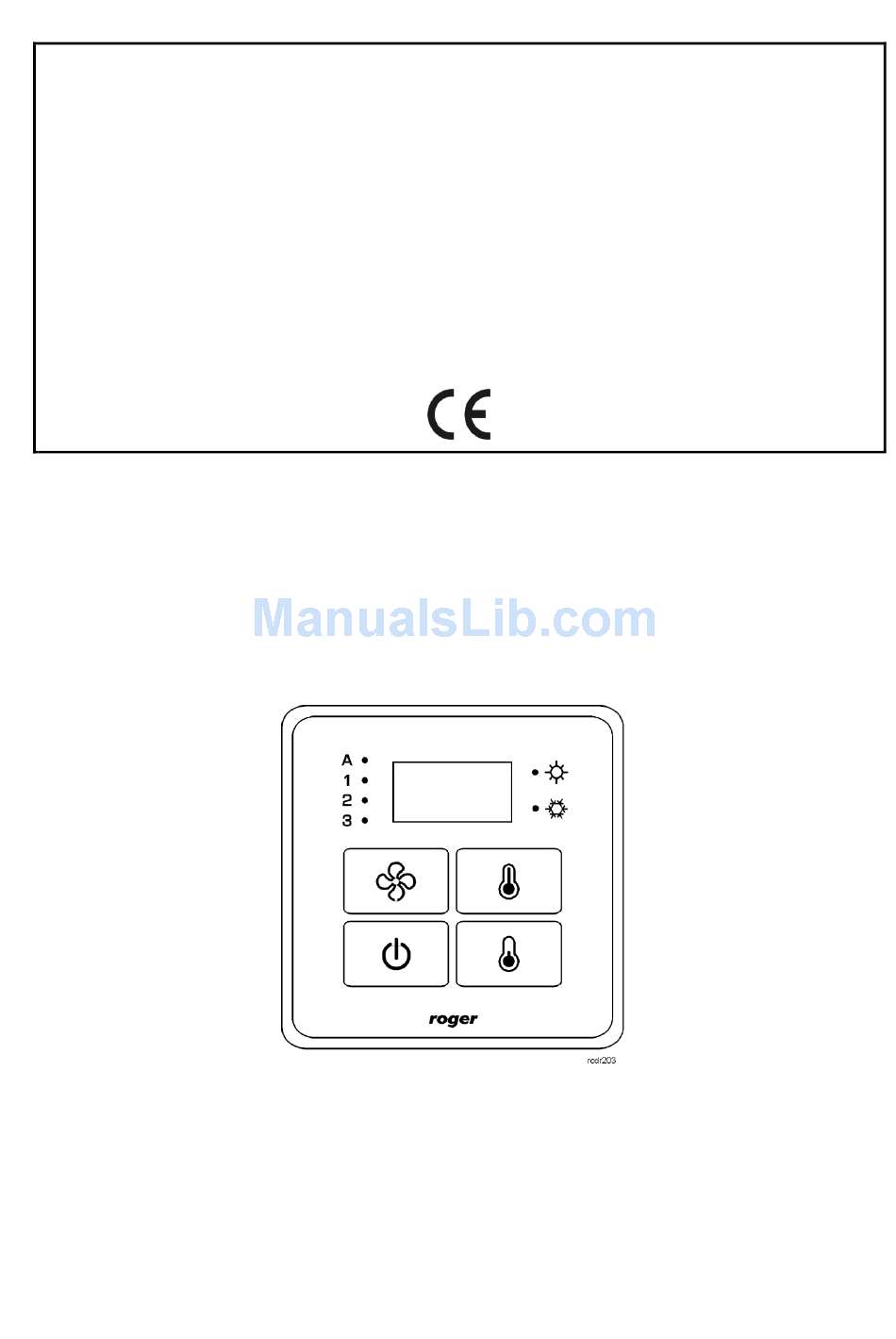

    In the second mode only temperature setting is displayed all the time. LED indicators In the top part of HRT82AC panel there are located six LED indicators. Their functions are explained in table 3. Table 3. LED indicators...
  • Page 5 TEMP- Turn temperature down 3.5 Wall mounting and installation guidelines HRT82AC consists of front panel and base which are factory assembled and require manual disassembly prior to installation according to fig. 4. Installation guidelines  Install device on wall far from sources of heat and moisture ...
  • Page 6 HRT82AC Installation Guide Rev.A 2015-08-13 Fig.4 HRT82AC latches and wall mounting © 2015 ROGER sp.j. All rights reserved. 6/11...
  • Page 7: Device Programming

    ONFIGURATION 4.1 Device programming The address of factory new HRT82AC is ID=7 and such device is ready to communicate with HRC series controller requiring no additional configuration. The same address is used by HRT82TS temperature sensor module. Therefore particular controller can operate with only one of mentioned devices at the same time.
  • Page 8 Buzzer loudness Buzzer loudness level. Buzzer is switched off when 0 level is 0..100% level selected Key Press Yes, No When activated, button pressing is signalled with buzzer. Confirmation Signal On Buzzer © 2015 ROGER sp.j. All rights reserved. 8/11...
  • Page 9: Firmware Update

    Fig. 8 Firmware update window in RogerVDM software 4.3 Memory reset In order to restore HRT82AC factory default settings place jumper on MEM pins and then restart the device either by placing and removing jumper on RST pins or by switching power supply off and on.
  • Page 10: Ordering Information

    Touch type function key panel RUD-1 Communication interface with 12VDC power supply output 7. P RODUCT HISTORY Table 9. Product history Version Released Description HRT82AC v.1.0 07/2014 The first commercial version of the product © 2015 ROGER sp.j. All rights reserved. 10/11...
  • Page 11 E-mail: support@roger.pl Web: www.roger.pl Terms of Use © 2015 ROGER sp.j. All rights reserved. This document is subject to the Terms of Use in their current version published at the www.roger.pl website. © 2015 ROGER sp.j. All rights reserved. 11/11...
