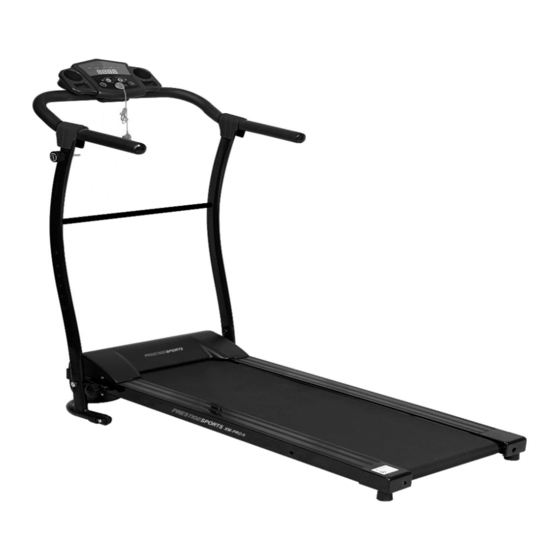

Treadmill – TRX1
User Manual
RETAIN THIS MANUAL FOR FUTURE REFERENCE
PLEASE READ THIS MANUAL CAREFULLY BEFORE USE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TRX 1 and is the answer not in the manual?

Questions and answers

Related Manuals for HPF TRX 1

Summary of Contents for HPF TRX 1

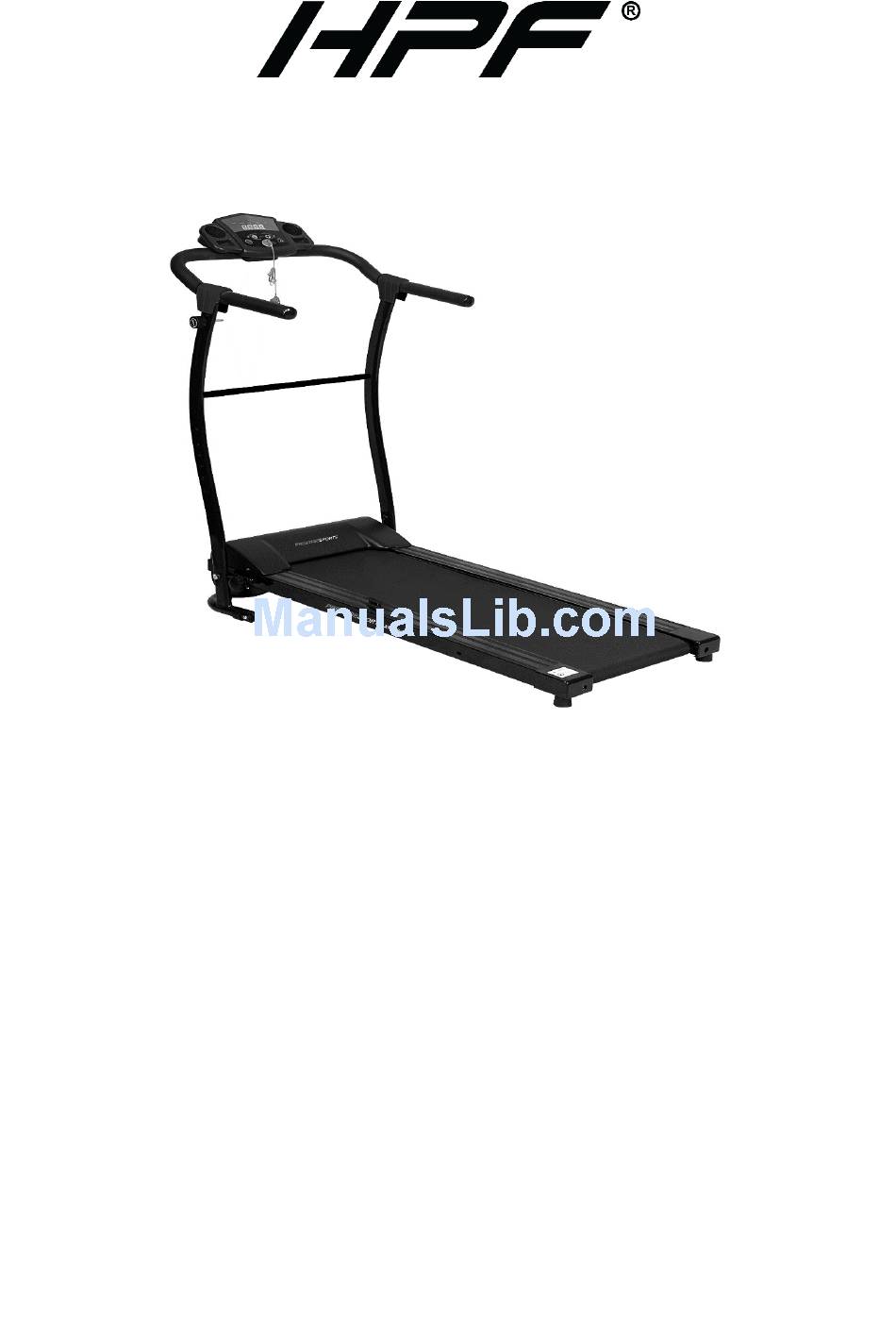

  • Page 1 Treadmill – TRX1 User Manual RETAIN THIS MANUAL FOR FUTURE REFERENCE PLEASE READ THIS MANUAL CAREFULLY BEFORE USE...

  • Page 2: Table Of Contents

    TREADMILL Table of Contents Safety ................................1 ELECTRICAL SAFETY ............................1 MECHANICAL SAFETY ............................. 1 CLEANING YOUR TREADMILL ........................1 GENERAL CONSIDERATIONS......................... 2 Included Items .............................. 2 WHATS IN THE BOX ............................2 TOOL KIT ................................2 Set-Up ................................2 SAFETY NOTES FOR INSTALLATION ......................

  • Page 3: Safety

    TREADMILL Safety Before using the equipment, carefully read this manual and keep handy for future consultation. The owner is responsible for guaranteeing that all equipment users are adequately informed of the safety precautions. ELECTRICAL SAFETY To reduce the risk of burns, fire, electrical shock, or injury to persons, take the following precautions. ...

  • Page 4: General Considerations

    TREADMILL GENERAL CONSIDERATIONS  Never allow more than one person on the equipment at a time.  Keep the equipment well away from children and pets, especially during use, thus avoiding any possible accidents.  Adjust resistance so the exercise is smooth and even. ...

  • Page 5: Assembly Instructions

    TREADMILL  It’s important that the treadmill base is firm and level. Check the floor level in the place where the equipment will be installed. If the deck is positioned on uneven surface, it would cause premature damage to the electronic system.
  • Page 6 TREADMILL Step 2: Place the treadmill on the ground smoothly and raise up the handrail. Step 3: Lock the handrail into the frame using the large knob. Note: before setting up the handrail, please remove the fixings out of the frame.

  • Page 7: Operation

    TREADMILL Operation TURNING THE POWER ON The On/Off switch for the treadmill is located next to the power supply cord at the back of the motor cover. Flip this switch to the “ON” position. SAFETY KEY AND CLIP The safety key is designed to cut the main power to the treadmill should your fall. Therefore, the safety key is designed to bring the treadmill to an immediate stop.

  • Page 8: Control Panel Features

    TREADMILL CONTROL PANEL FEATURES Instructions monitor functions:  Program training manual P1-P8 pre-set programs function.  The display shows: SPEED, TIME, DISTANCE, CALORIES  Display LCD and 4 buttons + safety key.  S peed Range: 1 - 10 km/h. ...

  • Page 9: Maintenance

    TREADMILL Using the 8 training programs P1-P8 The XM-PRO II has 8 automatic training programs: P1 - P8. To access the programs turn on the treadmill, click MODE and when "===" appears on the display, click “SPEED +” to select P1 and for higher programs keep pressing "SPEED +", then click MODE to confirm your selection.

  • Page 10: Lubricating The Deck

    TREADMILL Test the belt again to check slipping. Repeat procedure if necessary, but never turn the screws more than ½ turn at a time.  For your own safety do not use loose clothing, tie or loose jewelry that could affect this adjustment. ...

  • Page 11: Error Message And Solution

    TREADMILL ERROR MESSAGE AND SOLUTION Problem Possible cause Corrective action Treadmill does not work a) No connection to power supply Plug into mains socket b) Safety key not connected Connect safety key to control panel c) Damaged or disconnected cable Check control panel and signal cable d) Treadmill is not switched on Switch on...

  • Page 12: Technical Specifications

    TREADMILL TECHNICAL SPECIFICATIONS Model Prestige Sports TRX1 Ultra Motor Power 735W, 1.0Hp Rated Frequency 50-60 Hz Voltage 220-240 v Power Cord UK 3pin Speed Range 1-10 KM/H 1000 x 340MM Running Belt Features 10% fixed incline 8 auto programs Handrails with foam Water bottle holder Towel rail Emergency stop, magnetic safety key...
  • Page 13 Some experts believe the incorrect or prolonged use of almost any product could cause serious injury or death. For information that may reduce your risk of serious injury or death consult thepoints below and additionall y , the information available at www.datastreamserver.com/safety - Consult all documentation, packaging and - The product has been supplied by a general merchandise...
