VIESMANN
Service instructions
for contractors

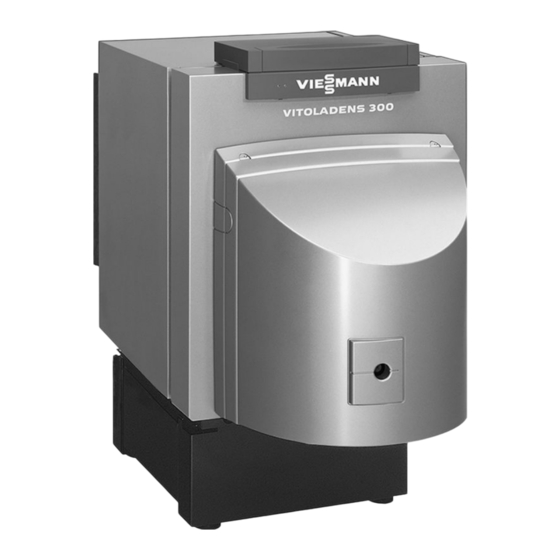

Vitoladens 300-T
Type VW3B, 33 to 50 kW
Oil Unit condensing boiler
For applicability, see the last page
VITOLADENS 300-T
Please keep safe.
5692 906 GB
7/2011

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the vitoladens 300-t and is the answer not in the manual?

Questions and answers

Related Manuals for Viessmann vitoladens 300-t

Summary of Contents for Viessmann vitoladens 300-t

  • Page 1 VIESMANN Service instructions for contractors Vitoladens 300-T Type VW3B, 33 to 50 kW Oil Unit condensing boiler For applicability, see the last page VITOLADENS 300-T Please keep safe. 5692 906 GB 7/2011...

  • Page 2: Safety Instructions

    Observe the following when working on tem. this system: Replace faulty components only ■ National installation requirements with original Viessmann spare ■ Legal instructions regarding the pre- parts. vention of accidents ■ Legal instructions regarding environ- mental protection ■...
  • Page 3 Installing non-author- ised components and making non-approved modifications or conversions can compromise safety and may invalidate our warranty. For replacements, use only orig- inal spare parts supplied or approved by Viessmann.

  • Page 4: Table Of Contents

    Index Index Commissioning, inspection, maintenance Steps - commissioning, inspection and maintenance.......... Further details regarding the individual steps............Parts lists......................15 Commissioning/service reports................ 20 Specification....................... 21 Certificates Declaration of conformity..................22 Manufacturer's certificate according to the 1st BImSchV [Germany]....23...

  • Page 5: Commissioning, Inspection, Maintenance

    Commissioning, inspection, maintenance Steps - commissioning, inspection and maintenance For further information regarding the individual steps, see the page indicated Commissioning steps Inspection steps Maintenance steps Page • 1. Filling the heating system on the heating water side. • • 2.

  • Page 6: Further Details Regarding The Individual Steps

    Commissioning, inspection, maintenance Further details regarding the individual steps Filling the heating system on the heating water side 1. Close shut-off valve B in the return 3. Fill the system via fill valve A on the line. heating water return, until it is fully vented.

  • Page 7: Opening The Boiler Door

    Commissioning, inspection, maintenance Further details regarding the individual steps (cont.) Opening the boiler door 40/50 kW Balanced flue operation: Remove venti- lation air pipe before opening the door.

  • Page 8: Cleaning The Heating Surfaces

    Commissioning, inspection, maintenance Further details regarding the individual steps (cont.) Cleaning the heating surfaces A Cleaning brush Note Please note Carry out standard cleaning from the Prevent components that come front of the boiler (through the combus- into contact with flue gas from tion chamber).

  • Page 9: Checking Gaskets And Thermal Insulation Components

    Commissioning, inspection, maintenance Further details regarding the individual steps (cont.) For this, observe the following: Cleaning agent manufacturer's ■ Only use solvent-free cleaning agents. details Ensure that no cleaning agent gets between the boiler body and the ther- mal insulation ■...

  • Page 10: Closing The Boiler Door

    Commissioning, inspection, maintenance Further details regarding the individual steps (cont.) Closing the boiler door 40/50 kW Note Tighten the screws diagonally.

  • Page 11: Separating The Neutralising System Or Active Charcoal Filter (If Installed) From The Boiler And Connecting The Drain Hose

    Commissioning, inspection, maintenance Further details regarding the individual steps (cont.) Separating the neutralising system or active charcoal filter (if installed) from the boiler and connecting the drain hose 1. Separate hose A to the neutralising 2. Connect drain hose C to the con- system from siphon B.

  • Page 12: Checking The Active Charcoal Filter (If Installed)

    Commissioning, inspection, maintenance Further details regarding the individual steps (cont.) Checking the active charcoal filter (if installed) Observe the active charcoal filter manu- facturer's instructions. Checking the connections on the flue gas side for tightness Note Traces of condensate indicate a leak. 1.

  • Page 13: Checking The Diaphragm Expansion Vessel And System Pressure

    Commissioning, inspection, maintenance Further details regarding the individual steps (cont.) Checking the diaphragm expansion vessel and system pressure 1. Drain the system until the pressure gauge indicates "0" or close the cap valve on the diaphragm expansion vessel and reduce the pressure in this vessel.

  • Page 14: Operating And Service Instructions

    Commissioning, inspection, maintenance Further details regarding the individual steps (cont.) Operating and service instructions 1. Complete and detach the customer registration card: ■ Hand system users their section for safekeeping ■ Retain the heating contractor's section 2. File all parts lists, operating and serv- ice instructions in the folder and hand this over to the system user.

  • Page 15: Parts Lists

    Parts lists Parts lists When ordering spare parts: 201 Back panel (with pos. 212) Quote the part no. and serial no. (see 203 Top panel type plate) and the position number of 205 Side panel the required part (as per this parts list). 206 Thermal insulation mat, back panel Obtain standard parts from your local 207 Thermal insulation mat, front panel...
  • Page 16 Parts lists Parts lists (cont.) A Boiler control unit (see separate parts list) B Boiler type plate, either on the l.h. or r.h. side C Heat exchanger type plate, either on the l.h. or r.h. side...
  • Page 17 Parts lists Parts lists (cont.)
  • Page 18 Parts lists Parts lists (cont.)
  • Page 19 Parts lists Parts lists (cont.) 044 221...

  • Page 20: Commissioning/Service Reports

    Commissioning/service reports Commissioning/service reports Commissioning Service Service date: Service Service Service date: Service Service Service date: Service Service Service date: Service Service Service date:...

  • Page 21: Specification

    Specification Specification Rated heating output 35.4 42.8 53.7 Product ID CE-0035BO107 Available draught mbar Flue gas temperature ■ At 30 °C return temperature °C ■ At 60 °C return temperature °C Power consumption ■ 100 % of rated heating out- ■...

  • Page 22: Certificates

    Certificates Declaration of conformity We, Viessmann Werke GmbH&Co KG, D-35107 Allendorf, declare as sole respon- sible body that the product Vitoladens 300-T complies with the following standards: EN 267 EN 303 EN 15 034 EN 15 035 (for balanced flue operation)

  • Page 23: Manufacturer's Certificate According To The 1St Bimschv [Germany]

    Certificates Manufacturer's certificate according to the 1st BImSchV [Germany] We, Viessmann Werke GmbH&Co KG, D-35107 Allendorf, confirm that the following product meets the NO limits specified by first BImSchV para. 6 (1) [Germany]: Vitoladens 300-T oil Unit condensing boiler Allendorf, 30 April 2010 Viessmann Werke GmbH&Co KG...
  • Page 24 Applicability Serial No.: 7465660 7440923 7454145 7454146 Viessmann Werke GmbH&Co KG Viessmann Limited D-35107 Allendorf Hortonwood 30, Telford Telephone: +49 6452 70-0 Shropshire, TF1 7YP, GB Fax: +49 6452 70-2780 Telephone: +44 1952 675000 www.viessmann.com Fax: +44 1952 675040 E-mail: info-uk@viessmann.com...
