Consew 244B Operator's Manual

MODELS: 244B 244RB 254B 255B 255RB
254RB 254BH
ONSEIN
OPERATOR'S GUIDE
FLAT BED SEWING MACHINE

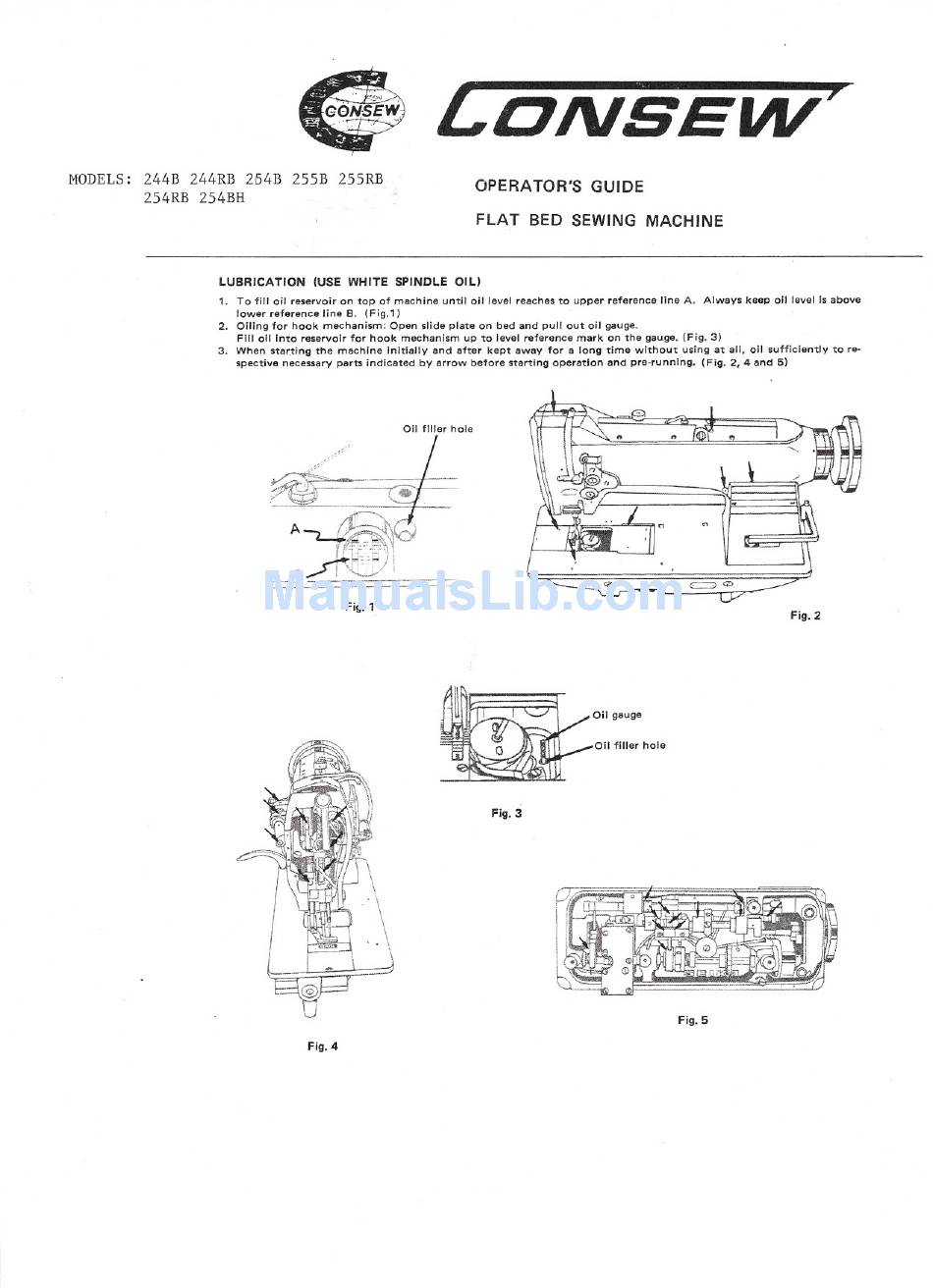

LUBRICATION (USE WHITE SPINDLE OIL)
1. To fill oil reservoir on toP of machine until oil level reaches to upper reference line A. Always keep oil level is above
lower reference line B. (Fig.1)
2. Oiling for hook mechanism: Open slide plate on bed and pull out oil gauge.
Fill oil Into reservoir for hook mechanism up to level reference mark on the gauge. (Fig. 3)
3. When star.ting the machine Initially and after kept away for a long time without using at all, oil sufficiently to re-
spective necessary parts indicated by arrow before starting operation and pre-running. (Fig. 2, 4 and 5)
Oil filler hole
Fig. 1
----.---.-.---...-.---.---
Fig. 4
Fig. 2
Oil filler hole
Fig. 3
Fig. 5
