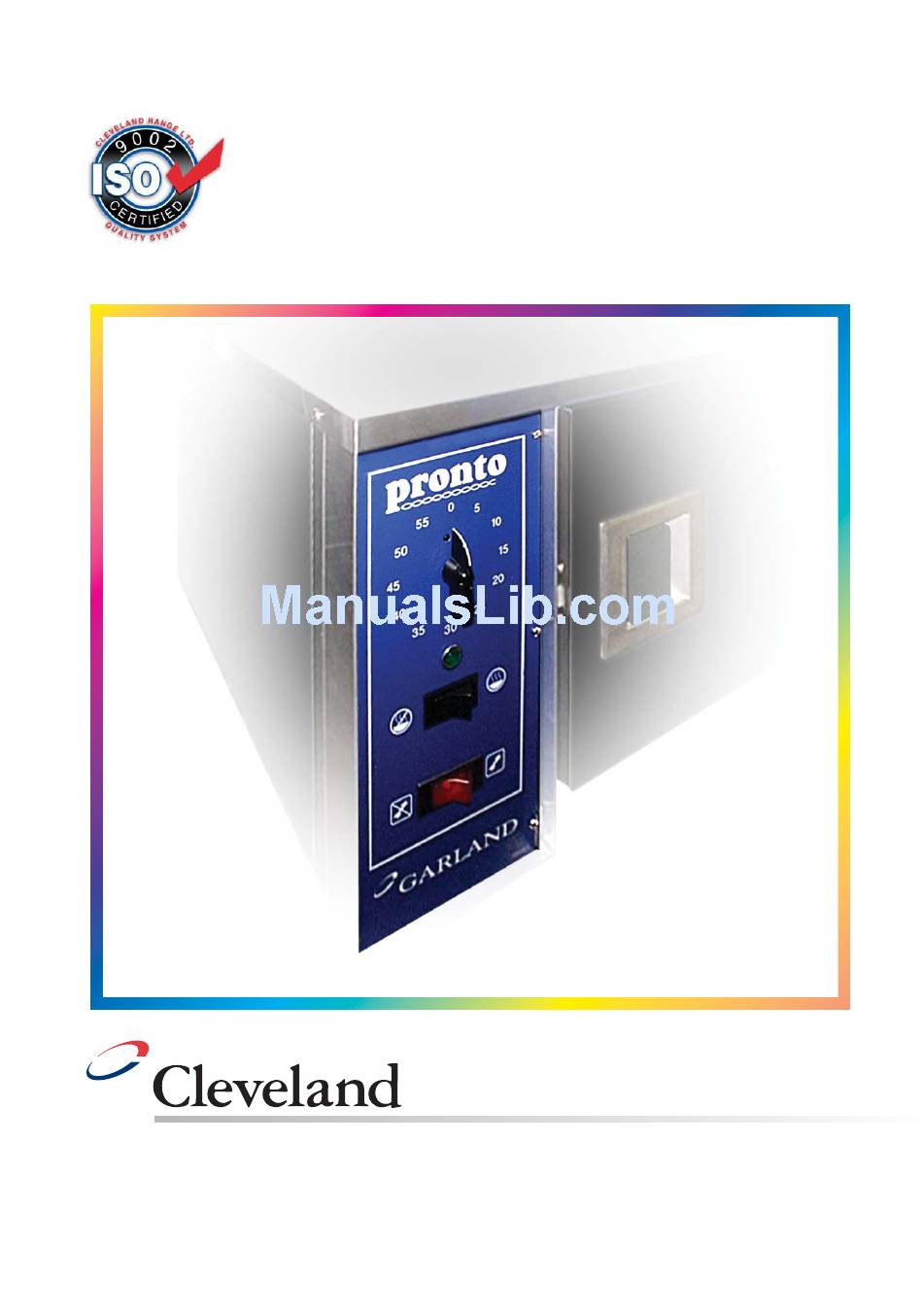

- Page 1 Operators Manual Installation, Operation & Service Pronto Table Top Steamer MODEL: CA1E 1333 East 179th St., Cleveland, Ohio, U.S.A. 44110 Enodis Phone: (216) 481-4900 Fax: (216) 481-3782 Visit our web site at www.clevelandrange.com KE55317...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Installation Serial Plate Location ........1 General Information. -
Page 12: Warranty
In order to preserve the various agency safety certification (UL, NSF, ASME/Ntl. Bd., etc.), only factory- supplied replacement parts should be used. The use of other than factory supplied replacement parts will void warranty. Pronto - Interior Parts ITEM NO. PART NO. -
Page 13: Electrical Components
Pronto - Electrical Components... - Page 14 Pronto - Electrical Components (continued) ITEM NO. PART NO. DESCRIPTION QTY. P14782 TIME DELAY ........... .1 KE55069-1 OPERATING THERMOSTAT .
-
Page 15: Latch, Hasp & Door Strike
Pronto - Latch, Hasp & Door Strike ITEM NO. PART NO. DESCRIPTION QTY. P078196 DOOR STRIKE PLATE, CHROME PLATED ......1 FA95076 STUD, SELF LOCKING . -
Page 16: Stacking Kit
Pronto - Stacking Kit ITEM NO. PART NO. DESCRIPTION QTY. FI00666 NIPPLE, 1" X 5" ..........1 FI00064 ELBOW, 1", BRASS . -
Page 17: Plumbing Components
Pronto - Plumbing Components 25 26 28 29... - Page 18 Pronto - Plumbing Components (continued) ITEM NO. PART NO. DESCRIPTION QTY. P076050 NEEDLE VALVE ..........1 P078314 COVER, LEVEL CONTROL .
-
Page 19: Electrical Components
Pronto - Electrical Components ITEM PART NO. DESCRIPTION QTY. P1478200 ELECTRONIC TIMER PR50015 BUZZER F01296-2 PILOT LIGHT, GREEN P03054-1 COOK SWITCH P077078-1 POWER SWITCH FA20504 GROUND NUTS... -
Page 20: Wiring Diagram
Pronto - Wiring Diagram ITEM PART NO. DESCRIPTION QTY. P50003 TERMINAL BLOCK TRANSFORMERS KE53838-14 208-240/120V KE53838-15 220/415V KE53838-16 480V KE53838-17 600V KE50750-6 CONTACTOR (see ELECTRICAL ELEMENTS COMPONENTS) P077078-1 POWER SWITCH P076008-3 MOTORIZED DRAIN VALVE P2093400 SWITCH, FLOAT ASSEMBLY KE54834-15 FILL SOLENOID...
