Glen GL 672 TOUCH User Manual

Touch control microwave with convection and grill
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
BUILT-IN
MICROWAVE OVEN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GL 672 TOUCH and is the answer not in the manual?

Questions and answers

Related Manuals for Glen GL 672 TOUCH

Summary of Contents for Glen GL 672 TOUCH

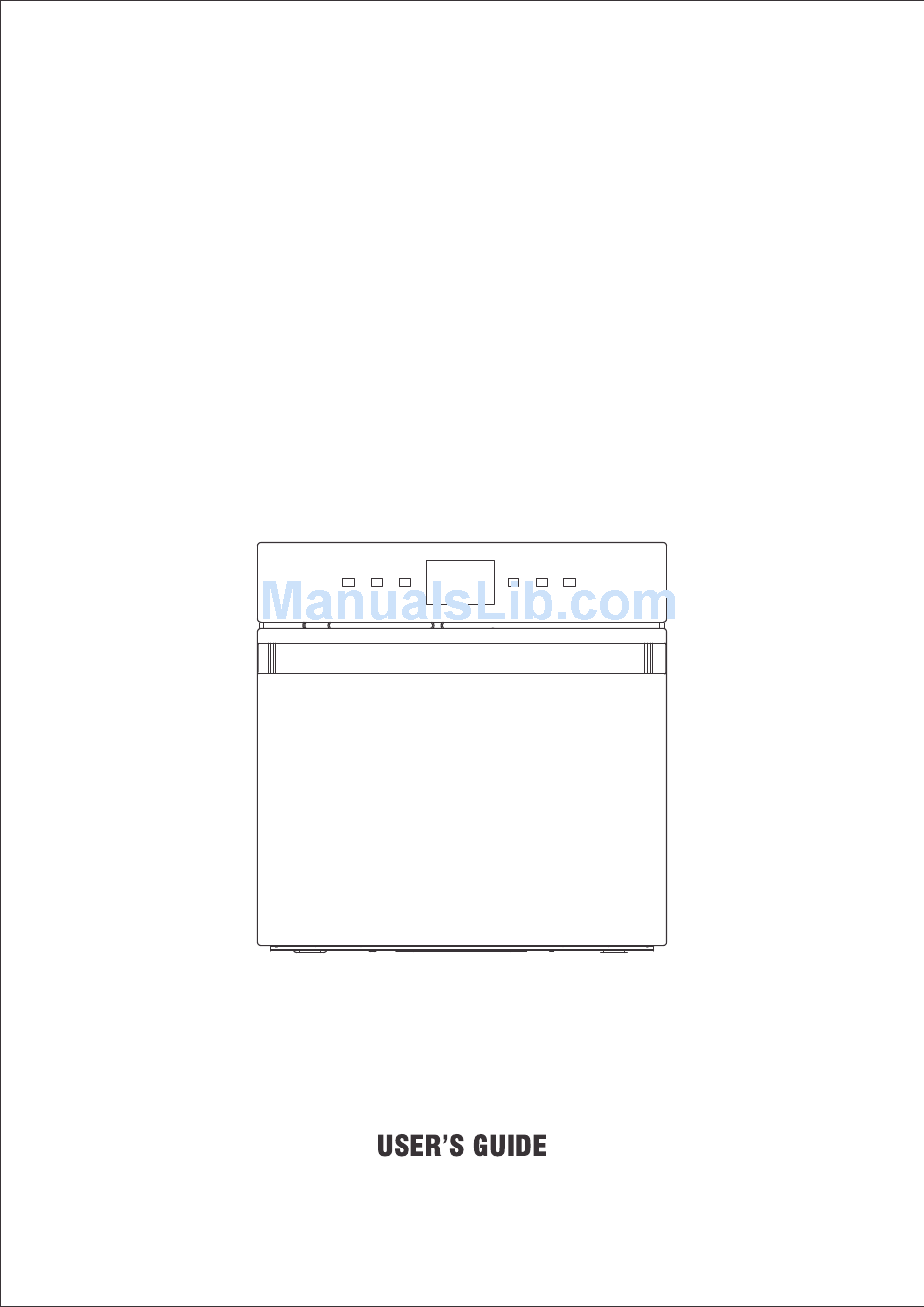

  • Page 1 BUILT-IN MICROWAVE OVEN...

  • Page 2: General Instructions

    General instructions 1. INSTRUCTIONS FOR USE THIS MANUAL CONSTITUTES AN INTEGRAL PART OF THE APPLIANCE. IT SHOULD BE KEPT INTACT AND AT HAND FOR THE APPLIANCE’S ENTIRE LIFE CYCLE. IT IS IMPORTANT TO CAREFULLY READ THIS MANUAL AND ALL THE INSTRUCTIONS CONTAINED HEREIN BEFORE USING THE APPLIANCE.

  • Page 3: Important Safety Instructions Read Carefully And Keep For Future Reference

    General instructions IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE - WARNING: when the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated; - WARNING: if the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person;...

  • Page 4: Safety Instructions For General Use

    General instructions SAFETY INSTRUCTIONS FOR GENERAL USE Listed below are, as with all appliances, certain rules to follow and safeguards to assure top performance from this oven: 1. Always have the glass tray when operating the oven. 2. Do not use the oven for any reason other than food preparation, such as for drying clothes, paper, or any other nonfood items, or for sterilizing purposes.

  • Page 5: Safety Precautions

    General instructions 2. SAFETY PRECAUTIONS REFER TO THE INSTALLATION INSTRUCTIONS FOR THE SAFETY REGULATIONS FOR ELECTRIC OR GAS APPLIANCES AND VENTILATION FUNCTIONS. IN YOUR INTERESTS AND FOR YOUR SAFETY THE LAW REQUIRES THAT THE INSTALLATION AND SERVICING OF ALL ELECTRICAL APPLIANCES IS CARRIED OUT BY QUALIFIED PERSONNEL IN ACCORDANCE WITH THE REGULATIONS IN FORCE.
  • Page 6 General instructions DURING USE THE APPLIANCE BECOMES VERY HOT. TAKE CARE NOT TO TOUCH THE HEATING ELEMENTS INSIDE THE OVEN. THIS APPLIANCE MAY NOT BE USED BY PEOPLE (INCLUDING CHILDREN) OF REDUCED PHYSICAL AND MENTAL CAPACITY, OR LACKING IN EXPERIENCE IN THE USE OF ELECTRICAL APPLIANCES, UNLESS THEY ARE SUPERVISED OR INSTRUCTED BY ADULTS RESPONSIBLE FOR THEIR SAFETY.

  • Page 7: Instructions For Disposal

    Instructions for disposal 3. ENVIRONMENTAL RESPONSIBILITY 3.1 Our environmental responsibility Pursuant to Directives 2002/95/EC, 2002/96/EC and 2003/108/EC relating to the reduction of the use of hazardous substances in electrical and electronic appliances, as well as to the disposal of refuse, the crossed out bin symbol on the appliance indicates that at the end of the useful life of the product, it must be collected separately from other refuse.

  • Page 8: Using The Oven

    Product Tech. Data Model No.: GL 672 TOUCH 220-240V~50HZ Power: Grill Heater: 1500W Microwave Power output: 1000W Capacity: Product Size: 595mm(W)X522mm(D)X650mm(H) Cavity Size: 420mm(W)X395mm(D)X210mm(H) Weight: 35KG USING THE OVEN Before using the appliance Remove any labels (apart from the technical data plate) from trays, dripping pans and the cooking compartment.

  • Page 9: Instructions For The User

    Instructions for the user 4. GET TO KNOW YOUR MWO OVEN 4.1 Control Panel/Button Define Grill Icon Microwave Icon Comi-Icon Clock Icon Defrost Icon Auto Manual Start Icon Clock Alarm Child Lock Weight...
  • Page 10 Instructions for the user 4.3 Structure diagram 4.4 Screen display rules When Microwave Oven power on, the display screen begin demo. and icons on screen begin flashing from left to right/top to botton in 2HZ frequency. When selected any function, if the funtion not start the icon will flash in 2HZ frequency, untill function starts the icon keeps lighting.
  • Page 11 Instructions for the user 5. USING THE OVEN 5.1 Description On functions 5.2.1 Setting Cooking time Input cooking time/temperature: use time+, or time- to setting cooking time 0-3 minutes: every push for 10S 3-10minutes: every push for 30S 10-30minutes: every push for 1minute 30-60 minutes: every push for 2 minutes Press time+ or time-- for 1.5S, the setting automatically add or reduce.
  • Page 12 Instructions for the user 5. USING THE OVEN 5.1 Description On functions 5.2.4 Microwave function Cooking time of Max is 60 minutes: Microwave fire list as below: Cycle 22S Microwave Power LCD Dispaly LCD Display (Time/Cycle) (Upper 4bit “8”) (Bottom 4bit “8”) 100%(22/22) P100 Cooking Time...
  • Page 13 Instructions for the user 5. USING THE OVEN Under standby situation, press “ ” button to display “DEF”, icon flashing, press “time+/-” to input cooking weight, “g” begin flashing, press “start/reset” to begin work, “g” keeps lighting turn off. Max defrost weight: 2000g Defrost power and time relations: T is defrost time Step1 Step2...
  • Page 14 Instructions for the user b. xx/xx is connection time/cycle working cycle time, e.g 25/30 as a working cycle 30S, and in which power connection works for 25S. c. Under grill function, when grill time passed half, it beeps 2times and remind the user to turning cooking food, and cooking pause;...
  • Page 15 Instructions for the user Menu type Normal Menu LCD bottom 4bit “8” LCD upper4bit “8” weight AUTO REHEAT RICE weight VEGETABLE weight MEAT weight FISH weight CHICKEN weight Menu cooking time (weight g) (MEAT) (RICE) (VEGETABLE) (AUTO REHEAT) 100%power 80%power 100% power 80%power weight...

  • Page 16: Cleaning And Maintenance

    Instructions for the user 6. Child Safty Lock Under Oven Standby situation, press “time+” and “time-” at the same time 2s, keeps lighting, and then all buttons are invalid for functions. It can avoid the hurt to child if miss pressed. Press “time+” and “time-” at the same time for 2s, flash off, the child lock dismissed, flash off and back to standby situation.

  • Page 17: Care Of Your Microwave Oven

    Instructions for the user Food stains or residues Do not use steel sponges or sharp scrapers as they will damage the surface. Use normal non-abrasive products and a wooden or plastic tool if necessary. Rinse thoroughly and dry with a soft cloth or a microfibre cloth.

  • Page 18: Installing The Appliance

    Instructions for the user 5.If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth.This may occur when the microwave oven is operated under high humidity conditions and in no way indicates malfunction of the unit. 6.It is occasionally necessary to remove the glass tray for cleaning.Wash the tray in warm sudsy water or in a dishwasher.
  • Page 19 Instructions for the installor Open the oven door, and fix the oven to intergrated kitchen with 4 selfscrew. as above diagram. SCHEMATIC DIAGRAM (DOOR OPENED,COOK OFF CONDITION) TRANSFORMER NOISE FILTER MAGNETRON CONTROLLER L: LAMP SWA: PRIMARY INTERLOCK SWITCH SWB: SECONDARY INTERLOCK SWITCH FM: FAN MOTOR TM: TURNTABLE MOTOR SWC: THE MONITOR INTERLOCK SWITCH...
