Summary of Contents for ATD Tools Saber ATD-80373

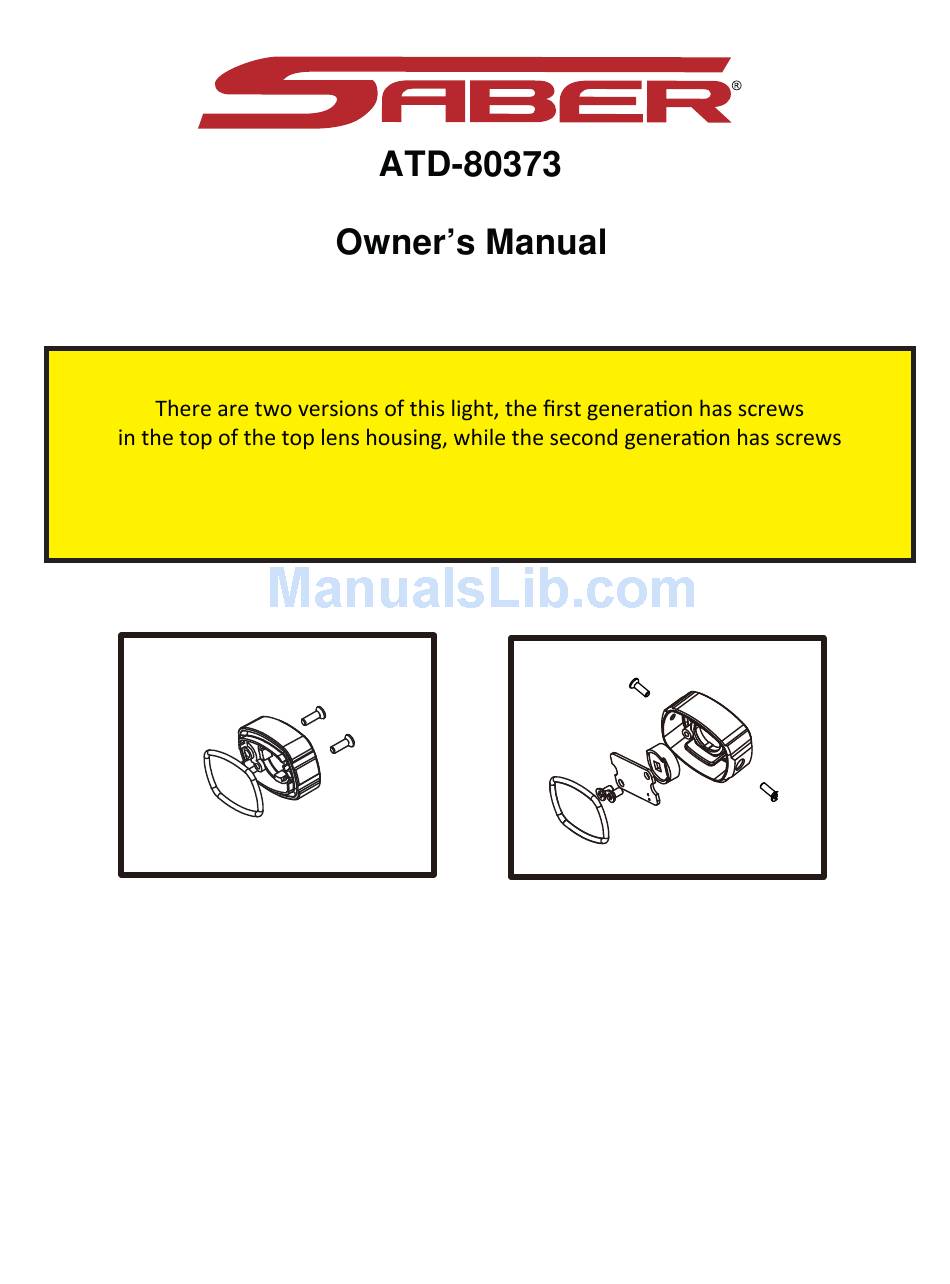

- Page 1 300 Lumen COB Rechargeable Work Light PLEASE NOTE BEFORE ORDERING PARTS: in the sides of the top lens housing. Please see the correct drawing for the correct part numbers for YOUR light. THESE PARTS ARE NOT INTERCHANGEABLE! 1st Generation 2nd Generation...
- Page 2 300 Lumen COB Rechargeable Work Light · Front 300 lumens (high), 160 lumens (low) · 50 lumens · · · · · Tough, impact resistant ergonomic housing · Run Time: Up to 3-hours (high), up to 6-hours (low) · IP54 rated for dust & water resistance ·...
- Page 3 (FIRST GENERATION) ITEM# ORDERING PART# PART DESCRIPTION ITEM# ORDERING PART# PART DESCRIPTION PRT80373-01 DC COVER PRT80373-09 PRT80373-02 BOTTOM FIXED BLOCK PRT80373-10 HEAT SINK PRT80373-03 LI-ION BATTERY PRT80373-11 SCREW B PRT80373-04 SCREW A PRT80373-12 LED COVER PRT80373-05 HANDLE PRT80373-13 O-RING PRT80373-06 PCBA WITH TOP LED PRT80373-14 TOP FIXED BLOCK...
- Page 4 (SECOND GENERATION) PRT80373-07-14 TOP BLOCK PRT80373-07-14 TOP BLOCK PRT80373-07-14 TOP BLOCK REFLECTOR & PC TUBE ASSB. (REV 03-16)
