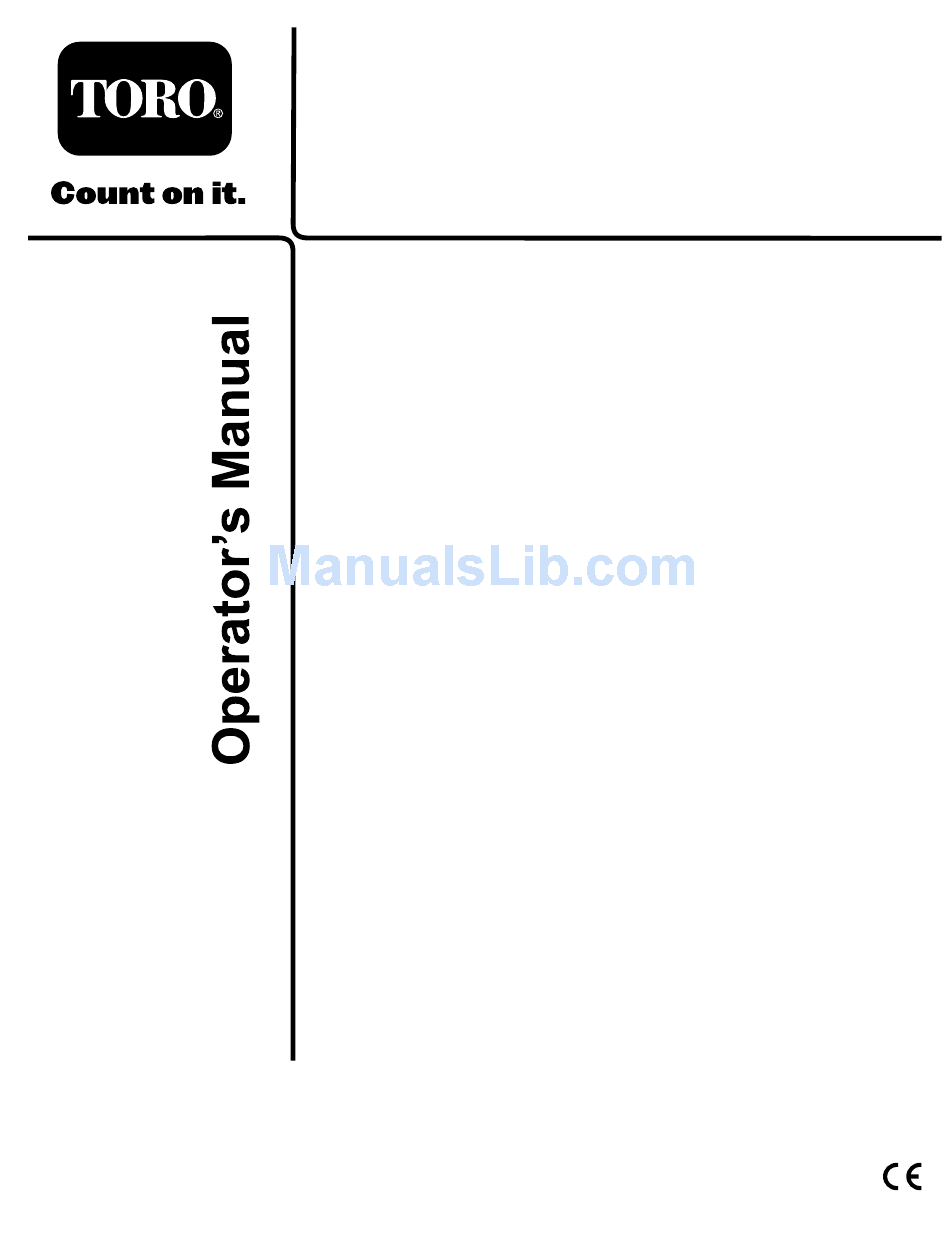

- Page 1 Form No. 3361-655 Rev A 52in Side Discharge Mower Groundsmaster ® 200 Series, 3280D & 3320 Model No. 30555—Serial No. 290000001 and Up To register your product or download an Operator's Manual or Parts Catalog at no charge, go to www.Toro.com. Original Instructions (EN)
-
Page 2: Table Of Contents
Whenever you need service, genuine Toro parts, or 5 Installing Rear Weight ........12 additional information, contact an Authorized Service Product Overview ............13 Dealer or Toro Customer Service and have the model Specifications ............. 13 and serial numbers of your product ready. The model Attachments/Accessories........13 and serial numbers are stamped into a plate located on Operation.............. -
Page 3: Safety
Safety – Use only an approved container. – Never remove fuel cap or add fuel with engine This machine meets or exceeds CEN standard running. Allow engine to cool before refueling. EN 836:1997, ISO standard 5395:1990, and ANSI Do not smoke. B71.4-2004 specifications in effect at the time of –... -
Page 4: Toro Mower Safety
• Keep your body and hands away from pin hole The following list contains safety information specific leaks or nozzles that eject hydraulic fluid under high to Toro products or other safety information that you pressure. Use paper or cardboard, not your hands,... - Page 5 Authorized Toro Distributor. • To make sure of optimum performance and continued safety certification of the machine, use only genuine Toro replacement parts and accessories. Replacement parts and accessories made by other manufacturers could be dangerous, and such use could void the product warranty.
-
Page 6: Safety And Instructional Decals
Safety and Instructional Decals Safety decals and instructions are easily visible to the operator and are located near any area of potential danger. Replace any decal that is damaged or lost. 107-2916 1. Remove the ignition key and read the 2. - Page 7 105–9551 1. Warning—read the 2. Lower the cutting deck Operator’s Manual. when traveling down slopes. GM225 unites 107-2915 require 25 kg (55 lbs) of rear weight. GM228D and 1. Entanglement hazard, shaft—tykeep bystanders a safe four-wheel drive units do distance from the machine. not require rear weight.
-
Page 8: Setup
Note: When installing the 52 inch deck onto a Pivot pin Groundsmaster 200 Series traction unit, the Weight Cotter pin (5/32 x 1-3/4 inches) Transfer Kit, Toro Part Number 70-8090 must be installed. Procedure 1. On one side of the traction unit, loosen (do not remove) the wheel nuts securing the wheel and tire assembly to the front wheel studs. -
Page 9: Installing The Carrier Frame
2. Jack up the machine until the front wheel is off of the floor. Use jack stands or block the machine to prevent it from accidentally falling. 3. Remove the wheel nuts and slide the wheel and tire assembly off of the studs. 4. -
Page 10: Installing The Cutting Unit
G010543 Figure 5 3. Thrust washers 1. Castor wheel assembly 2. Carrier frame 4. Lynch pin G010545 3. Mount a rear cradle to each lift arm with 3 bolts Figure 7 (3/8 x 2 inches), spacers, and flange nuts as shown 1. - Page 11 3. Remove the 2 bolts and lock washers securing the PTO guard mounting brackets to the gear box (Figure 8). Retain the fasteners for future installation. Figure 8 1. PTO guard 2. Gear box Figure 9 4. Slide the PTO shaft guard onto the PTO shaft, 1.
-
Page 12: Installing The Ce Decal
Refer to the chart in the traction unit Operator’s Manual to determine the combinations of weight required. Order the parts from your local Authorized Toro Distributor. Four Wheel Drive Groundsmaster 200 Series and 3280-D traction units do not need additional rear weight... -
Page 13: Product Overview
Contact your Authorized Service Dealer or Distributor or go to www.Toro.com for a list of all approved attachments Figure 11 and accessories. 1. 1 inch (25 mm) 6. -
Page 14: Checking The Gear Box Lubricant
Checking the Gear Box Using the Grass Deflector Lubricant The gear box is designed to operate on SAE 80-90 wt. gear lube. Although the gear box is shipped with Without the grass deflector mounted in place, lubricant from the factory, check the level before you and others are exposed to blade contact operating the cutting unit. -
Page 15: Maintenance
Maintenance Lubrication The cutting unit must be lubricated regularly. If the machine is operated under normal conditions, lubricate the castor bearings and bushings with No. 2 general purpose lithium base grease or molybdenum base grease after every 8 hours of operation or daily, whichever comes first. -
Page 16: Servicing The Bushings In The Castor Arms
Figure 17 1. PTO shaft G010553 Figure 18 If the engine is started and the PTO shaft is 1. Lynch pin 2. Thrust washers allowed to rotate, serious injury could result. Do not start the engine and engage the PTO 5. -
Page 17: Checking For A Bent Blade
4. Spanner bushing blade is out-of-balance, worn, or bent. Always use 2. Thrust washer 5. Roller bearing genuine Toro replacement blades to ensure safety and 3. Bearing retainer optimum performance. Never use blades made by other manufacturers because they could be dangerous. -
Page 18: Inspecting And Sharpening The Blade
• Replace a worn or damaged blade with a Both cutting edges and the sail, which is the turned up new Toro blade to ensure continued safety portion opposite the cutting edge, contribute to a good certification of the product. -
Page 19: Checking And Correcting Mismatch Of Blades
Checking and Correcting 8. Compare the measurements at various positions. All dimensions must be equal within 1/4 inch (6 Mismatch of Blades mm) from any 2 adjacent blades. The difference between the dimensions of all 3 blades must not If one cutting blade cuts lower than the others, correct exceed 3/8 inch (10 mm). -
Page 20: Replacing The Grass Deflector
Adjusting the Idler Pulley D. Transfer one thrust washer from the lower side of the castor shaft to the top side, install the The idler pulley applies force against the belt so that assembly, and compare the blade height of all of power can be transmitted to the blade pulleys. - Page 21 1. Position the machine on a level surface, lower the cutting unit, engage the parking brake, put the traction pedal in neutral, the PTO lever in the Off position, shut the engine off, and remove the ignition key. 2. Release and unhook the latches securing the covers to the top of the cutting unit.
-
Page 22: Troubleshooting
Troubleshooting Problem Possible Cause Corrective Action The cutting unit will not cut or cuts poorly. 1. The blades are dull. 1. Sharpen the blades. 2. One or more blades are bent or 2. Replace the blades. damaged. 3. The spindle bolts are loose. 3. - Page 23 Notes:...
- Page 24 Countries Other than the United States or Canada Customers who have purchased Toro products exported from the United States or Canada should contact their Toro Distributor (Dealer) to obtain guarantee policies for your country, province, or state. If for any reason you are dissatisfi ed with your Distributor’s service or have diffi...
