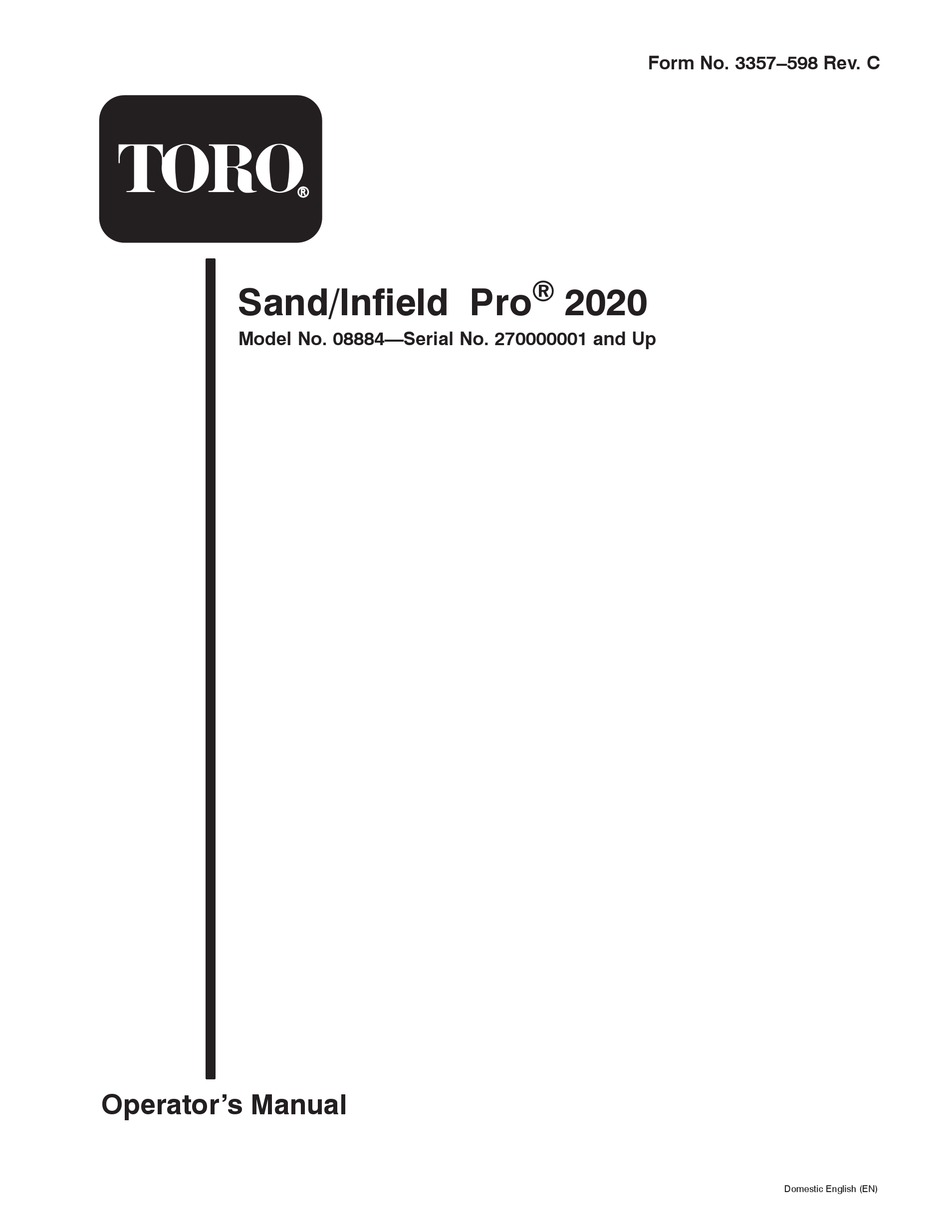

- Page 1 Form No. 3357–598 Rev. C Sand/Infield Pro 2020 Model No. 08884—Serial No. 270000001 and Up Operator’s Manual Domestic English (EN)
-
Page 2: Table Of Contents
....... Evaporative Emission Control Warranty Statement . . The Toro General Commercial Products Warranty . . . -
Page 3: Introduction
Authorized Service understanding the contents of this manual. Dealer or Toro Customer Service and have the model and • Never allow children to operate the machine or adults to serial numbers of your product ready. These numbers are operate it without proper instructions. -
Page 4: Maintenance
Maximum engine speed is 3200 RPM. To ensure safety • Do not touch the engine, muffler, or exhaust pipe while and accuracy, have an Authorized Toro Distributor the engine is running or soon after it has stopped check the maximum engine speed with a tachometer. -
Page 5: Sound Power Level
Sound Power Level Whole Body This unit does not exceed a vibration level of 0.5 m/s@ at This unit has a guaranteed sound power level of: the posterior based on measurements of identical machines 96 dBA/1 pW, based on measurements of identical per EN 1032. - Page 6 95-0645 1. Hot surface—keep bystanders away. 93-7276 1. Explosion hazard—wear eye protection. 2. Chemical burns to hands—flush with water and seek medical attention. 3. Fire hazard—no sparks, flame, or smoking. 4. Poison—keep children away from the battery. 95-0647 1. Implement float position 3.
-
Page 7: Specifications
Specifications General Specifications Short wheel base tricycle vehicle with mid engine placement. Rear wheels Configuration powered. Front wheel steering. Operator positioned centrally. Briggs & Stratton, V-twin cylinder, 4 cycle, OHV, air cooled, gas engine with cast iron sleeves. 16 hp @ 3600 RPM, 29.3 cu. in. (480 cc) displacement, 1-3/4 US qt. Engine (1.66 l) oil capacity. -
Page 8: Setup
Cotter pin Decal Affix on machine, if desired. Parts catalog Operator’s Manual Read before operating the machine. Engine Operator’s Manual Operator Training Material Registration card Fill out and return to Toro. Note: Specifications and design subject to change without notice. -
Page 9: Installing The Steering Wheel
Installing the Steering Wheel 1. Remove the filler caps from the battery and slowly fill each cell until electrolyte is up to the fill line. 1. Move the front wheel so that it points straight ahead. 2. Replace the filler caps and connect a 3 to 4 amp. battery charger to the battery posts. -
Page 10: Installing The Refuse Container
Installing the Refuse Container Warning Slide the refuse container onto the mounting studs on the front of the fuel tank (Fig. 3). Incorrect battery cable routing could damage the machine and cables causing sparks. Sparks can cause the battery gasses to explode, resulting in personal injury. -
Page 11: Before Operating
Before Operating Caution If you leave the key in the ignition switch, someone could accidently start the engine and seriously injure you or other bystanders. Remove the key from the ignition and disconnect the wire from the spark plug before you do any maintenance. -
Page 12: Filling The Fuel Tank
Filling the Fuel Tank Warning Use UNLEADED Regular Gasoline suitable for automotive use (87 pump octane minimum). Leaded regular gasoline Gasoline is harmful or fatal if swallowed. may be used if unleaded regular is not available. Long-term exposure to vapors can cause serious injury and illness. -
Page 13: Checking The Hydraulic System
Alternate fluid: Mobil EAL 224H This is vegetable–oil based biodegradable oil tested and approved by Toro for this model. This fluid is not as resistant to high temperatures as standard fluid, so install an oil cooler if required by the operator manual and follow recommended fluid change intervals with this fluid. -
Page 14: Operation
Operation Important For maximum pulling power, the throttle should be in the Fast position and the traction pedal just barely depressed. Note: Determine the left and right sides of the machine from the normal operating position. Caution Using the Controls Use the maximum ground speed only when driving from one area to another. -
Page 15: Throttle Control
Throttle Control Fuel Shutoff Valve The throttle control lever (Fig. 9) connects to and operates Close the fuel shutoff valve (Fig. 11) when storing the the throttle linkage to the carburetor. The control has 2 machine. positions: Slow and Fast. The engine speed can be varied between the 2 settings. -
Page 16: Operation
Operation Checking the Interlock System Operation Note: Determine the left and right sides of the machine from the normal operating position. Caution Starting and Stopping the If safety interlock switches are disconnected or Engine damaged the machine could operate unexpectedly causing personal injury. -
Page 17: Break-In Period
Break-In Period Inspecting and Cleaning the Machine Only 8 hours of operating time is required for the break-in period. At the completion of operation, thoroughly wash the machine with a garden hose—without a nozzle—so that Since the first hours of operation are critical to future excessive water pressure will not cause contamination and dependability of the machine, monitor its functions and damage to the seals and bearings. -
Page 18: Maintenance
Maintenance Note: Determine the left and right sides of the machine from the normal operating position. Recommended Maintenance Schedule Maintenance Service Maintenance Procedure Interval • Change the engine oil and filter. After first 8 hours • Torque the wheel lug nuts. •... -
Page 19: Daily Maintenance Checklist
Daily Maintenance Checklist Duplicate this page for routine use. For the week of: Mon. Tues. Wed. Thurs. Fri. Sat. Sun. Maintenance Check Item Check safety interlock operation. Check steering operation. Check the engine oil level. Check the air filter/pre-cleaner condition. Clean the engine cooling fins. -
Page 20: Lubricating The Machine
Caution If you leave the key in the ignition switch, someone could accidently start the engine and seriously injure you or other bystanders. Remove the key from the ignition and disconnect the wire from the spark plug before you do any maintenance. -
Page 21: Changing The Engine Oil And Filter
Changing the Engine Oil and 4. Remove the filter and cover plate. Inspect the filter for cleanliness, ruptures, holes, and tears. Replace a Filter damaged filter element. Change the oil and filter initially after the first 8 hours of Important With the air cleaner disassembled, check the operation;... -
Page 22: Adjusting The Throttle Control
Adjusting the Throttle Control Proper throttle operation is dependent upon proper adjustment of the throttle control. Before adjusting the Î Î Î Î carburetor, ensure that the throttle control is operating properly. 1. Pivot the seat upward and remove the engine shield. 2. -
Page 23: Adjust The Engine Governor Speed Control
Adjust the Engine Governor 4. Adjust the idle stop screw until the idle speed is increased 25 to 50 RPM over the idle speed set in step Speed Control 3. Final idle speed must be 1750$100 RPM. 5. Move the throttle control to the Fast position. Bend the Important Before the engine governor speed control is high speed spring anchor tang (Fig. -
Page 24: Cleaning The Cylinder Head Fins
Use a and Hoses genuine Toro oil filter for replacement. The hydraulic oil must be changed every 400 hours of operation or yearly, Check the hydraulic lines and hoses daily for leaks, kinked whichever occurs first. -
Page 25: Adjusting The Steering Chain
pump and reverse the locations. If the wheel rotates in the proper direction, stop the engine and adjust the spring adjusting pin locknut. Adjust the traction neutral position; refer to Adjusting the Traction Drive for Neutral. 8. Check the adjustment of the traction interlock switch; refer to Adjusting the Traction Interlock Switch. -
Page 26: Adjusting The Traction Drive For Neutral
Warning The engine must be running so that the final adjustment of the traction adjustment cam can be performed. Contact with moving parts or hot surfaces may cause personal injury. Keep hands, feet, face, and other body parts away from rotating parts, the muffler, and other hot surfaces. -
Page 27: Adjusting The Brake Interlock Switch
Figure 25 Figure 27 1. Pedal 3. Control rod 1. Brake switch mounting 2. Parking brake lift lever 2. Jam nuts link 7. Engage and disengage the parking brake to make sure it Adjusting the Brake Interlock does not interfere with the switch. Switch 8. -
Page 28: Adjusting The Lift Lever
Caring for the Battery 3. If modifying the actuator rod length does not improve brake performance, adjust both the left and right adjustment rods equally using the same procedure The battery electrolyte level must be properly maintained described in step 2. and the top of the battery kept clean. -
Page 29: Storage
B. Clean the battery, terminals and posts with a wire brush and baking soda solution. C. Coat the cable terminals and battery posts with Grafo 112X skin–over grease (Toro Part No. 505–47), or petroleum jelly to prevent corrosion. D. Slowly recharge the battery for 24 hours every 60 days to prevent lead sulfation of the battery. -
Page 30: Electrical Schematic
Electrical Schematic... -
Page 31: Hydraulic Schematic
Hydraulic Schematic... - Page 32 NOTES...
- Page 33 NOTES...
- Page 34 NOTES...
-
Page 35: Evaporative Emission Control Warranty Statement
Company. Owner’s Warranty Responsibilities: ® As the equipment owner, you are responsible for performance of the required maintenance listed in your Operator’s Manual. The Toro • ® Company recommends that you retain all receipts covering maintenance on your equipment, but The Toro Company cannot deny warranty solely for the lack of receipts. -
Page 36: The Toro General Commercial Products Warranty
If for any reason you are dissatisfied with your Distributor’s service or have difficulty obtaining guarantee information, contact the Toro importer. If all other remedies fail, you may contact us at Toro Warranty Company.
