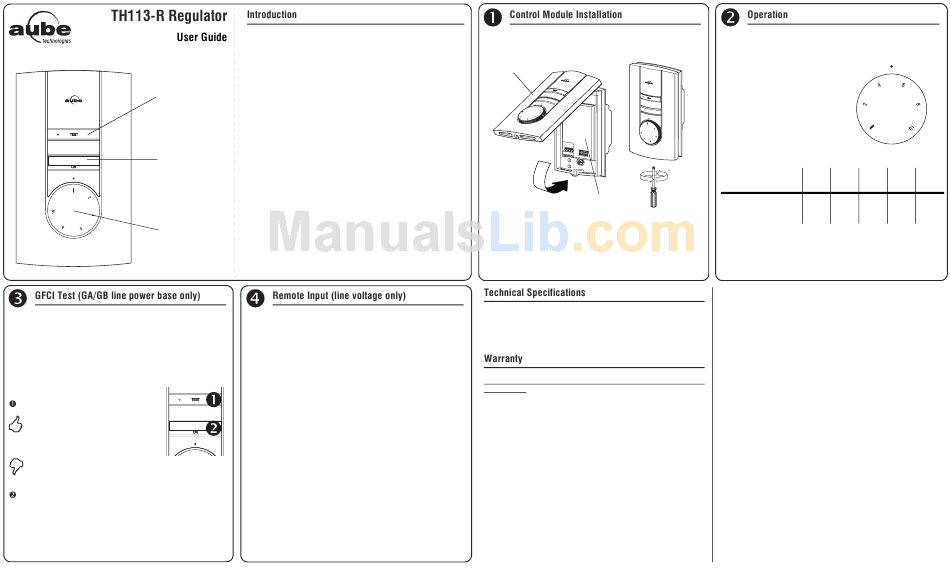

Aube Technologies TH113-R User Manual

GFCI Test
and Warning
Light
On/StandBy
Switch
Power
Selection
Dial
The GFCI monitors the electrical flow for any loss of
current; if there is any loss, the thermostat will cut off
power to the heating system.
We recommend you test the GFCI immediately after
installing the control module, and once a month thereafter
to ensure it is operating properly.
To test:
Press the TEST button:
• Successful: TEST warning
light is ON and power to
heating system is cut off.
• Unsuccessful: TEST warning
light is OFF.
Cut power to heating system from the main power
panel and call customer service.
When successful, reset thermostat (STANDBY/ON)
to power heating system.
NOTE: If the test warning light comes ON during normal
operation, cut power to heating system from the main
power panel and have an electrician verify the installation.
Thank you for choosing Aube's TH113-R Regulator.
The TH113-R is specially designed to control a floor
heating installation, a baseboard or a convector.
The TH113-R regulator operates like a dimmer switch to
allow you to easily adjust the amount of power sent to
your heating system.
It features an integrated GFCI, and includes a test button
and warning light for added security.
This regulator is also equipped with an ON/STANDBY
switch making it possible to put it in sleep mode when its
use is not required (e.g. summer).
IMPORTANT!
The GFCI and Remote Input options are not available
with a low voltage power base. Skip sections 3 and 4.
When a remote control interface (Aube CT241 or any
other remote control system) is connected to the power
base's remote input and a signal is received, the TH113-R
module automatically lowers the percentage by 35%
based on the dial's current position.
The LED lights up to indicate the signal's presence
(except for GA and GB models).
The TEST button can be used to bypass the signal for a
2-hour period.
The LED goes off to indicate the bypass.
NOTE: When combined with a GA or GB power base, the
TEST button is used only for GFCI testing. The
percentage is decreased, but the bypass function and
indicator are not available.
Align the bracket tabs on the regulator with the holes
located on the power base.
Control Module
Power Base
This regulator must be installed on a PB112 power
base.
The screw cannot be removed completely.
Keep the regulator's air vents clean and free from
obstructions.
Model: TH113-R
Power setting range: 0 to 100%
Storage: -20°C to 50°C (-4°F to 120°F)
AUBE TECHNOLOGIES INC. ONE (1) YEAR
WARRANTY
This product is guaranteed against workmanship defects for a one
year period following the initial date of purchase. During this period,
AUBE Technologies Inc. will repair or replace, at our option and
without charge, any defective product which has been used under
normal conditions.
The warranty does not cover delivery costs and does not apply to
products poorly installed or randomly damaged following installation.
This warranty cancels and replaces any other manufacturer's
express or implied warranty as well as any other company
commitment.
AUBE Technologies Inc. cannot be held liable for related or random
damages following the installation of this product. The defective
product as well as the purchase invoice must be returned to the
place of purchase or mailed, prepaid and insured, to the following
address:
Aube Technologies Inc.
705 Montrichard
Saint-Jean-sur-Richelieu, Quebec, Canada J2X 5K8
The TH113-R regulator operates on perpetual 15-minute
heating cycles.
For example, if the dial is set
halfway, the system will heat
for 50% of the cycle; it will be
ON for 7.5 minutes and OFF
for 7.5 minutes.
Below is a detailed table of the
cycle duration based on the
dial's position:
Position and I 2 4
equivalent % 0% 20% 40%
ON 0 min 3 min 6 min
OFF 15 min 12 min 9 min
NOTE: Depending on the power base used, the heating
cycles can be 15 seconds or 15 minutes.
If you have any questions concerning the TH113-R
Regulator, call our technical support team at:
Phone: Montreal area: (450) 358-4600
Canada / U.S.: 1-800-831-AUBE
Fax: (450) 358-4650
LIMITED
Email: service@aubetech.com
Monday to Friday from 8:30 AM to 5:00 PM EST.
For more information on our products, visit us at:
www.aubetech.com
6 8 10
60% 80% 100%
9 min 12 min 15 min
6 min 3 min 0 min
(2823)
05/11/03 400-113-004-A
